Machine features

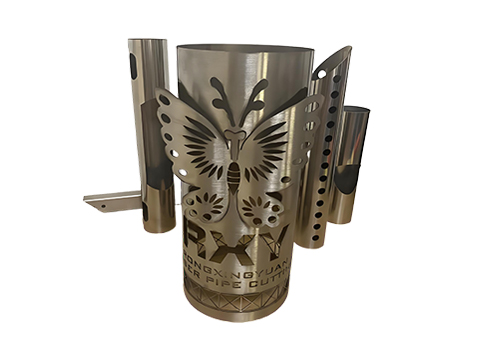

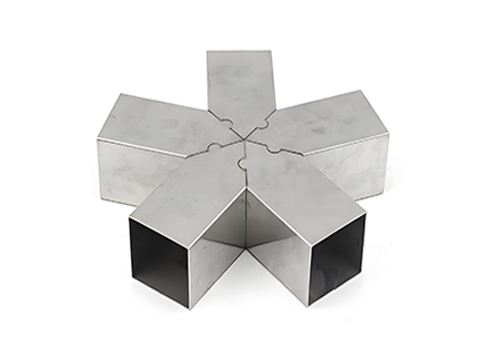

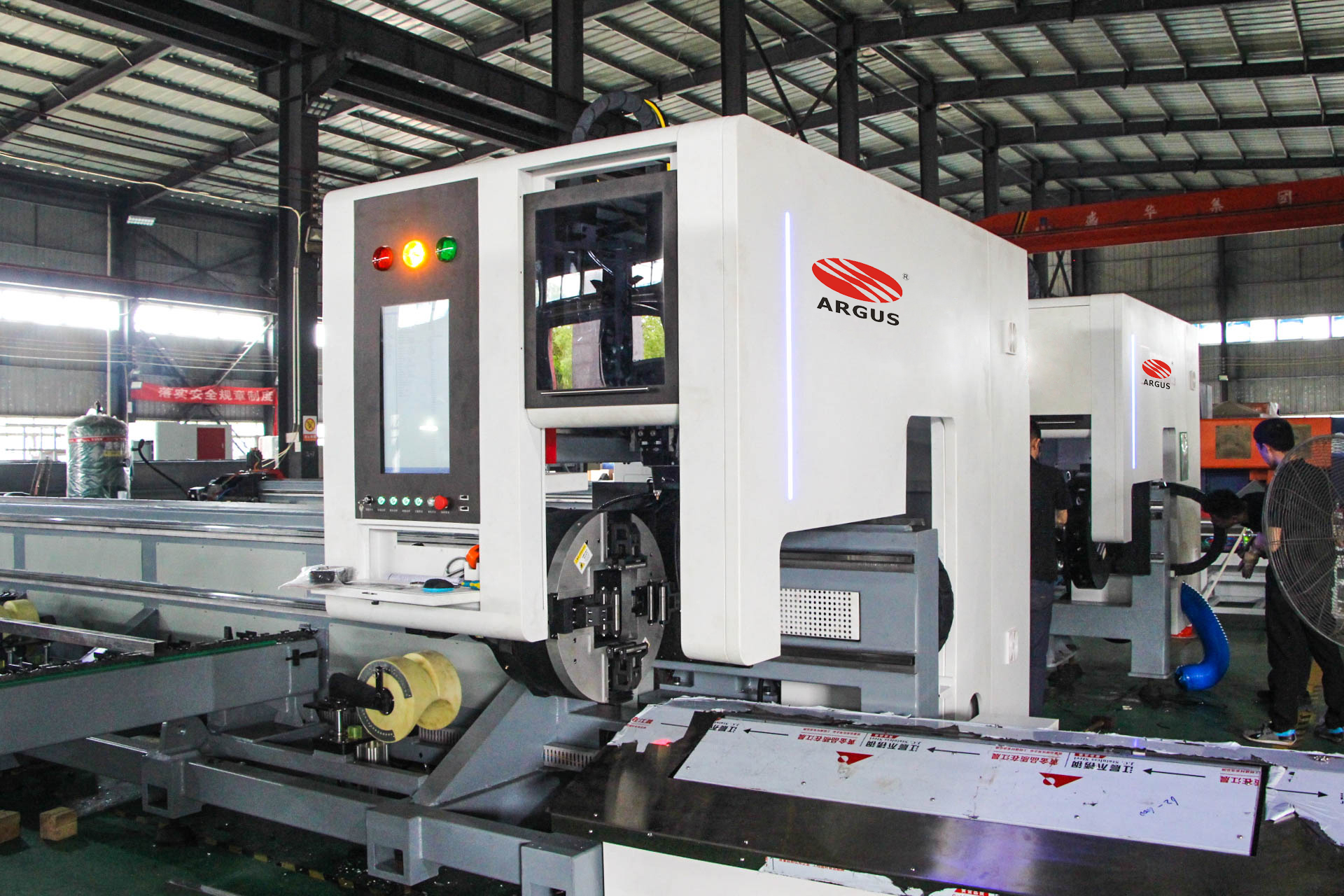

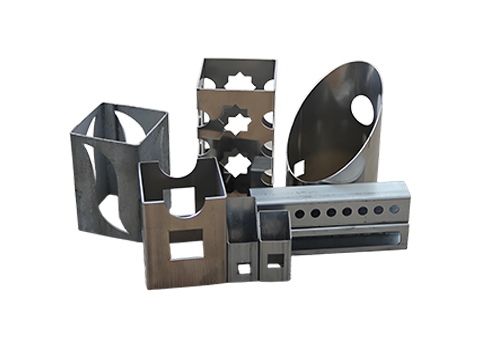

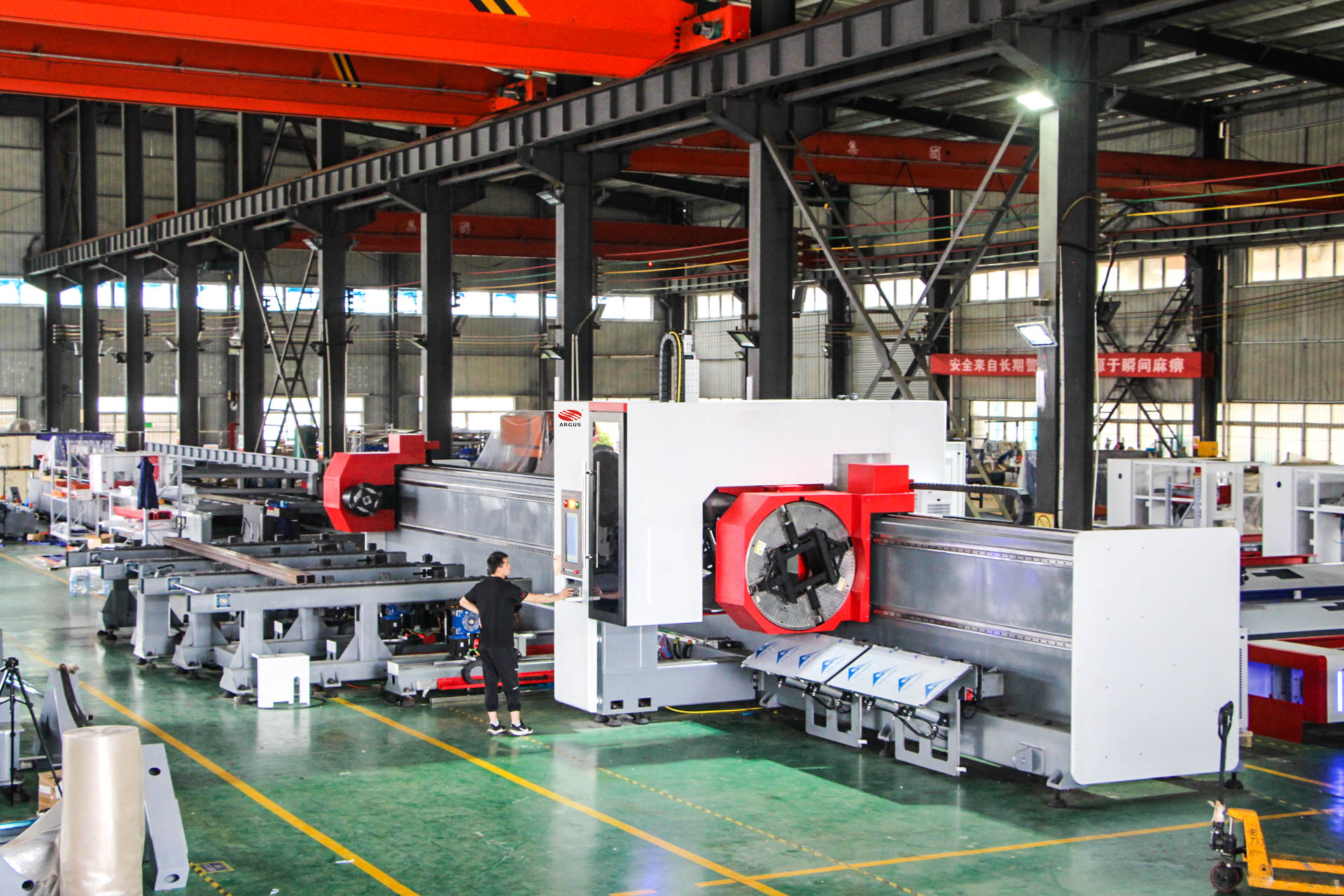

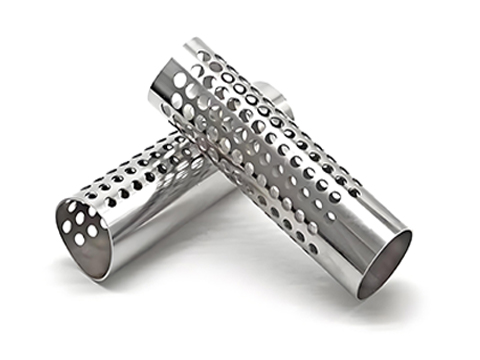

Metal tube fiber laser cutting machine is able to cut round tube, square tube, rectangular tube, U-steel tube. It is equipped with automatic feeding device. Large format cutting area meets the demands of various kinds of metal processing. Highly automated, strong anti-interference ability and fast dynamic response.

Technical parameters

Model	SFC-6000T

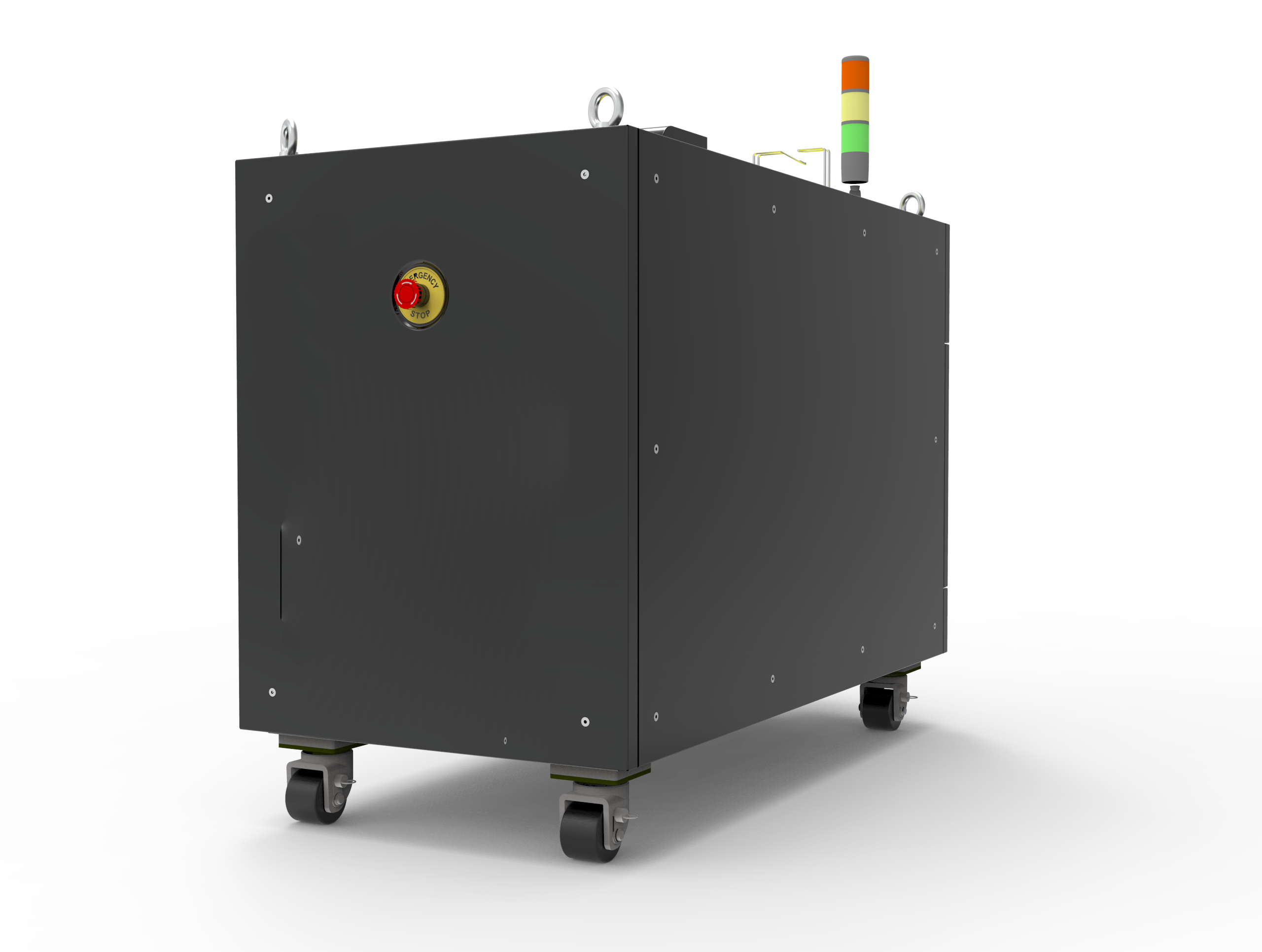

Laser type	Fiber laser, 1080nm
Laser power	1000w, 1500w, 2000w, 3000w, 4000w, 6000w
Length range of tube cutting	0-6000mm
Diameter of the tube	20-220mm
Positioning accuracy	±0.05mm/m
Repeated positioning accuracy	±0.03mm/m
Max. Cutting speed	60m/min

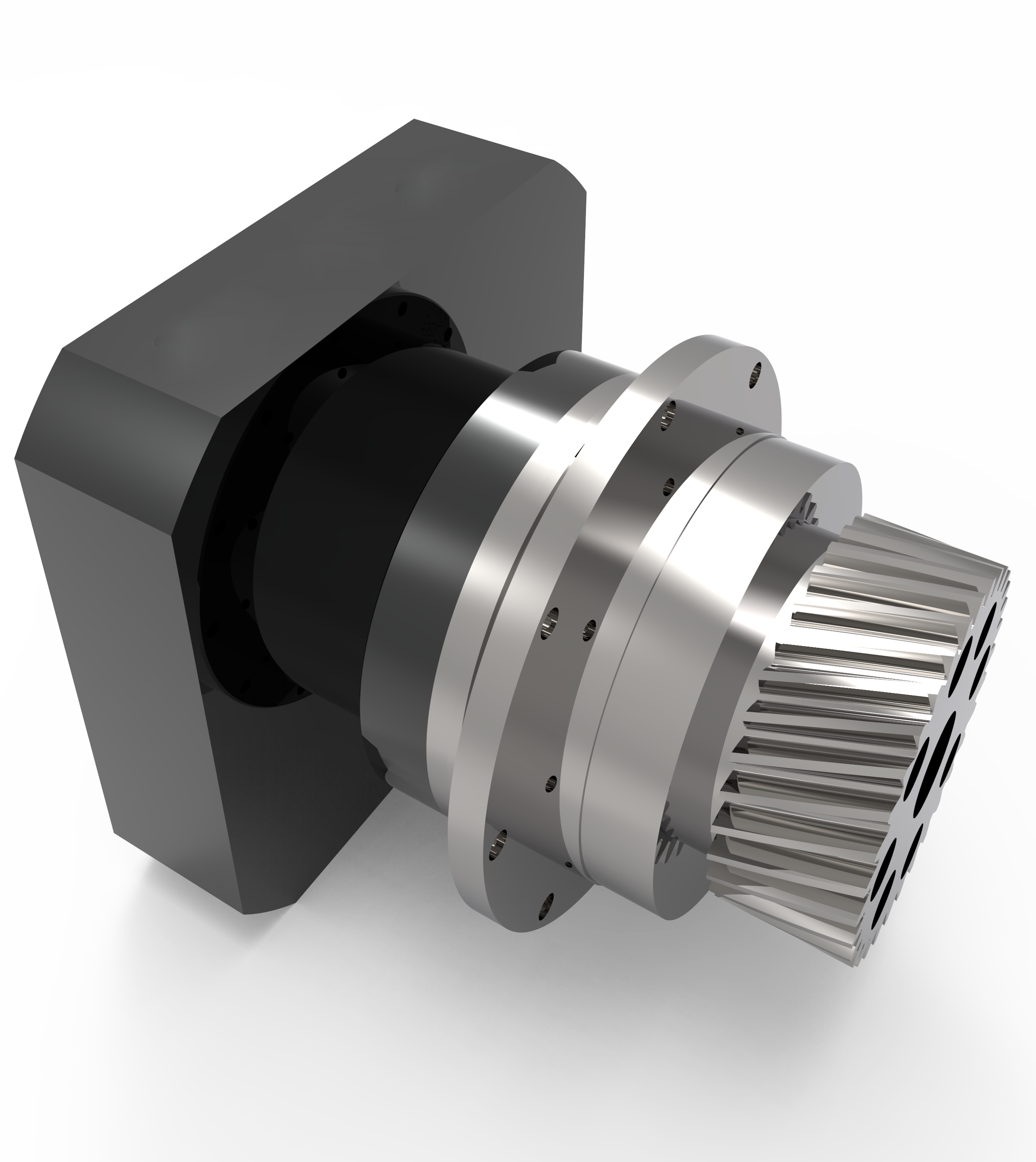

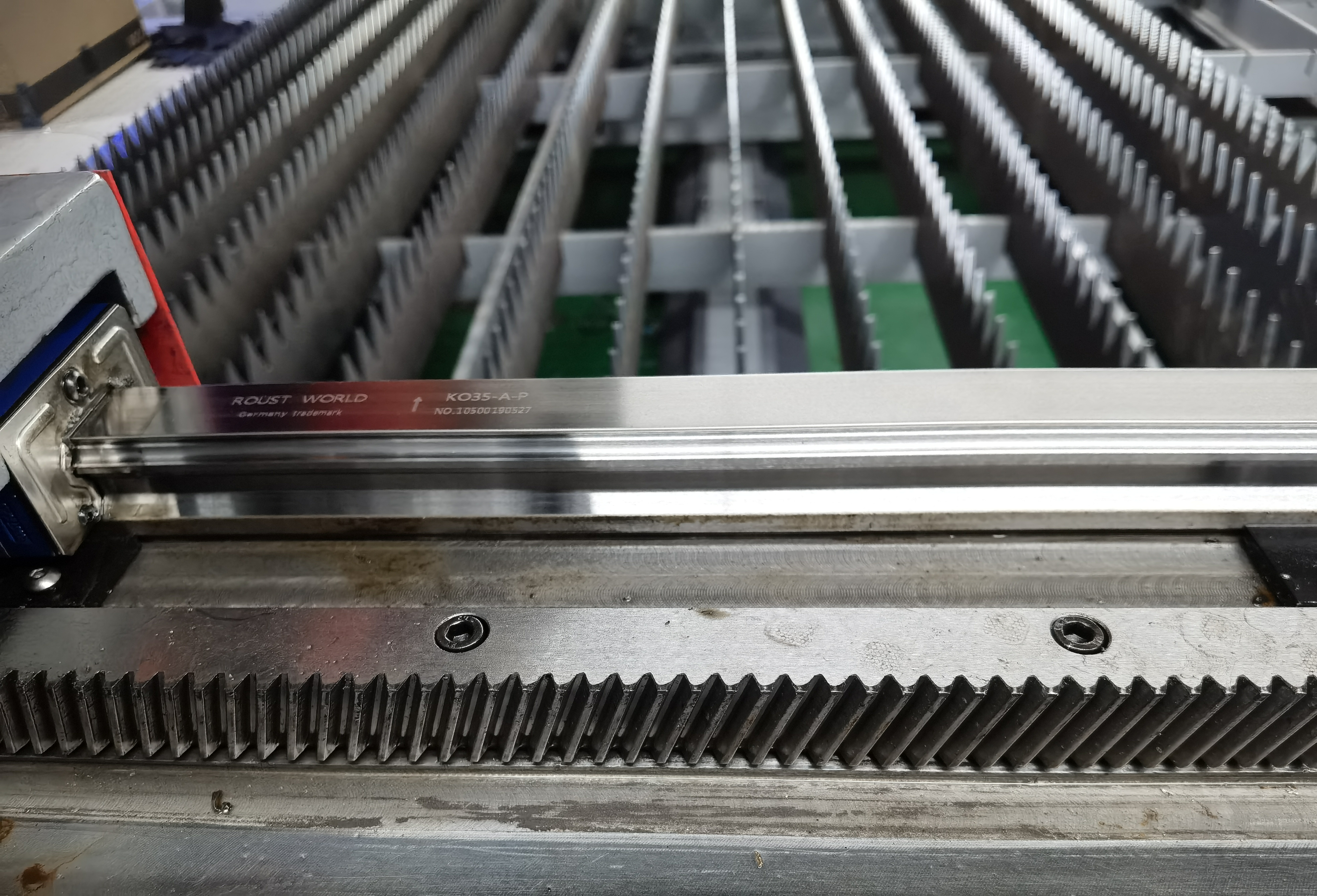

Transmission type	Precision dual gear rack transmission
Driving system	Serve motors
Cutting thickness	Depending on laser power and material
Assisting gas	Compressed air, oxygen and nitrogen
Cooling mode	Industrial circulation water chiller
Visual positioning	Red dot
Working voltage	220V 2 phase / 380V 3 phase
