ARGUS Factory Direct Sale Automatic Laser Seam Tracking System Work Welding Robot Machine 2KW 6KW Robot Welder

Automatic 6 Axis Robot Arm Fiber Laser Robotic Welding Machine China Manufacturers Suppliers Factory Buy
Availability:
Quantity:
Inquire Add to Basket

  • SFW1500/ SFW2000/SFW3000/SFW6000

机械臂首图

| Technical parameters


                                   Welding Process Reference Parameters

Product Name

 Double pendulum industrial robot laser welding equipment
Laser Mode Fiber Laser Source
Wavelength 1064nm
Laser Power 2000W/3000W/6000W
Red Light Position Function Yes
Expect Lifespan 100000 hours
Focus Length 150mm
Fiber length 15m
Laser Beam Width Max 5mm
Machine Cunsumed Power 15kw

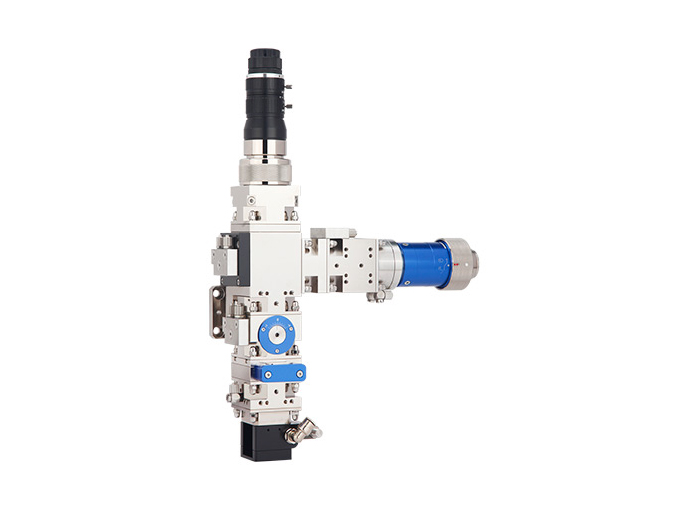

Welding Head



Raytools
Software
Control Card
Cooling Way Water Cooling
Control Interface 7” LED Touch Screen
Operation Language English(Optional)
Power Supply 220V/50Hz/2kVA (Customized)
Protective Gas (Prepared by customer) Argon Gas

|

 Product Details

04


Welding Quality

Stable welding quality, high precision, small deformation, high penetration, no weld penetration.

03




Easy to Use


Improve workers' working conditions and reduce the requirements for workers' operational skills.



05



Increase Revenue

Increase production and improve corporate efficiency.


02




Intelligent Operation


Intelligent operation, flexible and reliable,
six-axis linkage, can be welded in any space, not limited to the plane welding.


01



Multi-station Available


Double station or multi station welding operation, save the product installation fixture time, greatly improve production efficiency.



| Product Description

photobank (1)What is fiber laser welding machine application ?

Fiber laser welding machine is a new technology special for weld most of metal , Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, aluminum,aluminum alloy, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet marking and engraving. Compare with traditional Argon arc, MMA and TIG Welding , it has many advantage as follow:

1.  Easy to operate , no need any experience, even a women also can did well on it .

2.  High efficiency , 4-12 times faster than traditional welding.

3. It can be  welded at any angle, also can Butt welding, Vertical position welding, Fillet welding, Stitch welding , etc . Most important, almost no need polishing after welding. As the base metal will not deformation and not have scar. Also it is more firm and stable .

4.  Cost is much lower, labor cost and electricity cost are reduced by at least 50%

5. Employee safety. No radiation, no harm to people, just wear glasses.


photobank

What is the fiber laser welding machine?

Fiber Laser Welding is a welding technology used to create a strong joint between several metal

components with fiber laser. Fiber laser produces a beam of high-intensity that is concentrated into

one spot. This concentrated heat source enables fine, deep welding with high welding speed.

ARGUS handheld fiber laser welding machine is used to weld metal plates and metal tubes.
For more details about handheld fiber laser welder machine,just contact us.


photobank (10)

Welding thickness

1. 1000w handheld laser welder can weld 0.5-2mm steel;

2. 1500w fiber laser welder is used to weld 0.5-4mm steel;
3. 2000w laser welder can weld 0.5-6mm steel,0.5-4mm aluminum;
4. 3000w laser welder can weld 0.5-8mm steel,0.5-6mm aluminum.

Due to the difference of the plate and labor, please refer to the actual welding.


photobank

How much does a fiber laser welding machine cost?

The cost of handheld fiber laser welder machines varies greatly in accrodance with different laser power. A new fiber laser welder can cost from $4.4k to $13k. Specify your needs and get a quote for ARGUS fiber laser welder machine now.The delivery time is within 7 days.


| Sample Display

photobank (11)

|

 Application Video





|

 Company Profile

ABOUT SUNIC GROUP

Wuhan Sunic Group is a professional laser machines and solar panel  products lines equipments manufacturer since 1998. We are specialized  in Design, R&D, Manufacture, Sales and Service for laser machines.


We supply customized solution for different materials processing , such as  Invitation cards, Wedding cards, Pop up cards, Pop up books , Candy  box , Paper products, Acrylic , PMMA, LGP, Jeans Wash, Leather, Fabric, Textiles, Wood, MDF, Laminate materials , Marble, Package Film, Metal / Plastic products, etc.

Our laser equipment is widely used in Solar Photovoltaic production line, IC Component Production, Leather & Garment Industry, Advertising Signs, Decoration crafts, Equipment spare parts, Daily hardware,  Measurement tools, Medical instruments, Printing&packing industries, etc. Sunic Group would like to be customer's technical laser and solar equipment consultation and support for further development and progress together.


3
3

|

Exhibition
3 3
3 3

Wuhan

Shanghai

Las Vegas

Vietnam

|

 Certificate



|

 Packing & Shipping

|

 FAQ

Q1.What kind of laser machine and model should I choose?

A: You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need

Q2.What kind of materials does the laser machine can process?

A: We have different laser machines, such as Fiber laser, CO2 Laser, UV Laser Green Laser. Normally Fiber laser can process metal and plastic. CO2 laser is for processing non metallic materials, such as Acrylic, PMMA,Wood, Glass, Leather,Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.

Q3.Is it easy to operate?

A: We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software.Or we can talk by phone email or other contact ways.

Q4.What s your guarantee. in case the machine breaks down?

A: The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Q5.How will you do the after- sale service?

A: We will firstly check your problems online through Team viewer,E-mail, Whatsapp or other contact way, if it is easy to handle it, we will guide you online to fix it or send you the spare parts for replacement.

Q6.What is your equipment lead time?

A: Fiber laser marking machine lead time is around 7 working days. CO2 laser engraving&cutting machine lead time is around 2-3 weeks 3D dynamic CO2 laser marking machine lead time is around 10 working days.

Q7.How will you do the package and shipping?

A: All of our equipment are packed in export standard cases. Express, air shipping, sea shipping are all available.
