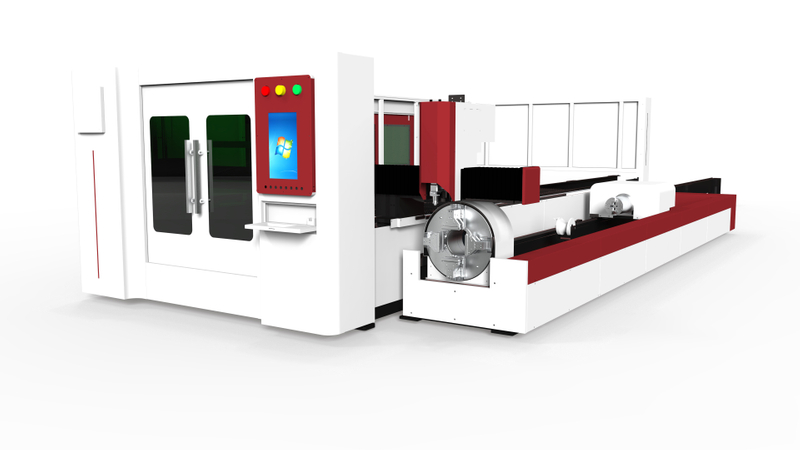

Metal Sheet and Tube fiber laser cutting machine

Product name: Metal Sheet and Tube fiber laser cutting machine
Model: SFC-1530
Laser power: 750W / 800W / 1000W / 1500W / 2000W / 3000W / 4000W
Working range: Sheet: 1500 x 3000mm; Tube: Maximum 220mm diameter and 3 meters or 6 meters length

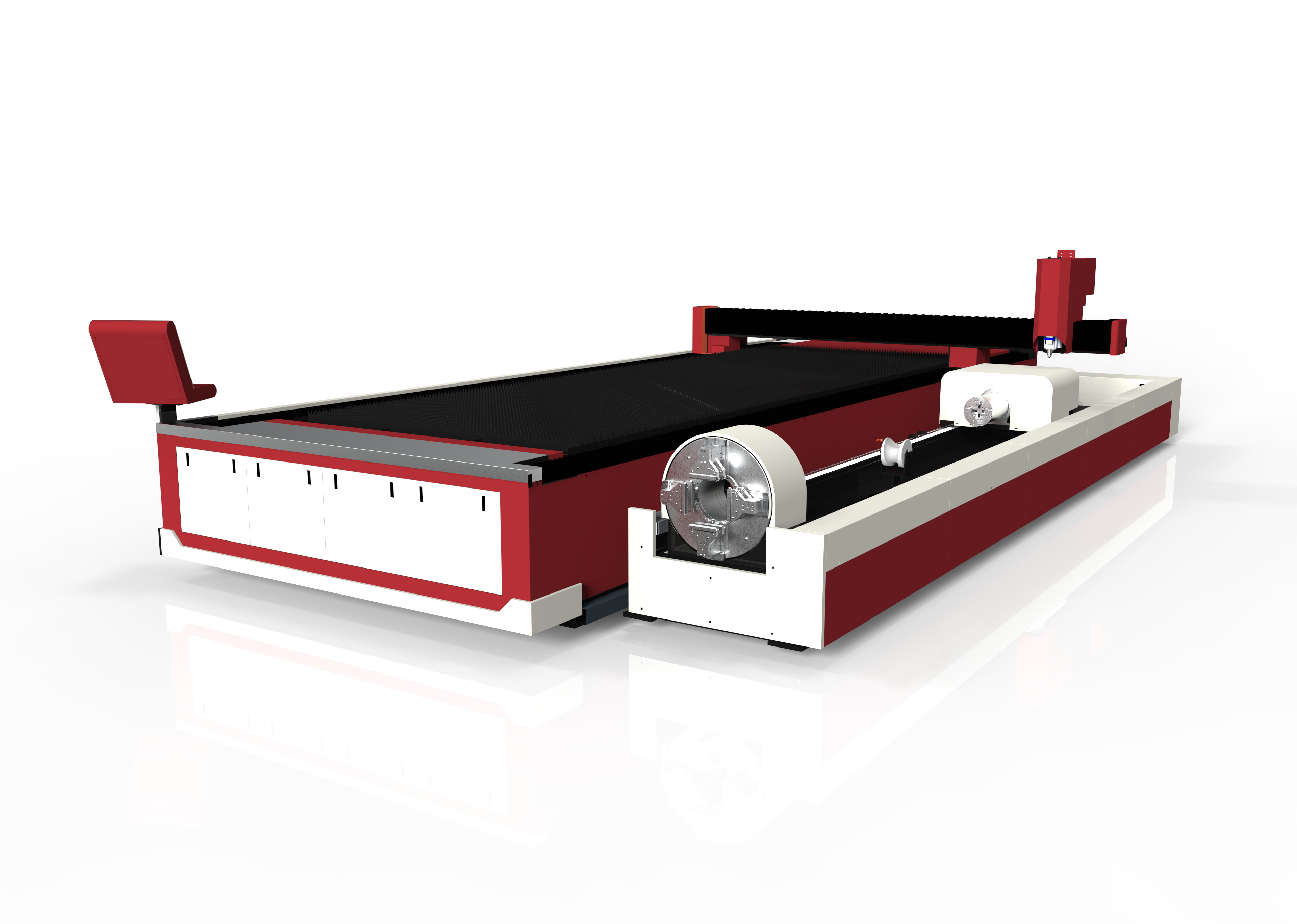

Application: Dual functional fiber laser cutting machine SFC-1530 is equipped with Tube cutting device, can cut both metal sheets and metal tubes
Quantity:
  • SFC-1530
  • Argus

1. One machine has double function, cutting metal sheet and tube
2. Cost-saving and high performance working, it has many uses and can save the space of more than 50%, which effectively improve productivity
3. Machine adopts CYPCUT control system, two software (CYPCUT software for metal sheet cutting, Tubepro software for metal tube cutting)
4. The Rotary device can hold up maximum 220mm diameter metal tube, standard tube length is 3 meters or 6 meters, other length also can be customized

Model

SFC-1530

Laser type

Fiber laser,1080nm

Laser power

1000W,1500W,2000W,3000W,4000W,6000W

Working area

Sheet:1500mmx3000mm

Tube:220mm diameter x 3 meters or 6 meters length

Min line width

0.1mm

Positioning accuracy

0.01mm

Max cutting speed

60m/min

Max acceleration

1.5G

Transmission type

Precision dual gear rack transsmission

Drving system

Servo motors

Cutting thickness

Depending on laser power and material

Assisting gas

Compressed air, oxygen and ni

Cooling mode

Industrial circulation water chiller

Visual positioning

Red dot

Machine weight

Net 4500kg

Working voltage

3 phase 380V 50HZ/60HZ


QQ图片20210421154009

Machine Details:


1. Pipe welding bed, Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

QQ图片20210421154119

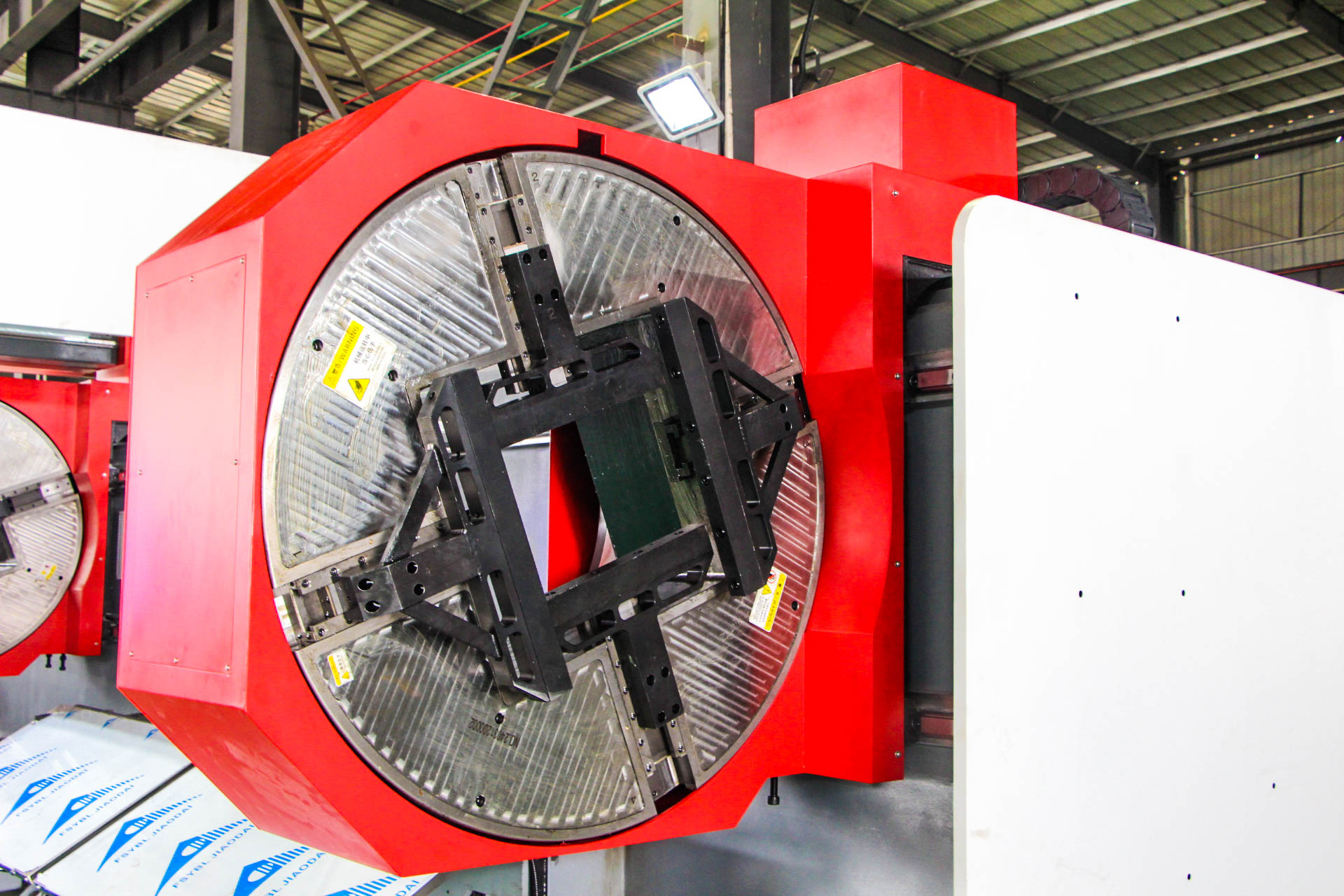

2. Electric-drive motor in rotary device adjust speed freely. Rectangle tube and round tube can be cut flexibility. Air jig is used for loading and unloading tubes, more convenient.

QQ图片20210421154135

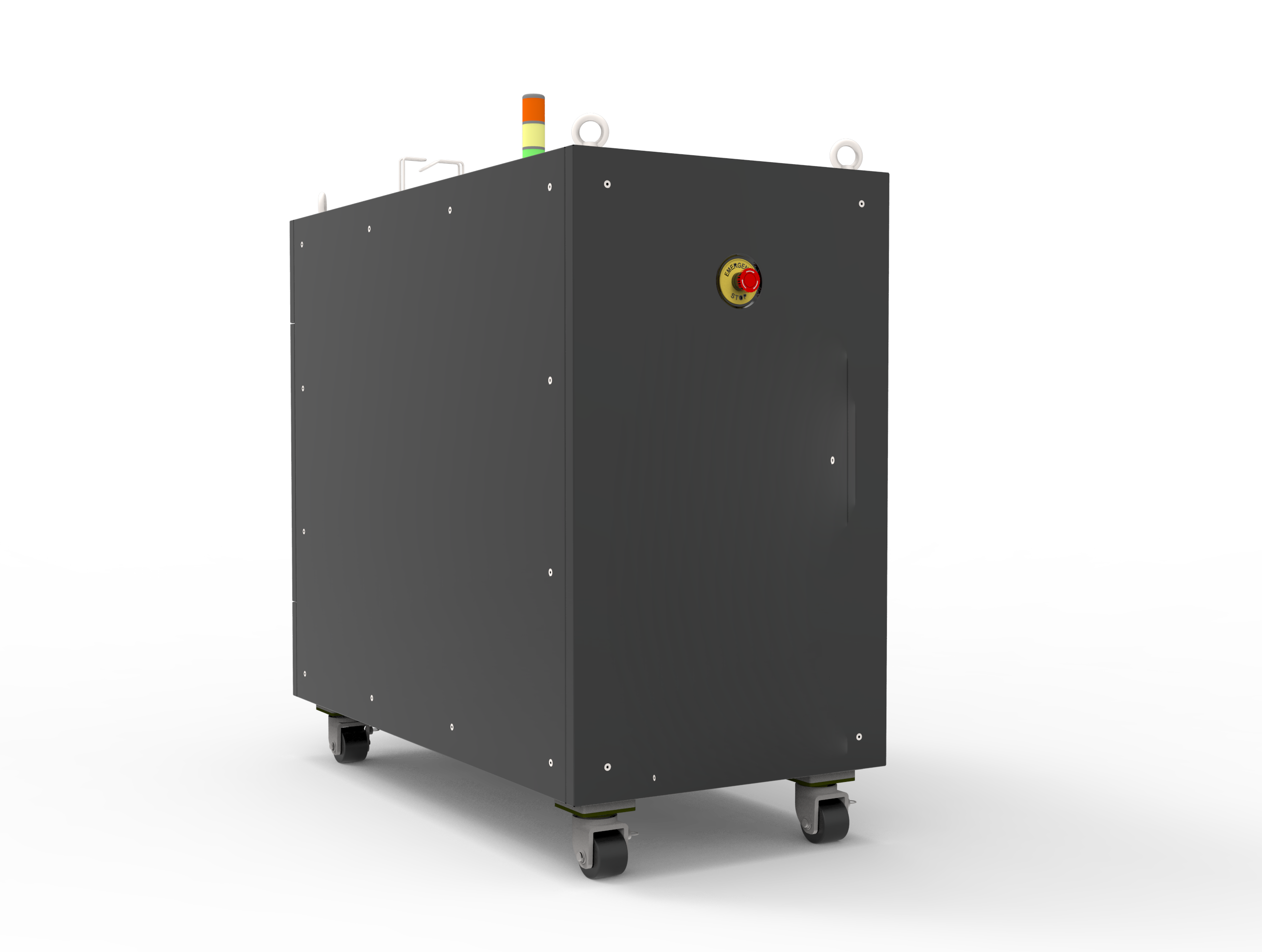

3. Top brand Raycus/JPT/IPG/Nlight fiber laser source 750W - 4000W, life time can up to 100,000 hours. The power can be increased with the technology improved.
4. Professional laser cutting head with auto following system.
5. Special CypCut laser cutting control system for sheet and pipe cutting, include control board , height control and machine software in English. Supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is also ok
6. LaserMen fiber laser cutting machine adopts Japanese servo motors and drivers, Japan reducer
7. Exhaust system, Exhaust channel is accessible within the whole machine table range. A high power exhaust fan strongly removes the smells and dusts caused by cutting.

It is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials
