ARGUS Multifunction Laser Cutting Machine Co2 Laser Engraving Machine 1390 Acrylic Leather Rubber Wood Laser Engraver 80W 100W 130W Co2 Laser Cutter Price

Features

1. High speed with max engraving speed 2000mm/s

2. High resolution can reach 1,000~1,200DPI

3. Long life span 20,000hrs, gas refill available;

4. Solid X/Y linear guide motion module and high precision Hiwin square guide rail ensure high stability and high precision of machine operation;

5. Closed construction gantry: free of dust and smoke, low maintenance;

6. All electrical parts strictly conform to CE Standard;

7:Powerful software with 3D engraving, Nesting, photolaser and vectorization;

Availability:
Quantity:
  • SCU1390A

  • ARGUS


CO2 LASER ENGRAVER CUTTER

SCU1390A

未标题-1_09             未标题-1_11             未标题-1_13
High Precision Fast Delivery             Long Lifespan


未标题-1_22




WHY CHOOSE SUC1390A

1             2             3             4
HIGH SPEED

HIGH PRODUCTIVITY

HIGH POWER

TECHNICAL SUPPORT

未标题-1_02


PRODUCT COMPOSITION

Our CO2 laser engraving cutting machines offer a solution for highquality engraving and cutting of acrylics, cardboard, wood,textiles,two-color sign laminate, stone, and much more. Our laser machines are the most robust,accurate, and reliable on the market.


微信图片_20240601085539_06

Choice of Support Tables



We provide both a blade & Honeycomb table for laser engraving and cutting

Control Software



Friendly software, enabling the import of files: plt, ai, bmp, dxf, dst, having many useful functions, defining work values assigned to a given line color (cutting, engraving, laser speed and power)

微信图片_20240601085539_11
微信图片_20240601085539_18

Pass-through Door



Pass-through front to rear doors

Visible Red Dot Pointer



Since the CO2 laser beam is invisible the red dot pointer on the machine allows you to have a visual reference for locating where the laser will fire.

微信图片_20240601085539_23
微信图片_20240601085539_26 High Performance Motors



Stepper motor is in high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.

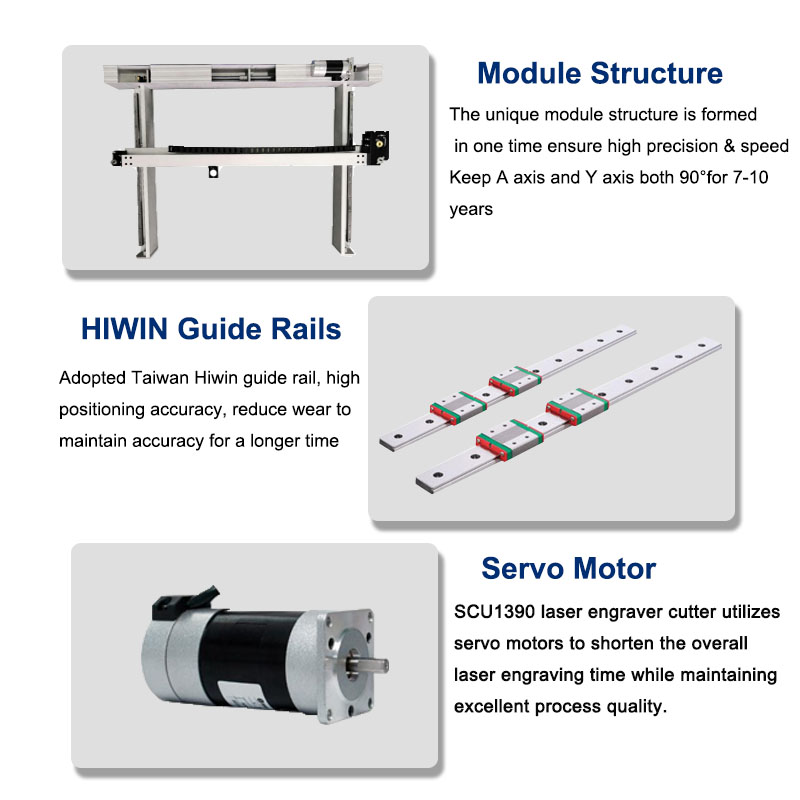

Unique Module Structure



The unique module structure is formed in one time assembly to avoid to manually assemble,more accuracy;Keep A axis and Y axis both 90°for 7-10 years.

微信图片_20240601085539_31
微信图片_20240601085539_34 Linear Guide Rail



Adopted Taiwan Hiwin linear guide rail,high positioning accuracy, reduce wear to maintain accuracy for a longer time.

Yongli Glass Tube



High quality laser beam,Easy to change and Long life span 12,000hrs.

微信图片_20240601085539_39



TECHNICAL PARAMETERS


未标题-1_02

Model

SCU1390A
Working Platform Size 1300*900mm
Laser Power CO2 80/100/130/150watts
Origin Setting(Red Pointer) Red Pointer:650nm
Controlling system Ruida
Table Type Aluminum Strip/Honey comb
Worktable Up & Down 10cm Adjustable

Air Pump

Power:138W

Flow Rate:100L/Min

Voltage220V

Exhaust Fan

Power:550W

Blowing Rate:18m³/min

Calibre Of Outlet:80mm

Wind Pressure:1.70Kpa

Rotating Speed:2800RPM

Focus Lens             2.5 inch
3-Phase Stepper Motor Phase Current:3.5A

Whole Stepping Angle:1.2°

Torque:0.9N.m
Mo Mirror Reflectivity 95%
Software Format Support CorelDraw, Photoshop, AutoCAD,etc
Graphic Format Support AI,PLT,BMP,DXF,DST,T100,etc
Process Material Non-metal Materials
Max Cutting speed 300mm/s
Max Engraving speed 2000mm/s
Repeated Positioning Accuracy ±0.2mm
Min. Cutting Character English Letter:3mm
Max.Cutting Depth 0-15mm(it's up to the material)
Cooling ways Circulation Water Cooling
Working Temperature 0-35℃
Working Humidity 5-95%
Working Power 220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA
Packing Dimension 2185*1465*1260mm
Net weight 450KG
Gross Weight 500KG
Cubage

4.03CBM


PRODUCT DISPLAY

未标题-2_04
未标题-2_08             未标题-2_09             未标题-2_10

MORE DETAILS

未标题-3_09             未标题-3_11             未标题-3_13

Taiwan Hiwin linear Guide Rail

Up&down Worktable

Exhausted fan
未标题-3_23             未标题-3_26
Water Chiller             Control Board


COMMON MATERIALS

                                  TO PROCESS WITH CO2 LASER

MATERIAL

CUT

ENGRAVE
Paper
Cloth
Wood
MDF
Wood Veneer
Acrylic
Leather
Matte Board
Cork
Rubber
Bamboo
Melamine
Plastic
Glass X
Ceramic X
Tile X
Marble X
Press Board
Home Textile
Anodized Aluminum X

Tumbler X
Stone X
Appliques

SAMPLES SHOW

ACRYLIC
微信图片_20240603202549_29             微信图片_20240603202549_31             微信图片_20240603202549_33             微信图片_20240603202549_35
LEATHER
微信图片_20240601085552_83             微信图片_20240601085552_85             微信图片_20240601085552_87             微信图片_20240601085552_89
WOOD
微信图片_20240601085552_11             微信图片_20240601085552_13             微信图片_20240601085552_15             微信图片_20240601085552_17
MARBLE
微信图片_20240601085552_101             微信图片_20240601085552_103             微信图片_20240601085552_105             微信图片_20240601085552_107
PAPER
微信图片_20240601085552_29             微信图片_20240601085552_31             微信图片_20240601085552_33   微信图片_20240601085552_35


TECHNICAL PARAMETERS


未标题-1_02

Model
SCU1390A
Working Platform Size 1300*900mm
Laser Power CO2 80/100/130/150watts
Origin Setting(Red Pointer) Red Pointer:650nm
Controlling system Ruida
Table Type Aluminum Strip/Honey comb
Worktable Up & Down 10cm Adjustable

Air Pump

Power:138W

Flow Rate:100L/Min

Voltage:220V

Exhaust Fan

Power:550W

Blowing Rate:18m³/min

Calibre Of Outlet:80mm

Wind Pressure:1.70Kpa

Rotating Speed:2800RPM

Focus Lens 2.5 inch
3-Phase Stepper Motor Phase Current:3.5A

Whole Stepping Angle:1.2°

Torque:0.9N.m
Mo Mirror Reflectivity 95%
Software Format Support CorelDraw, Photoshop, AutoCAD,etc
Graphic Format Support AI,PLT,BMP,DXF,DST,T100,etc
Process Material Non-metal Materials
Max Cutting speed 300mm/s
Max Engraving speed 2000mm/s
Repeated Positioning Accuracy ±0.2mm
Min. Cutting Character English Letter:3mm
Max.Cutting Depth 0-15mm(it's up to the material)
Cooling ways Circulation Water Cooling
Working Temperature 0-35℃
Working Humidity 5-95%
Working Power 220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA
Packing Dimension 2185*1465*1260mm
Net weight 450KG
Gross Weight 500KG
Cubage
4.03CBM


PRODUCT COMPOSITION

Our CO2 laser engraving cutting machines offer a solution for highquality engraving and cutting of acrylics, cardboard, wood,textiles,two-color sign laminate, stone, and much more. Our laser machines are the most robust,accurate, and reliable on the market.


微信图片_20240601085539_06

Choice of Support Tables



We provide both a blade & Honeycomb table for laser engraving and cutting

Control Software



Friendly software, enabling the import of files: plt, ai, bmp, dxf, dst, having many useful functions, defining work values assigned to a given line color (cutting, engraving, laser speed and power)

微信图片_20240601085539_11
微信图片_20240601085539_18

Pass-through Door


Pass-through front to rear doors

Visible Red Dot Pointer



Since the CO2 laser beam is invisible the red dot pointer on the machine allows you to have a visual reference for locating where the laser will fire.

微信图片_20240601085539_23
微信图片_20240601085539_26             High Performance Motors


Stepper motor is in high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.

Unique Module Structure


The unique module structure is formed in one time assembly to avoid to manually assemble,more accuracy;Keep A axis and Y axis both 90°for 7-10 years.

微信图片_20240601085539_31
微信图片_20240601085539_34             Linear Guide Rail


Adopted Taiwan Hiwin linear guide rail,high positioning accuracy, reduce wear to maintain accuracy for a longer time.

Yongli Glass Tube


High quality laser beam,Easy to change and Long life span 12,000hrs.

微信图片_20240601085539_39
