Laser Head Model

Laser technology enables high-precision scoring, cutting, and micro-perforation of flexible packaging materials, making it an ideal choice for easy-open packaging. It ensures stable and continuous laser output, adapting to dynamic roll-to-roll processing. The ARGUS laser system is custom-developed according to customer requirements and can be configured with additional laser heads as needed. It precisely controls laser duration and power to maintain strict scoring tolerances throughout the entire roll-processing operation, even during start-stop phases and speed variations, ensuring consistent quality across the roll. Compared to similar systems, it offers exceptional precision and outstanding cost-effectiveness, making it an ideal solution for innovative flexible packaging applications.

Applications

Cross Web Scoring – Straight, controlled-depth scoring along the mesh direction (for easy-open functionality)
mircro perforation – for promotional items, pour spouts,Easy-open design for bottle seal packaging

Efficient Processing

It can be custom-designed and integrated into production lines such as rewinders, slitters, laminators, and center seal machines, significantly improving production efficiency.

Argus Laser, the laser expert beside you, with 26 years of experience in laser equipment design and manufacturing, we provide more professional advice for your industrial technology improvement.

We are happy to provide you with the right laser solution for flexible packaging.

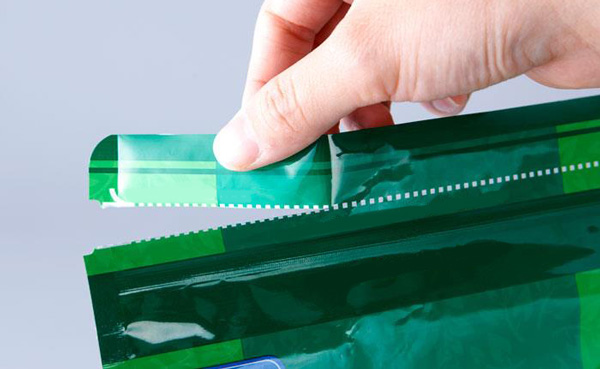

This series is designed for continuous or intermittent scoring or perforating to achieve easy opening of regular packaging, and is also suitable for resealing or zipper functionality.

MATERIALS
Plastic Films
Polyester
Polyethylene
Polypropylene
EVOH
Nylon
Laminations
Foils
PLA

CAPABILITIES
Laser Web Scoring
Laser Micro-Perforating
Laser Cutting

FEATURES & BENEFITS

Choosing a Laser Head Model for laser equipment has many benefits, and these are just some of them.

Customizable Equipment

Laser systems can operate as standalone units or be integrated into existing production lines

Various Materials and Thicknesses

Provides added flexibility in scoring different film materials

Fixed laser head

Precise focus positioning, can be matched with the roll rotation speed

Laser light control

Select the light time according to the needs to achieve marking or drilling

Acceleration - Deceleration Control

Eliminates waste caused by material overload when processing speeds are below normal

Superior Scoring Quality

Consistent scoring depth and uniformity. Repeatable strength and tear quality

Easy Traverse Positioning

Quickly and accurately locate the scoring or perforation position

Non-contact Processing

Eliminates inconsistencies associated with cutting tools and mechanical perforators

TECH SPECS

The technical specifications are based on baseline standards, but all laser equipment can be customized to meet your product requirements.

	Fixed Head
Laser power	30/55/70/100 watts
Laser Source	Coherent CO2metal R.F. Laser source
Laser Wavelength	10.6μm
Laser Frequency	1kHz~25kHz
Flim perforation speed	50-400 meters/min (according to the material and laser power)
Repetition Precision	0.01mm
Emulated encoder	Including
Control System	ARGUS
Including	Customized mounting structure, Computer with software, Exhausting Fans, Air Pump
Power Supply	110V~220V/50Hz~60Hz
Cooling Way	Air/water Cooling
Multi-head	Avaible according to the request

**The above data may change due to product upgrades. For specific details, please contact us.
