ARGUS Laser Perforation Laser Marking Machine Flexible Packaging Film

The machine is controlled by a computer . The laser beam of 10.64um is used to process the materials surface by expanding the beam and focusing mirror with the laser energy at the pipeline speed , so that the working surface can be gasified to achieve the marking effect .This CO2 Laser Marking Machine is widely used in the PVC,PE,PET shrink sleeve,shrink label easy tearing line high speed laser marking and some soft packing air permeable hole laser marking.

Comparing with the traditional mechanical processing way,the laser processing has the advantages in the high processing speed,long lifespan, good pore diameter uniformity and high accuracy.
Availability:
Quantity:
Inquire Add to Basket

  • SCM30 SCM55

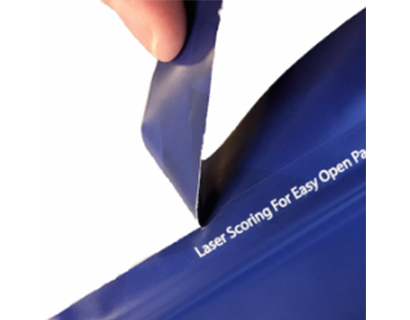

laser scoring for flexible packaging industry
Laser Scoring and Cutting
Lasers enable high-precision scoring and cutting of flexible packaging materials.This is especially useful for creating easy-open features or intricate designs,ensuring clean, accurate cuts without damaging the material.
Get a Quote
High Efficiency
Max 400mm/min Scoring Speed
High Precision
Line Width Down to 0.1mm​
Low Cost
No Consumable Parts​​
Customizable
Integrate into Other Equipment​
Laser Scoring Modules for Flexible Packaging
Innovative Laser Applications in Flexible Packaging Technology
The Flexible Packaging Line by Argus Laser is an advanced range of laser systems engineered for Scoring, cutting, and both macro- and micro-perforation.

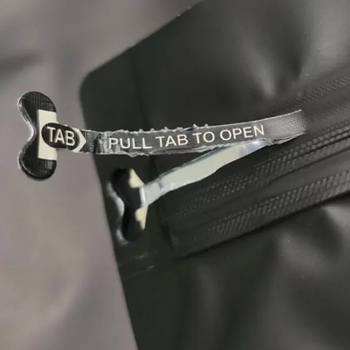

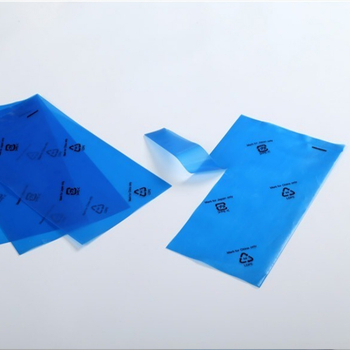

These systems are ideal for processing flexible single or multi-layer films made from materials such as paper, PE, PET, PP, BOPP, PTFE, and laminated films.
Offering unmatched precision and versatility, these systems cater to diverse industrial needs with efficiency and reliability.
Get Solutions

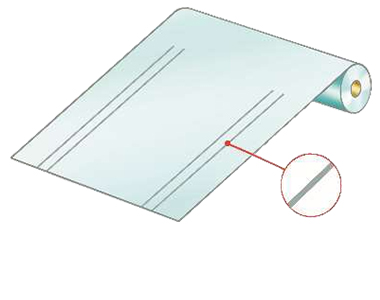

Web Line Scoring
Supports half-cut and full-cut continuous line web Scoring

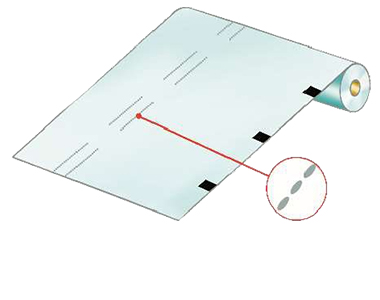

Web Line Scoring
Dotted-line scoring achieved by intermittent full cuts

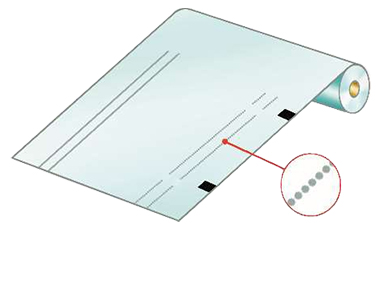

Perforation
Achieves micro-perforation with precise control

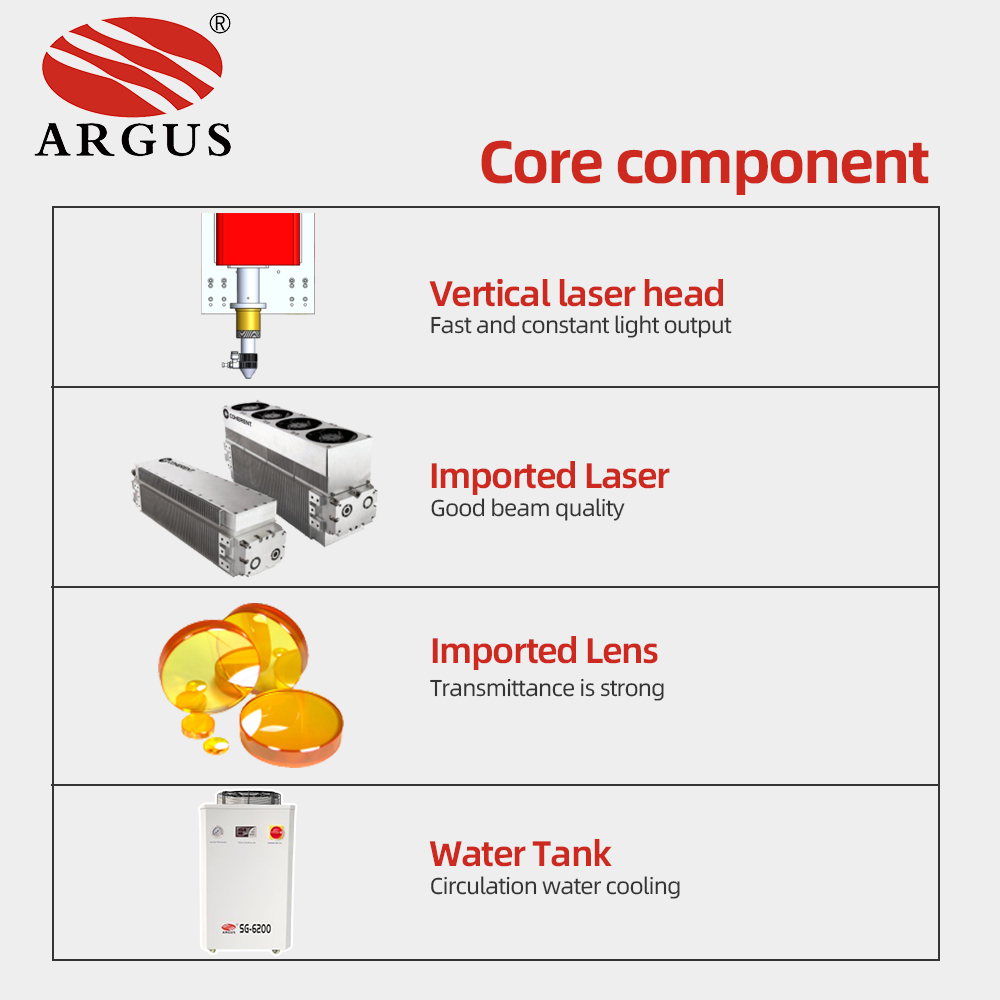

PRODUCT DISPLAY

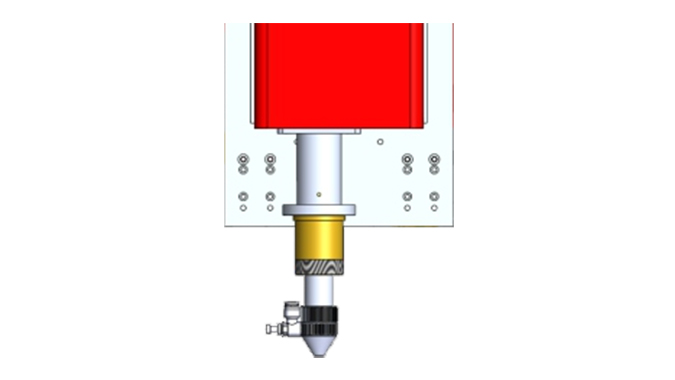

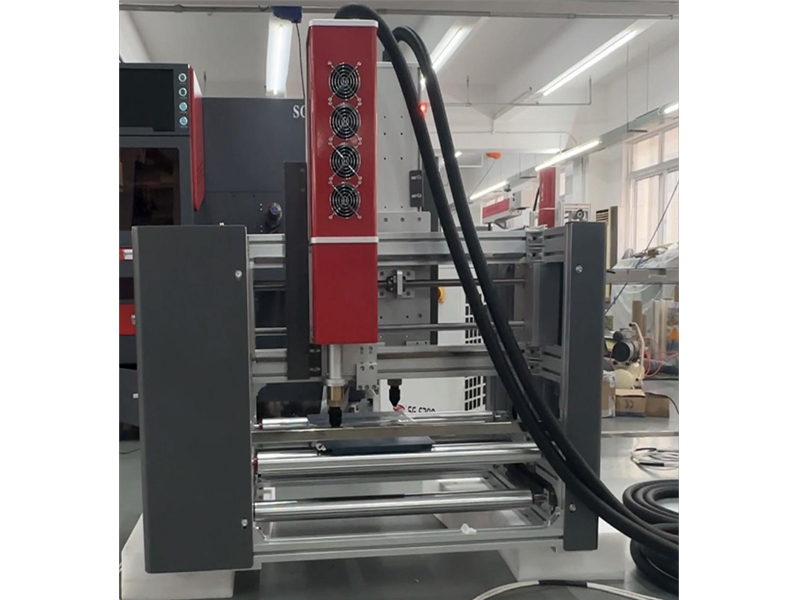

Vertical laser head
​Integrated design structure with fixed beam output​​, enabling zero-offset precision processing.

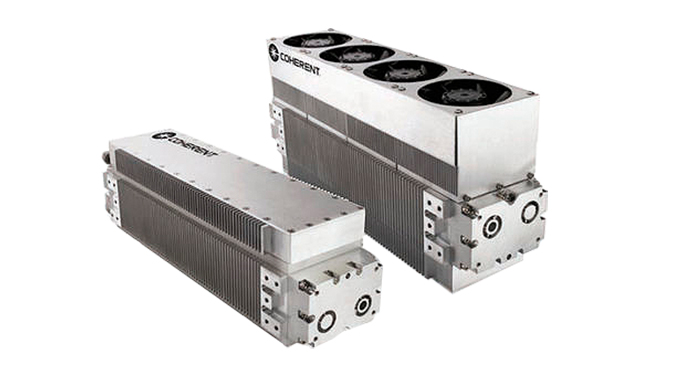

R.F. Laser Metal Tube
Original imported Coherent metal R.F. laser tube with high laser power ,excellent laser spot. Stable laser generation and life time of more than 20000hrs.

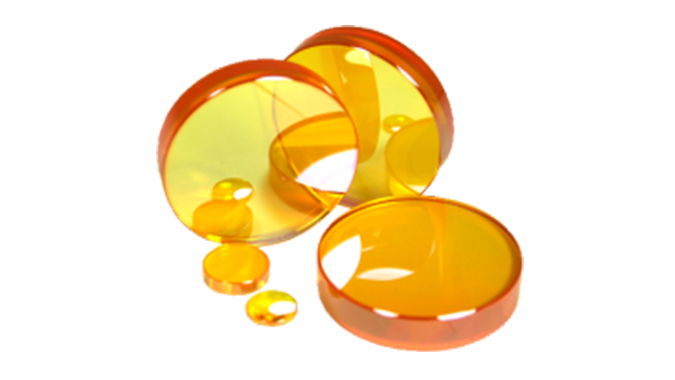

Original imported lenses
​​Imported lens​​ with 99.6% light energy conversion rate, nanoscale surface roughness, and biconic aspherical design

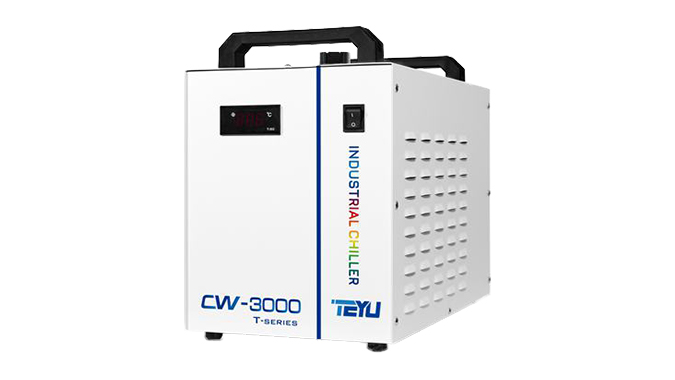

Small Smart Chiller
High efficiency, energy-saving, long-lasting durability, easy operation​​, equipped with water flow alarm and over-temperature alarm functions
Industry and Materials

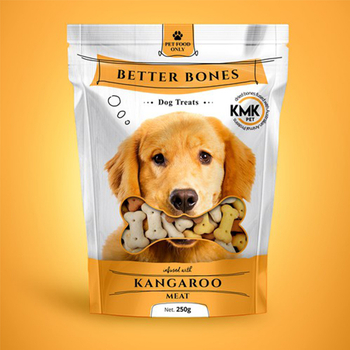

Sample Display

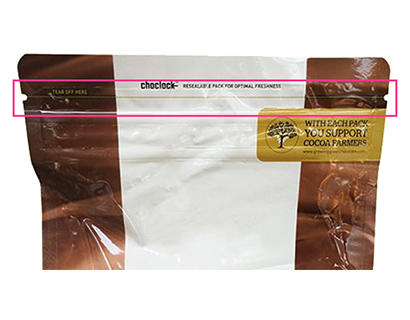

  • Coffee Bean Packaging

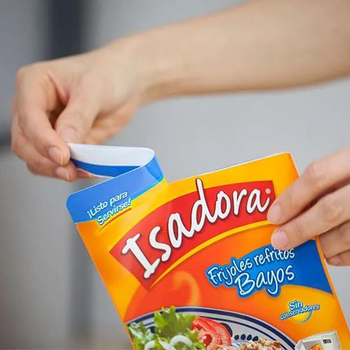

  • Snack Packaging

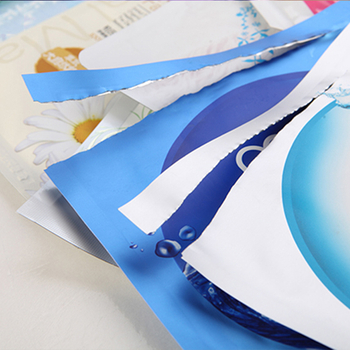

  • Facial Mask Packaging

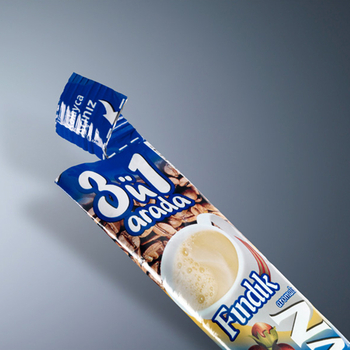

  • Sticky Coffee Powder Packaging

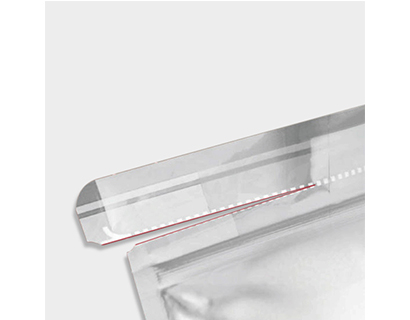

  • 3C Accessories Packaging

Get your laser solution within 24H
Not sure how to choose? Not sure if it’s feasible? Fill out the inquiry form now — our laser experts will provide you with a customized solution.
Contact US
FAQs
  • Which packaging materials can this laser equipment be applied to?
    加 Created with Sketch.
    形状 Created with Sketch.
    It is suitable for multilayer laminates, plastic films, metallized films, and paper-plastic composites, ensuring neat tear lines without affecting sealing performance.
  • Will laser tear lines affect the sealing of the package?
    加 Created with Sketch.
    形状 Created with Sketch.
    No. The laser precisely processes only the surface or certain layers while keeping the inner barrier intact, maintaining sealing and barrier properties.
  • Are the tear lines continuous or dotted?
    加 Created with Sketch.
    形状 Created with Sketch.
    The system supports continuous lines, dotted lines, and perforated styles, which can be flexibly switched according to product requirements.
  • What is the processing speed of the equipment?
    加 Created with Sketch.
    形状 Created with Sketch.
    Speed depends on material thickness and process settings. It can meet high-speed production line demands and integrate seamlessly with existing packaging lines.
  • What are the advantages compared with traditional mechanical scoring or perforating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Laser processing is non-contact with no tool wear; lines are uniform and highly controllable; it eliminates frequent tool replacement and high consumable costs.
  • Will laser processing make the packaging brittle or cause carbonization?
    加 Created with Sketch.
    形状 Created with Sketch.
    No. With precise power and scanning control, the process avoids cracking, discoloration, or carbonization.
  • Does the equipment require complicated maintenance?
    加 Created with Sketch.
    形状 Created with Sketch.
    Maintenance is simple. Only routine cleaning of optical components and checking of the cooling system are required.
  • Do operators need specialized training?
    加 Created with Sketch.
    形状 Created with Sketch.
    No. The system is equipped with a touchscreen and user-friendly interface. Regular staff can operate it after basic training.
  • Can the equipment be integrated into existing production lines?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. It supports customized interfaces and can synchronize with most packaging lines, slitters, or laminating machines.
  • What is the service life of the laser system?
    加 Created with Sketch.
    形状 Created with Sketch.
    The core laser components have a lifespan of 20,000–50,000 hours, ensuring long-term stable operation.

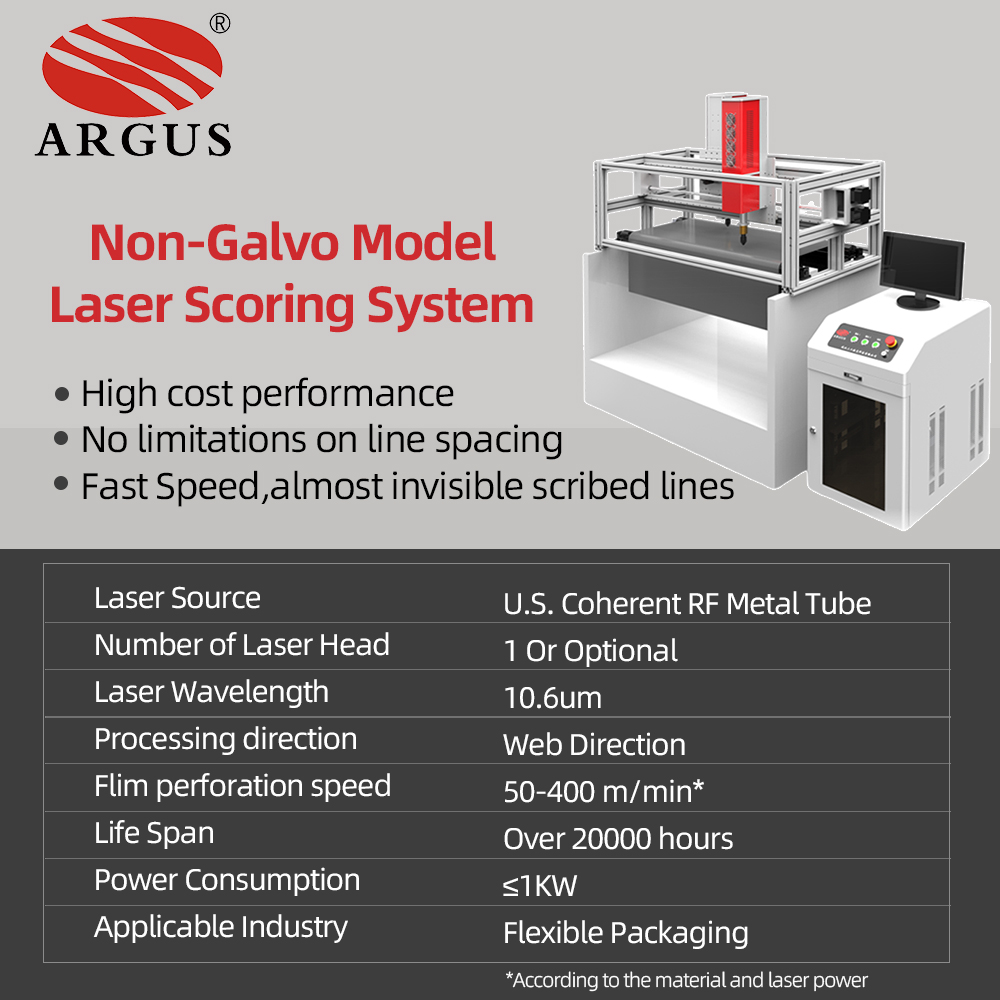

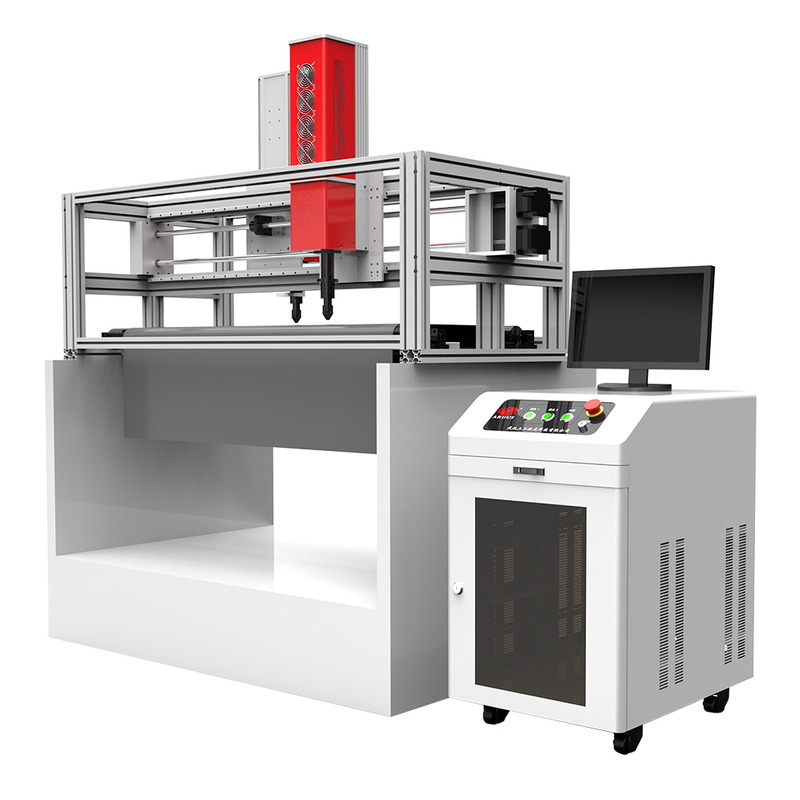

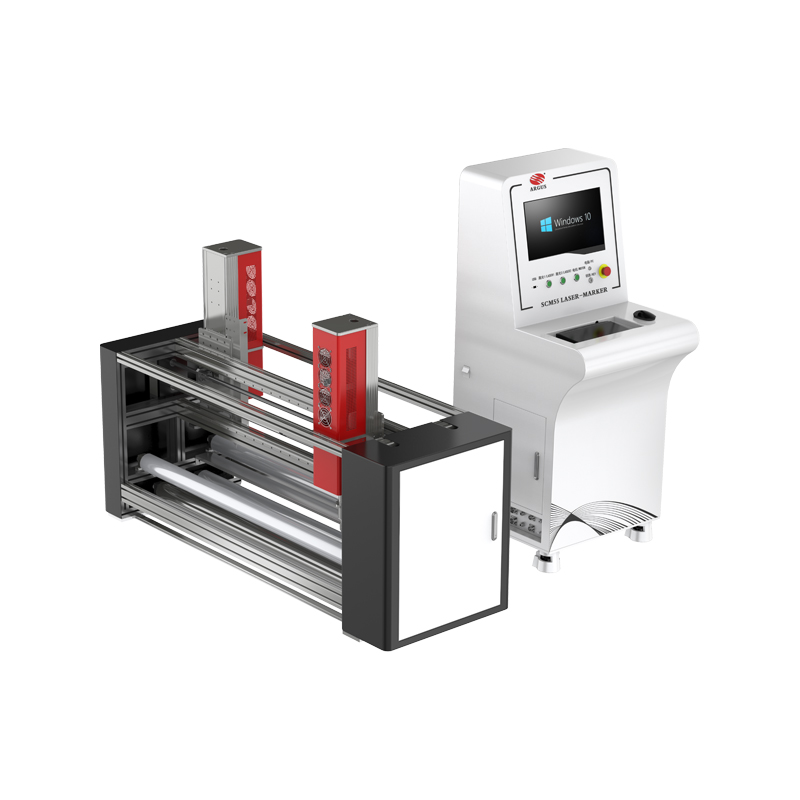

| Laser Head Model Scoring System

laser markign machine SCM30/SCM55/SCM70/SCM100

Model

SCM30/SCM55/SCM70/SCM100

Laser Power

30/55/70/100 watts

Laser Source

Coherent CO2 Metal RF Laser Source

Laser Wavelength

10.6μm

Laser Frequency

1kHz~25kHz

Flim Perforation Speed

50-400 meters/min(according to the material and laser power)

Repetition Precision

0.01mm

Emulated Encoder

Including

Control System

ARGUS

Including

Customized mounting structure, Computer with software, Exhausting Fans, Air Pump

Power Supply

110V~220V/50Hz~60Hz

Cooling Way

Air/water Cooling

Multi-head

Avaible according to the request

| Sample Display

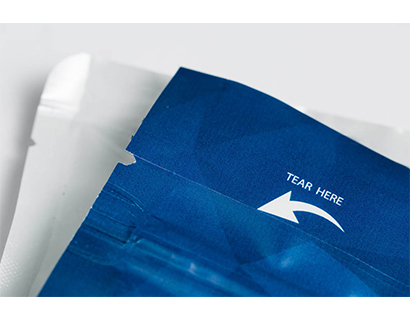

easy tear line laser marking solution

| Laser Advantages

1) Using precision laser scoring, lines are smooth, no curling, while ensuring excellent sealing protection.

2) High-speed detection with uniform line depth; line length and spacing are adjustable.

3) Equipped with air or water cooling, supports continuous high-speed operation (50–400 m/min) with low failure rate.

Laser Scoring

Traditional Scoring

Scoring Accuracy

< 0.1-0.5mm

< 1-1.5mm

Processing Speed

50-400meters/min

100-180meters/min

Line Width

Adjustable, micron-level, uniform lines

Fixed by die, uneven lines possible

Line Segment Spacing

Freely adjustable, any direction

Requires die/tool change, less flexible

All quality

Very uniform

Easy change shape during highspeed working, not uniform
Processing Stability Stable continuous processing Tool wear, time-consuming and labor-intensive

Consumables part

No consumption parts

Change gears always

Application

Cut , lines , hole

Cut or lines
Material Compatibility Multi-layer laminates, plastics, metallized films, paper-plastic composites Limited by material hardness and thickness, prone to tool damage

1. Versatility:

ARGUS LASER's machines offer versatility in terms of accommodating different materials and thicknesses. This flexibility is beneficial for industries with diverse requirements, allowing the machine to handle a range of materials used in packaging and other applications.


2. Advanced Technology:

ARGUS LASER utilize advanced laser technology, providing efficient and effective solutions for scoring and perforating. This could include features such as advanced control systems and automation, contributing to improved overall performance.


3. Customization Capabilities:

The laser scoring and perforation machine from ARGUS LASER allow for customization of different mounting structure. This is valuable for industries that use different kind of slitting and rewinding system.


4. Production Efficiency:

ARGUS LASER's machine is designed to enhance production efficiency. Laser technology is often recognized for its speed and precision, contributing to faster production cycles and potentially reducing overall manufacturing costs.


5. Reliability and Durability:

ARGUS LASER machines is known for its reliability and durability, ensuring consistent performance over time. This is crucial in industrial settings where downtime can have significant impacts on production.


6. Easy of Use:

The laser scoring and perforation machine from ARGUS LASER is designed with user-friendly interfaces and controls. This ease of use can contribute to quicker setup times, reduced training needs, and improved overall operational efficiency.


7. Technical Support and Service:

ARGUS LASER provides strong technical support and service for their machines. This is essential for addressing any issues promptly, conducting routine maintenance, and ensuring that the equipment operates at peak performance.


8. Industry Reputation:

During the 25 years history, ARGUS LASER gains a good reputation within the industry and positive feedback from other users. A strong reputation often indicates a track record of delivering reliable and effective solutions.
