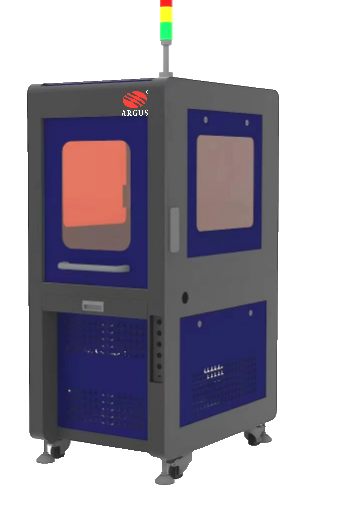

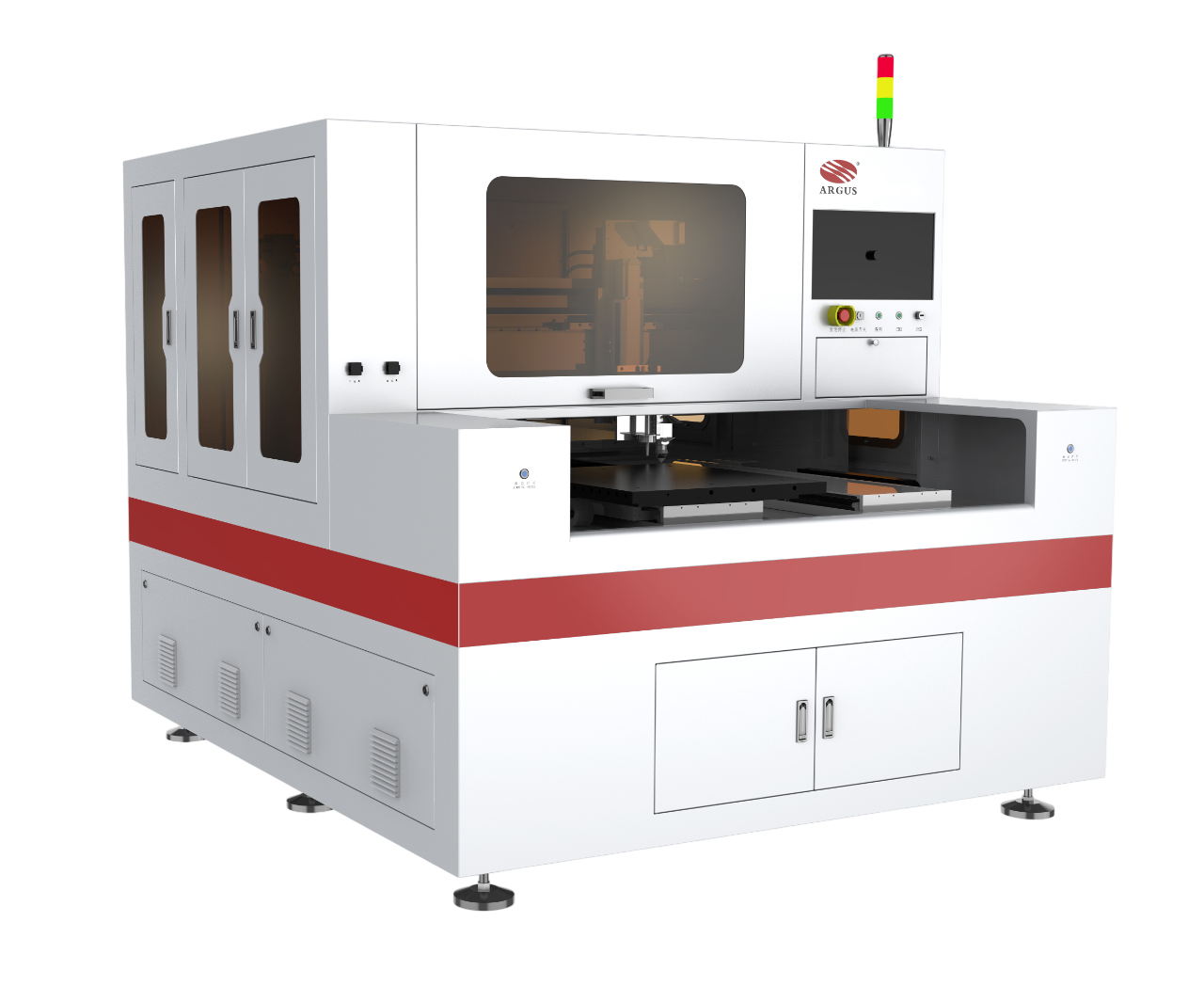

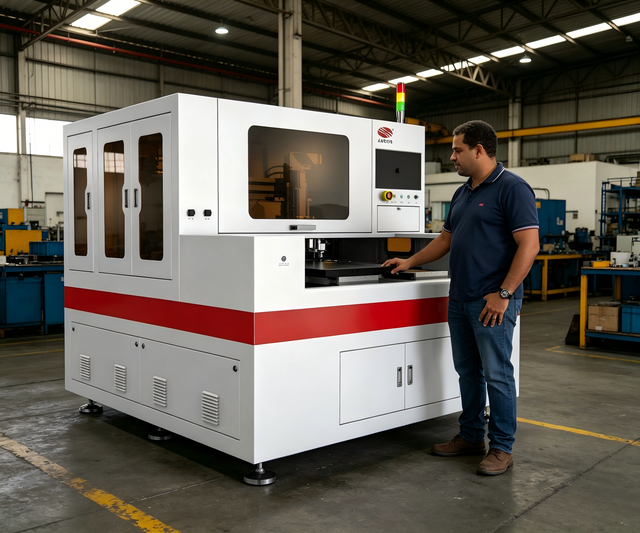

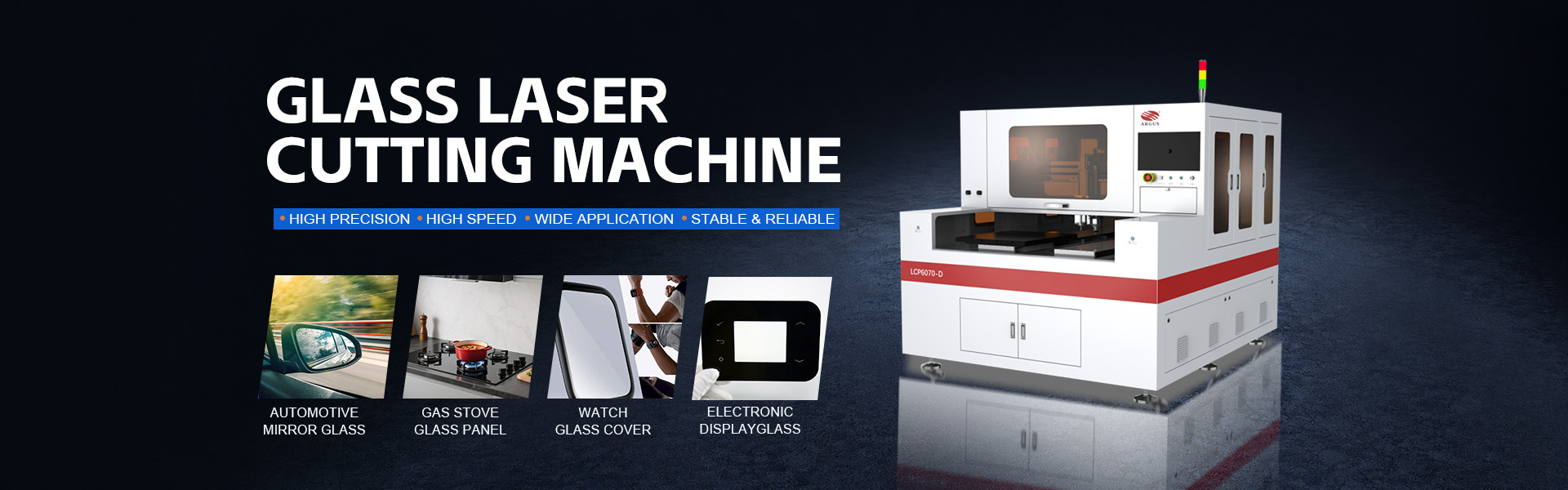

Glass Laser Cutting and Splitting Machines

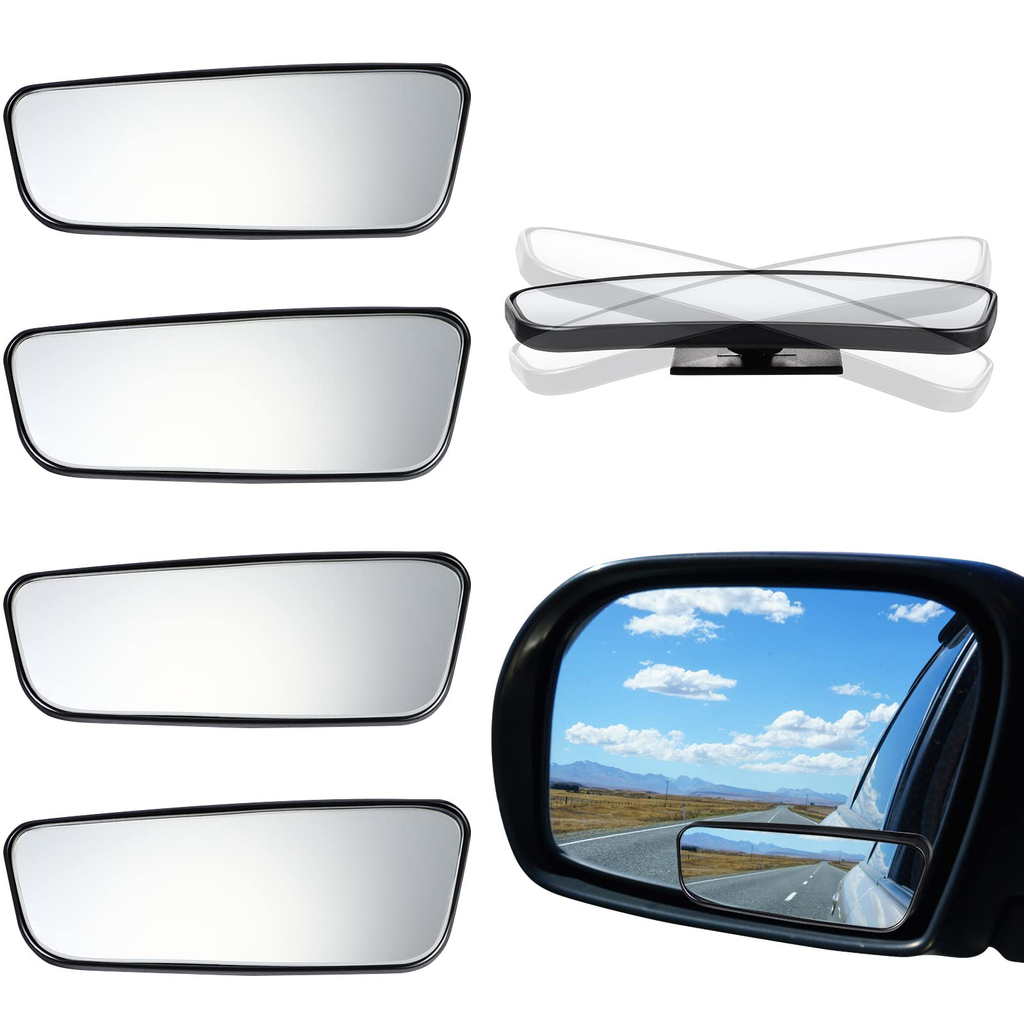

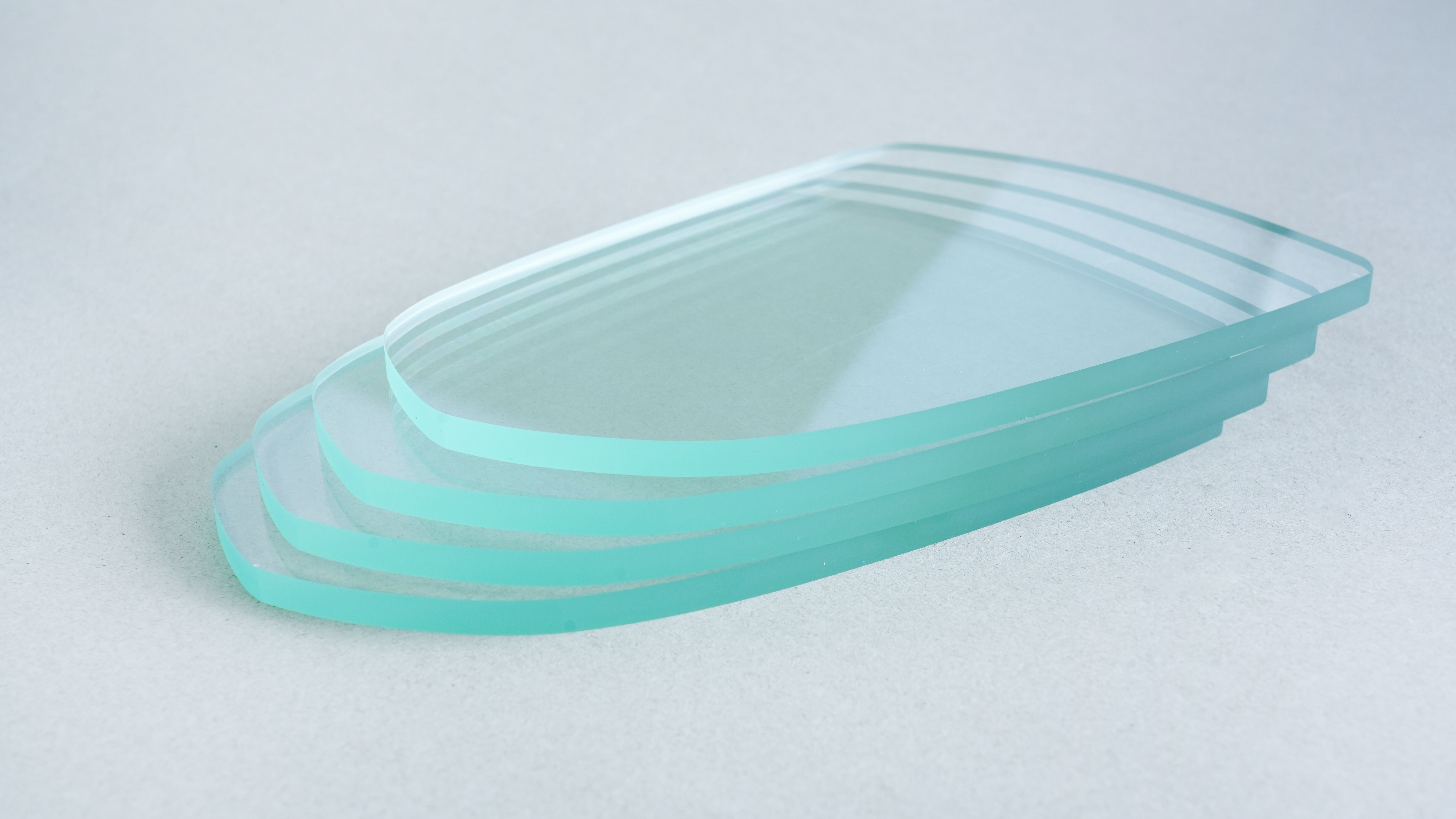

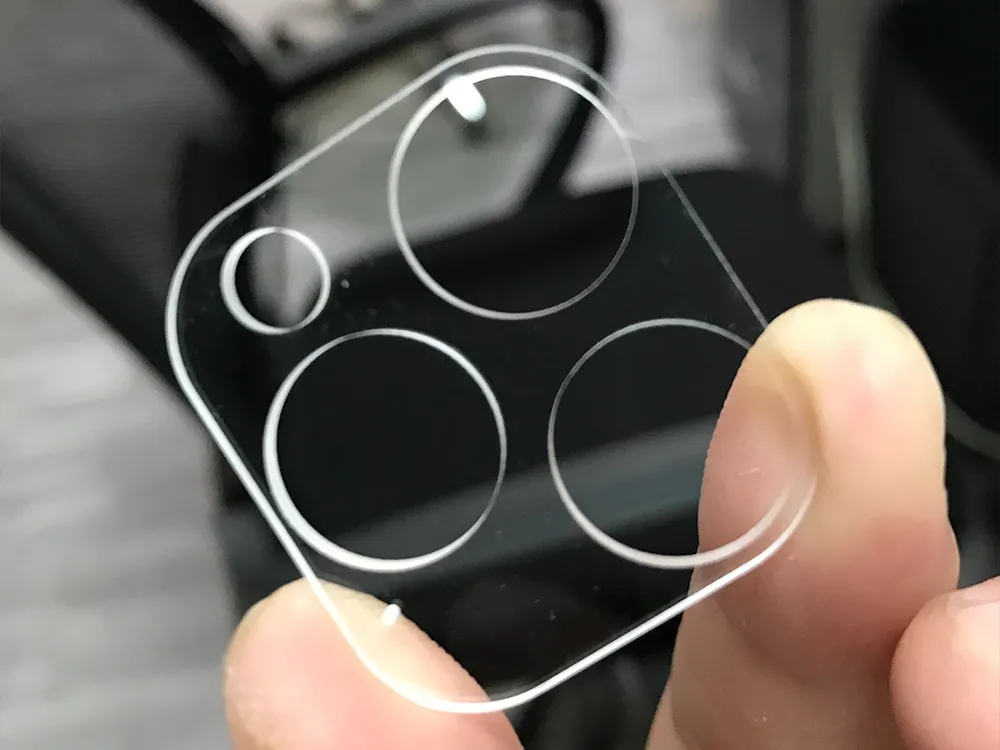

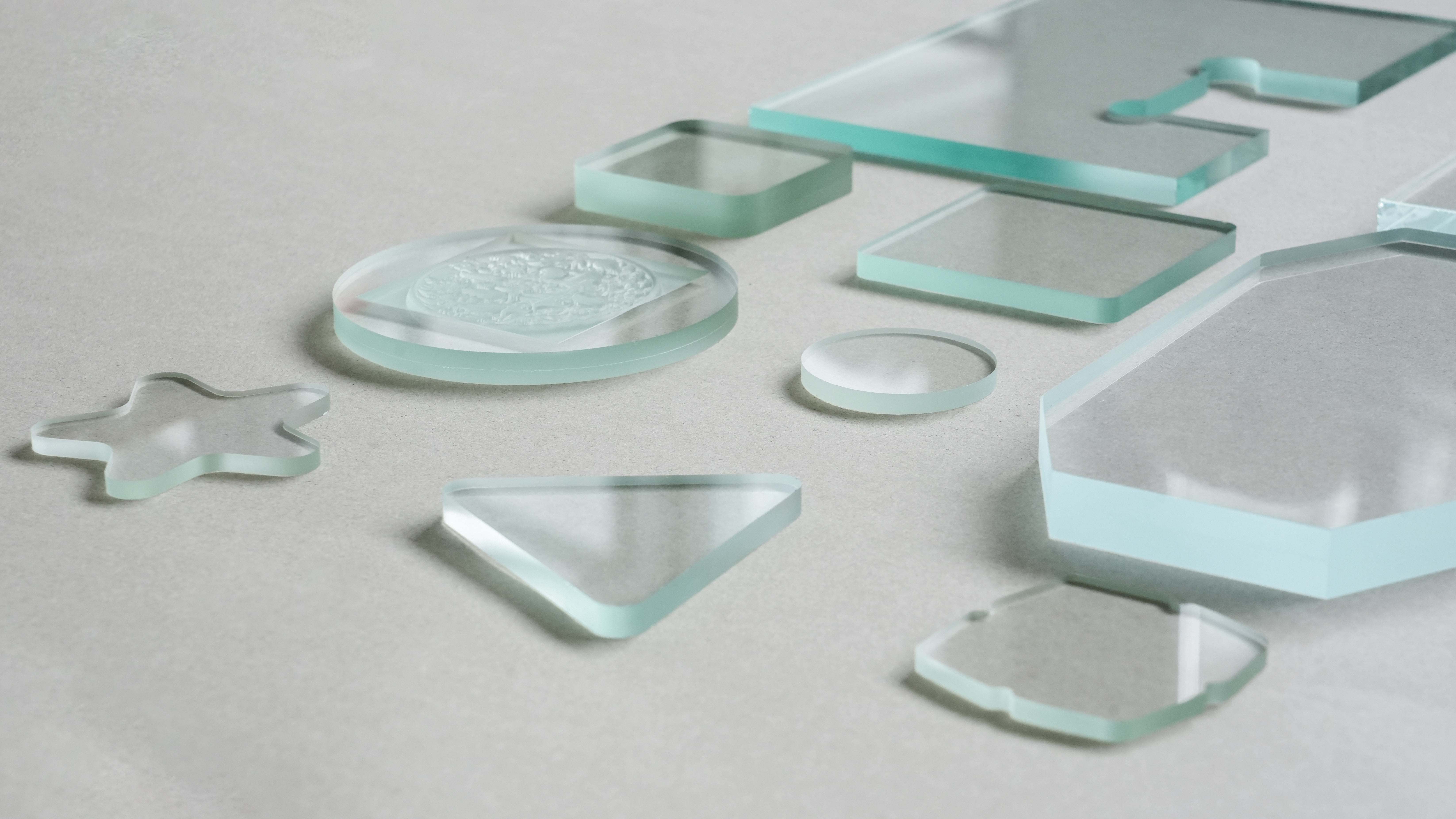

Glass laser cutting and splitting machine is an independently developed laser machine designed for processing transparent materials such as watch glass, camera lenses, automotive glass cover plates, and optical filters.

Custom laser solution for Glass cutting and splitting

Features of the Equipment​​​​​​​

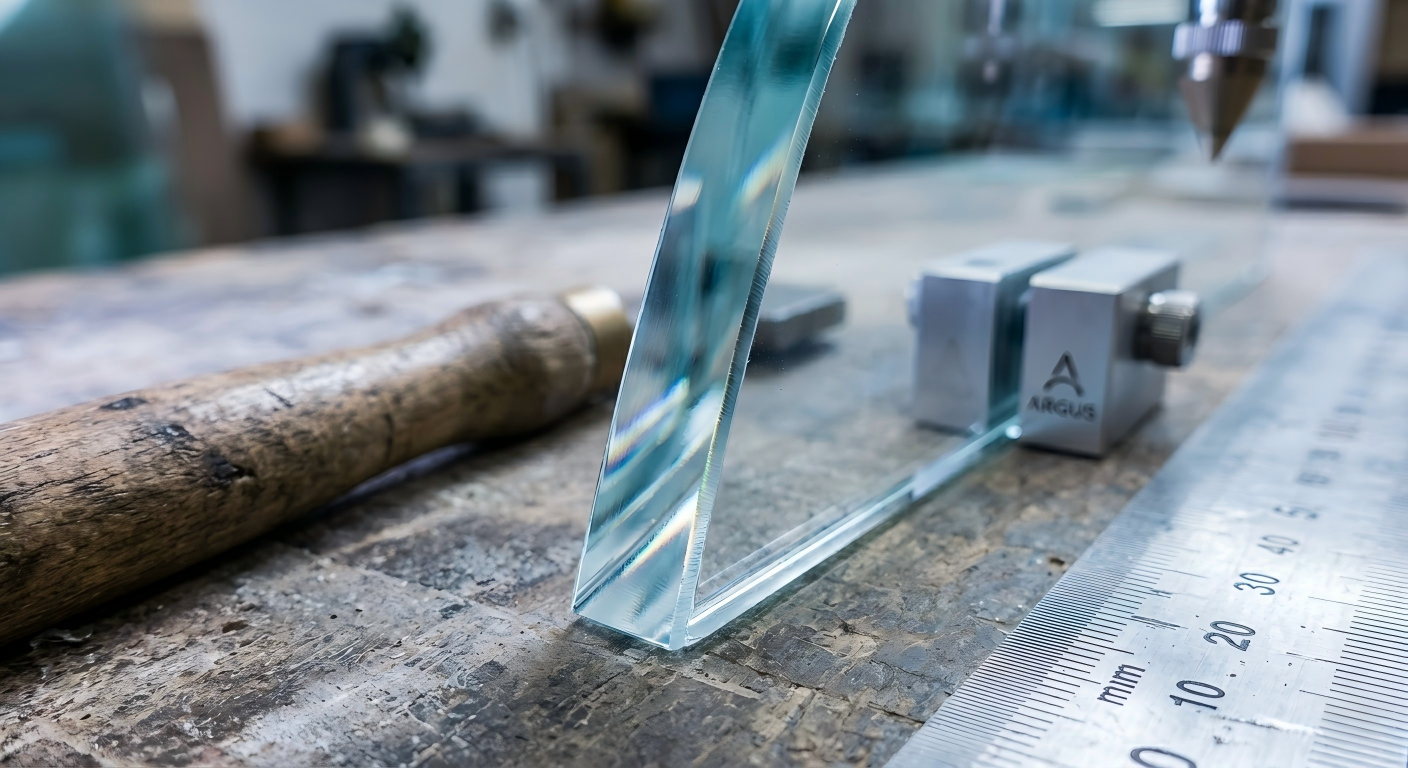

1.Utilizes a custom ultra-fast picosecond laser along with a proprietary beam shaping cutting head, allowing for precise cutting and splitting of various brittle materials.
2.High cutting precision with no taper, minimal heat-affected zone, and no gaps generated during cutting. The processed edges are free of debris, burrs, or residue.​​​​​​​
Glass Laser Cutting Machine Application Fields

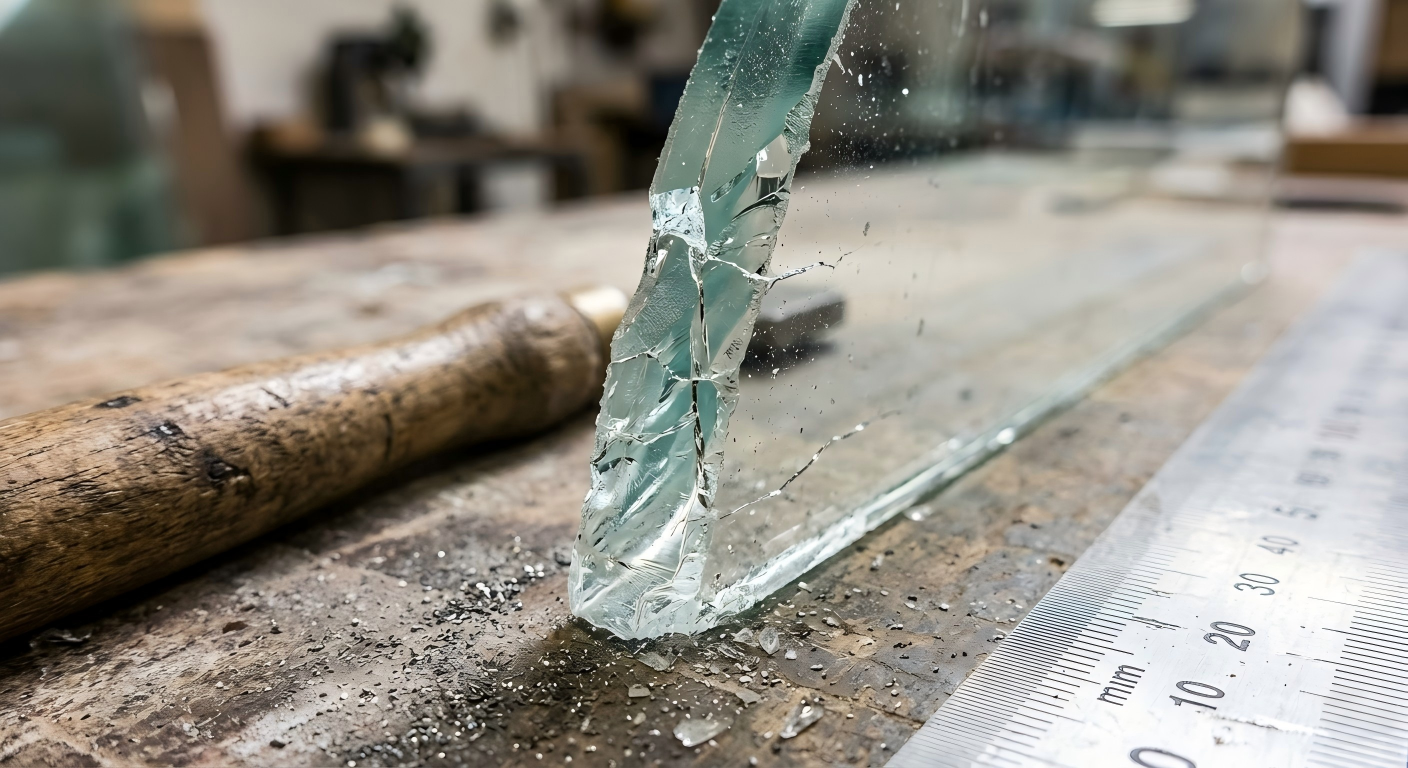

Compared with traditional cutting methods, the equipment has the following advantages
Main technical indicators of the equipment
Laser Specifications Laser Type      Infrared picosecond laser
Laser Central Wavelength      1064nm
Laser Pulse Width       ≤15ps
Average Output Power      60W
Platform System Platform Travel      Custom XY linear module, max travel 600mm × 700mm, dual workstations
Platform Speed      1200mm/s
Platform Precision      Positioning accuracy ±2μm
Control System Motion Control Card      Custom bus motion control card
Industrial PC     Dual-core CPU; 8GB RAM; 500GB hard drive; LCD monitor
Software System Control Software    Specialized glass laser cutting software

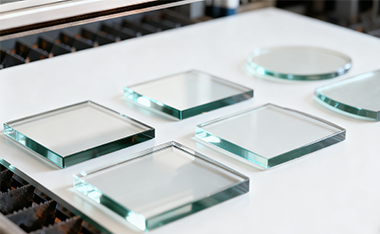

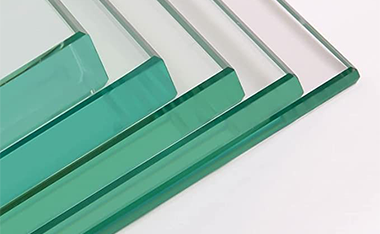

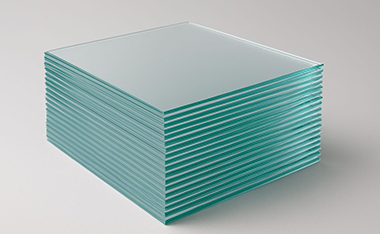

Cutting Product Characteristics Materials     Corning, Schott, Panda, optical filters, and other transparent materials
Thickness Range     0.1mm ~ 6mm
Point Spacing     Adjustable between 1μm - 10μm
Point Size     Approximately 3μm

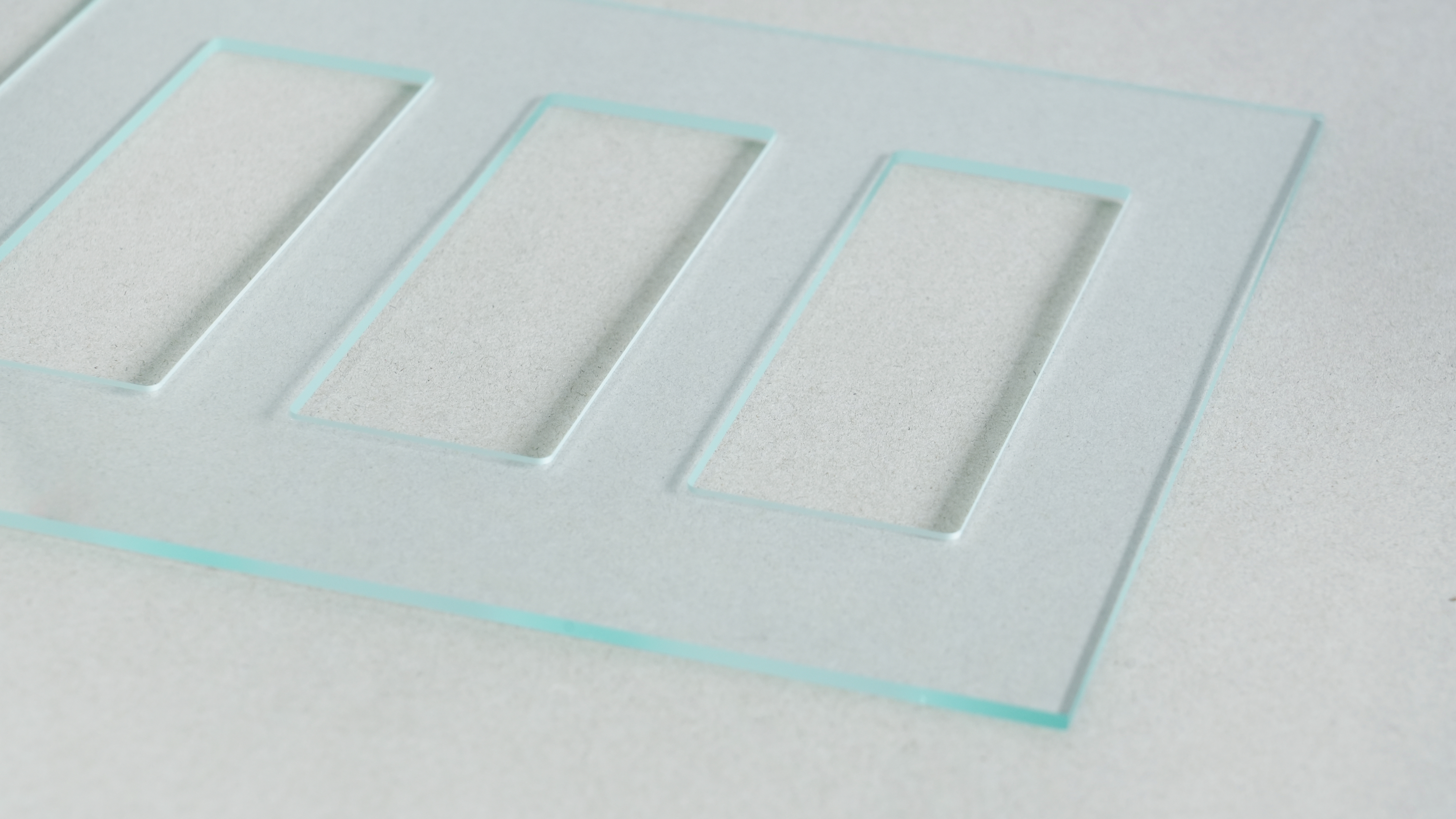

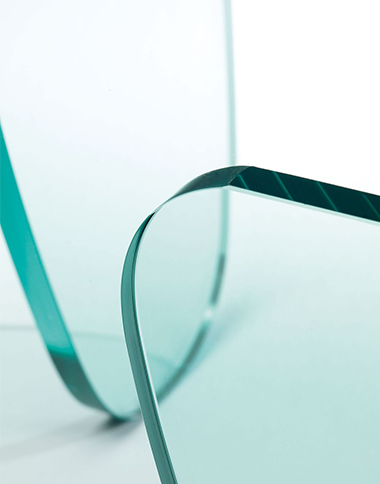

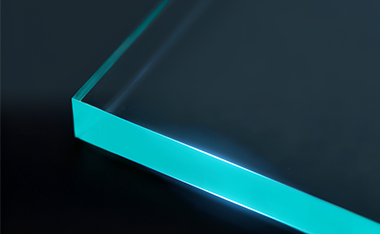

Cutting Quality    Smooth, clean edges; chip edge size ≤5μm after splitting
Cutting Inked Products     Able to cut through ink edges thicker than 60μm
Equipment Dimensions Size:    Length 2400mm × Width 2100mm × Height 1950mm
