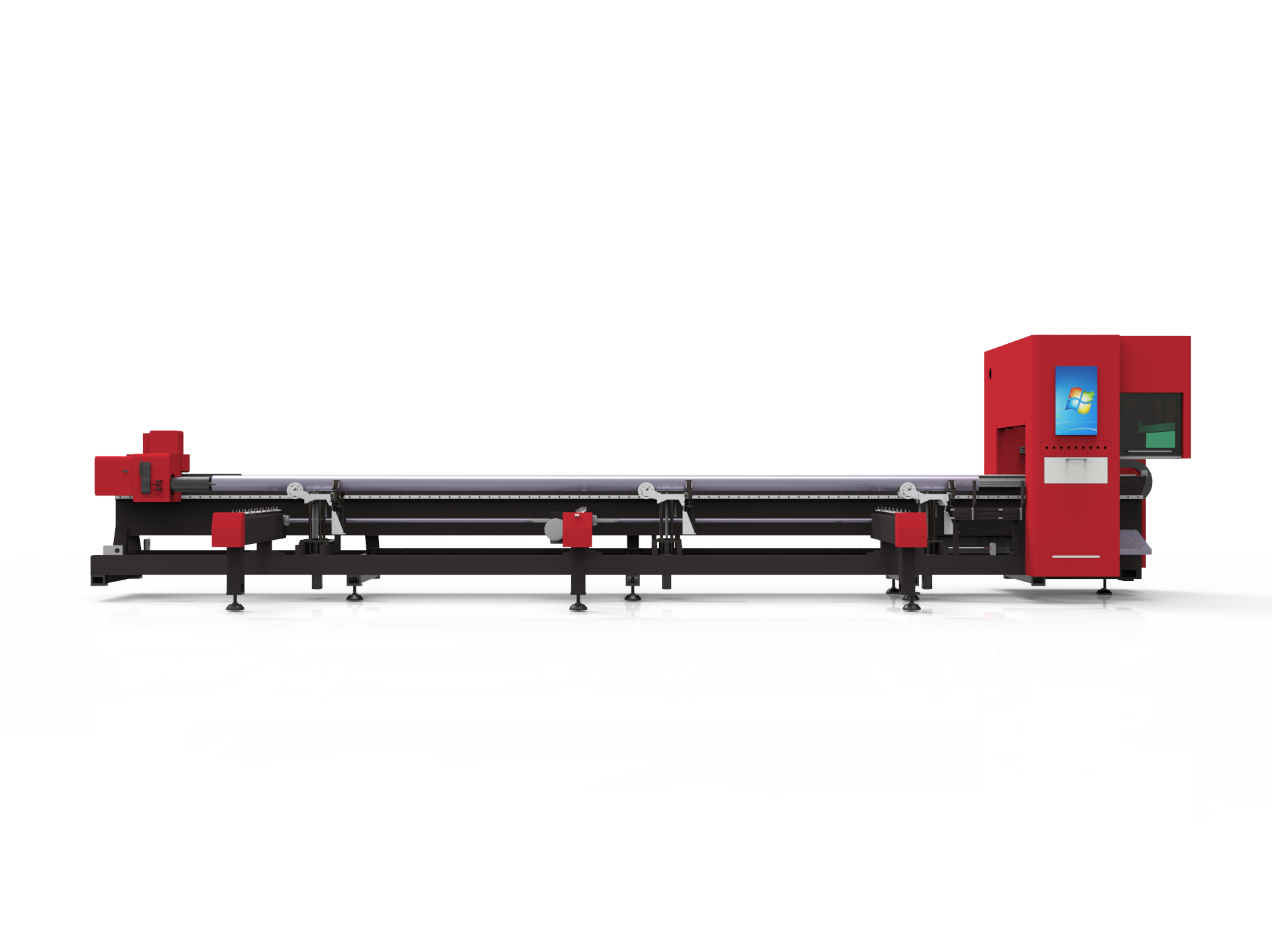

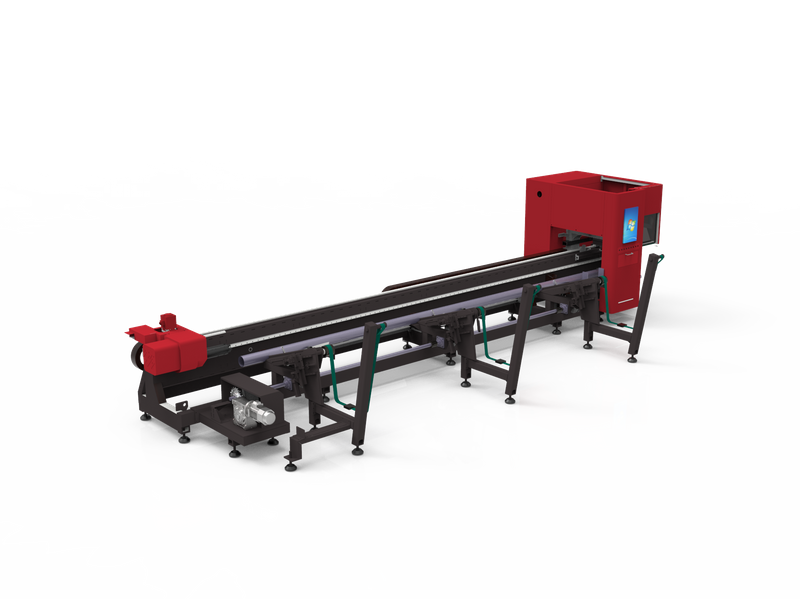

Fully Automatic Metal Tube Laser Cutting Machine — ARGUS Laser Metal Cutter

The ARGUS Fully Automatic Laser Metal Tube Cutting Machine combines high-speed performance with full automation for steel, aluminum, and stainless steel tubes. With intelligent control and advanced fiber laser technology, it ensures burr-free, precise cuts on complex tube geometries with minimal operator intervention. Perfect for automotive parts, furniture frames, and industrial machinery, it maximizes efficiency, reduces labor costs, and maintains consistent, high-quality results.
Availability:
Quantity:
Inquire Add to Basket

  • TFA Series

  • ARGUS

Automatic Laser Metal Tube Cutting Machine Fully Automated. Ultra-Precise. Maximum Efficiency.
ARGUS Fully Automatic Laser Tube Cutter provides hands-free, high-speed cutting of steel and aluminum tubes across automotive, furniture, and industrial applications. Its advanced automation ensures consistent, burr-free cuts, reduces labor requirements, and maximizes production efficiency—delivering reliable results for even the most demanding manufacturing environments.
Learn More
fuwuaixin
Equipment power
1.5KW-20KW
fuwuaixin
Loading Method
Full Automatic Feeding
fuwuaixin
Chuck specifications
130,170,240 Square Card
fuwuaixin
Optional working format
O:φ20-240mm,口：20-240mm Customizable on demand

ARGUS Laser Metal Tube Cutting Machine Feature

Interferometer Detection
Using a laser instrument to detect the dynamic positioning error of the movement， ensuring that the positioning accuracy of each machine is controlled within ±0.003mm， and the repeat positioning accuracy is ±0.001mm， meeting the precise cutting requirements of the equipment.
621
621
Equipment Trial Operation
All machines must pass 36 dynamic performance indicators tests. Before leaving thefactory, it undergoes a 72-hour high-intensity continuous operation test. It is subjected to high-speed reciprocating motion to simulate the mechanical stability
under extreme working conditions. At the same time, it undergoes extreme thickness material cutting tests, fault simulation tests, etc. This ensures the reliability for customer use and a high-quality customer experience from the very beginning.

Laser Metal Cutting Machine Components

Machine production processing

Machine Welding
Precision welding with fixtures ensures guideway flatness ≤0.02 mm. All weld seams pass ultrasonic inspection for high rigidity.
High-Temperature Annealing
550°C × 4 h annealing stabilizes hardness (±15 HB) and removes internal stress to prevent deformation.
High-Precision Horizontal Milling
Five-axis milling in a temperature-controlled workshop achieves Ra ≤0.8 µm and contour accuracy ±0.005 mm.
Interferometer Calibration
Positioning accuracy ±0.003 mm; repeatability ±0.001 mm.
Equipment Trial Operation
36 dynamic tests + 72-hour high-load run verify stability and cutting reliability.
Packaging & Shipping
Anti-rust protection (salt-spray ≥1000 h), shock-absorbing packaging, and standard lifting points ensure safe transport.
  • medal
    Pre-Sales Consultation
    We provide professional guidance on model selection, process evaluation, and sample cutting based on your materials, production needs, and budget—ensuring you get the most suitable laser cutting solution.
    CONTACT US
  • medal
    Product Training
    Comprehensive training covers operation procedures, safety guidelines, process parameter setup, and daily maintenance. Even beginners can quickly master high-quality cutting skills.
    CONTACT US
  • medal
    After-Sales Service
    We offer remote technical support, on-site maintenance, spare parts supply, and scheduled equipment inspections to ensure long-term stability and worry-free production.
    CONTACT US


Model

Fully-automatic feeding

Laser Type

Fiber laser source
Laser Power1.5KW-20KW
Laser Wavelength1064-1080nm
Chuck Spec120、170、240、360mm square type

Supported Tube Length

6meter、9meters、12meters (Optional)

Positioning Accuracy

±0.01mm

Max Cutting Speed

Depends on thickness

Max Acceleration

1.0G

Transmission Type

Gear rack transsmission

Driving System

Servo motors

Max Cutting Thickness

Depending on laser power and material

Assisting Gas

Compressed air, O2, N2 depends on customer requirement

Cooling Mode

Circulation water cooling

Visual Positioning

Red dot

Power Supply

3 phase 380V 50HZ/60HZ(Customized)


Key Features – Fiber Laser Tube Cutting Machine

  1. Designed for Precision Tube Cutting
    Purpose-built for metal tube and profile processing, delivering stable performance and high cutting accuracy.

  2. High Efficiency with Low Operating Cost
    Optimized cutting process enables high-speed tube cutting, with optional air cutting for reduced operating costs on thin materials.

  3. Reliable Fiber Laser Source
    Equipped with a premium fiber laser source, offering stable output and a long service life of up to 100,000 hours.

  4. Excellent Cutting Quality
    Smooth cutting edges, minimal burrs, and consistent results for both structural and decorative tube applications.

  5. Professional Tube Cutting Software
    Dedicated software supports fast programming of tubes, profiles, and complex geometries with easy operation.


Applicable Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED
Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks &Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts,Nameplates, etc


Applicable Materials
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
