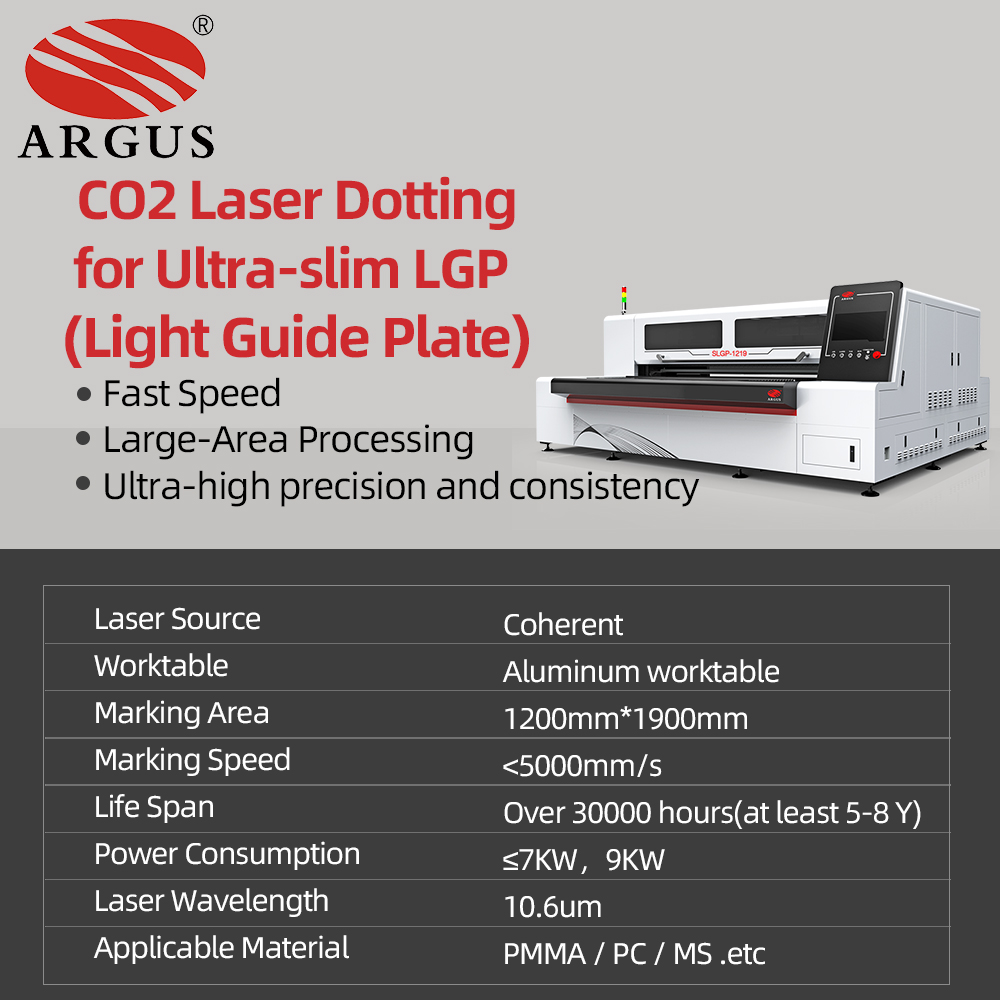

TV LGP Laser Dotting Machine

SCM1219(1)_副本

Working Area：

1000*1500mm/1200*1900mm

1300*2500mm

Coherent/Rofin R.F.

Metal Laser Tube

High Speed Linear Motor

Do you Know?

What Are the different Methods of Laser Dotting

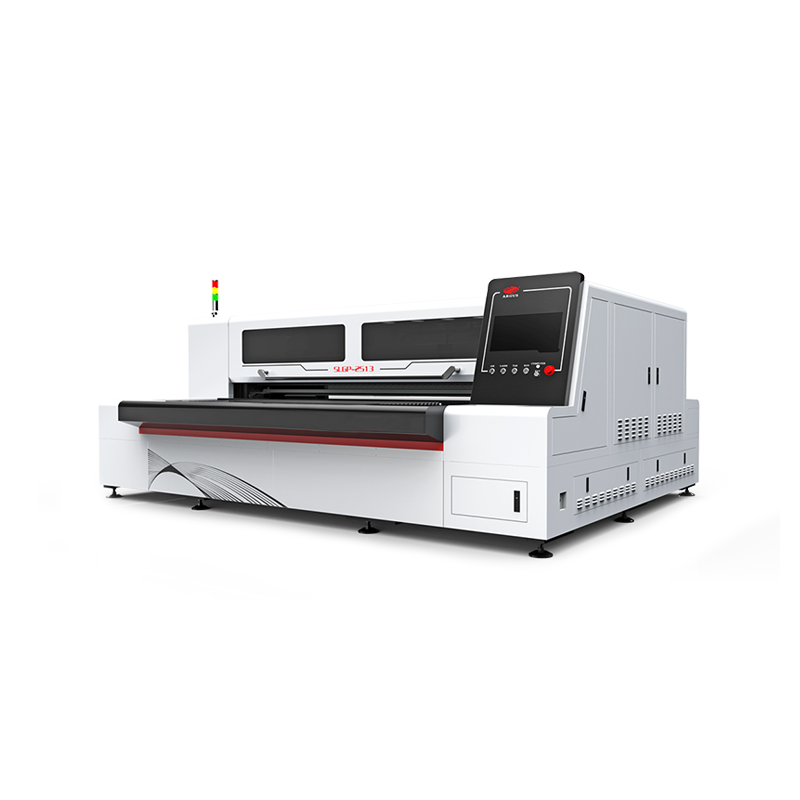

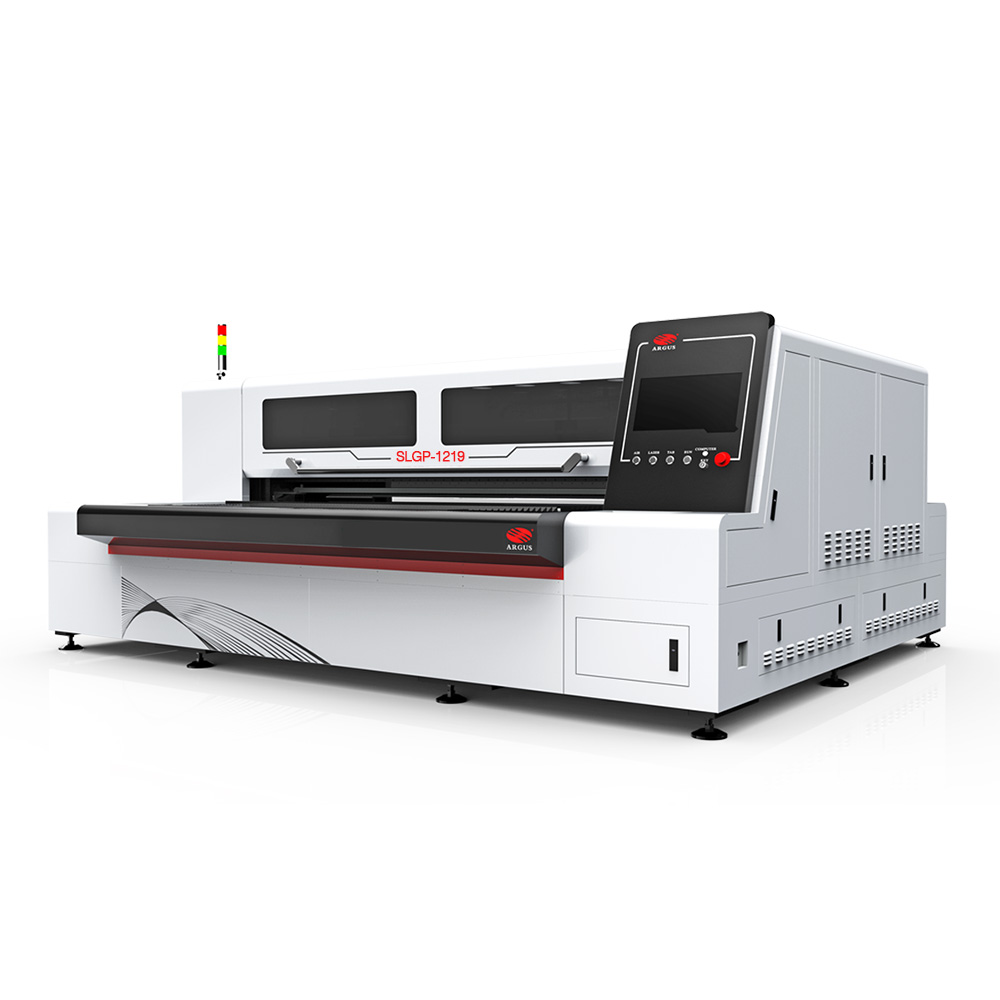

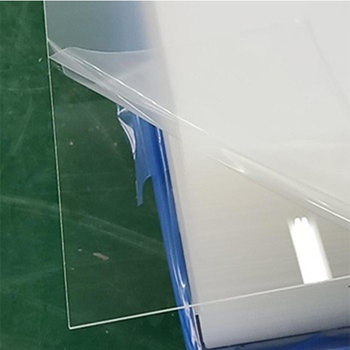

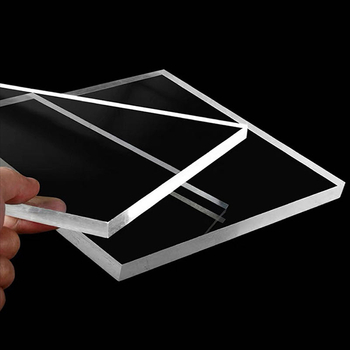

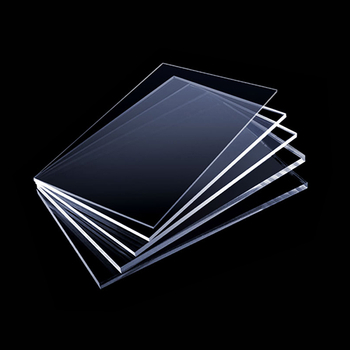

TV LGP Laser Dotting Machine

This machine can design dot shape and dot size according to the actual application requirments.

The dots made by the machine has the features of high precision, no deformation and fast speed.

. LED Exit Light . Lighting Show

. LCD Monitor . General Lighting

. Luminous Signs . Decorative Lighting

. Big Format Light Box . Acrylic 3D Night Lights

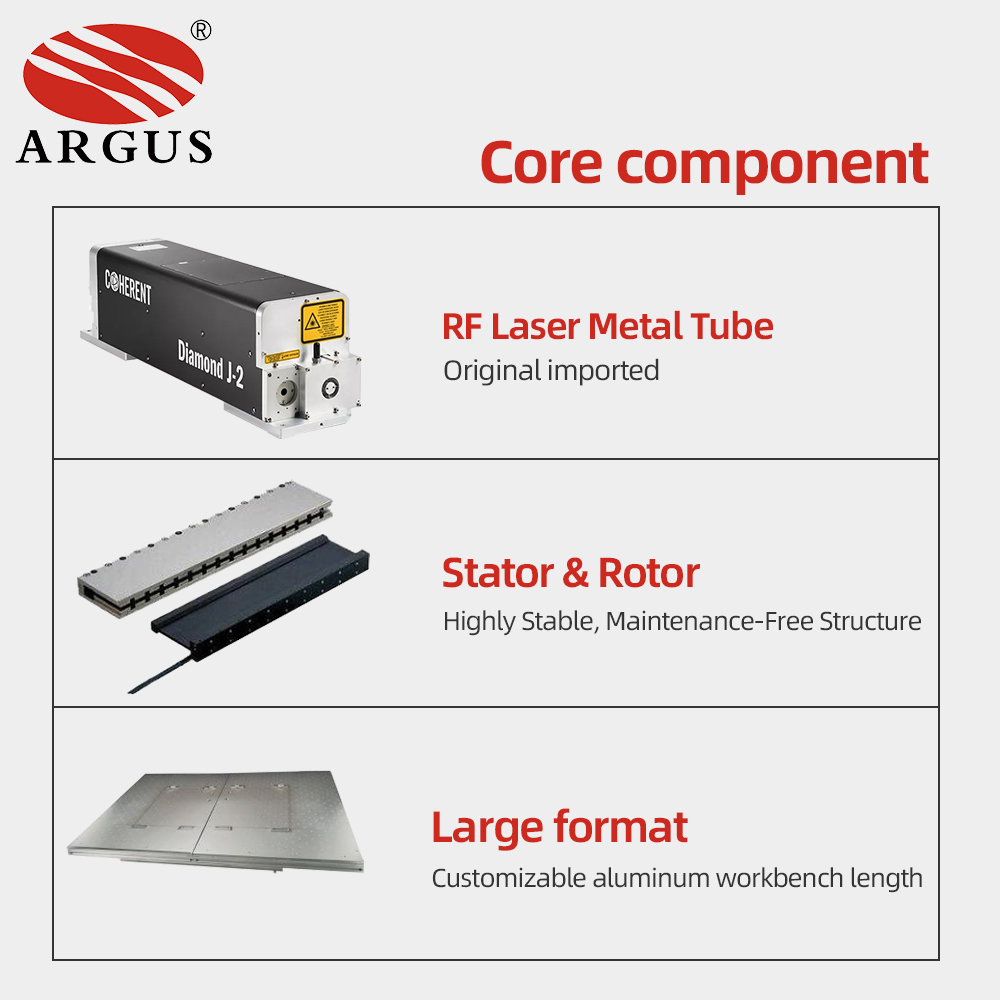

PRODUCT ADVANTAGES

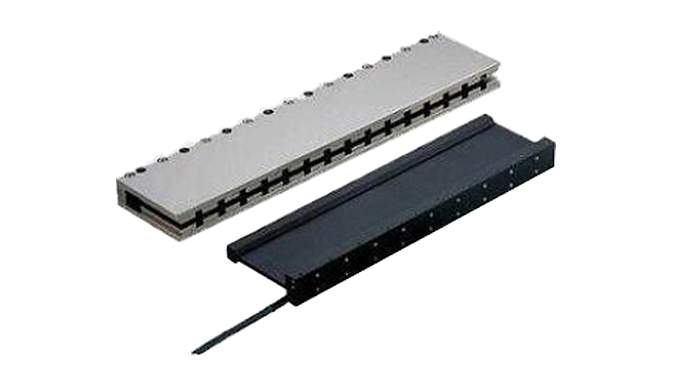

Linear Motor:TIWIN

Use high speed Linear Motor,

made in Taiwan. Makes the production with high speed and accuracy;

Double beam dot, 600 amplitude light guide plate about 70s.

RF Laser Metal Tube

Original imported metal RF laser tube with high laser power. Stable laser output makes the dots uniform;

Stable laser generation and life time of more than 20000 hours.

Professional Dotting Software

The software will auto matically generate the dot matrix template file after input the LGP size and select the light input mode;

Dots' size and density are available to change.

Good Uniformity

The lighting uniformity of the LGP made by our equipment can reach to 90% plus.

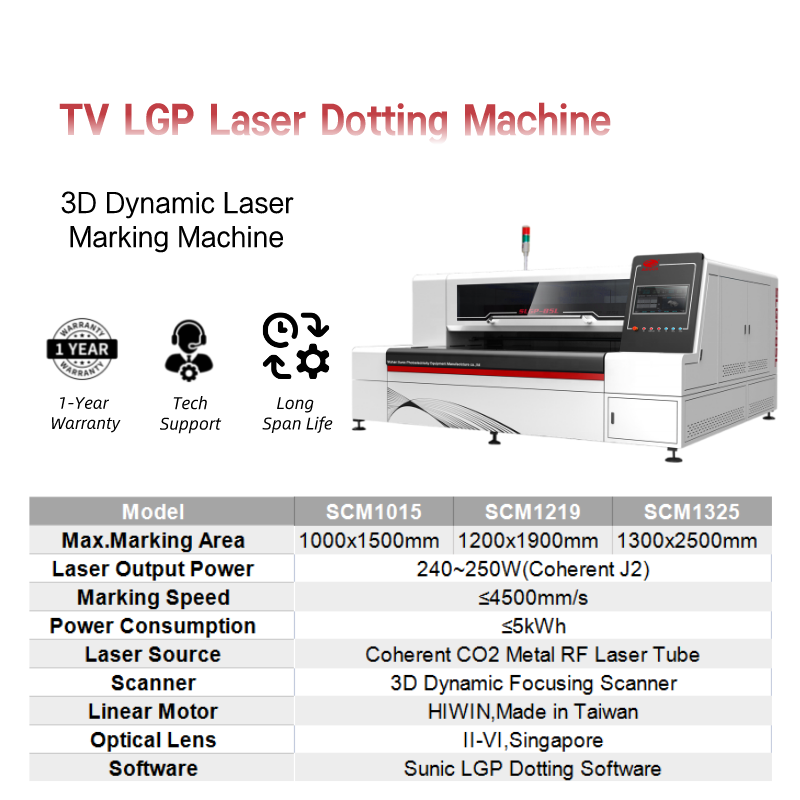

PRODUCT PARAMETERS

Model	SCM1015	SCM1219	SCM1325
Max.Marking Area	1000*1500mm	1200*1900mm	1300*2500
Laser Output Power	240~250W(Coherent J2)
Marking Speed	≤45mm/s
Power Consumption	≤5KWh
Laser Source	Coherent CO2 Metal RF Laser Tube
Scanner	3D Dynamic Focusing Scanner
Linear Motor	HIWIN, Made in Taiwan
Optical Lens	II-VI, Singapore
Software	Sunic LGP Dotting Software
Laser Pulse Frequency	≤100KHZ
Linear Guide	Rail THK Made in Japan
File Formats	PLT, AI, BMP, JPGetc
Note	1.Electricity 380V/60HZ/3 Phase/4 Wires 2.0.6MPa Compressed Air Line 3.Distilled Water ( from the bottle ) to be Used the Supplied Chiller.

LGP PRODUCTIONG PROCESS

BD765676-0762-45bd-9213-FC59F7ADF8E7

SUNIC Software Design

4061922E-7FE5-4660-95CD-804215D31C69

Gtools Dotting Design

156478C9-15F2-4410-AC3B-49782FCAA915

Dotting Import

F7AF80A4-DB71-4d1f-AB64-9756BB87BE62

Light Guide Laser processing

0070CF00-A004-4898-8D62-D186A1713D98

LGP Film Packaging

E4745BF4-26FB-4778-AEA2-8E47C5336082

LGP Detection

D3A98E27-BAD1-4dac-8967-2BA52C55CBFA

LGP Cleaning

Application Scenarios

Advertising Industry

广告行业

灯具行业

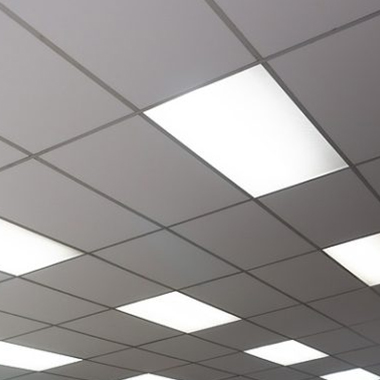

Lighting Industry

Decorationg Indusry

导光板样品1

卫浴行业

Bathroom Industry

3C Electronic Industry

电子通讯行业

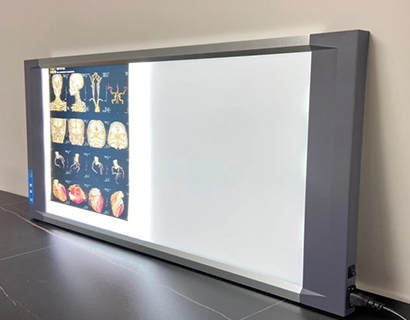

医疗行业

Medical Industry

Lighting Show

灯光秀

发光标识

Luminous Signs

SAMPLE DISPLAY

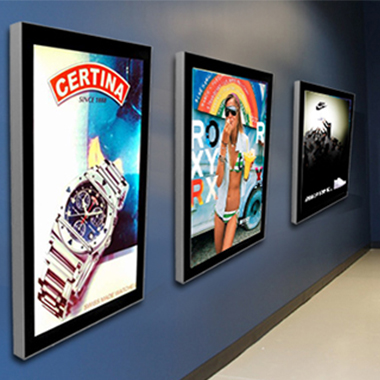

》Big Format Ultra-thin Light Box

大幅面超薄灯箱1

导光板样品5

》General Lighting

普通照明3

普通照明2

》Decorative Lighting

装饰照明1(1)(1)

装饰照明3

装饰照明4

》LCD Monitor

液晶显示器2(1)(1)

》LED Exit Light

紧急出口5

紧急出口3

紧急出口1(1)(1)

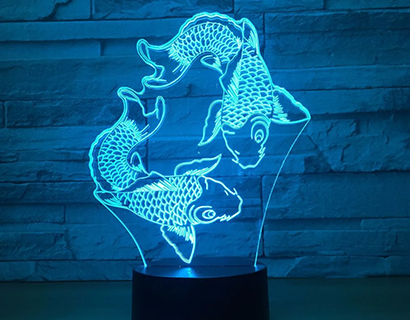

》Acrylic 3D Dight Lights

亚克力LED灯3

导光板样品3(1)

亚克力LED灯2

Comparison

what advantages does the laser process have over screen printing?

64BDCE5A-B630-485e-A752-1E6A4752E51D

LGP Laser Dotting Machine

VS

A5B8170E-DBFB-43c5-B0BA-B8CFBF080C6D

Screen Printing

	LGP Laser Dotting Machine	Screen Printing
Reflection Unit	Bump point	Plane bump
Reflective Medium	Vaporized on PMMA	Printing ink on PMMA
UV Protection/Strength	Yes / Strong	No / Weak
Surface Illumination	20% higher than printing	--
Evenness	More than 90%	About 75%
Light Transmittance	More than 95%	About 85%
Yellowing Rate	No yellowing	More than 5%
Dot Precision	0.2-0.6mm	1-2mm
Life Span	5-8 Years	2-3 Years (Ink deteriorates due to moisture)
Quality	Never fade	Gradually fade
Environmental Friendly	No pollution	Ink is easy to fall off
Shape	Can be cut to any shape	Fixed shape
