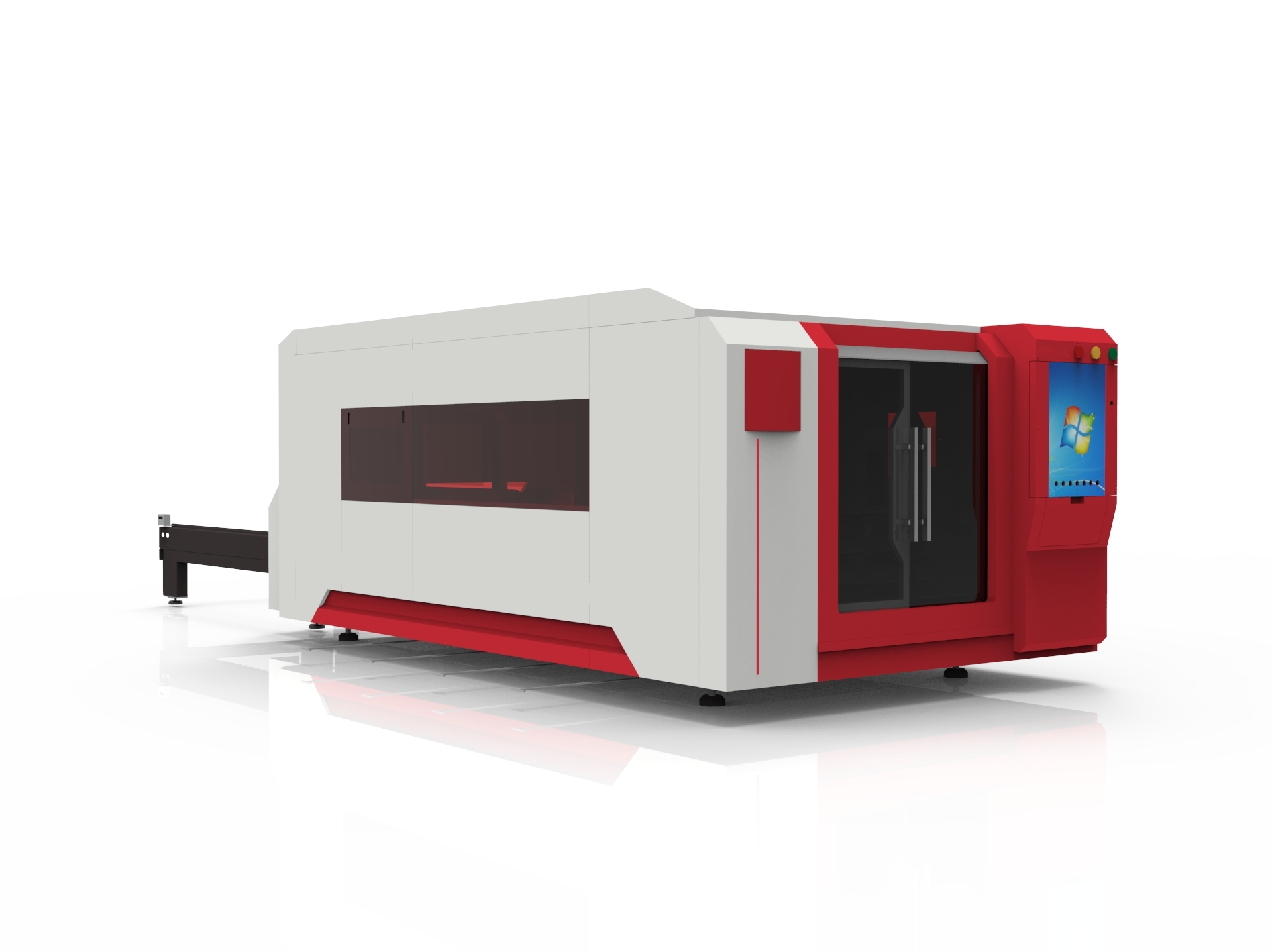

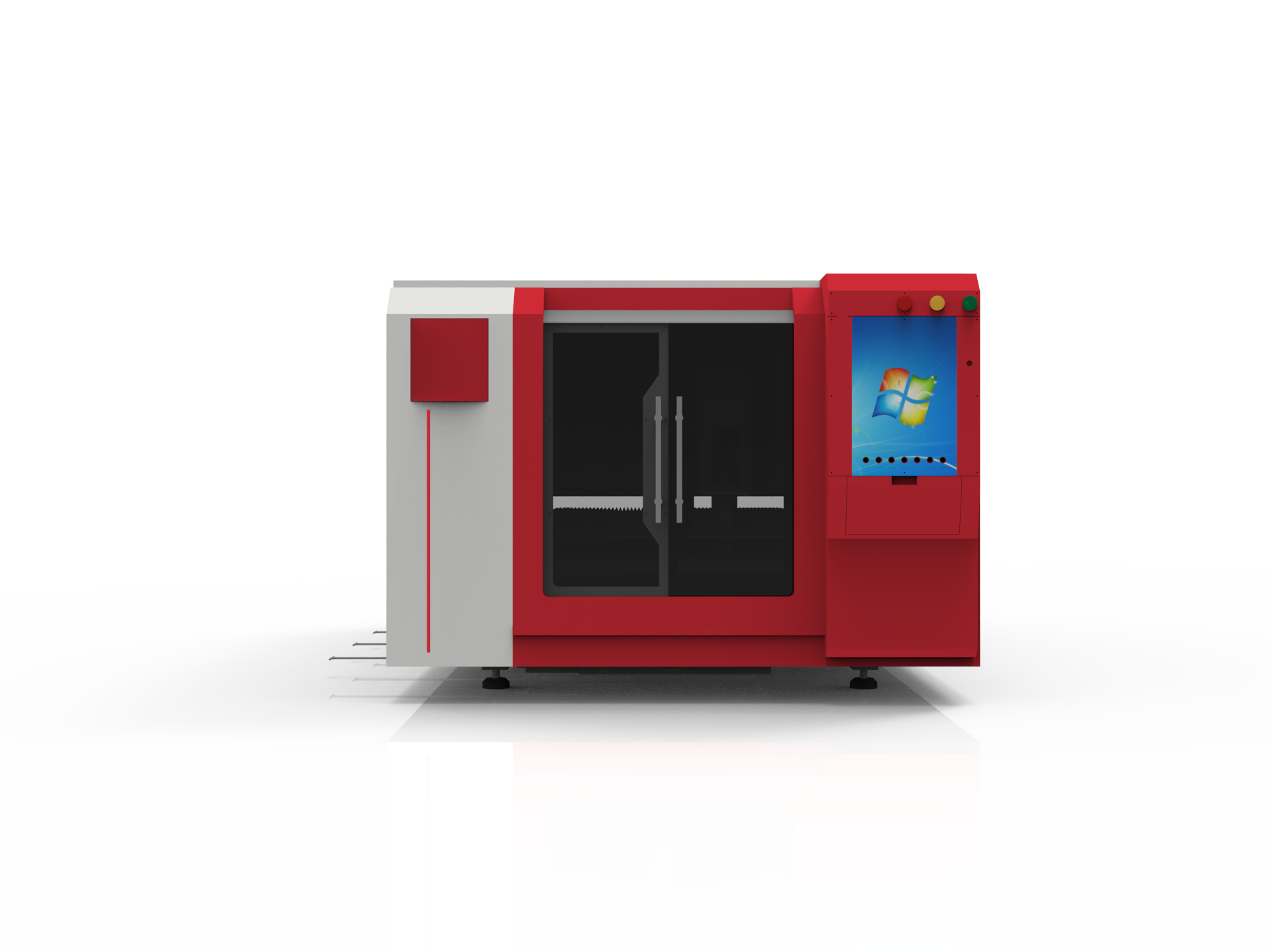

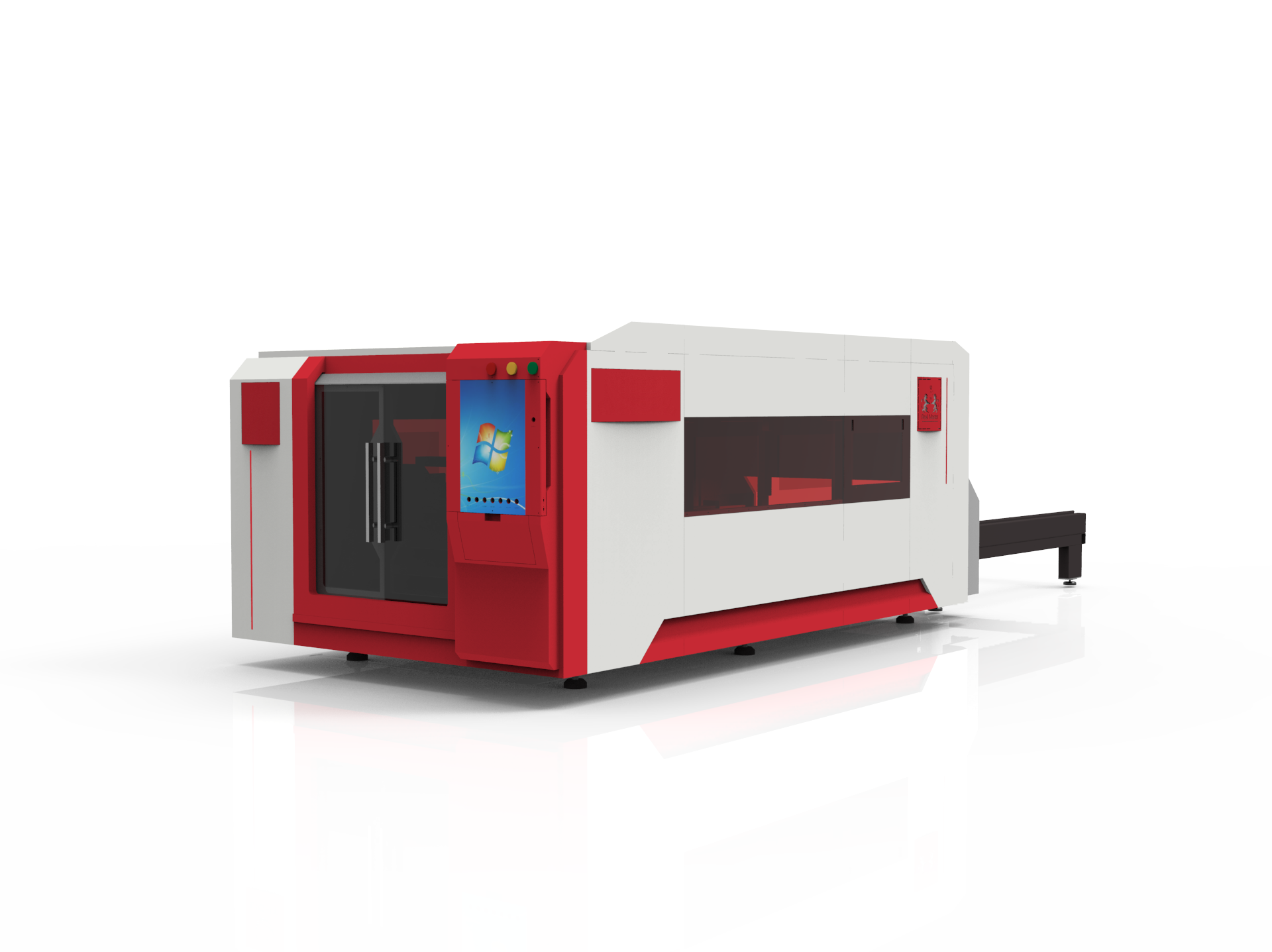

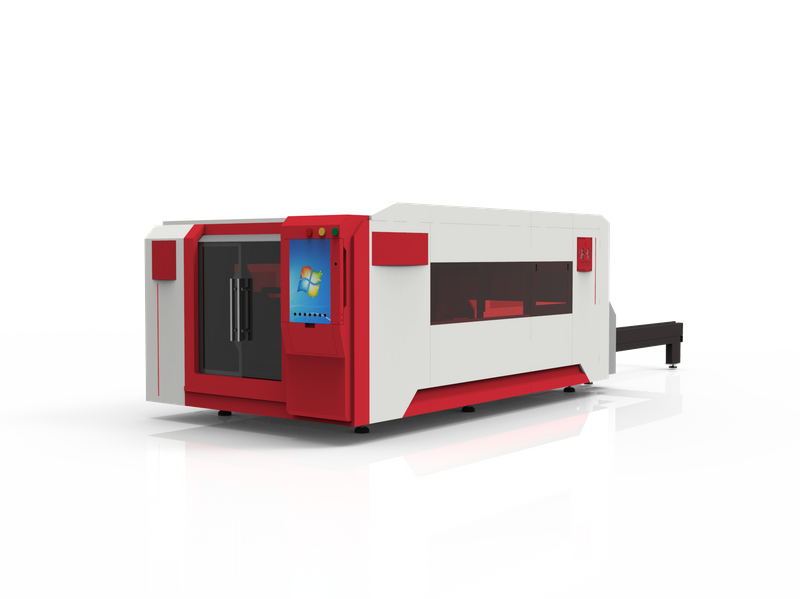

4000w Full Enclosed Metal Fiber Laser Cutting Machine

Product name: Full enclosed metal fiber laser cutting machine with exchange tables
Model: SFC3015
Laser power: 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W
Working range: Two table with each 1500 x 3000mm
Application: Professional used to cut sheet metal like carbon/mild steel, stainless steel, aluminum alloy, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate, etc.
Quantity:
  • SFC3015

Machine features


1. With a fully enclosed design, it is more safe.
2. The smoke produced by cutting can be removed inside, it's non-polluting and environmentally friendly.
3. Exchange table adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor. The machine is able to finish the platform exchanging within 12s.



Technical parameters



 Model SFC3015
Laser type Fiber laser, 1080nm
 Laser power 1000W, 1500W, 2000W, 3000W, 4000W, 6000W
 Working area 1500mm x   3000mm
Min Line width 0.1mm
 Positioning accuracy 0.01mm
 Max. Cutting speed 60m/min
Transmission type Precision dual ball screw transmission
 Driving system Serve motors
 Cutting thickness Depending on laser power and material
 Assisting gas Compressed air, oxygen and nitrogen
 Cooling mode Industrial circulation water chiller
 Visual positioning Red dot
 Working voltage 220V/380V



                                                       Fiber laser source cutting   capacity
            Material                  Maximum cutting   thickness (mm)           Remark

           1000W 1500W 2000W 3000W 4000W The thickness is each fiber source maximum cutting   thickness,
      Stainless steel              4     5     8     10   10 If your main materials is up to maximum thickness, please choose   more higher power source.
      Carbon steel             10     14    18     20   22
    Galvanized sheet              4     5     8     10   10
       Aluminum              3     4     5     6    8
         Brass              3     4     5     6    8



Video




Machine details


1. Pipe welding bed, Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
2. With a fully enclosed design, Full enclosed protection cover make work area completely isolate smoke and laser radiation. Minimized pollution will make a safer using condition.

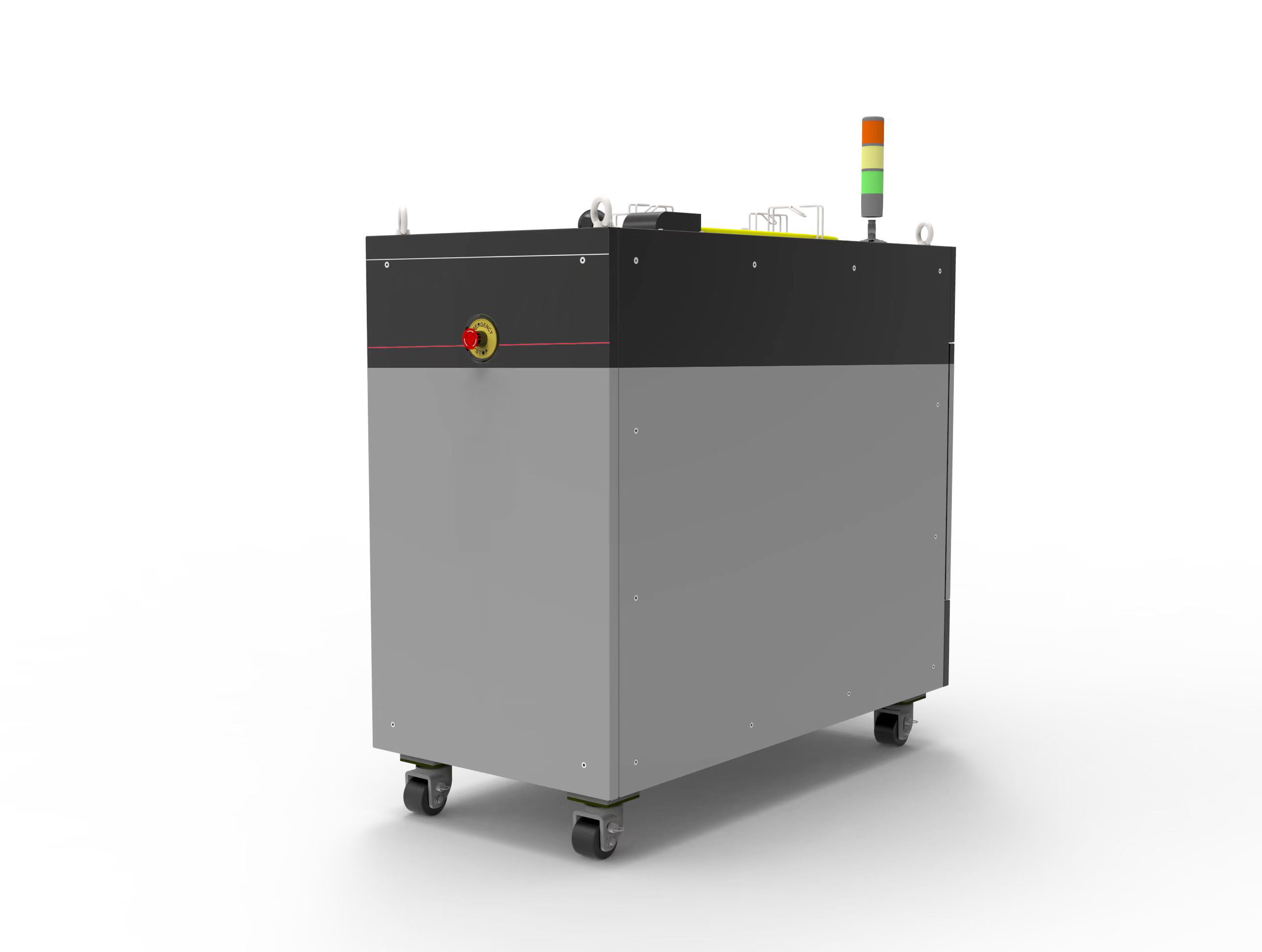

3. Top brand Raycus/JPT/IPG/Nlight fiber laser source 750W - 4000W: The power can be increased with the technology improved.

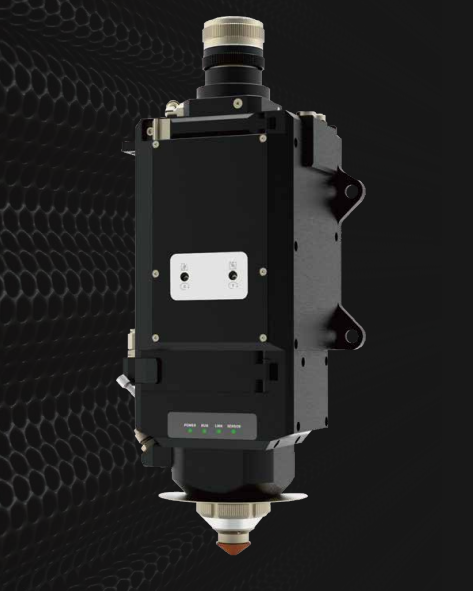

4. Professional laser cutting head with auto following system.
5. Water chiller, it is able to cool the fiber laser and optic lenses at the same time.
6. CypCut laser cutting control system, include control board , height control and machine software in English. Supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is also ok.




Machine Application



metal cutting samples


1. With a fully enclosed design, it is more safe.
2. The smoke produced by cutting can be removed inside, it's non-polluting and environmentally friendly.
3. Exchange table adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor. The machine is able to finish the platform exchanging within 12s.

 ModelSFC3015
Laser typeFiber laser, 1080nm
 Laser power1000W, 1500W, 2000W, 3000W, 4000W, 6000W
 Working area1500mm x   3000mm
Min Line width0.1mm
 Positioning accuracy0.01mm
 Max. Cutting speed60m/min
Transmission typePrecision dual ball screw transmission
 Driving systemServe motors
 Cutting thicknessDepending on laser power and material
 Assisting gasCompressed air, oxygen and nitrogen
 Cooling modeIndustrial circulation water chiller
 Visual positioningRed dot
 Working voltage220V/380V



                                                       Fiber laser source cutting   capacity
            Material                 Maximum cutting   thickness (mm)          Remark

           1000W1500W2000W3000W4000WThe thickness is each fiber source maximum cutting   thickness,
      Stainless steel             4    5    8    10  10If your main materials is up to maximum thickness, please choose   more higher power source.
      Carbon steel            10    14   18    20  22
    Galvanized sheet             4    5    8    10  10
       Aluminum             3    4    5    6   8
         Brass             3    4    5    6   8


1. Pipe welding bed, Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
2. With a fully enclosed design, Full enclosed protection cover make work area completely isolate smoke and laser radiation. Minimized pollution will make a safer using condition.
3. Top brand Raycus/JPT/IPG/Nlight fiber laser source 750W - 4000W: The power can be increased with the technology improved.
4. Professional laser cutting head with auto following system.
5. Water chiller, it is able to cool the fiber laser and optic lenses at the same time.
6. CypCut laser cutting control system, include control board , height control and machine software in English. Supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is also ok.
