Technical Specifications

Precision Optics & High Production Efficiency :

1.Ultimate "Cold Processing": Ultrashort picosecond pulses minimize the heat-affected zone (HAZ), ensuring carbonization-free and chip-free edges.
2.High-Precision Output: Exceptional beam quality (M^2 < 1.2) enables micron-level accuracy for intricate patterns and structures.
3.Rock-Solid Stability: Integrated anti-vibration design with real-time power compensation ensures consistent 24/7 industrial production.
4.Versatile Compatibility: Flexible parameter adjustment allows a single machine to switch between cutting, black marking, and color marking.
5.Eco-Friendly & Low Cost: Consumable-free processing eliminates chemical waste, significantly reducing operational and maintenance costs.

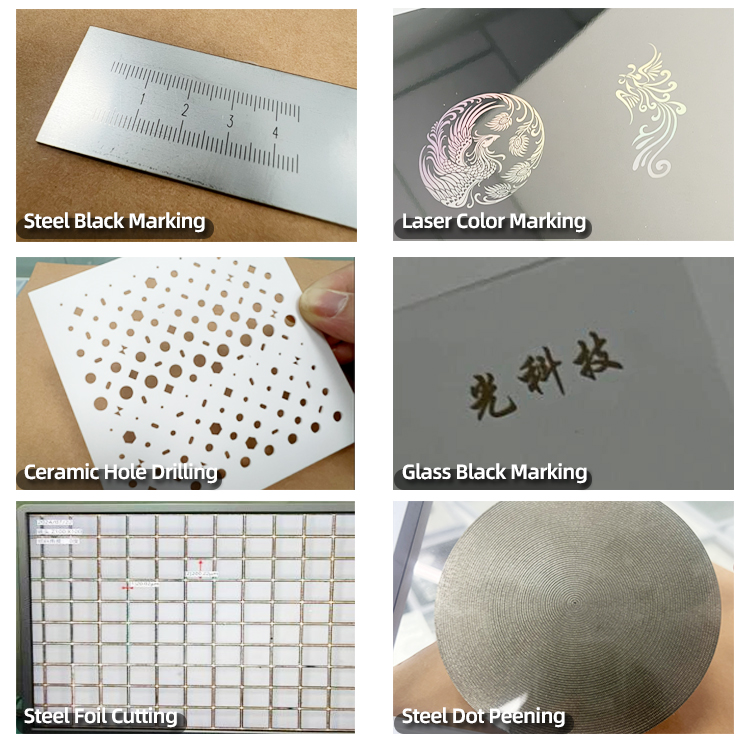

Samples

photobank

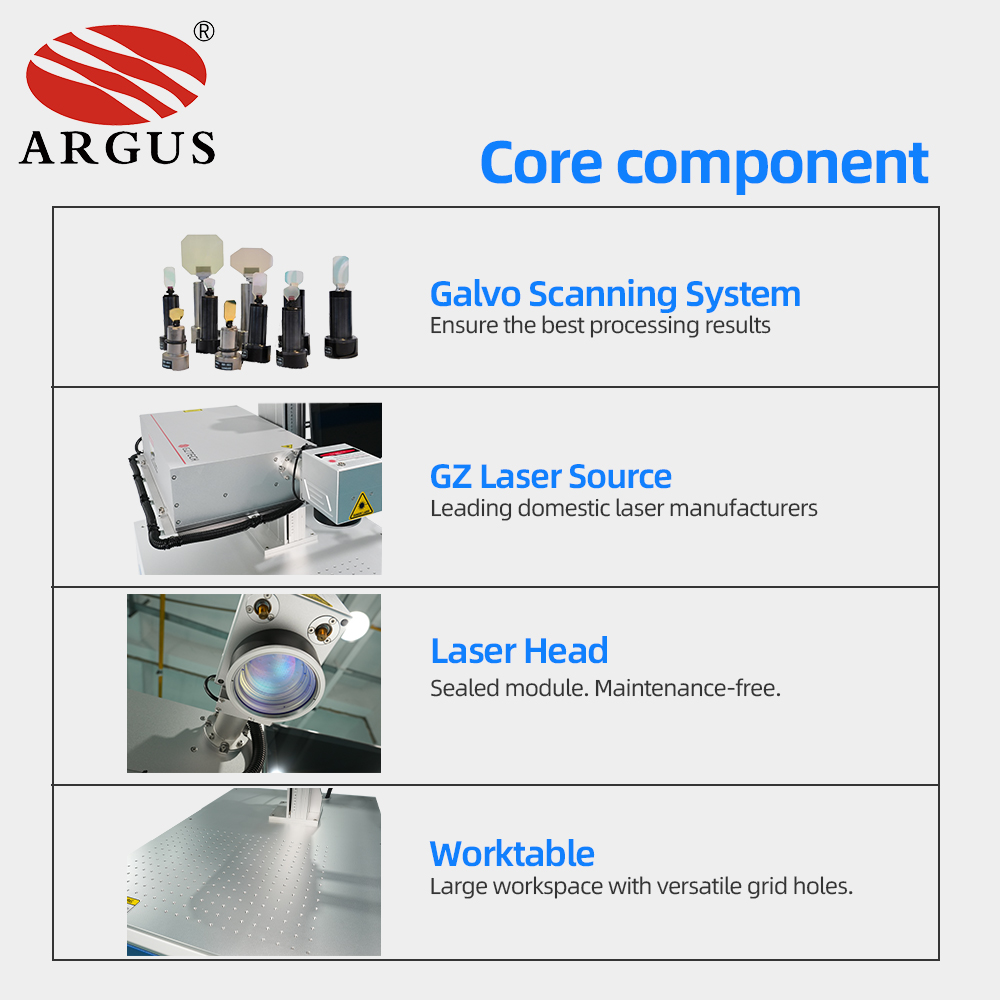

PRODUCT CONFIGURATION

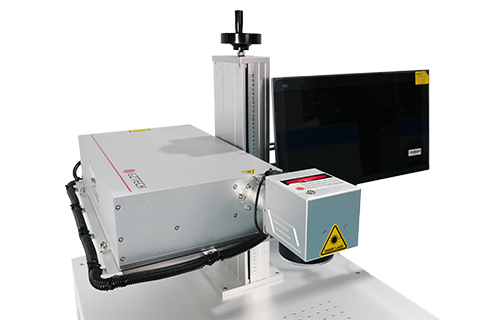

Laser Source

Leading domestic laser manufacturers Super long service life, up to 100,000 hours;
Excellent laser spot and stable laser generation.

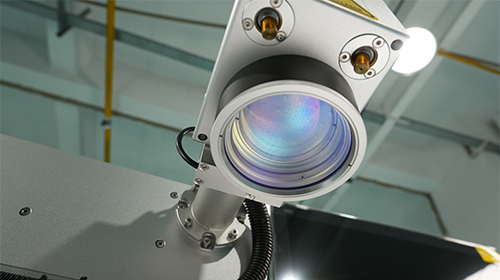

Galvo Scanning Head

Features advanced optical components for ultra-fine beams and superior processing accuracy.Double red light guiding light focusing function

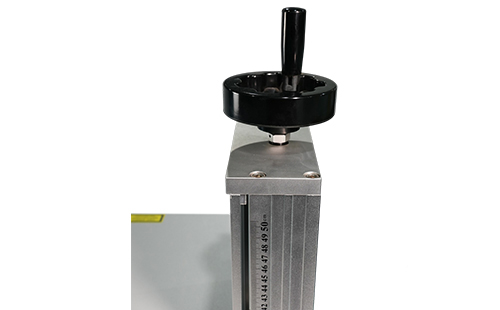

Lifting Shaft

Selecting high quality, high energy stable and convenient.

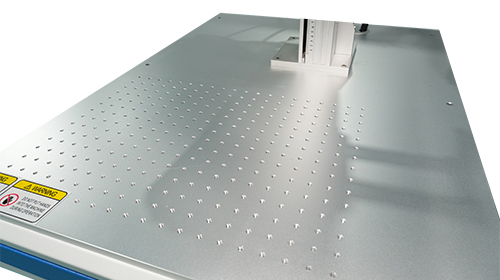

Worktable

Available in sizes from 110*110mm ~ 200*200mm.

Industrial-grade, rust-resistant table built for heavy loads and perfect flatness.

What is UV Picosecond laser marking machine application ?

Driven by ultrashort pulses, UV picosecond lasers excel in high-precision "cold processing" across multiple industries. They deliver burr-free, zero-deformation cutting of stainless steel foil, glass, and ceramics, effectively suppressing heat-affected zones. In metal surface treatment, the technology enables high-contrast black marking (salt-spray resistant) and vibrant color marking without compromising anti-corrosion layers. Furthermore, it provides chip-free glass marking and critical micromachining for medical instruments, ensuring both biocompatibility and extreme structural integrity.

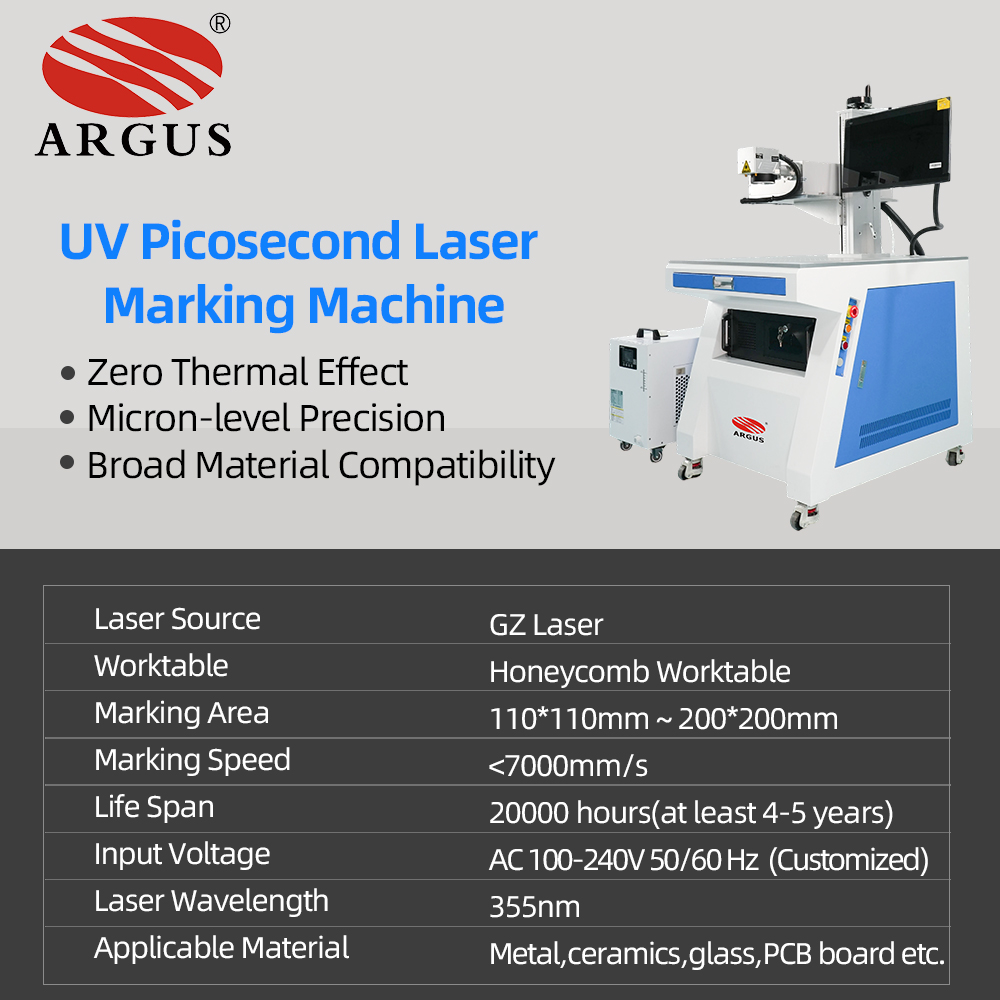

Product Parameters

三面2000

Model	SUM10
Max.Marking Area	110x110mm-200x200mm(Optional)
Laser Output Power	10W
Marking speed	≤7000mm/s
Laser Wavelength	355nm
Marking Depth	≤0.1mm
Power Consumption	＜600W
Repeat Accuracy	±0.003mm
Working Accuracy	0.001mm
Max. Single Pulse Energy	25μJ
Pulse Width	15ps
Frequency	4-20kHz
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AIetc
Software Character	JCZ EZCAD
Power supply	220V/50Hz (Customized)
CoolingWay	Water Cooling (Water Chiller is included)
