ARGUS Glass Laser Cutting Machine Automatic Picosecond Infrared Large Size Glass Laser Cutter

Key Features:
1.Smooth, clean cuts with no chipping
2.Capable of cutting complex shapes and intricate patterns
3.High-speed cutting for increased productivity 600mm/s
4.Low thermal impact, preserving material integrity
5.Minimal waste and cost-effective
6.User-friendly interface for easy operation
Availability:
Quantity:
Inquire Add to Basket

  • SCU6070

High Speed · High Precision · High Quality Glass laser cutting machine
Our Glass Laser Cutting Machine delivers a cutting speed of up to 500 mm/s, ensuring fast and efficient processing. With edge chipping controlled to less than 10 μm, it guarantees smooth and high-quality finishes.
Learn More
  • High Speed
    Max cutting speed 500mm/s
    Learn more
  • Ultra-Smooth Edges
    Edge chipping less than 10 μm
    Get a Quote
  • Versatile Applications
    Widely used in home appliances, decoration, and electronic displays
    Discover More
  • Precision Without Limits
    Achieve micro-level accuracy for complex and delicate glass designs
    Explore Now
  • 2
  • 1
Cut Glass Smarter, Faster, Cleaner
1.Smooth, clean cuts with no chipping
2.Capable of cutting complex shapes and intricate patterns
3.High-speed cutting for increased productivity 600mm/s
4.Low thermal impact, preserving material integrity
5.Minimal waste and cost-effective
6.User-friendly interface for easy operation

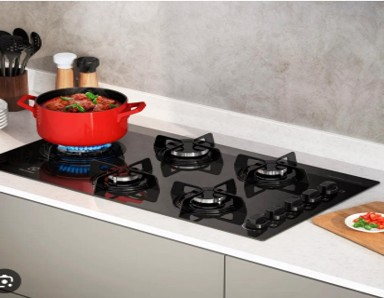

  • Gas stove glass cutting machine

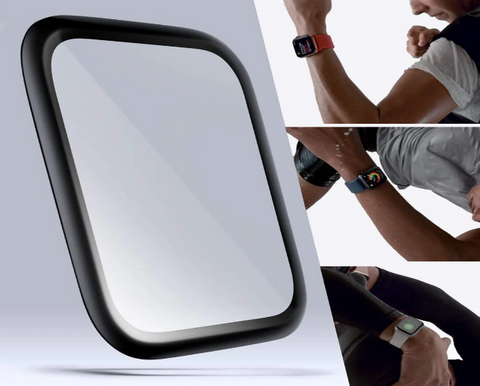

  • Laser cutting of watch glass

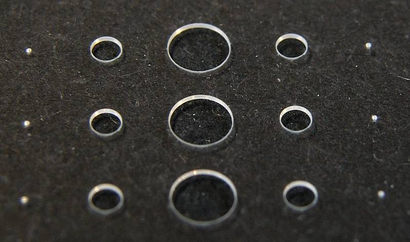

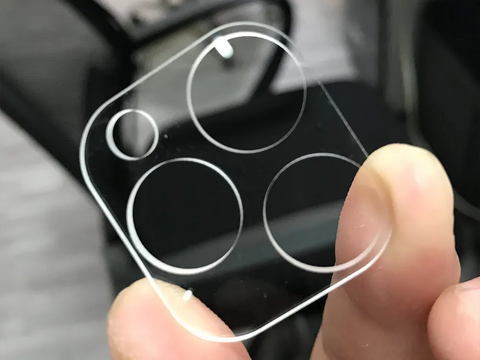

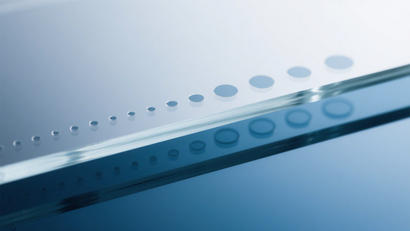

  • Glass laser drilling

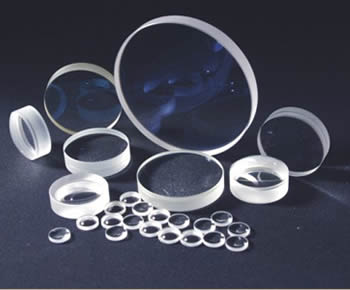

  • Optical lens glass laser cutting

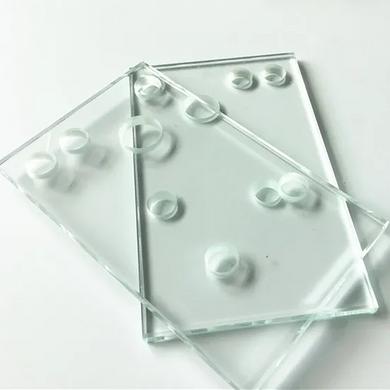

  • Glass laser drilling
  • picosecond laser cutter

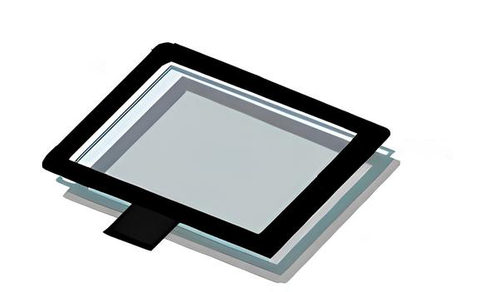

  • Laser cutting of display panel glass
  • Photovoltaic glass laser cutting
Why Choose Laser Glass Cutting?
Traditional cutting leaves cracks, chips, and limits design possibilities. Our laser glass cutting solution ensures cleaner edges, higher yield, and reduced production costs. It helps you deliver better quality products while saving time and resources.
Application Industry
1 -
  • Automotive Industry
    Precision laser cutting for car windows, mirrors, and display panels, ensuring accuracy and high-quality finishes for automotive applications.
  • Solar Energy
    Laser cutting for solar glass panels to improve edge quality and enhance panel efficiency for sustainable energy solutions
  • Optical Lenses
    High-precision cutting for delicate optical lenses used in cameras, microscopes, and other optical instruments.
  • Watch Glass Cover
    Fine laser processing for watch glass covers, providing perfect fits and scratch-free surfaces for luxury timepieces.
  • No Secondary Processing Required
    Minimal chipping, eliminating the need for rinsing, grinding, polishing, or other secondary processing
    SUBMIT
  • Higher Efficiency
    Maximum cutting speed can exceed 600mm/s, several times more efficient than CNC processing.
    SUBMIT
  • Smooth and Damage-Free
    Clean and smooth edges with excellent verticality, without micro-cracks, breakage, or debris.
    SUBMIT

Ready to Upgrade Your Glass Cutting?
Boost your production efficiency, reduce costs, and achieve flawless results with our advanced laser glass cutting machine. Our team is here to provide you with customized solutions tailored to your needs.
Contact Us Today



图片1 拷贝


Model LCP6070
Work Area 600*700mm
Laser Source Infrared Picosecond Laser Source
Pulse Width <15ps
Average Output Power 60W
Platform Stroke Custom XY linear module, maximum stroke 600mm × 700mm, dual station platform system
Platform Speed 1200mm/s
Platform Accuracy Positioning accuracy ±2μm
Maximum cutting thickness 20mm
Cutting Product Types Glass and transparent materials such as Corning, Schott, Panda, optical filters, etc
Spot Distance Adjustable from 1μm to 10μm
Cutting Product Features Cutting effect: Clean, smooth edges with a chip size ≤5μm after splitting
Control System Industrial PC: Dual-core CPU; 8GB RAM; 500GB Hard Drive; with LCD monitor
Control Software Dedicated glass laser cutting software
Equipment Dimensions Length 2400mm × Width 2100mm × Height 1950mm


Application Industries & Scenarios
Consumer Electronics
smartphone screens, tablet covers, camera lenses
Automotive
car windows, mirrors, dashboard glass
Solar Energy
photovoltaic glass, solar panel substrates
Household Appliances
glass panels for ovens, refrigerators, and stoves
Optics & Precision Instruments
optical lenses, lab glassware
Interior Design
custom mirrors, engraved decorative glass
