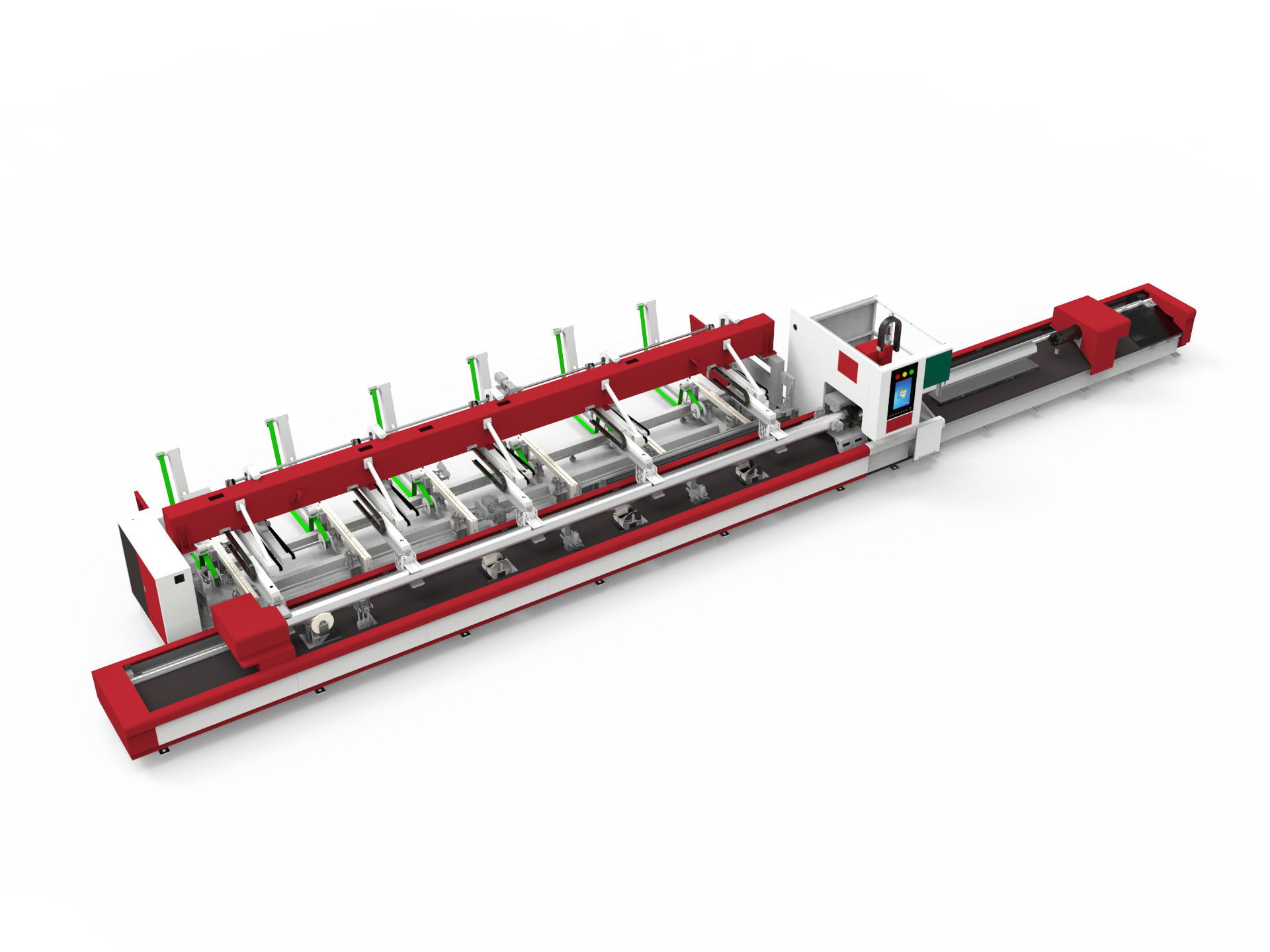

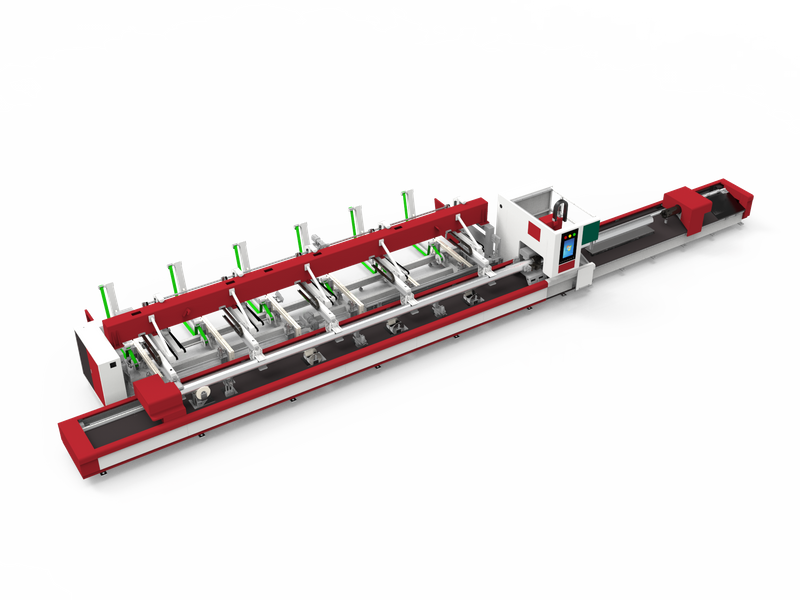

ARGUS Semi-Automatic 3-Chuck Laser Metal Tube Cutting Machine | High-Speed & Stable

The ARGUS Semi-Automatic 3-Chuck Laser Metal Tube Cutting Machine is engineered for high-speed, precise cutting of steel, aluminum, and stainless steel tubes. Compared to 2-chuck models, its three-chuck design provides enhanced tube stability and smoother rotation, allowing accurate, burr-free cuts even on longer or complex tubes. Ideal for automotive components, furniture frames, and industrial machinery, it maximizes production efficiency while delivering consistently high-quality results.
Availability:
Quantity:
Inquire Add to Basket

  • TSA-3C Series

  • ARGUS

Semi Auto Laser Metal Tube Cutting Machine 3-Chuck Enhanced Stability. Maximum Precision.
ARGUS Semi-Automatic 3-Chuck Laser Tube Cutter excels where longer or heavier tubes require extra support. Its three-chuck design ensures smooth rotation, stable clamping, and consistent burr-free cuts for steel and aluminum tubes. Perfect for automotive, furniture, and industrial applications, it improves efficiency, reduces material waste, and delivers reliable, professional-quality results—beyond what 2-chuck machines can achieve.
Learn More
fuwuaixin
Equipment power
1.5KW-20KW
fuwuaixin
Loading Method
Semi automatic feeding
fuwuaixin
Chuck specifications
130,170,240 Square Card
fuwuaixin
Optional working format
O:φ20-240mm,口：20-240mm Customizable on demand

ARGUS Laser Metal Tube Cutting Machine Feature

Interferometer Detection
Using a laser instrument to detect the dynamic positioning error of the movement， ensuring that the positioning accuracy of each machine is controlled within ±0.003mm， and the repeat positioning accuracy is ±0.001mm， meeting the precise cutting requirements of the equipment.
621
621
Equipment Trial Operation
All machines must pass 36 dynamic performance indicators tests. Before leaving thefactory, it undergoes a 72-hour high-intensity continuous operation test. It is subjected to high-speed reciprocating motion to simulate the mechanical stability
under extreme working conditions. At the same time, it undergoes extreme thickness material cutting tests, fault simulation tests, etc. This ensures the reliability for customer use and a high-quality customer experience from the very beginning.

Laser Metal Cutting Machine Companent

Machine production processing

Machine Welding
Precision welding with fixtures ensures guideway flatness ≤0.02 mm. All weld seams pass ultrasonic inspection for high rigidity.
High-Temperature Annealing
550°C × 4 h annealing stabilizes hardness (±15 HB) and removes internal stress to prevent deformation.
High-Precision Horizontal Milling
Five-axis milling in a temperature-controlled workshop achieves Ra ≤0.8 µm and contour accuracy ±0.005 mm.
Interferometer Calibration
Positioning accuracy ±0.003 mm; repeatability ±0.001 mm.
Equipment Trial Operation
36 dynamic tests + 72-hour high-load run verify stability and cutting reliability.
Packaging & Shipping
Anti-rust protection (salt-spray ≥1000 h), shock-absorbing packaging, and standard lifting points ensure safe transport.
  • medal
    Pre-Sales Consultation
    We provide professional guidance on model selection, process evaluation, and sample cutting based on your materials, production needs, and budget—ensuring you get the most suitable laser cutting solution.
    CONTACT US
  • medal
    Product Training
    Comprehensive training covers operation procedures, safety guidelines, process parameter setup, and daily maintenance. Even beginners can quickly master high-quality cutting skills.
    CONTACT US
  • medal
    After-Sales Service
    We offer remote technical support, on-site maintenance, spare parts supply, and scheduled equipment inspections to ensure long-term stability and worry-free production.
    CONTACT US


Model

TM Series

Laser type

Fiber laser,1080nm

Laser power

1.5KW-20KW
Loading MethodSemi automatic feeding
Chuck specifications130,170,240Square Card

Processing Area

O:φ20-240mm,口：20-240mmCustomizable on demand

Min line width

0.1mm

Positioning accuracy

0.01mm

Max cutting speed

60m/min

Max acceleration

1.5G

Transmission type

Precision dual gear rack transsmission

Drving system

Servo motors

Cutting thickness

Depending on laser power and material

Assisting gas

Compressed air, oxygen and ni

Cooling mode

Industrial circulation water chiller

Visual positioning

Red dot

Machine weight

Net 4500kg

Working voltage

3 phase 380V 50HZ/60HZ


Applicable Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED
Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks &Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts,Nameplates, etc


Applicable Materials
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
