What Is A Argon-ion & Krypton-ion Laser?

Definition An argon ion laser is a type of gas laser that achieves optical amplification through gas discharge within argon ions.

Technical Overview

• Basic Characteristics: Argon ion lasers are high-power gas lasers capable of generating several watts of output in the green or blue spectrum with exceptional beam quality.

• Core Structure: The heart of the device is a tube filled with argon gas, constructed from Beryllium Oxide (BeO) ceramic. A high-density argon ion plasma is created by an intense gas discharge between two hollow electrodes. A solenoid is typically wrapped around the tube to generate a magnetic field, which confines the plasma and enhances output power.

Figure 1: Device diagram of 20W argon ion laser. Among them, a gas discharge with a high current intensity occurs between the sky and the sun pole.

• Power and Efficiency:

  • A standard setup (approximately 1 meter in length) can produce an output power of 10W to 20W.

  • The primary emission line is located at 514.5 nm (green light).

  • The electrical-to-optical conversion efficiency is notably low, typically less than 0.1%, requiring tens of kilowatts of electrical power.

  • Sophisticated water-cooling systems (such as chillers) are mandatory to dissipate the significant amount of waste heat.

• Wavelength Tuning: By rotating an intra-cavity prism, the output can be tuned to other wavelengths, such as 457.9 nm (blue), 488.0 nm (blue-green), or 351 nm (ultraviolet).

• Related Devices: Krypton ion lasers are similar devices, with radiation wavelengths including 647.1 nm, 413.1 nm, and 530.9 nm.

Applications

• Commonly used to pump titanium-sapphire lasers and dye lasers.

• Utilized in large-scale laser light shows.

• Market Competition: While increasingly challenged by Frequency-Doubled Diode-Pumped Solid-State (DPSS) lasers—which are more expensive but offer higher efficiency and longer lifespans—argon ion lasers remain a classic technology despite their tubes having a service life of only a few hundred hours.

Argon-ion (Ar+) and krypton-ion (Kr+) lasers both belong to the category of noble gas lasers. Because of this, noble gas lasers are also commonly referred to as noble gas ion lasers.

The representative oscillation wavelengths of the argon-ion (Ar+) laser are blue light (488.0 nm) and green light (514.5 nm). For the krypton-ion (Kr+) laser, the representative oscillation wavelengths are red light (647.1 nm and 676.4 nm). When a mixed gas of Ar and Kr is used, the oscillation wavelength spans from 450 nm to 670 nm.

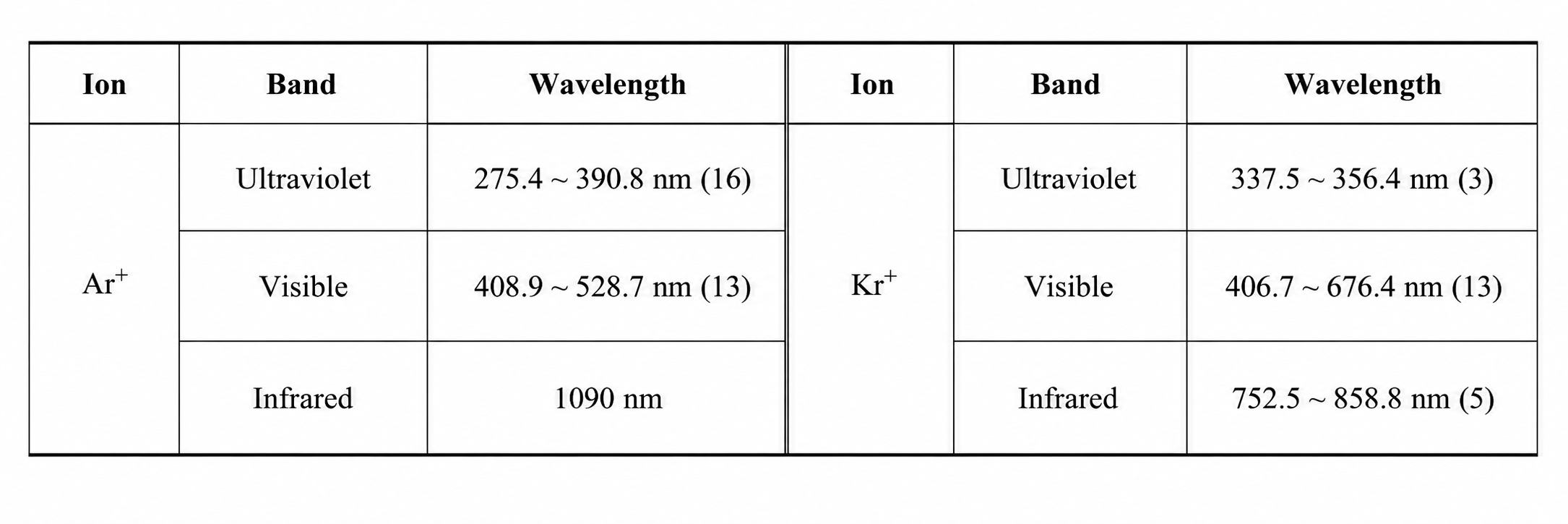

The gain media and wavelengths of noble gas lasers are summarized and listed in Table 1.

Due to their relatively high output power (approximately 25 W for Ar+ lasers), noble gas lasers are widely utilized across various fields, including entertainment (such as laser light shows and laser displays), material processing, and scientific research.
