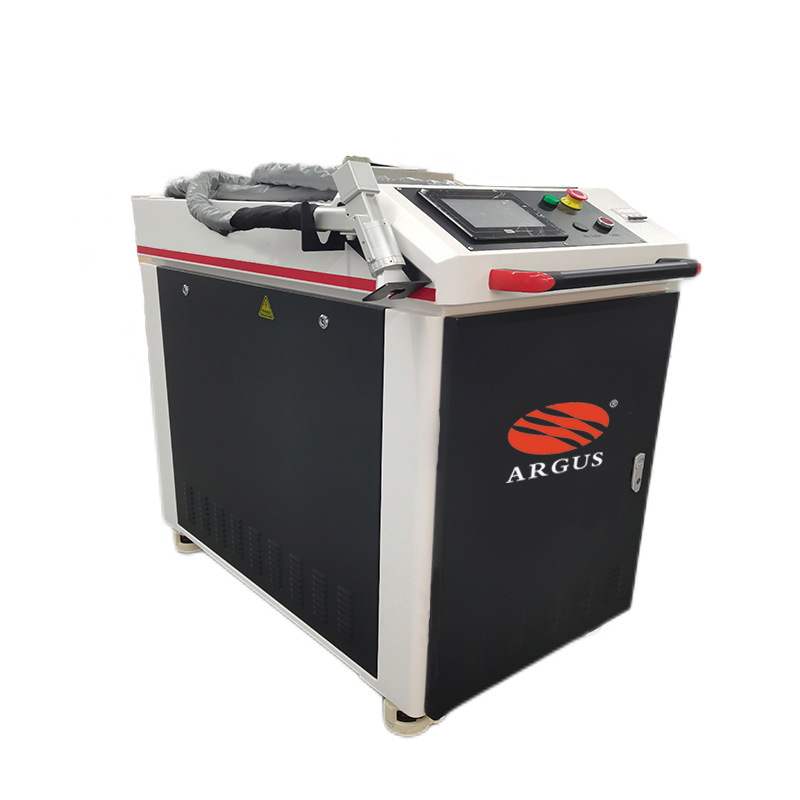

You are here: Home » Laser Machines » Factory Supply Fiber Laser Cleaner Rust Remover Machine for Metal

Model:
SCL1000/1500/2000
Brand:
ARGUS

Brief Introduction

Laser cleaning machine is a high-tech product of the new generation of surface cleaning.It has the advantages of easy to control, easy automatic integration, no chemical reagents, suitable surface cleaning, high cleaning cleanliness and high accuracy, efficient and environmental protection, safe and reliable, almost no damge substrate surface, which can solve a variety of problems that cannot be solved by traditional cleaning. Including metal rust, metal particles, dust, etc., the application effects include: rust removal, paint peeling, oil removal, cultural relics repair, glue removal, decoating, decoating.

清洗机海报 (2) photobank (3)

清洗样品展示

Technical parameters
Equipment model	Fiber laser cleaning machine
Laser power	1000W/1500W/2000W
Laser Type	continuous
Laser wavelength	1070nm
Cooling mode	water cooling
Cooling water type	Purified water / laser special antifreeze / alcohol + water
Working water temperature	18-35 ºC (Reference range)
Cleaning head weight	After paragraph 1.2KG (2020)
Operating Machine Weight	160KG
Complete power	≤ 3000W
Scan width	10-120mm
Operating temperature	15ºC-55ºC
Optional options	Handheld / Automation/ Non-standard customization

Comparison of the cleaning scheme

Comparison
Contrison items	Chemical cleaning	Mechanical grinding	Dry ice cleaning	Ultrasonic cleaning	Laser cleaning
Cleaning mode	Chemical cleaning agent	Mechanical / sandpaper, contact type	Dry ice, noncontact type	Cleaning agent, contact type	Laser, contactless
Workpiece damage	Damage	Damage	No damage	No damage	No damage
Cleaning efficiency	Low level	Low level	Medium	Medium	High level
Cleaning effect	Generally, the uneven	Generally, the uneven	Excellent, uneven	Excellent, with a small clean range	Very good, high cleanliness
Cleaning accuracy	Uncontrollable, with poor accuracy	Uncontrollable, with general accuracy	Uncontrollable, with poor accuracy	Unspecified range of cleaning	Accurate and controllable, with high precision
Safety / Environmental protection	Severe chemical pollution	Environmental pollution	No pollution	No pollution	No pollution
Manual operation	Complex procedures requires high requirements and protective measures	High physical strength and required safety protection measures	Simple to operate, handheld or automated	Simple to operate, but requires manual addition of consumables	Simple to operate, handheld or integrated automation
Consumables	Chemical cleaning agent	Sandpaper, sand wheel, tartar etc	Dry ice	Special cleaning fluid	Power power supply
Cost input	Low first- time investment and extremely high consumables cost	High first investment and high labor cost of consumables	Medium initial investment, high consumables cost	Low initial input, moderate consumables cost	High first- time investment, no consumables, and low maintenance cost

Why choose us

Sunic Laser has always been committed with the service idea of Customer-centric, supply Installation, Adjustment, Training and Maintenance in pre-sales and after-sales service.

1.Pre-sales Service

Before signing contracts, Sunic Laser supply customers service of production plan, technical consultant, sample trail and equipment suggestion and etc.

2.Installation and Debugging

Equipments will be delivered to the target place in time according to customers’ requirement. Our professional Engineer can make sure Installation and debugging processes be settled down in 1~2 days, as well as a clear, tidy and orderly field.

3.Training

Sunic Laser supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:

1, Training for Control software operation

2, Training for normatively turning on/off operation of the machine

3, Instruction of technical parameters, as well as their setting ranges

4, Basic daily cleaning and maintenance for the machine

5, Solutions for common hardware problems

6, Training for other questions and technical suggestions during daily production

Training can be processed in the following ways:

1,Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.

2, We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.

3, Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.

4. Equipment Maintenance

1, One year free maintenance, lifelong caring

2, Free technical consultant and software updating

3, Customer Service responding in 12hours

4, Continuous support with software and hardware after free maintenance

5. Guarantee

The guarantee period shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
