Laser 3D Galvo Head Model

Laser technology enables precise windowing, perforating, and high-accuracy scribing on flexible packaging materials. It is especially suitable for easy-open features and complex designs, ensuring clean, damage-free cuts while supporting dynamic roll-to-roll processing. Equipped with specialized window pattern design software, the system allows custom creation of various irregular shapes. The flying windowing process features a compact footprint and can be seamlessly integrated with slitting machines, laminators, and other equipment, streamlining production steps. It offers high speed, accurate positioning, and a professional waste collection system that keeps the equipment clean and well-maintained.

Applications

Cross Scoring – Along the moving direction of the roll (for easy-open features)
Irregular Scoring – Suitable for promotional items, functional compartmentalized packaging, and unique tear-open shapes (brand visuals)
small hole cutting – Breathable Packaging (for Fresh Food Preservation), Retail Packaging for Easy Hanging Display
Opening Windows – Packaging positioning cutout, product visualization display, functional packaging (resealable opening).

Efficient Processing

Control laser pulse duration and power, synchronized with fast-rolling web to enhance production efficiency.

Argus Laser, the laser expert beside you, with 26 years of experience in laser equipment design and manufacturing, we provide more professional advice for your industrial technology improvement.

We are happy to provide you with the right laser solution for flexible packaging.

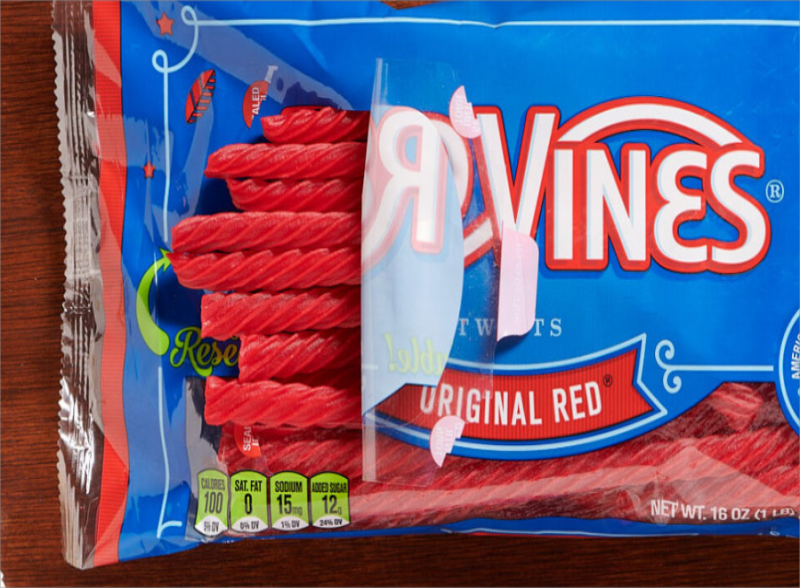

Designed for shaped window cutting and functional perforation in flexible packaging. Ideal for tissue packs, snack windows, and pharmaceutical openings, combining easy access with resealability.

MATERIALS
Plastic Films
Polyester
Polyethylene
Polypropylene
EVOH
Nylon
Laminations
Foils
PLA

CAPABILITIES
Laser Scoring
Laser Perforating
Laser Opening window.

FEATURES & BENEFITS

Choose the right model based on your processing needs, and these are just some of them.

Customizable Equipment

Laser systems can operate as standalone units or be integrated into existing production lines

Various Materials and Thicknesses

Processes various packaging materials up to 12 mil thick

Custom Pattern

Custom cutting patterns based on needs

Output Power Control

Precisely controls laser energy based on material and requirements

Acceleration - Deceleration Control

Eliminates waste caused by material overload when processing speeds are below normal

Precise Window Opening

High-precision window positioning combined with roll material handling to improve production efficiency.

Fast Setup and Mode Changes

Proprietary software ensures precise window sizing and uniform quality.

Non-contact Processing

Eliminates inconsistencies associated with cutting tools and mechanical perforators

TECH SPECS

The technical specifications are based on baseline standards, but all laser equipment can be customized to meet your product requirements.

	3D dynamic galvo
Laser power	230~250W / 350W
Laser Source	Coherent CO2 metal R.F. Laser source
Laser Wavelength	10.6μm
Laser Frequency	1kHz~100kHz
Galvo Head	High speed 3D galvo scanner
Marking Speed	≤ 7000mm/s
Max Marking Area	250mm250mm ~600mm600mm
Repetition Precision	0.01mm
Fly Marking Speed	50X50mm window 120 m/min( depending on material process)
High Precision Positioning Sensor	1RGB sensor (imported from Japan) response time 50 us digital encoder
Including	Customized mounting structure, Computer with software, Exhausting Fans, Air Pump
Power Supply	AC220V/AC380V 50HZ/60HZ
Cooling Way	Air/water Cooling
Multi-head	Avaible according to the request

**The above data may change due to product upgrades. For specific details, please contact us.
