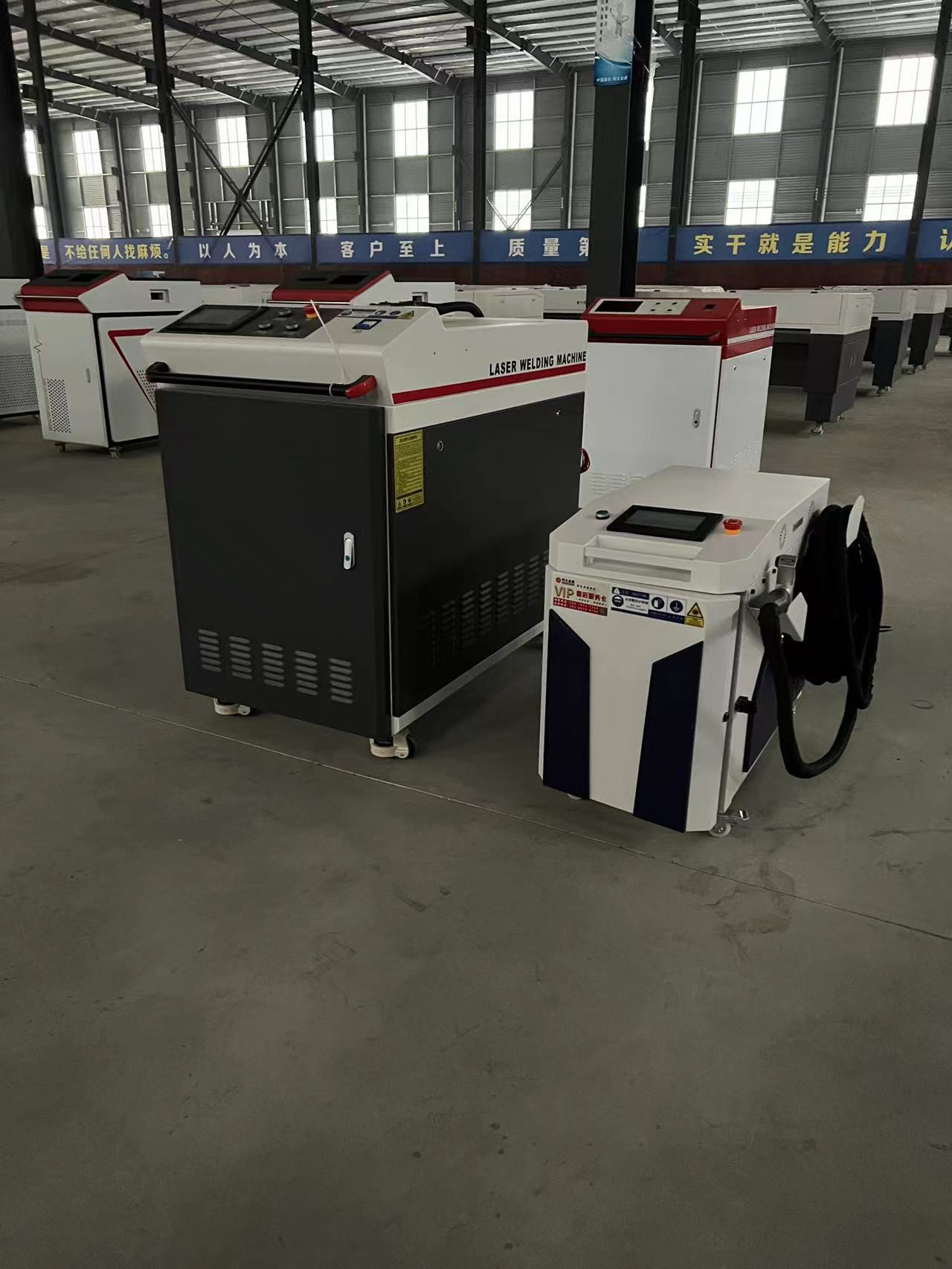

1000W 1500W Protable Handheld Fiber Laser Welding Machine For Metal Stainless Steel Pipe Laser Welder

Product name: Handheld metal fiber laser welding machine Model: SFW1000, SFW1500, SFW2000,Laser power: 1000W, 1500W,2000W Working range: 5 Meter, 10 Meter Application: It can be used to weld the metallic materials, like carbon steel, stainless steel, titanium, aluminum, etc.
Availability:
Quantity:
  • SFW1000 SFW1500 SFW2000

  • ARGUS

01mini焊 (2)030405

传统焊手持焊03

060708 09

How Much does a Fiber Laser Welding Machine Cost?

The cost of handheld fiber laser welder machines varies greatly in accrodance with different laser power. A new fiber laser welder can cost from $7.5k to $13k. Specify your needs and get a quote for ARGUS fiber laser welder machine now.The delivery time is within 7 days.10

11

12焊接优势

产品规格行业应用

Technical parameters

Model No.

SFW1500 SFW2000

Laser Source

Fiber Laser 1080nm

Fiber Laser 1080nm

Laser Power

1500W

2000W

Modulation Frequency

<10k Hz

<10k Hz

Power Stability

±2%

±2%

Work Mode

Continuous & Pulsed

Continuous & Pulsed

Input Voltage

AC 380V/50HZ

AC 380V/50HZ

Power Consumption

max 4KW

max 5KW

Penetration Depth

max 4mm

max 6mm

Cooling Unit

Built-in chiller 12L

Built-in chiller 12L

Fiber Delivery Length

10 meters

10 meters

Ambient Temp

0-40℃

0-40℃

Control Interface

7” LED Touch Screen

7” LED Touch Screen

Language Option

6 languages

6 languages

Machine Dimention

850*420*611 (mm)

33.47*16.54*20.06 (inch)

850*420*611 (mm)

33.47*16.54*20.06 (inch)


Gross Weight

125KGS

125KGS

15

16样品展示
