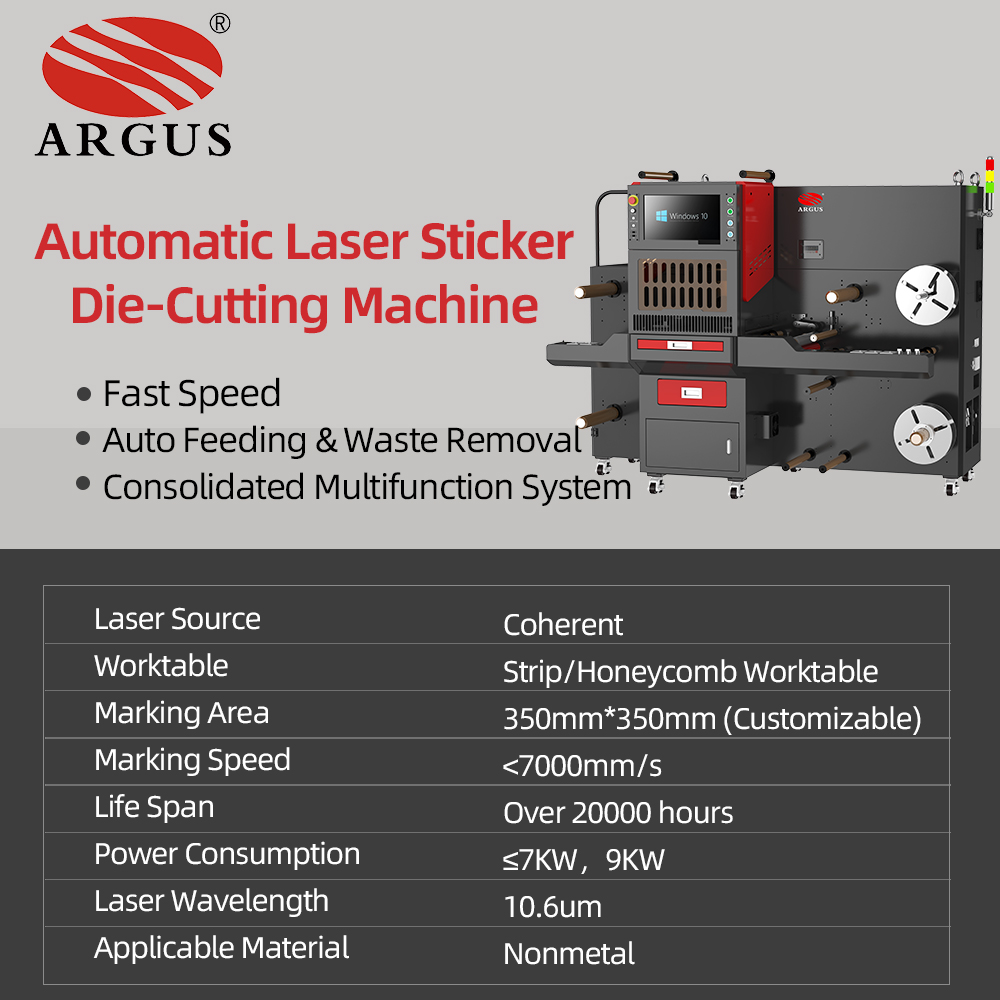

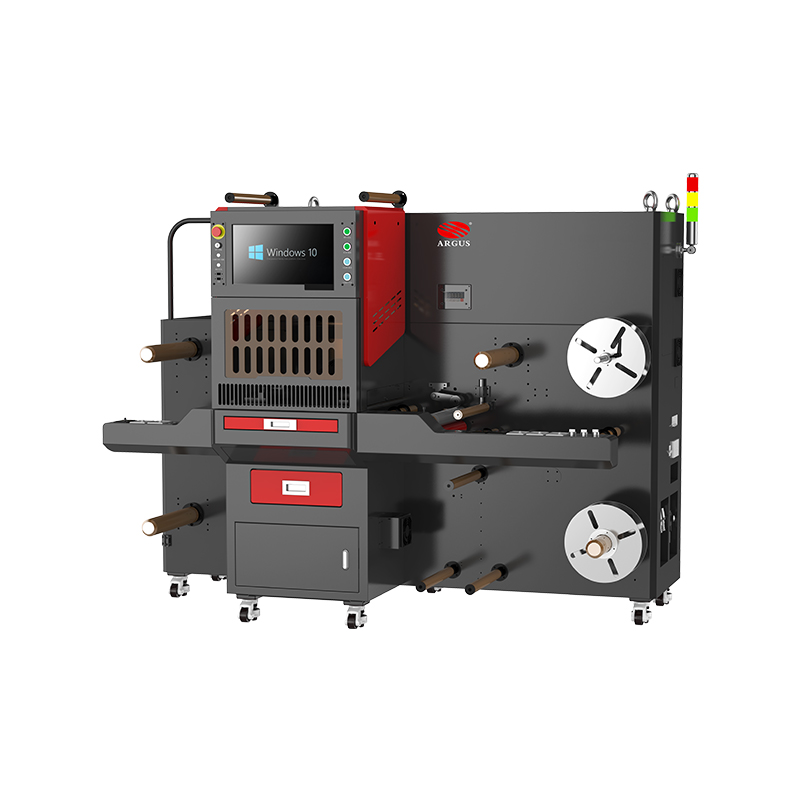

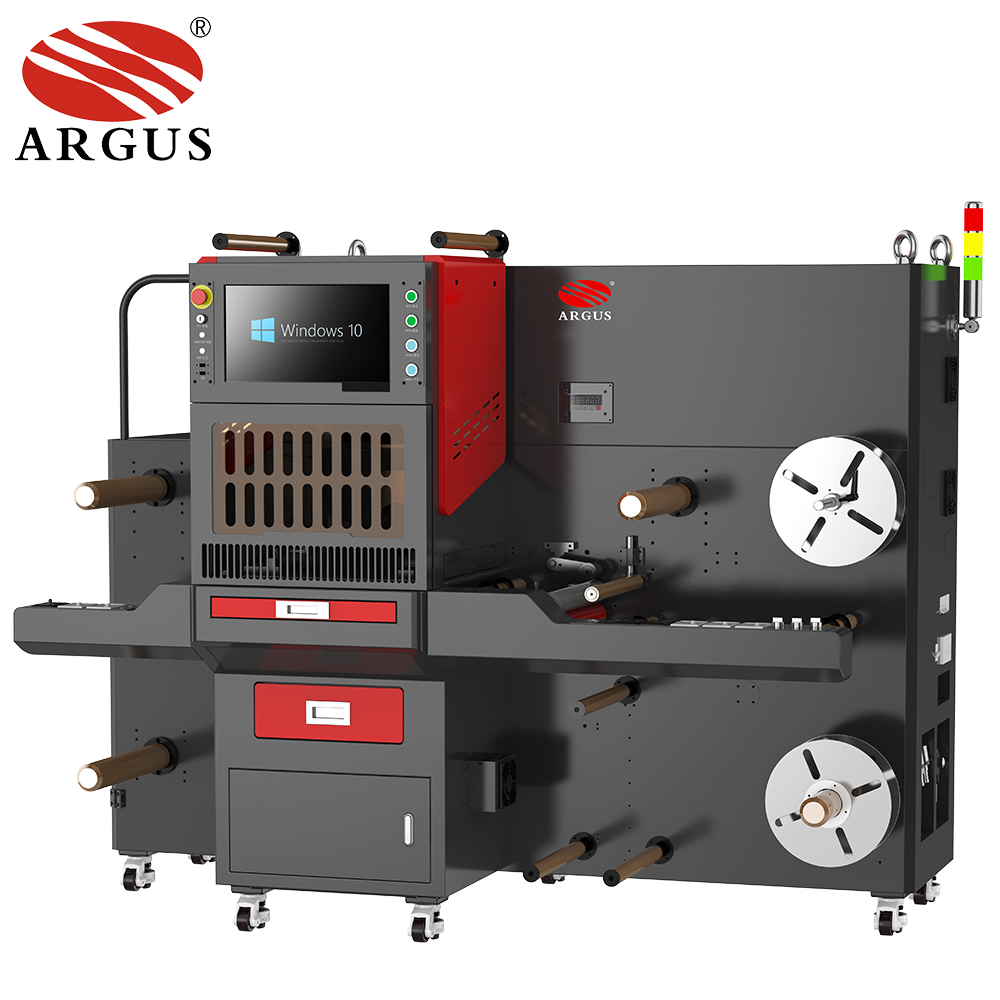

ARGUS Automatic Laser Sticker Die-cutting Machine

Why struggle with expensive molds and slow production for adhesive labels?

ARGUS Automatic Laser Adhesive Sticker Die Cutter delivers mold-free。Digital Laser Cutting with Roll-to-Roll System. The ideal solution for high-volume runs, urgent orders, and intricate designs. Achieve faster delivery of labels, seals, and stickers with flawless precision and lower production costs.

Get a Quote

High Efficiency

Max 500mm/s Cutting Speed

No Yellow
No Burnt Edges

Marking Area Adjustable
(Max:350*350mm)

Optional Vision
Positioning System

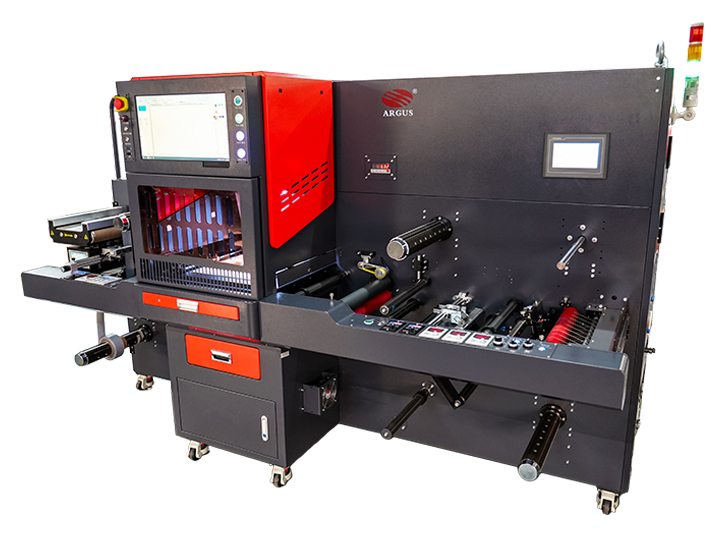

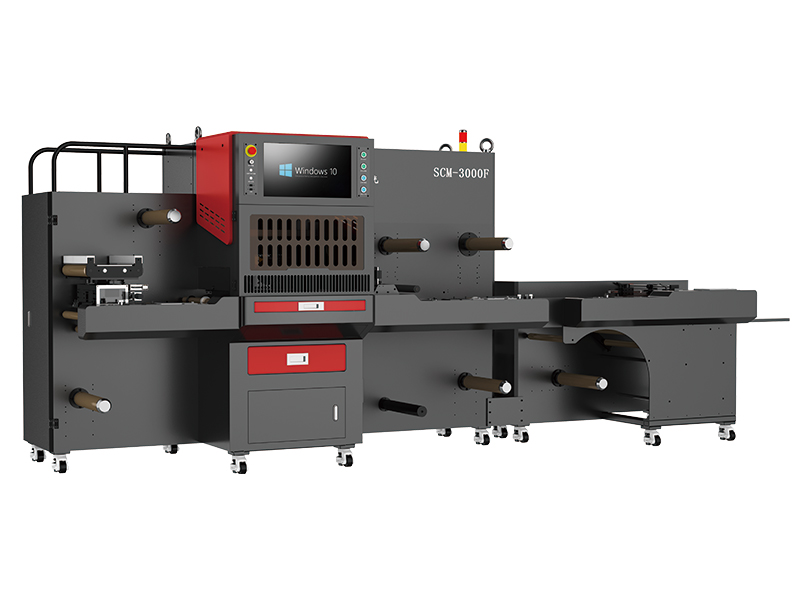

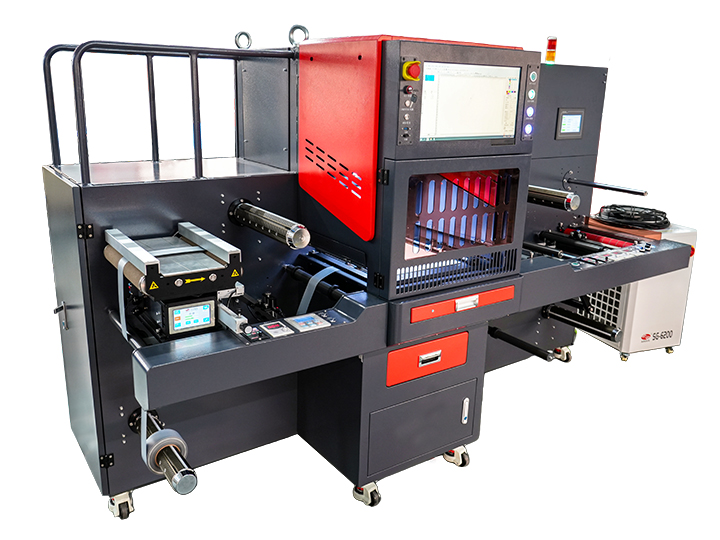

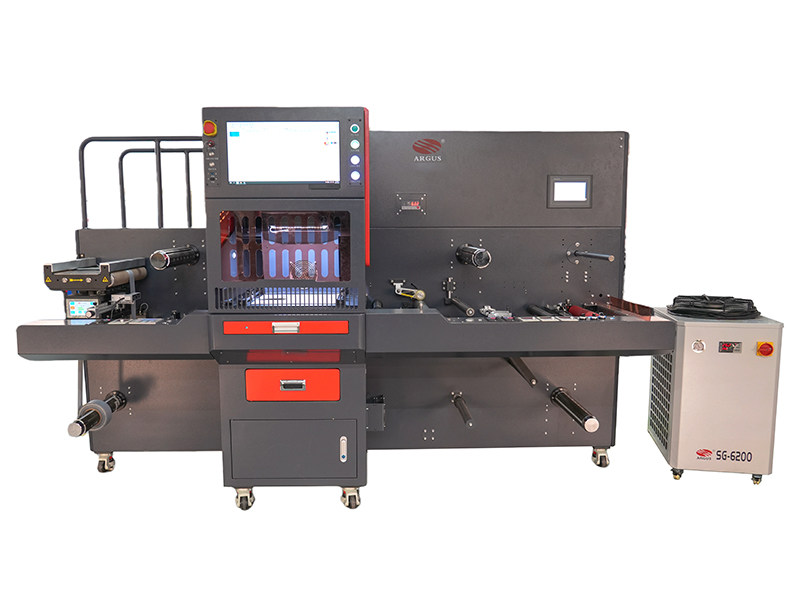

ARGUS Automatic Laser Die Cutter for Adhesive Sticker Cutting

How can you achieve precise, intricate cuts on adhesive labels without deforming or wasting material?

ARGUS fully automatic laser sticker die-cutting machine utilizes high-precision, non-contact laser processing technology and is integrated with feeding, waste removal, and rewinding systems. It performs die-cutting, full cutting, and kiss-cutting in a single pass. Compatible with a wide range of self-adhesive materials—from paper and PET to vinyl and specialty films—it is equipped with multiple subsystems including alignment, automatic tension control, slitting, sheet cutting, film peeling, and laminating systems. Controlled by advanced software, it enables multi-process material handling, seamless tiling, batch customization, and intricate patterns beyond the capability of traditional dies.

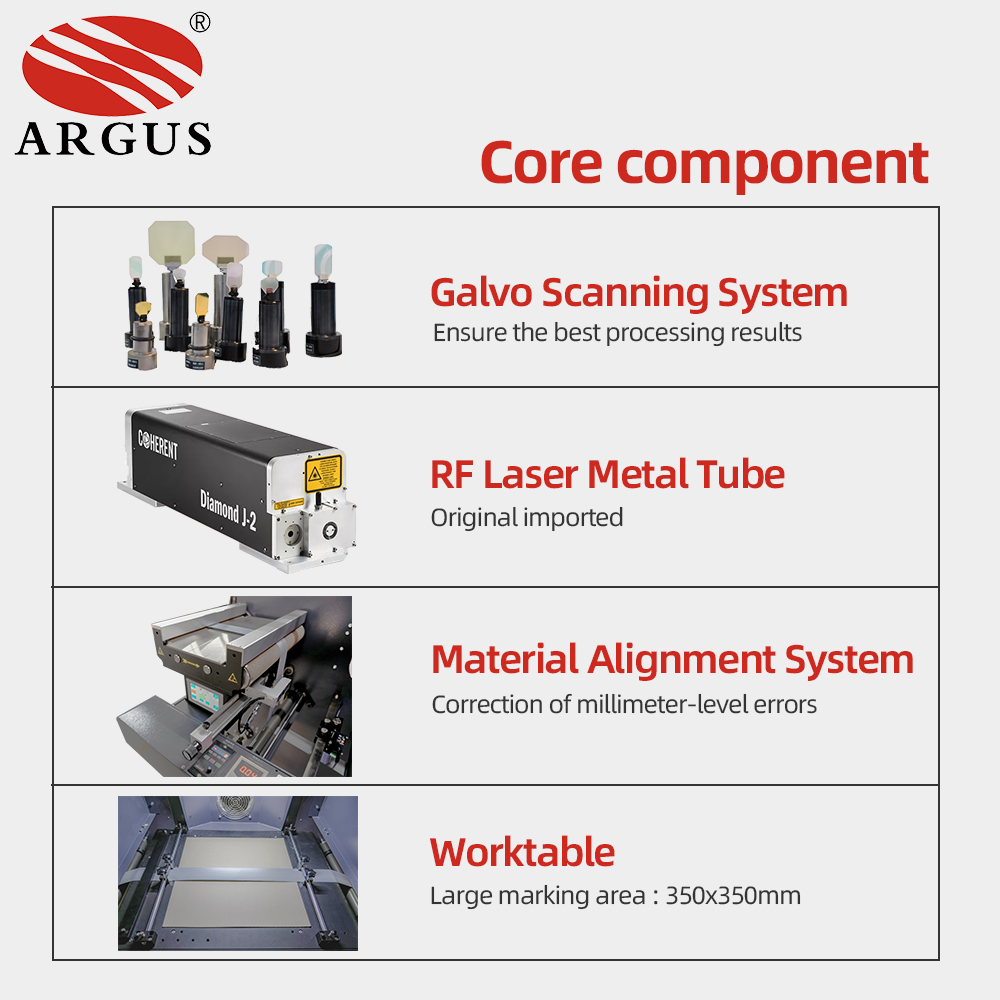

Galvo Scanning System

Galvo head scan area could reach to 350*350mm once. 3D dynamic galvanometer control system ensure the best processing results .

Original Imported Metal RF Laser Metal Tube

High laser power,excellent laser spot, stable laser generation and life time of more than 20000hrs.

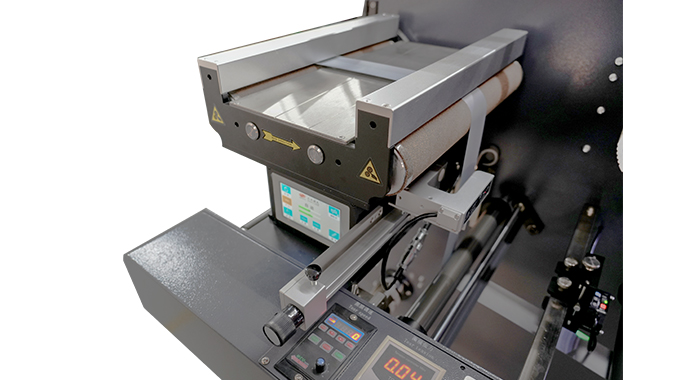

Material Alignment System

Ensures continuous, precise registration by automatically correcting material orientation and position in real time, eliminating manual adjustments and reducing waste.

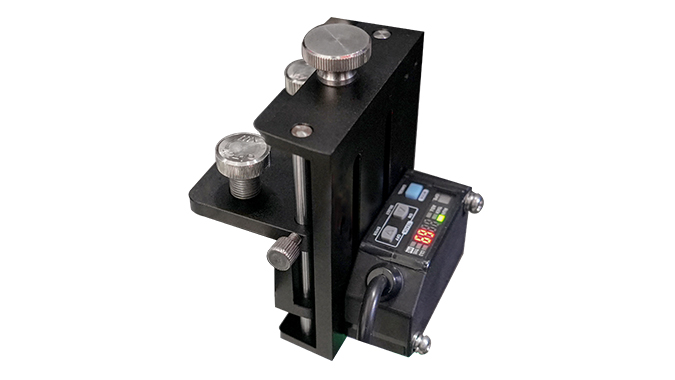

Mark Recognition Sensor System

Accurately detects printed registration marks to guarantee consistent positioning across every production cycle, enabling seamless pattern continuation.

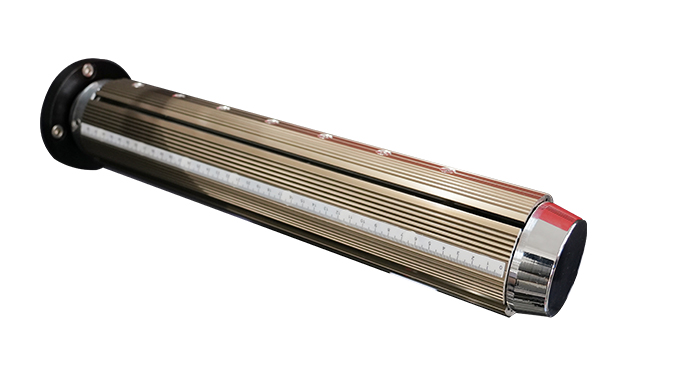

Unwind & Rewind Shafts

Engineered with high-strength alloy cores and dynamic balancing technology, ensuring smooth, vibration-free operation even at high speeds.

Worktable:Large marking Area

Max marking area:350*350mm, can die-cutting, full cutting, and kiss-cutting

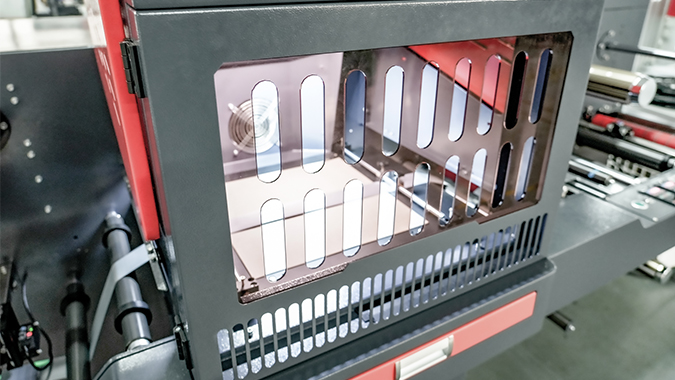

Visual Enclosed Cover

Provides full operator safety through interlocked protective shielding while allowing clear process monitoring without interrupting production.

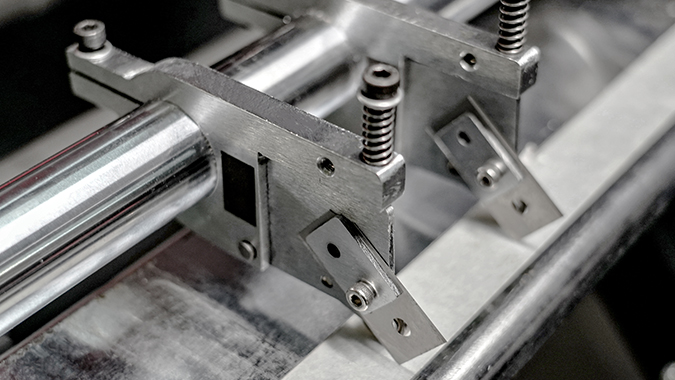

Slitting System

Precisely cuts materials into multiple specified widths using adjustable blades, allowing flexible customization without tooling changes.

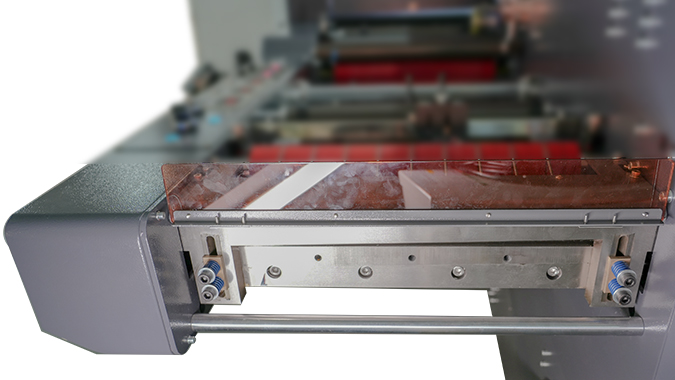

Sheet Cutting System

Automatically cuts continuous rolls into individual sheets with consistent dimensions and clean edges, ready for packing or further processing.

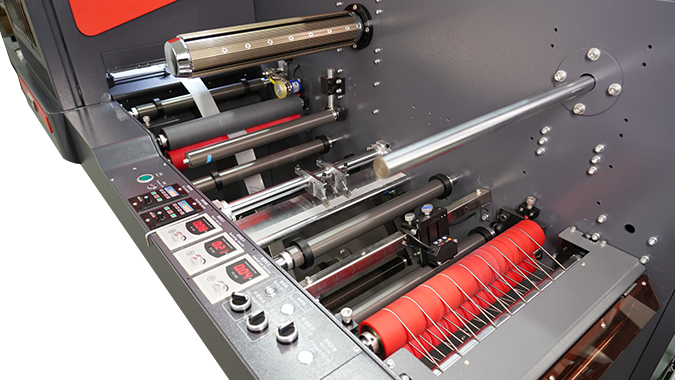

Waste Removal & Collection System

Automatically strips and winds matrix waste without manual intervention, maintaining workspace cleanliness and supporting uninterrupted production.

Adhesive Sticker Laser Cutting Samples

adhesive Sticker
Thermal Paper Sticker
Kraft Paper Sticker
Fragile Paper Sticker
Foil Sticker

Quickly provide customized laser equipment solution within 24 hours.

Have a specific project in mind? Fill out the inquiry form now — our laser specialists will get back to you within 24 hours!

Contact US

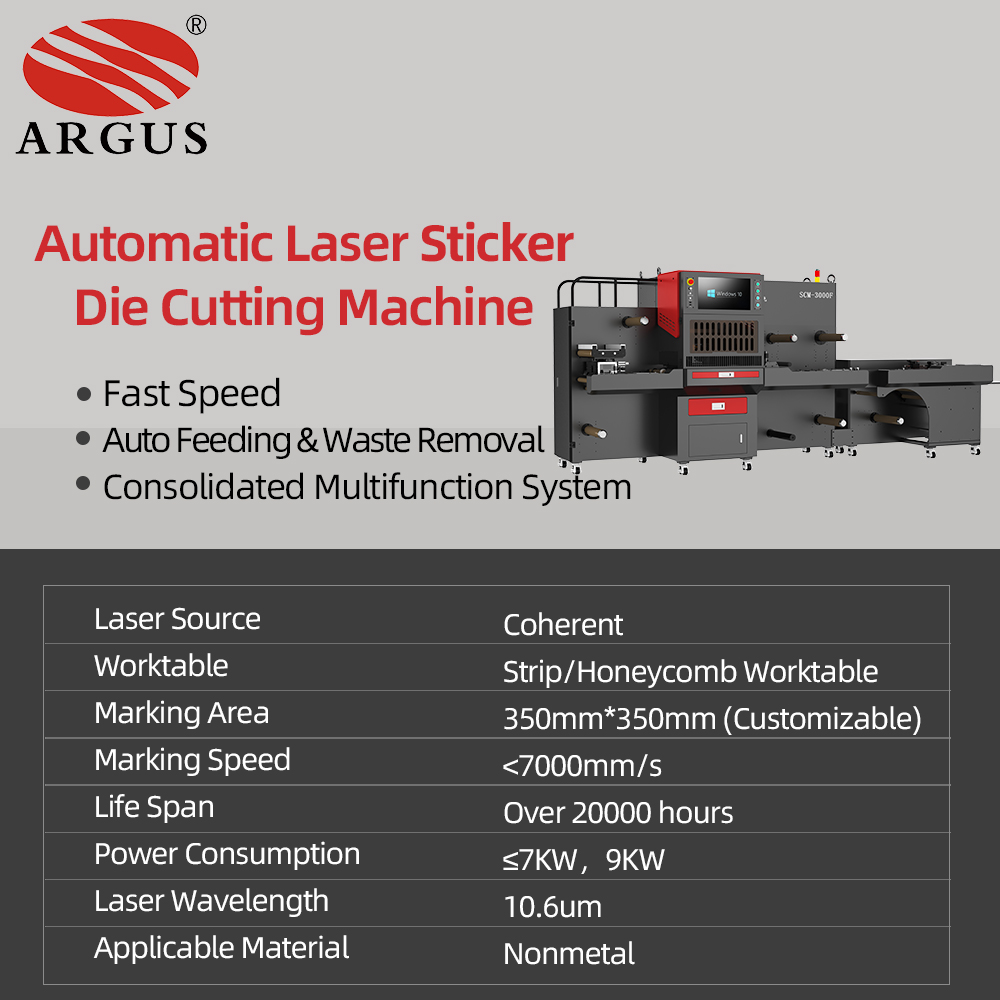

ARGUS Automatic Laser Sticker Die Cutter Parameters

Model	SCM2000
Max.Marking Area	≤350x350mm(Customizable)
Laser Output Power	250W(Coherent J2)	350W(Coherent J3)
Marking speed	≤10000mm/s
Power consumption	≤7 kWh	≤9 kWh
Worktable	Aluminum Strip/Honeycomb Worktable
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Min.Letter Size	0.3mm
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT, DXP, BMP, JPG, AIetc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting
Power supply	110V~380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling
Equipment size	2.3m * 1.3m * 1.9m
Equipment weight	About 1100KG

Adhesive Sticker Cutting Sample Display

>>Writing Paper Label Sticker

>>Aluminum Foil Paper Label Sticker

>>PP/PET/PVC Label Sticker

>>Thermal Paper Label Stickers

>>Fragile Paper Label Stickers
