ARGUS Automatic Single Head Laser Cutting Flexible Packaging Film Easy To Tear Wire Device

Application Materials:
OPP, plastic, aluminum foil, anti-static / shielding bags, vacuum bags, aluminum foil mask,25KG plastic particle paper aluminum-plastic composite bags, microporous grain vacuum bags, building materials bags, moisture-proof bags, sealing film.
Professional easy to tear laser production.
Availability:
Quantity:
  • SCM2000

LASER OPENING WINDOWS FOR FLEXIBLE
PACKAGING INDUSTRY
Laser technology can be used to create precise and customizable openings or transparent windows in flexible packaging materials.
High Efficiency
50X50mm windows 120m/min
Personalization
Customizable patterns on demand
Large Area
600*600mm processing table
Customizable
Integrate into Other Equipment​
Laser Opening Windows Modules for Flexible packaging
Innovative Laser Applications in Flexible Packaging Technology
The Flexible Packaging Line by Argus Laser is an advanced range of laser systems engineered for Scoring, cutting, and both macro- and micro-perforation. These systems are ideal for processing flexible single or multi-layer films made from materials such as paper, PE, PET, PP, BOPP, PTFE, and laminated films. Offering unmatched precision and versatility, these systems cater to diverse industrial needs with efficiency and reliability.

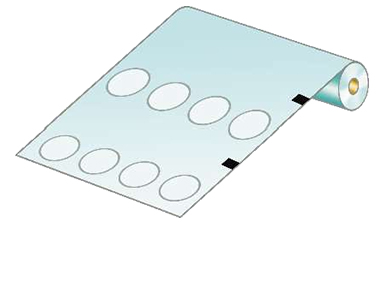

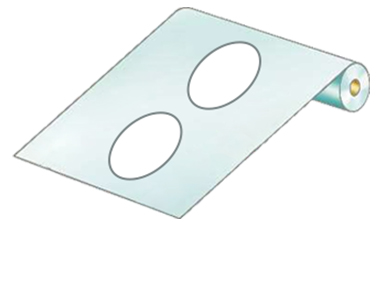

Opening Windows
Cuts windows of any shape up to 600 * 600 mm
Shape Dit Cut
Capable of Shape from millimeter to centimeter scale

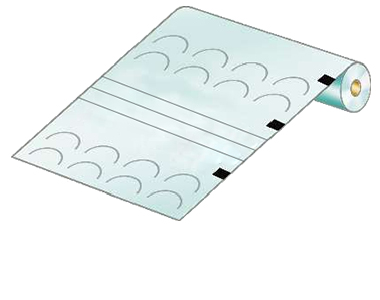

Scroe & Shape Line
Supports half-cut and full-cut score and shape score line
Galvo Scanning System
3D dynamic Galvo head ,one time scan area could reach to 250mm*250mm~600*600mm. 3D dynamic galvanometer control system ensure the best processing results.
R.F. Laser Metal Tube
Original imported metal R.F. laser tube with high laser power , excellent laser spot. Stable laser generation and life time of more than 20000hrs.
CCD Optional
CCD positioning function ensures accurate and reliable position measurement greatly improves the production efficiency of the
factory and saves labor.

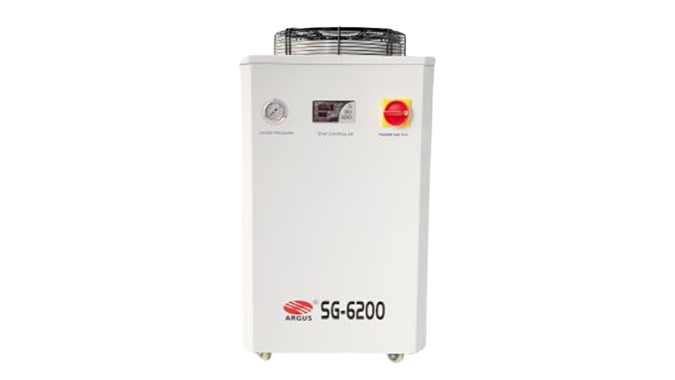

Smart Chiller
High efficiency, energy-saving, long-lasting durability, easy operation​​, equipped with water flow alarm and over-temperature alarm functions.

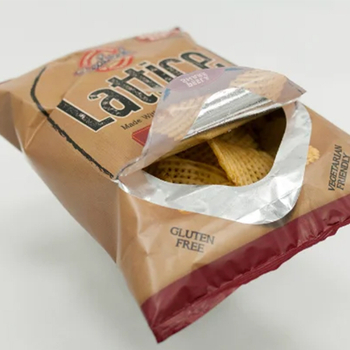

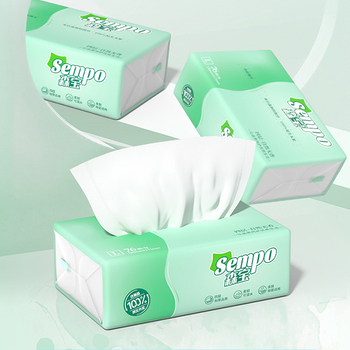

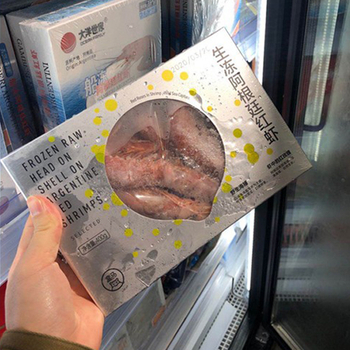

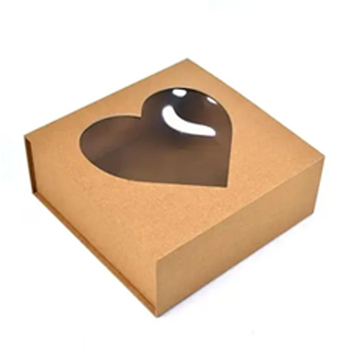

Industry and Materials

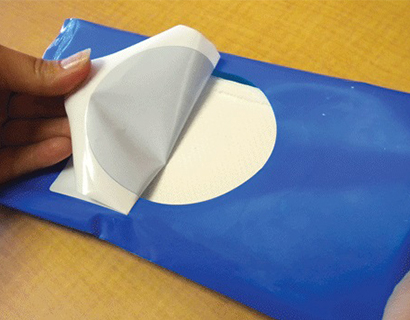

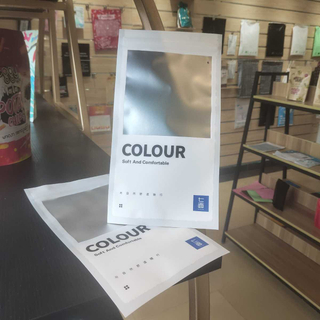

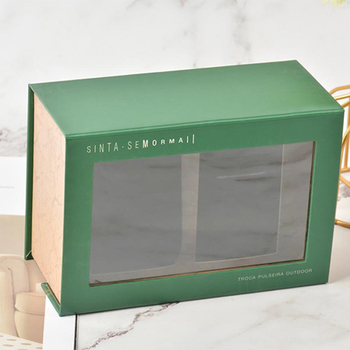

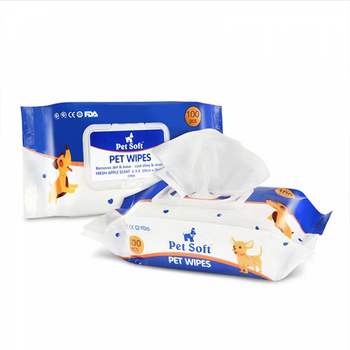

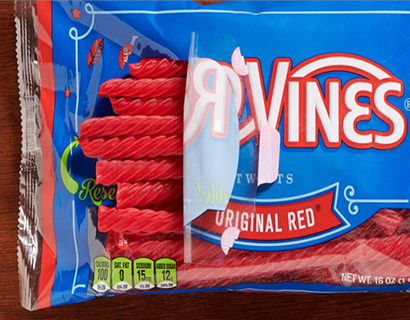

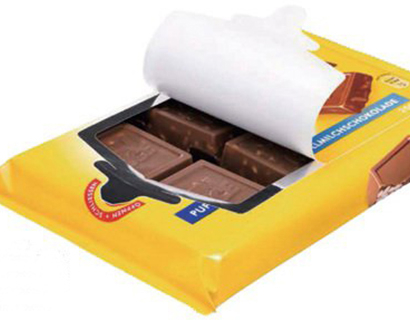

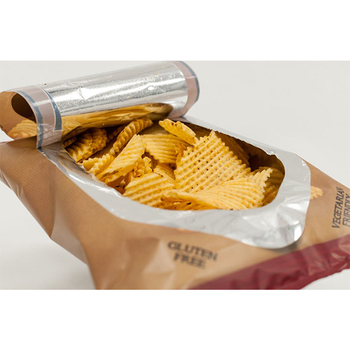

Sample Display

Get your laser solution within 24H
Not sure how to choose? Not sure if it’s feasible? Fill out the inquiry form now — our laser experts will provide you with a customized solution.
FAQs
  • Which materials can this laser window opening equipment be applied to?
    Created with Sketch.
    形状 Created with Sketch.
    Suitable for flexible packaging films, laminates, metallized films, and paper-plastic composites, achieving transparent or shaped windows for product display.
  • Will window opening affect packaging strength or sealing?
    Created with Sketch.
    形状 Created with Sketch.
    No. The laser precisely removes designated layers while preserving barrier and sealing properties of other layers.
  • What shapes and sizes can be processed?
    Created with Sketch.
    形状 Created with Sketch.
    Windows of any shape, pattern, or size can be customized, with maximum processing area up to 600 × 600 mm.
  • What is the processing speed?
    Created with Sketch.
    形状 Created with Sketch.
    For a 50 × 50 mm window, the processing speed reaches 120 m/min, depending on material and window size.
  • How does it compare to traditional die-cutting?
    Created with Sketch.
    形状 Created with Sketch.
    Laser window opening is contactless, no tool wear, flexible for any design, and eliminates frequent die replacement costs.
  • Will laser window opening cause material curling or discoloration?
    Created with Sketch.
    形状 Created with Sketch.
    No. Controlled laser power ensures smooth edges, no yellowing, blackening, or deformation.
  • Is the operation complicated?
    Created with Sketch.
    形状 Created with Sketch.
    No. The equipment features a touchscreen and user-friendly interface, easy for operators after basic training.
  • Can it integrate with existing production lines?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. It supports customized interfaces and can synchronize with packaging lines, laminating machines, or slitters.
  • What is the service life of the laser system?
    Created with Sketch.
    形状 Created with Sketch.
    Core laser components last 20,000–50,000 hours, ensuring long-term reliable operation.
  • What cooling method does the system use?
    Created with Sketch.
    形状 Created with Sketch.
    Air or water cooling is available, ensuring stable continuous operation with low failure rate.

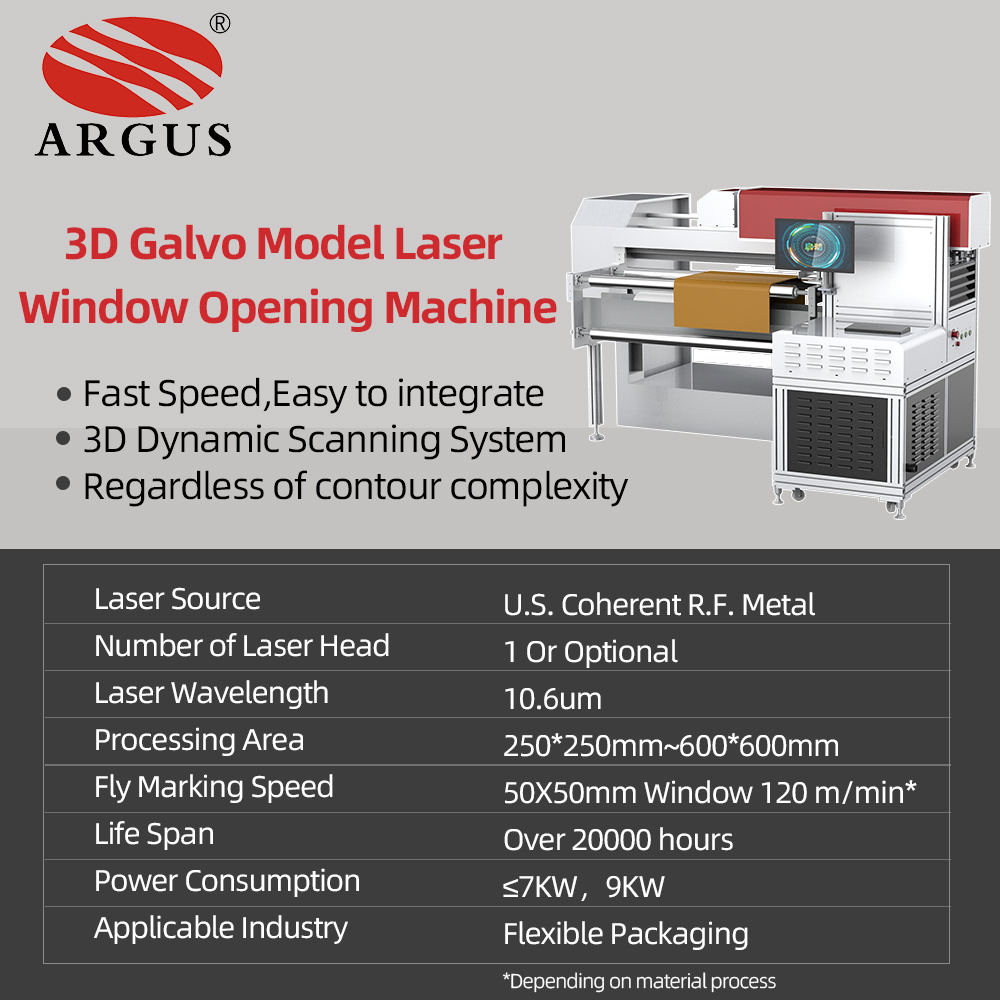

| Laser 3D-Galvo Model Opening Windows System

laser opening windows for flexible packaging

Model

SCM2000

Laser Power

230~250W/350W

Laser Source

Coherent CO2 Metal RF Laser Source

Laser Wavelength

10.6μm

Laser Frequency

1kHz~25kHz

Fly Marking Speed

50X50mm window 120 m/min( depending on material process)

Repetition Precision

0.01mm

Emulated Encoder

Including

Control System

ARGUS

Including

Customized mounting structure, Computer with software, Exhausting Fans, Air Pump

Power Supply

110V~220V/50Hz~60Hz

Cooling Way

Air/water Cooling

Multi-head

Avaible according to the request

| Laser Advantages

1) Using precision laser window opening, edges are smooth and clean, with no yellowing or deformation.

2) High-speed detection ensures uniform cutting quality; window size and shape are fully customizable.

3) Equipped with air or water cooling, supports continuous high-speed operation (up to 120 m/min for 50×50 mm windows) with low failure rate.

1. Versatility:

ARGUS LASER's machines offer versatility in terms of accommodating different materials and thicknesses. This flexibility is beneficial for industries with diverse requirements, allowing the machine to handle a range of materials used in packaging and other applications.


2. Advanced Technology:

ARGUS LASER utilize advanced laser technology, providing efficient and effective solutions for scoring and perforating. This could include features such as advanced control systems and automation, contributing to improved overall performance.


3. Customization Capabilities:

The laser scoring and perforation machine from ARGUS LASER allow for customization of different mounting structure. This is valuable for industries that use different kind of slitting and rewinding system.


4. Production Efficiency:

ARGUS LASER's machine is designed to enhance production efficiency. Laser technology is often recognized for its speed and precision, contributing to faster production cycles and potentially reducing overall manufacturing costs.


5. Reliability and Durability:

ARGUS LASER machines is known for its reliability and durability, ensuring consistent performance over time. This is crucial in industrial settings where downtime can have significant impacts on production.


6. Easy of Use:

The laser scoring and perforation machine from ARGUS LASER is designed with user-friendly interfaces and controls. This ease of use can contribute to quicker setup times, reduced training needs, and improved overall operational efficiency.


7. Technical Support and Service:

ARGUS LASER provides strong technical support and service for their machines. This is essential for addressing any issues promptly, conducting routine maintenance, and ensuring that the equipment operates at peak performance.


8. Industry Reputation:

During the 25 years history, ARGUS LASER gains a good reputation within the industry and positive feedback from other users. A strong reputation often indicates a track record of delivering reliable and effective solutions.
