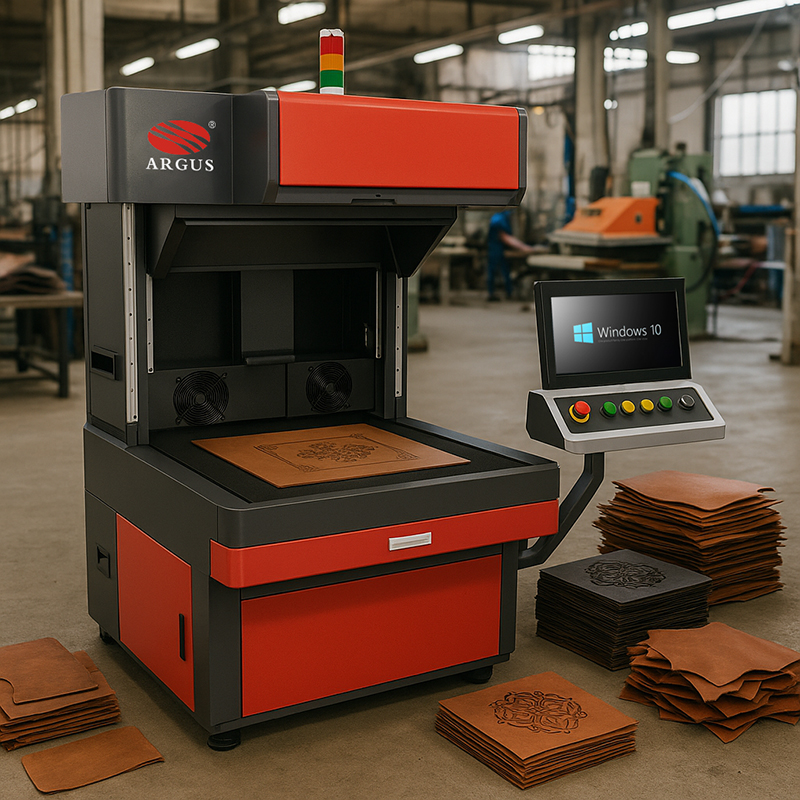

ARGUS CO2 Dynamic Laser Hole Cutting Machine for Leather Laser Perforation Solution

Pop Up Paper Card Laser Cutter Dynamic Galvo Co2 Laser Marking Machine SCM2000

ARGUS CO2 Dynamic Laser Hole Cutting Machine for Leather Laser Perforation Solution

The SCM2000 dynamic laser marking machine is a versatile solution designed for the leather industry, capable of cutting, perforating, and engraving with high precision and efficiency. Equipped with an imported 250W/350W RF metal laser tube, a 3D dynamic galvo head, and micron-level accuracy, it ensures clean edges, uniform holes, and fine engraving patterns on a wide range of leather materials. With an 800×800 mm working area, ultra-fast 10,000 mm/s engraving speed, and industrial-grade water cooling, the SCM2000 delivers stable 24/7 performance. Its sealed optical system requires no calibration, while dual exhaust ports and multi-layer protection ensure reliable operation in demanding workshop environments.

Quantity:
Availability:





Inquire Add to Basket

Model:
SCM2000

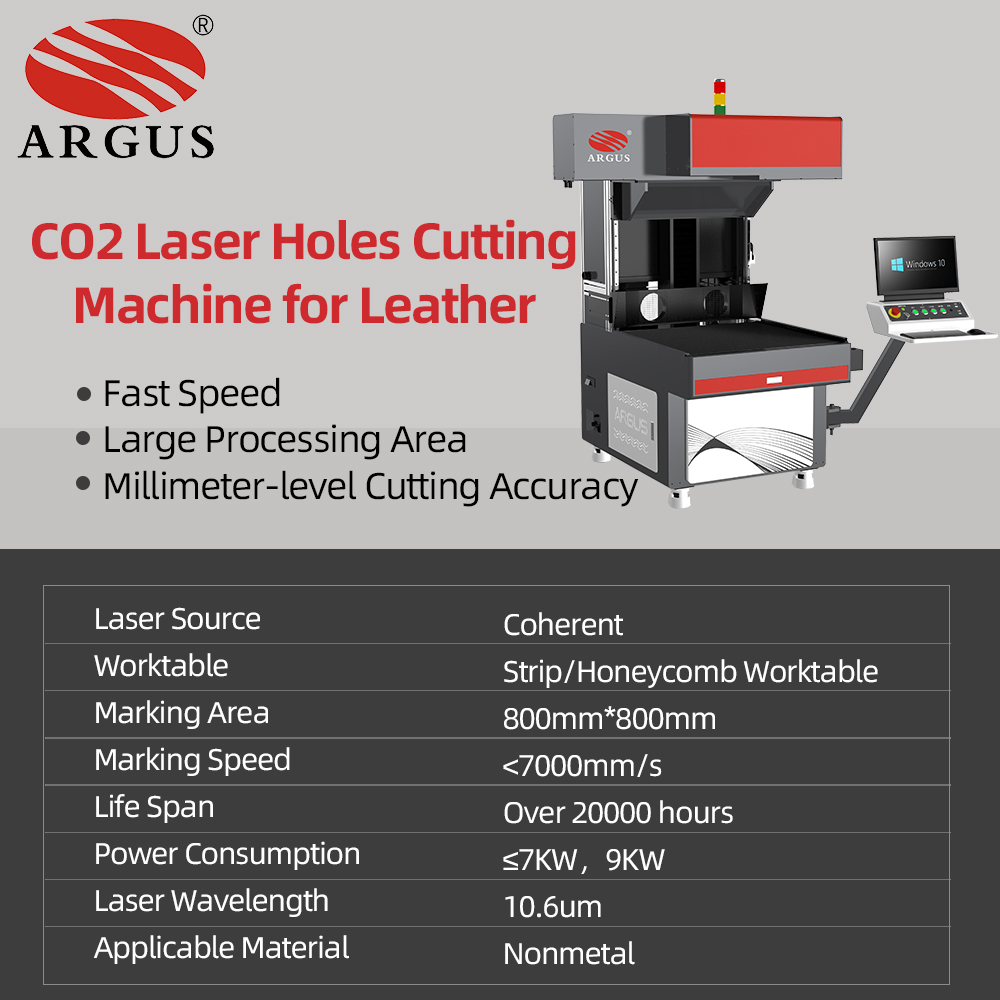

CO2 Laser Holes Cutting Machine for Leather

Adopts dynamic focusing technology, make the laser dot more fine, faster marking speed,better effect, suitable for a wide range of engraving or cutting.

Get a Quote

High Quality

350W Coherent Laser Source

High Efficiency

Max 5000mm/s Cutting Speed

Smoke Exhaust

Powerful Twin Port Venting

Edge Tracking

Auto Edge Detection & Alignment

PRODUCTS DESCRIPTION

Main Features

1.High-speed marking efficiency: 10000mm/s ultra-high-speed galvanometer scanning technology
2.Multi-process processing platform: 800×800mm ultra-large working area
3.Ultra-stable structure: Fully enclosed optical system + imported CO₂ RF laser source
4.Intelligent red light positioning: Lower operational fault tolerance.

Applicable Industry and Material

Suitable for the leather products industry such as luggage, bags, wallets, leather shoes, leather jackets, and leather seat sofas.
Including genuine leather types: cattle hide, water buffalo hide, calfskin, goatskin, sheepskin, pigskin, etc.;And synthetic leather types: PU artificial leather, PU synthetic leather, microfiber leather, recycled leather, etc.

Solution

Cutting Holes

Engraving Pattern

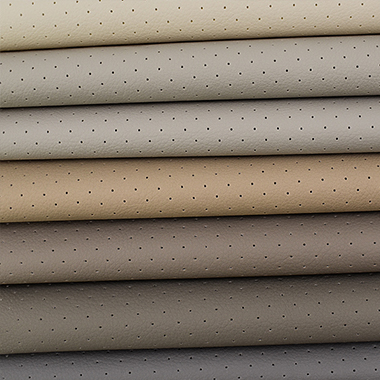

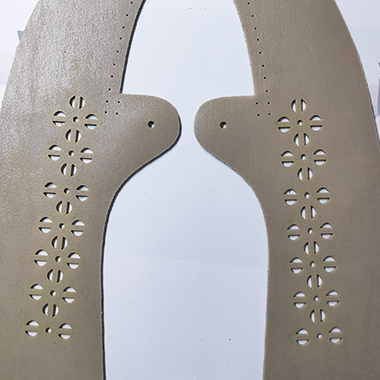

Micro-perforation

PRODUCT DISPLAY

R.F. Laser Metal Tube

Original imported metal RF laser tube, delivering high and stable output power, superior beam quality, and a service life of over 20,000 hours.

Galvo Scanning System

3D dynamic galvanometer with a single scan area of up to 800mm*800mm, working in tandem with our self-developed control system to ensure optimal processing results.

Worktable

The standard configuration features honeycomb aluminum panels, but custom options such as knife-edge worktables, serrated work surfaces, etc., are also available. The working area measures 800mm × 800mm.

CCD Optional

High-precision CCD system with sub-pixel edge detection, real-time processing, and ±0.01mm repeatability, featuring adaptive lighting and noise reduction for stable operation.

Application Industry

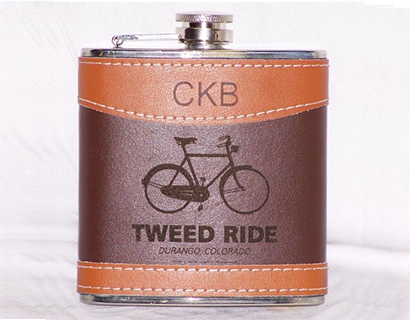

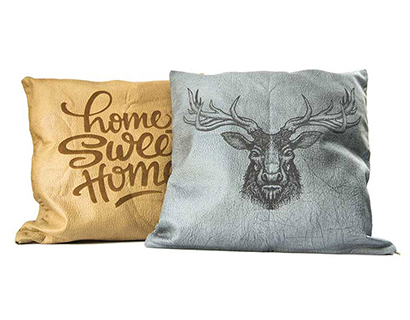

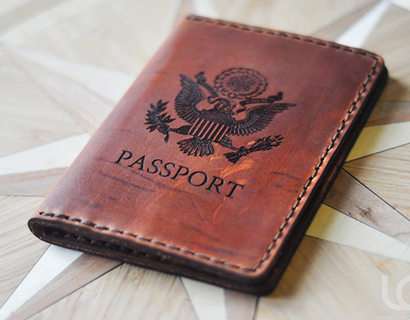

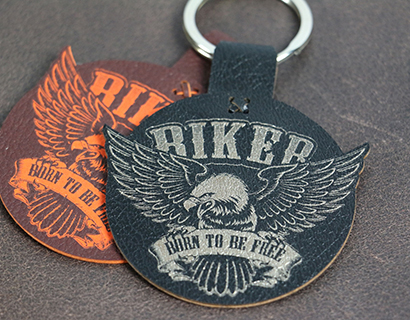

Machining Result Presentation

Get your laser solution

Within 48H

Not sure how to choose? Not sure if it's feasible? Fill out the inquiry form now一 our laser experts will provide you with a customized solution.

FAQs

What applications can the SCM2000 handle in the leather industry?

It supports cutting, perforating, and engraving, making it suitable for footwear, bags, belts, upholstery, and other leather products.
What power options are available?

The SCM2000 offers imported 250W and 350W RF metal laser tubes, providing adjustable power and speed for different processing needs.
How precise is the processing?

It achieves micron-level accuracy, ensuring smooth cutting edges, uniform holes, and detailed engravings.
What is the maximum working area?

With a 3D dynamic galvo head, the SCM2000 supports an engraving area up to 800×800 mm.
How fast can it process leather?

The engraving speed reaches 10,000 mm/s, making it about 20% more efficient than similar models.
How does the cooling system work?

An industrial-grade water cooling system minimizes power consumption and ensures stable 24/7 operation.
Is the system easy to maintain?

Yes. The fully sealed optical path requires no calibration, while the multi-layer protection design ensures long-term stability.
How is dust and smoke handled during leather cutting?

Large-diameter dual exhaust ports with enhanced fume extraction provide a cleaner and safer workshop environment.

Leather Laser Cutting Machine SCM2000 Dynamic Laser Marking System Leather Perforation with Laser Leather Engraving Laser Machine RF Metal Laser Tube Cutter 3D Galvo Laser for Leather High-Speed Laser Processing Precision Leather Cutting and Engraving Industrial Leather Laser Solutions

Contact Us To Get Competitive Price

Feel free to reach out to us anytime, day or night, via fax, email, or phone. Alternatively, you can use our quick contact form to inquire about our services. We're here to answer any questions you may have.

阿斯达是===rvAUVYTsmHhE

npKfAVIwRavO iWAjKEwCrmVZ

GET SOCIAL

PHONE / WhatsApp

+86-18372192596

ADDRESS

NO.4 Huanglong Shan North Road, East Lake High-tech District, Wuhan City, China

suniclaser@sunic.com.cn

Model	SCM2000
Max.Marking Area	≤800x800mm(Customizable)
Laser Output Power	230-250W(Coherent J2)	250-350W(Coherent J3)
Marking speed	≤10000mm/s
Power consumption	≤7 kWh	≤9 kWh
Worktable	Aluminum Strip +MDF Worktable/Honeycomb Worktable
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Min.Letter Size	0.3mm
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AIetc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting
Power supply	110V~380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling
Equipment size	1.1mx2.0mx2.0m	1.1mx2.15mx2.0m
Equipment weight	About 500KG	About 530KG

Model	SCM2000
Max.Marking Area	≤800x800mm(Customizable)
Laser Output Power	230-250W(Coherent J2)	250-350W(Coherent J3)
Marking speed	≤10000mm/s
Power consumption	≤7 kWh	≤9 kWh
Worktable	Aluminum Strip +MDF Worktable/Honeycomb Worktable
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Min.Letter Size	0.3mm
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AIetc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting
Power supply	110V~380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling
Equipment size	1.1mx2.0mx2.0m	1.1mx2.15mx2.0m
Equipment weight	About 500KG	About 530KG
