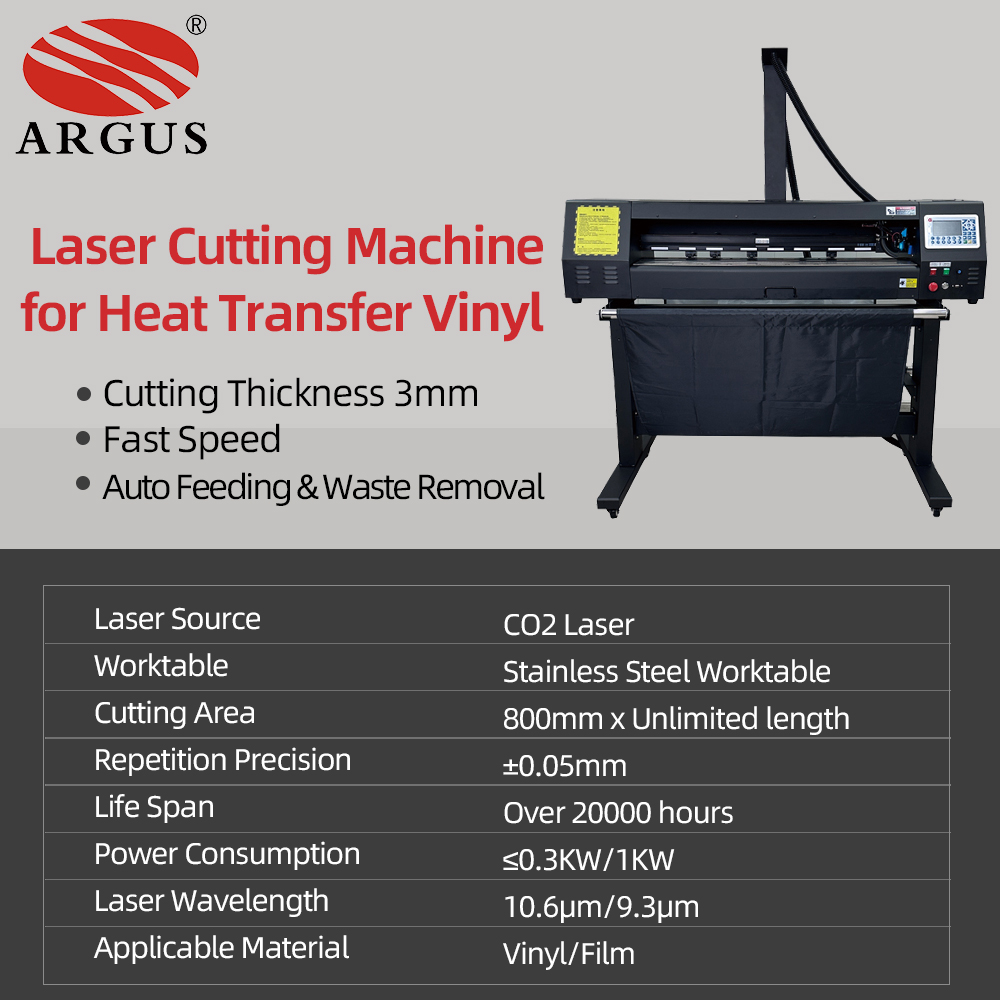

ARGUS CO2 Laser Cutting Machine For 3mm Heat Transfer Vinyl 80W Fast And High Precision

ARGUS Heat Transfer Vinyl Cutting Laser Marking Machine SCM2000 - Argus Laser Manufacturer

ARGUS Heat Transfer Film Cutting Laser Marking Machine SCM2000 - Argus Laser Manufacturer

ARGUS CO2 Laser Cutting Machine For 3mm Heat Transfer Vinyl 80W Fast And High Precision

Versatile Laser Options: Available in STP-50W CO2 glass tube, 45W RF, and 80W RF laser models to suit diverse processing needs.
Adjustable Suction Platform: Premium 304 stainless steel bed with dual turbo fans and a rotary knob for precise vacuum control and flat material placement.
High-Efficiency Exhaust System: Proprietary ducting paired with a 550W high-pressure blower for clean, efficient fume extraction.
Versatile Feeding System: Full-length aluminum alloy frame with segmented steel pins and multi-section matrix, compatible with various material dimensions.
Full Servo Precision Drive: Powered by low-noise servo motors throughout, delivering smooth, jagged-free cutting edges and high accuracy.
Smart A3S Control System: Powered by the advanced A3S controller supporting USB, USB drive, LAN, and Wi-Fi connections for stable laser output and accurate motion.

Quantity:
Availability:





Inquire Add to Basket

Model:
SCM55

Heat Transfer Vinyl CO2 Laser Cutter

Integrates an advanced A3S control system, full-servo motors, an adaptable feeding matrix, efficient fume extraction.—delivering ultra-precise, smooth-edge cutting

Get a Quote

High Quality

80W RF Laser Source

High Penetration

Max. Cutting Thickness 3mm

Smoke Exhaust

Powerful Smoke Exhaust

Edge Tracking
Auto Edge Detection & Alignment

PRODUCTS DESCRIPTION

Main Features

1. Versatile Laser Sources: Choose from 45W RF, 80W RF, or 50W Glass Tube,lasers to match your exact processing needs.
2. Adjustable Vacuum Bed: 304 stainless steel bed with dual turbo fans and a rotary dial for precise suction control and flat material hold-down.
3. High-Suction Auto-Feeding: Supporting 980mm wide materials (800mm max cut width) with smart auto-feeding.
4. Efficient Exhaust System: Proprietary ducting paired with a 550W high-pressure blower for clean, rapid fume extraction.
5. Flexible Material Rack: Full-length aluminum alloy frame with segmented steel pins, adaptable to various material dimensions.
6. Full Servo Precision Drive: Powered by low-noise servo motors for high accuracy and smooth, jagged-free cut edges.
7. Smart A3S Controller: Supports USB, LAN, and Wi-Fi connections for precise laser control and reliable motion tracking.

Applicable Industry and Material
PVC, TPU, PU, luminous, laser soft metal, reflective, flocking, gold onion, reflective screen printing, weak solvent printing film, plastic spraying printing film, and other heat transfer film materials.

Get Solutions

3mm Thick Film

0.36mm Ultra-narrow Lines

0.1mm Ultra-thin Film

PRODUCT DISPLAY

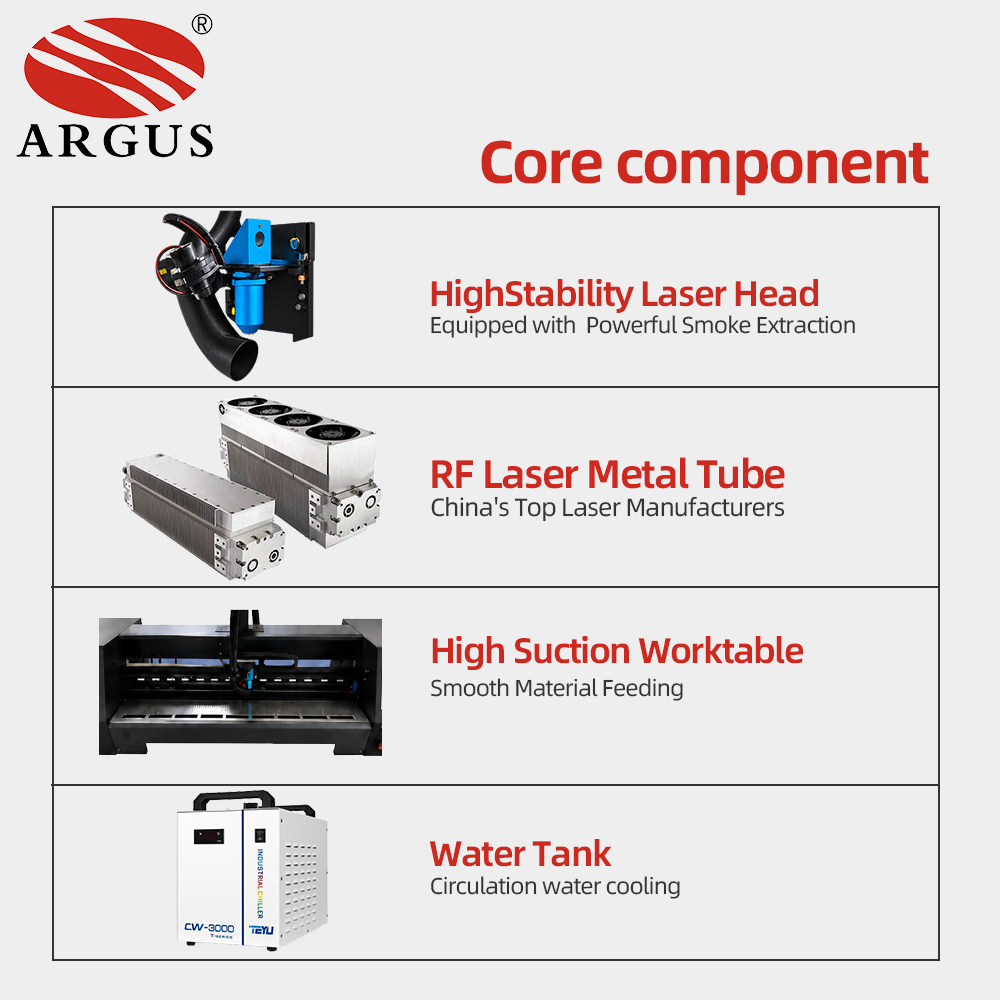

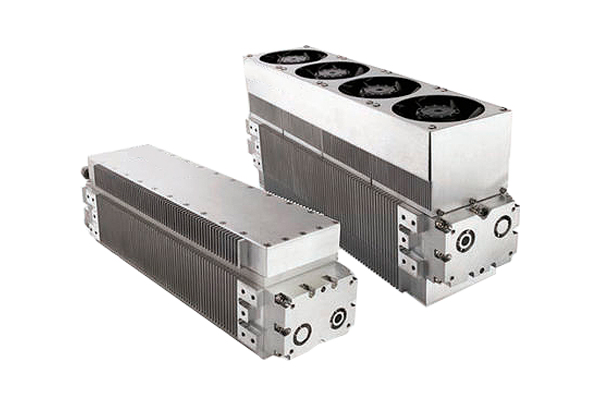

R.F. Laser Metal Tube

Delivering high and stable output power, superior beam quality, and a service life of over 20,000 hours.

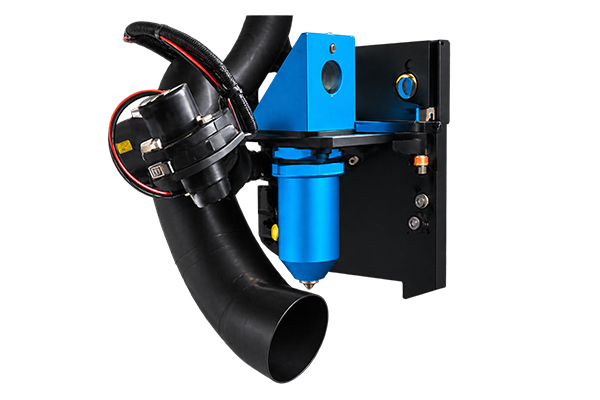

High Stability Laser Head

High-precision laser cutting head with high stability, integrated with an efficient smoke extraction system.

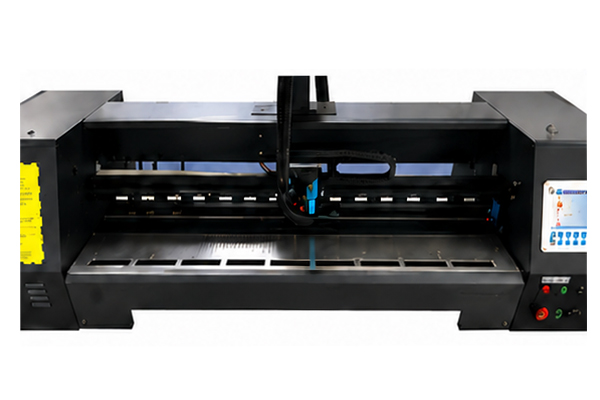

High Suction Worktable

High-suction perforated stainless steel worktable naturally accommodating materials up to 980mm wide, delivering precise cutting up to an 800mm maximum width. Paired with a smart feeding system for seamless, fully automated operation.

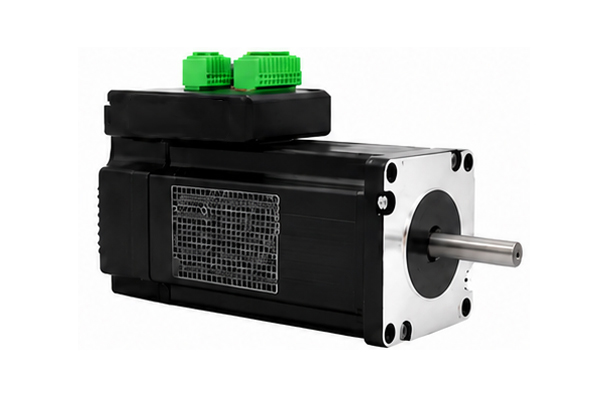

High Response Servo Drive

High-dynamic response servo system, deep-matched with feeding and cutting components to enable high-cycle, seamless operation.
CCD Optional

High-precision CCD system with sub-pixel edge detection, real-time processing, and ±0.01mm repeatability, featuring adaptive lighting and noise reduction for stable operation.

PRODUCTION PROCESS

① Design on the computer

Create the pattern using CorelDRAW or Illustrator. Ensure size and details match the product.
② Cutting with laser marker

Use a laser marker to cut the pattern precisely. Clean edges, high accuracy, no film damage.
③ Tear off the excess

Remove unwanted film parts, keeping only the pattern on the PET film.
④ Perm the pattern 150°~160°

Heat press the PET film onto the substrate at 150°C–160°C for a few seconds.
⑤ Tear offthe PET film after cooling

After cooling, peel off the PET film to reveal the pattern.
⑥ Product display

Check the result. If clear and firm, it’s ready for packaging or display.

Industry and Materials

Machining Result Presentation

Not sure if this machine fits your material or design needs?

Click below to consult with our engineers for free.

FAQs

What types of heat transfer vinyl can this machine cut?

This machine is suitable for various types of vinyl, including PVC vinyl, PU heat transfer vinyl, reflective vinyl, fluorescent film, and metallic films. It can handle most commonly used heat transfer materials with high precision.
Will the edges turn yellow or get burned during cutting?

No. This laser cutter uses high-precision optics and optimized parameters to ensure clean, sharp edges without burning or yellowing, keeping the final design crisp and professional.
How fast is the cutting speed? Will it affect productivity?

Laser cutting speed 88 pieces of 48*35 patterns in just 54 seconds.. It supports continuous high-volume processing, significantly increasing efficiency compared to traditional vinyl cutters.
What is the cutting accuracy? Can it handle intricate designs?

The cutting accuracy is up to 0.1mm. It easily handles complex patterns, fine lines, and small text, making it ideal for applications in apparel, footwear, hats, and more.
Are the cut patterns easy to weed?

Yes. The clean and consistent edges make weeding smooth and efficient, helping reduce labor and increase productivity.
Does it support automatic contour recognition for printed designs?

Yes. The machine features an intelligent vision system for accurate positioning and cutting of printed patterns, ensuring excellent alignment and precision.
Is maintenance complicated? Does it consume a lot of materials?

The machine is designed with a simple structure for easy maintenance. Daily upkeep only involves cleaning lenses and routine checks on the laser source. Laser cutting is non-contact, so there’s virtually no material consumption.
Is the machine easy to operate? Do you provide training and support?

Yes. The system is user-friendly with an intuitive interface. We provide comprehensive training and remote technical support to help users get started quickly.
What is the machine's lifespan and laser tube life?

The machine is built to last 5–8 years with proper care. The laser tube typically lasts over 20,000 hours, depending on usage and maintenance.
What file formats does the machine support? Can I import graphics directly?

The system supports formats like AI, DXF, and PLT, and is compatible with CorelDRAW, Illustrator, and other mainstream design software for easy importing and editing.

Label Sticker laser vinyl laser cutter heat transfer vinyl cutter Sports wear vinyl laser cutter co2 laser cutting machine die-cutting machine 60W CO2 laser cutting machine laser cutting machine CO2 Laser Cutter transfer vinyl laser cutter

Contact ARGUS to Reques Laser Pricing

Feel free to reach out to us anytime, day or night, via fax, email, or phone. Alternatively, you can use our quick contact form to inquire about our services. We're here to answer any questions you may have.

阿斯达是===uyUfgNJDRHsj

npKfAVIwRavO iWAjKEwCrmVZ

GET SOCIAL

PHONE / WhatsApp / Wechat

+86-18372192596

ADDRESS

NO.4 Huanglong Shan North Road, East Lake High-tech District, Wuhan City, China

suniclaser@sunic.com.cn

Model	SCM55
Laser Source	CO2 Laser
Max. Cutting Area	800mm x Unlimited length
Max. Compatible Area	980mm x Unlimited length
Laser Output Power	50W (Laser tube)	45W (RF Laser)	80W(RF Laser)
Laser Wavelength	10.64nm		9.3nm
Marking speed	≤10000mm/s
Power Consumption	≤300W	≤1000W
Cutting Thickness	≤1.5mm	≤2.2mm	≤3mm
Worktable	Stainless Steel with Ventilation Holes
Laser Frequency	20kHz~200kHz
Repetition Precision	±0.2mm	±0.05mm
Min.Letter Size	0.3mm
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AIetc
Power supply	110V~380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling
Equipment size	2.4mx0.64mx055m
Equipment weight	About 170KG
