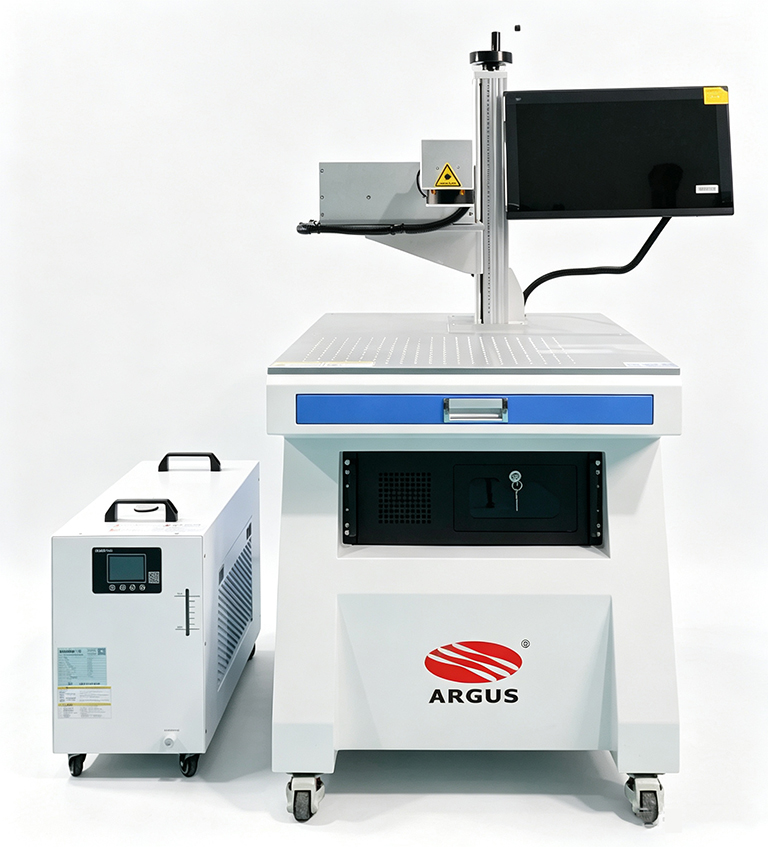

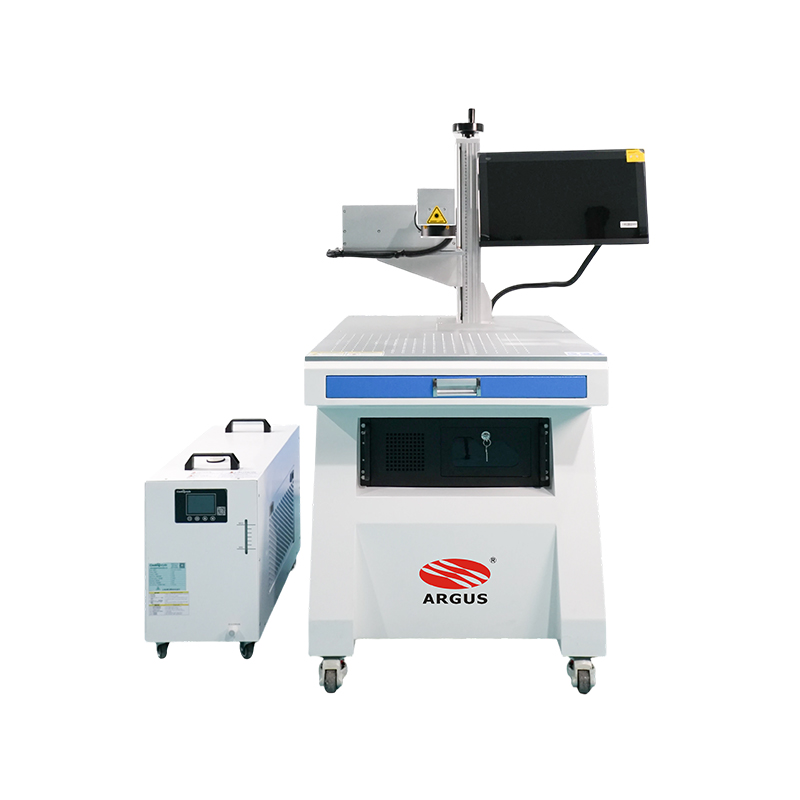

ARGUS Desktop 30w Infrared Picosecond Laser Marking System for Mirror-finished Stainless Steel Blackening Laser Coloring Precision

ARGUS Desktop 10w UV Picosecond Laser Marking Machine for Stainless Steel Blackening Laser Coloring Precision Laser Marker

ARGUS Desktop 30w Infrared Picosecond Laser Marking System for Mirror-finished Stainless Steel Blackening Laser Coloring Precision

Delivering ultrashort pulses below 15 ps, this desktop infrared picosecond laser marking system provides high-contrast, ultra-fine processing with minimal heat impact. Engineered for high-value metal and plastic components, it creates sharp microtext, dense QR/Data Matrix codes, logos, and permanent traceability marks without burrs or thermal deformation. Ideal for medical devices, electronics, semiconductors, automotive parts, and precision instruments, this solution offers superior beam quality, no mechanical wear, and tightly controlled surface film removal.

Quantity:
Availability:





Inquire Add to Basket

Technical Specifications

Advantages of Infrared Picosecond Processing：

1. Ultrashort pulses below 15 ps provide very high peak power and reduce the time available for heat to diffuse into the workpiece.

2. Smaller heat-affected zone, less melting, fewer burrs and reduced thermal discoloration compared with conventional longer-pulse marking on suitable materials.

3. Sharp edges, fine lines and high-contrast marks support microtext, dense codes and high-resolution traceability.

4. Lower risk of deformation or substrate damage when processing thin, precision or heat-sensitive parts under validated parameters.

5. Good beam quality, high circularity and flexible repetition-rate control support stable, repeatable and uniform processing.

6. Non-contact processing minimizes tool wear and mechanical stress on the component.

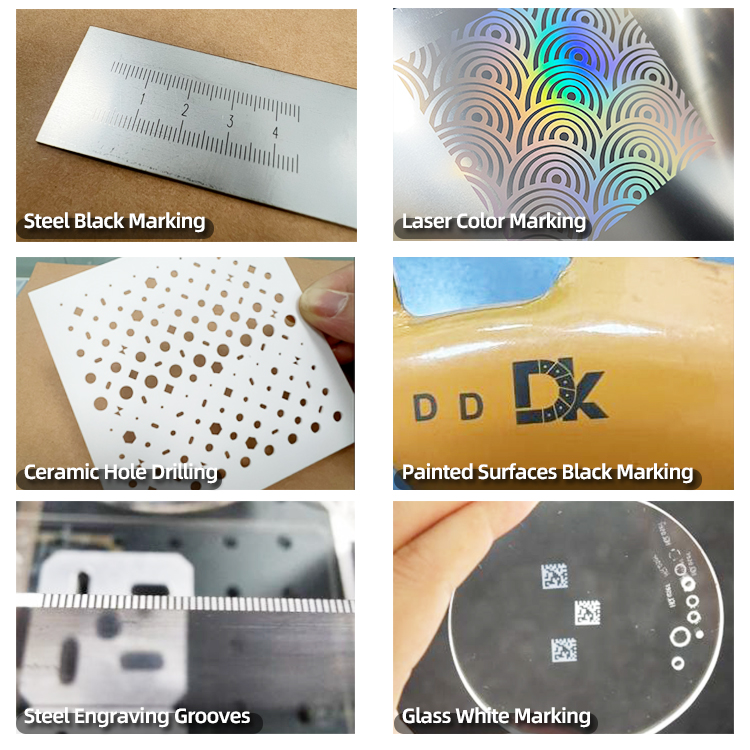

Samples

photobank

PRODUCT CONFIGURATION

Laser Source

Leading domestic laser manufacturers Super long service life, up to 100,000 hours;
Excellent laser spot and stable laser generation.

Galvo Scanning Head

Features advanced optical components for ultra-fine beams and superior processing accuracy.Double red light guiding light focusing function

Lifting Shaft

Selecting high quality, high energy stable and convenient.

Worktable

Available in sizes from 110*110mm ~ 200*200mm.

Industrial-grade, rust-resistant table built for heavy loads and perfect flatness.

What is Infrared Picosecond laser marking machine application ?

High-contrast precision marking, microtext, logos, serial numbers, QR codes and Data Matrix codes on stainless steel, aluminum, copper, titanium, carbide and coated or anodized metals.

Fine marking of electronic components, semiconductor packages, connectors, sensors, precision instruments, batteries and automotive parts.

Permanent traceability marking for medical instruments, tools, watch and jewelry parts, and other high-value components.

Selective removal of thin films, paint, oxide layers and surface coatings with tightly controlled material interaction.

30W picosecond laser marking system Desktop IR picosecond laser engraver Infrared picosecond laser marker Picosecond laser engraving solution Ultra-precision picosecond laser marker Cold laser marking system for electronics 30W picosecond IR laser engraver High-precision picosecond laser etching Desktop picosecond laser micro-machining No thermal damage laser marking system

Contact ARGUS to Reques Laser Pricing

Feel free to reach out to us anytime, day or night, via fax, email, or phone. Alternatively, you can use our quick contact form to inquire about our services. We're here to answer any questions you may have.

阿斯达是===uyUfgNJDRHsj

npKfAVIwRavO iWAjKEwCrmVZ

GET SOCIAL

PHONE / WhatsApp / Wechat

+86-18372192596

ADDRESS

NO.4 Huanglong Shan North Road, East Lake High-tech District, Wuhan City, China

suniclaser@sunic.com.cn

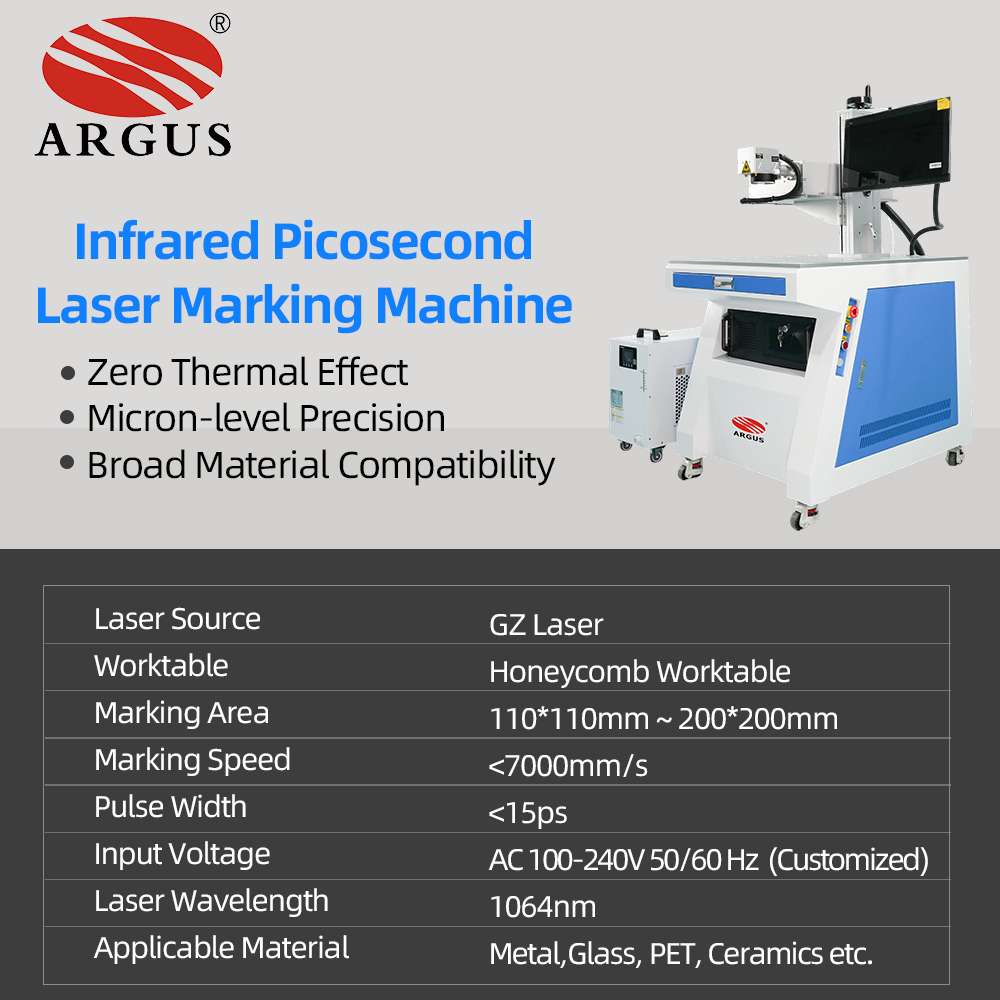

Model	SPM30
Max.Marking Area	110x110mm-200x200mm(Optional)
Laser Output Power	30W
Marking speed	≤7000mm/s
Laser Wavelength	1064nm
Marking Depth	≤0.1mm
Power Consumption	＜600W
Repeat Accuracy	±0.003mm
Working Accuracy	0.001mm
Max. Single Pulse Energy	200μJ
Pulse Width	15ps
Frequency	4-20kHz
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AIetc
Software Character	JCZ EZCAD
Power supply	220V/50Hz (Customized)
CoolingWay	Water Cooling (Water Chiller is included)
