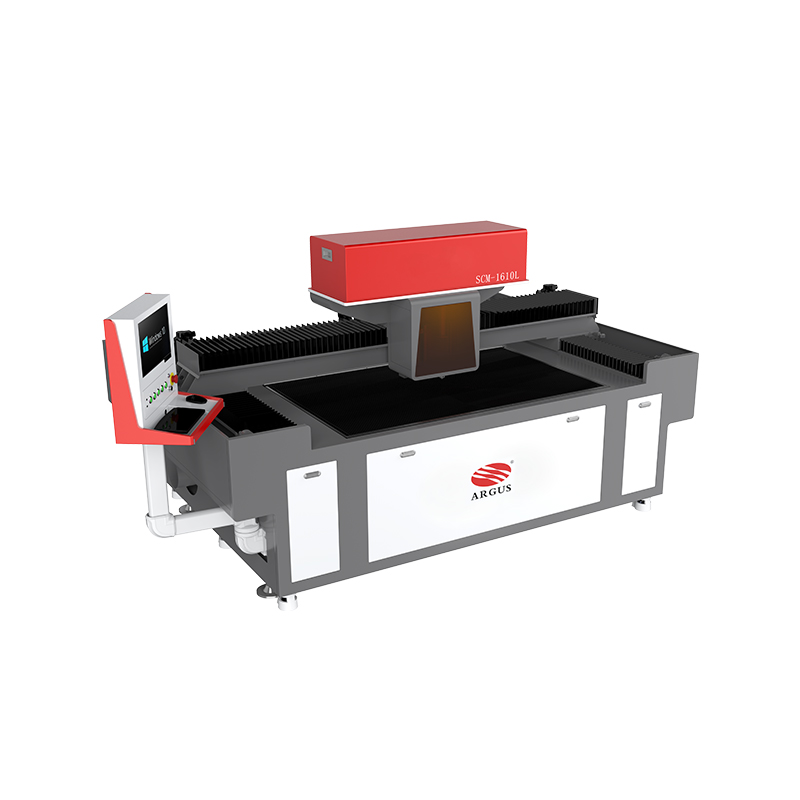

ARGUS High-Speed CO2 Laser Marking And Cutting Machine for Leather Perforation 250w Large Format Fabric Cutting

This integrated laser marking and cutting system combines a high-power CO₂ laser with a galvanometer and precision guide rail, enabling seamless switching between marking, engraving, perforation, and cutting. With a single 110×110 mm field and up to 1600×1000 mm processing area, it ensures both high accuracy and large-format capability. Optional CCD vision positioning and roll-to-roll feeding further enhance automation, making it a versatile solution for efficient and precise laser processing.

Availability:
Quantity:
Inquire Add to Basket

  • SCM1610L

  • ARGUS

High-Speed Laser Marking And Cutting Machine
The quality is very good, completely consistent with the seller's description, very satisfied, really like it, completely beyond expectations, the delivery speed is very fast
Get a Quote
High Efficiency
Max 7000mm/s Marking Speed
Edge Tracking
Auto Edge Detection & Alignment​
High Flexibility​
Switchable Between Marking & Cutting
High Accuracy
110mmx110mm Single Precision Machining Area
PRODUCTS DESCRIPTION
Main Features
1.Automatic Switching Function: The high-precision laser cutting bed, equipped with a galvanometer marking system and laser cutting head, supports seamless switching between marking and cutting, improving production efficiency.
2.High-Speed Flight Marking: The galvanometer system enables high-speed marking, supporting processes such as laser perforation, engraving, and line cutting, ensuring fine processing results.
3.Precise Cutting: The laser cutting head is used for laser edging and material unloading, solving the common issue of slanted edges during large-format marking.
4.Efficient and Low Thermal Effect: Equipped with a high-power CO2 laser, it offers fast processing speed and minimal thermal effect during perforation, enhancing processing accuracy.
5.Expandable Features: Optional features such as CCD vision positioning and automatic roll material feeding and unloading systems further optimize the production process and automation level.
Solution

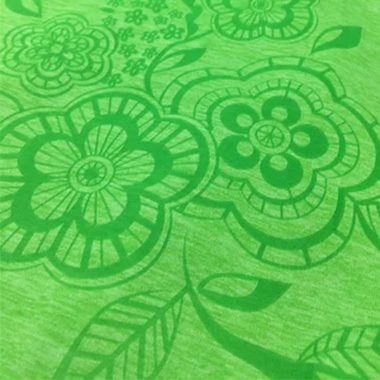

Laser Marking

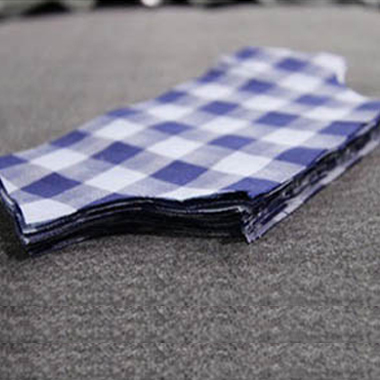

Laser Cutting
Laser Perforation
R.F. Laser Metal Tube
Original imported metal RF laser tube​​, delivering ​​high and stable output power​​, ​​superior beam quality​​, and ​​a service life of over 20,000 hours​​.

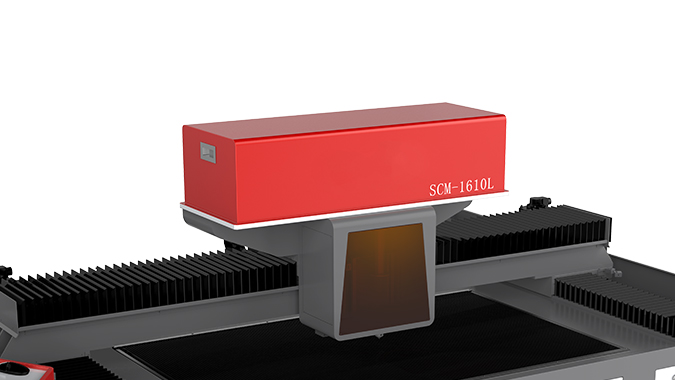

Galvo Scanning System
3D dynamic Galvo head, one time scan area could reach to 110*110mm. 3D dynamic galvanometer control system ensure the best processing results .

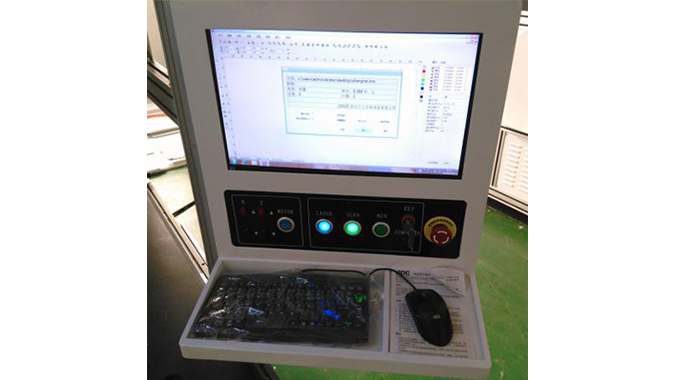

Self - Developed Software
Sunic Laser self - developed software supports multiple formats to meet your needs. Application under Windows interface, AutoCAD, PLT, Al Photoshop compatible, ect supportive.

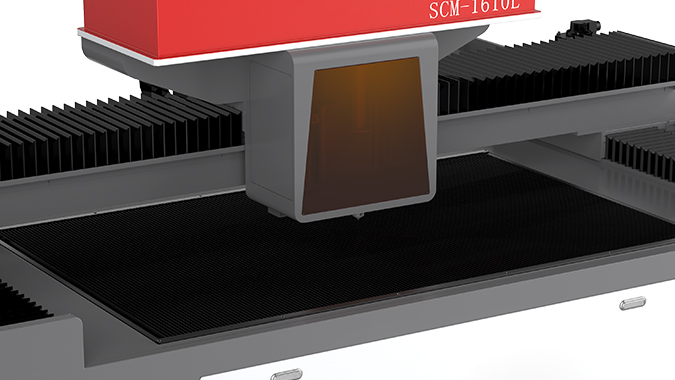

Marking Area
Laser marking area:1600mm*1000mm; Can realize marking, cutting, miro-perforation process.
High-speed guide rail
High-speed precision rail system enables fast and stable laser head adjustment with micron-level accuracy, reducing switching time and ensuring consistent processing quality.
Application Industry
First-rate service

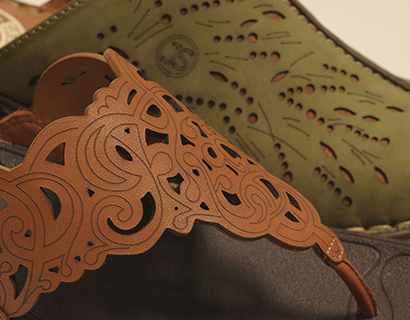

  • Leather Shoes
  • Car Cushions

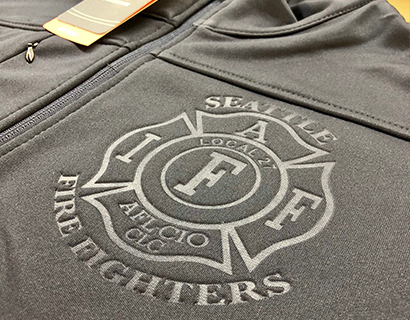

  • Clothing
  • Fabric
  • Sofa
  • Floor Mat

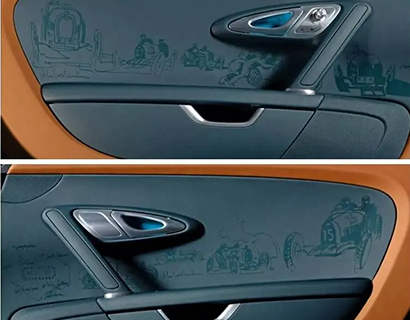

  • Door Trim

Get your laser solution
win 24H
Not sure how to choose? Not sure if it's feasible? Fill out the inquiry form now一 our laser experts will provide you with a customized solution.
Contact US
FAQs
  • What processes can this machine perform?
    加 Created with Sketch.
    形状 Created with Sketch.
    It supports laser marking, engraving, perforation, and precise cutting in one system.
  • What is the maximum processing area?
    加 Created with Sketch.
    形状 Created with Sketch.
    The system offers a single 110×110 mm field with precision detailing and can expand up to 1600×1000 mm for large-format applications.
  • How does the automatic switching function work?
    加 Created with Sketch.
    形状 Created with Sketch.
    The machine seamlessly switches between marking and cutting modes via a high-precision guide rail, improving production efficiency.
  • What are the advantages of high-speed flight marking?
    加 Created with Sketch.
    形状 Created with Sketch.
    It enables fast engraving, perforation, and line cutting with fine results and minimal thermal effect.
  • How does the cutting head improve accuracy?
    加 Created with Sketch.
    形状 Created with Sketch.
    The dedicated laser cutting head ensures smooth edges and solves the issue of slanted edges in large-format processing.
  • What optional features are available?
    加 Created with Sketch.
    形状 Created with Sketch.
    Options include CCD vision positioning and an automatic roll-to-roll feeding system for higher automation.
  • Is it suitable for continuous industrial production?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, it is designed for stable, efficient, and precise 24/7 operation across different material types.
  • Which industries benefit most from this machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    It is ideal for leather, textiles, packaging, and other industries requiring both fine engraving and large-area cutting.

Product Parameters

ModelSCM1610L
Max.Marking Area1600mm*1000mm
Laser Output Power250W(Coherent J2)
Marking speed≤10000mm/s
Power consumption≤7 kWh
Laser SourceCoherent CO2 Metal RF Laser Tube
Laser Wavelength10.64μm
Laser Frequency1kHz~100kHz
Galvo HeadHigh speed galvo scanner
Repetition Precision0.01mm
Spot Quality
<1.2㎡
System SupportWIN 10
Output CompatibilityAuto CAD,Photoshop,CorelDRAW etc
File FormatsPLT,DXP,BMP,JPG,AI etc
Software Character

Integrated Function of Dotting Design,Vector

Drawing,Marking Scribing and Cuttin

Power supply380V/50Hz~60Hz
CoolingWayCirculation of Water Cooling
