ARGUS Laser Perforation Marking Machine Sportswear Clothing CO2 Laser Marking Machine

Pop Up Paper Card Laser Cutter Dynamic Galvo Co2 Laser Marking Machine SCM2000

ARGUS Laser Perforation Marking Machine Sportswear Clothing CO2 Laser Marking Machine

sportswear clothing laser perforation marking machine for clothing customized manufacturer -ARGUS LASER, Buy sportswear clothing Laser Cutter Dynamic Galvo Co2 Laser Marking Machine directly with low price and high quality.

The dynamic galvo co2 laser marking machine use dynamic focusing system to have larger working area, compare to 2d focusing, the laser beam of 3d focusing system have thiner laser beam, to higher precision laser processing for non-metal material.

Quantity:
Availability:





Inquire Add to Basket

Model:
SCM2000

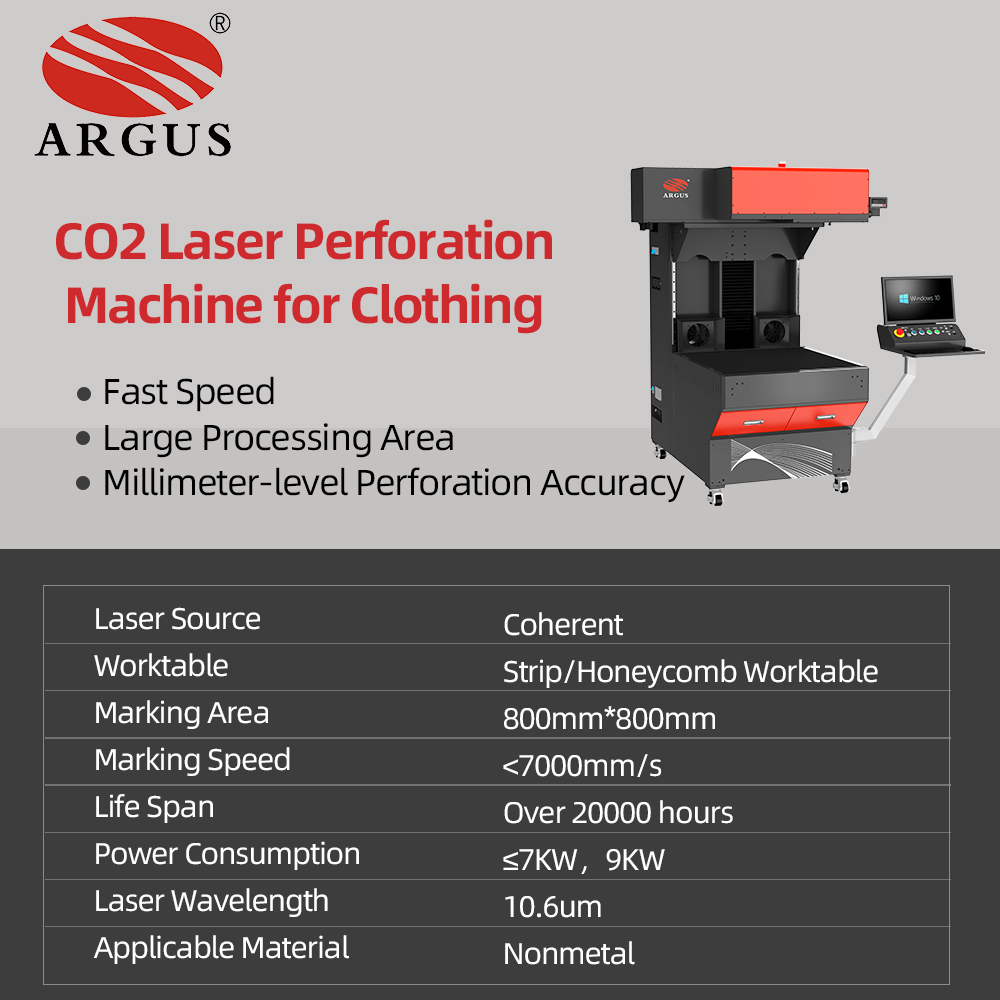

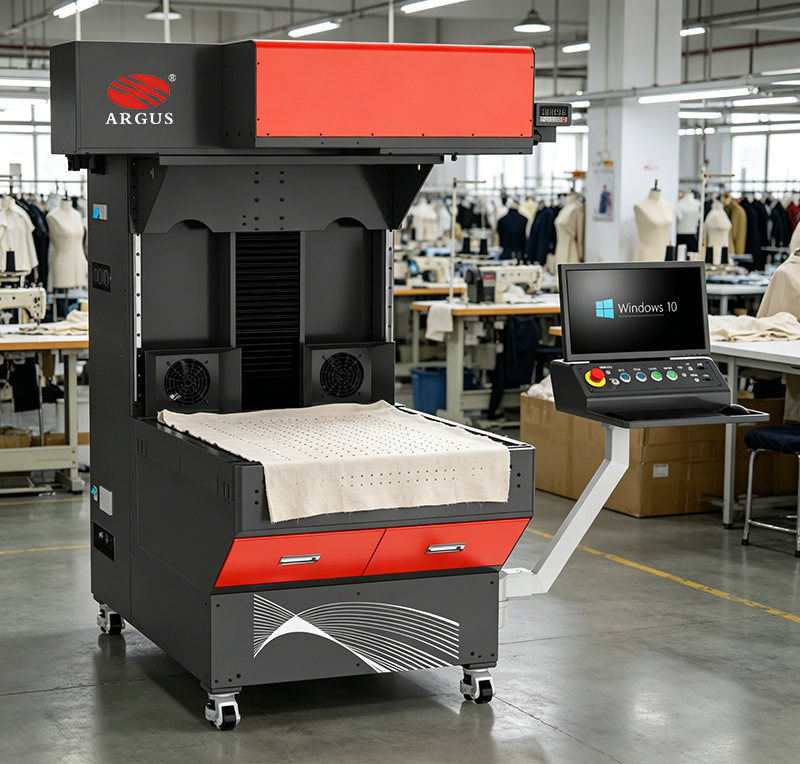

CO2 Laser Perforation Machine for Clothing

ARGUS LASER offers a digital, mold-free solution for precision fabric ventilation, achieving micro-holes down to 0.2mm with flawless accuracy and lower production costs.ARGUS LASER offers a digital, mold-free solution for precision fabric ventilation, achieving micro-holes down to 0.2mm with flawless accuracy and lower production costs.

Get a Quote

High precision

Min. Aperture is only 0.2mm

No Yellow
No Burnt Edges

Marking Area Adjustable
(Max:800*800mm)

Smoke Exhaust
Powerful Twin Port Venting

PRODUCTS DESCRIPTION

Main Features
1.High-speed marking efficiency: 10000mm/s ultra-high-speed 3D dynamic galvanometer scanning technology.
2.Multi-process processing platform: 800×800mm ultra-large working area
3.Ultra-stable structure: Fully enclosed optical system + imported CO₂ RF laser source
4.Intelligent red light positioning: Lower operational fault tolerance.
5.Exceptional processing precision: capable of producing micro-holes as small as 0.2mm in fabric

Applicable Industry and Material
Polyester, Nylon (Polyamide), Spandex (Lycra), 3-Layer Laminates, Hard Shell, Polar Fleece, Bonded Fabrics, Microfiber Leather, PU/PVC Synthetic Leather, Knitted and Woven Fabrics, Spacer Mesh, High-density Woven Fabrics, and Denim.

Get Solutions

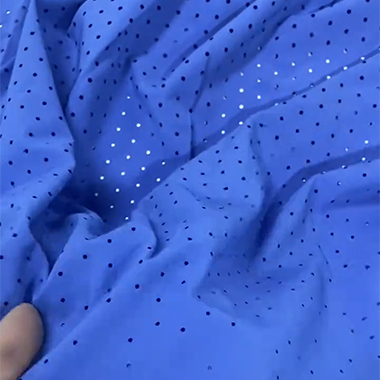

Sportswear fabric with 1mm aperture

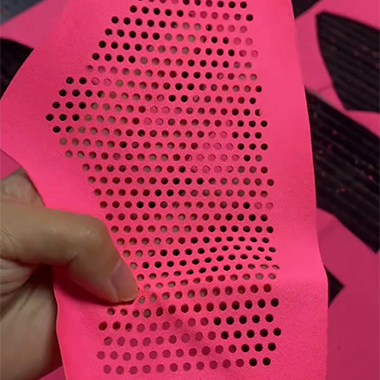

Cap piece with 3mm aperture

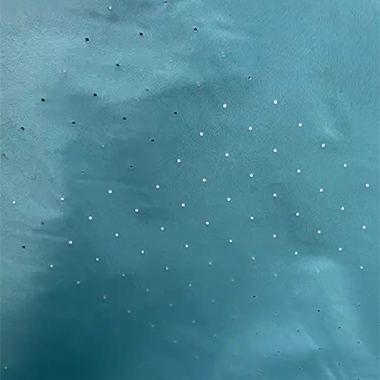

Polyester fabric with 0.5mm aperture

Introduction

R.F. Laser Metal Tube

Original imported metal RF laser tube, delivering high and stable output power, superior beam quality, and a service life of over 20,000 hours.
Galvo Scanning System

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
Worktable

The standard configuration features honeycomb aluminum panels, but custom options such as knife-edge worktables, serrated work surfaces, etc., are also available. The working area measures 800mm × 800mm.
CCD Optional

High-precision CCD system with sub-pixel edge detection, real-time processing, and ±0.01mm repeatability, featuring adaptive lighting and noise reduction for stable operation.

Laser Perforation for Sportswear CO2 Galvo Laser Marking Solution Breathable Fabric Laser Perforating High Speed Jersey Laser Marking Dynamic CO2 Laser System Laser Micro-perforation for Apparel Functional Textile Laser Processing Industrial Laser Hole Punching Yoga Wear Laser Perforation Design Sustainable Textile Laser Solution

Contact ARGUS to Reques Laser Pricing

Feel free to reach out to us anytime, day or night, via fax, email, or phone. Alternatively, you can use our quick contact form to inquire about our services. We're here to answer any questions you may have.

阿斯达是===uyUfgNJDRHsj

npKfAVIwRavO iWAjKEwCrmVZ

GET SOCIAL

PHONE / WhatsApp

+86-18372192596

ADDRESS

NO.4 Huanglong Shan North Road, East Lake High-tech District, Wuhan City, China

suniclaser@sunic.com.cn

Model	SCM2000
Max.Marking Area	≤800x800mm(Customizable)
Laser Output Power	230-250W(Coherent J2)	250-350W(Coherent J3)
Marking speed	≤10000mm/s
Power consumption	≤7 kWh	≤9 kWh
Worktable	Aluminum Strip +MDF Worktable/Honeycomb Worktable
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Min.Letter Size	0.3mm
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT, DXP, BMP, JPG, AIetc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting
Power supply	110V~380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling
Equipment size	1.1m * 2.15m * 2.0m
Equipment weight	About 530KG

ARGUS Laser Perforation Marking Machine Sportswear Clothing CO2 Laser Marking Machine

CO2 Laser Perforation Machine for Clothing Parameters
