Cast Acrylic vs. Extruded Acrylic: Which Is Better for Laser Cutting?

Acrylic is widely used in laser cutting and engraving for signage, retail displays, decorative products, awards, and custom components. However, not all acrylic sheets behave the same way under a laser beam.

Two common types of acrylic are cast acrylic and extruded acrylic. Although both are made from PMMA (polymethyl methacrylate), their manufacturing processes affect engraving contrast, cutting performance, thickness consistency, and overall production cost.

So, which type should you choose for your CO₂ laser cutting machine?

The answer depends on your application. Cast acrylic is generally preferred for high-contrast engraving, while extruded acrylic is often a practical choice for cost-efficient cutting and parts that require consistent thickness.

1. What Is Cast Acrylic?

Cast acrylic is manufactured by pouring liquid acrylic material into a mold, where it cures into a solid sheet.

This production method gives cast acrylic distinctive processing characteristics, particularly when laser engraving.

Key Characteristics of Cast Acrylic

• High engraving contrast: Laser engraving typically creates a bright, frosted-white appearance.

• Detailed designs: Suitable for fine text, logos, decorative graphics, and photographic engraving.

• Premium visual applications: Commonly used for awards, branded displays, signage, and personalized products.

• Higher material cost: Cast acrylic generally costs more than comparable extruded acrylic.

• Thickness variation: Its thickness tolerance can be wider, which matters for parts requiring precise fitting.

Best Applications

Cast acrylic is a good choice for:

• Engraved awards and trophies

• Decorative signs and branded displays

• Personalized gifts and nameplates

• Acrylic products featuring detailed graphics

• Projects where engraving contrast is important

If your business focuses on producing visually distinctive engraved products, cast acrylic is worth considering.

2. What Is Extruded Acrylic?

Extruded acrylic is produced by pushing acrylic material through an extrusion system to form continuous sheets of a specified thickness.

The manufacturing process generally provides more consistent sheet thickness and makes extruded acrylic a cost-effective option for many production applications.

Key Characteristics of Extruded Acrylic

• Consistent thickness: Useful for components that need repeatable dimensions.

• Cost efficiency: Often less expensive than cast acrylic.

• Efficient laser cutting: It generally requires less laser power than cast acrylic of the same thickness under comparable conditions.

• Smooth cut edges: Properly adjusted CO₂ laser parameters can produce clear, polished-looking edges.

• Lower engraving contrast: Engraved areas usually appear less frosted and less visibly defined than those on cast acrylic.

Best Applications

Extruded acrylic is often suitable for:

• Retail display components

• Acrylic panels and covers

• Signage requiring cut shapes and lettering

• Slot-and-tab assemblies

• Repetitive production of dimensionally consistent parts

For applications focused mainly on cutting rather than decorative engraving, extruded acrylic can offer a useful balance between cost and production efficiency.

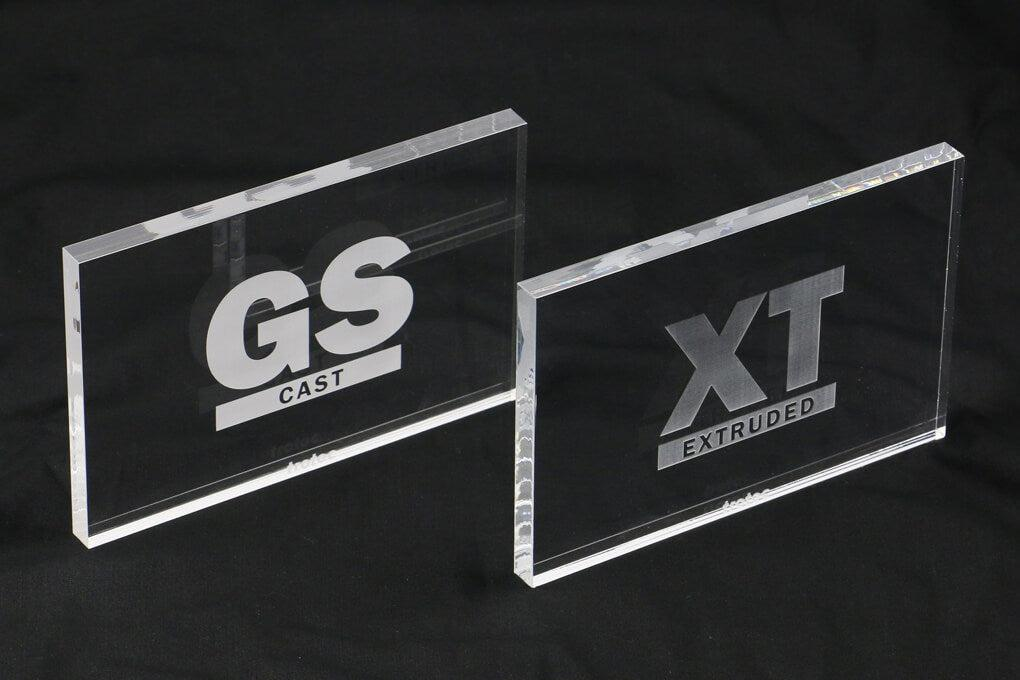

3. Cast Acrylic vs. Extruded Acrylic: Key Differences

The following table summarizes the main differences for laser processing.

Actual results depend on the acrylic grade, thickness, laser system, optics, and processing parameters. Always test the specific sheet before starting production.

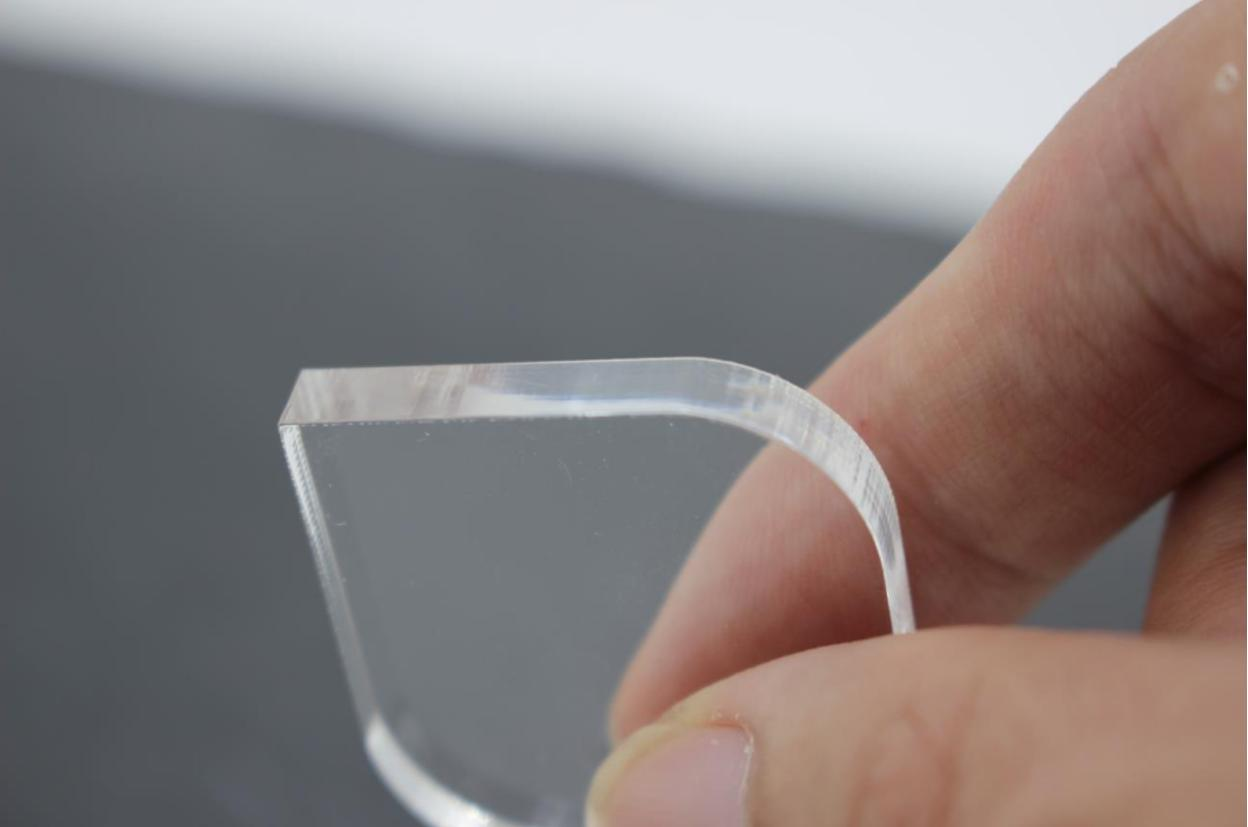

4. Which Acrylic Produces Better Laser-Cut Edges?

Edge quality is an important consideration when manufacturing transparent displays, signs, and decorative components.

Both cast and extruded acrylic can be laser cut successfully using a properly configured CO₂ laser machine. However, their edge characteristics may differ.

Cast Acrylic

Cast acrylic generally produces clean, burr-free cuts. It is also well suited to applications that combine cutting with high-contrast engraving.

Extruded Acrylic

Extruded acrylic can produce a smooth, flame-polished-looking edge when the laser parameters are correctly adjusted. Its consistent thickness can also help maintain repeatability across production batches.

Neither material guarantees perfect results on its own. Incorrect focus, unsuitable cutting speed, excessive heat, or inconsistent material thickness can affect edge appearance.

For the best results, match the material to the required finish and test the cutting parameters on a sample sheet.

5. How to Choose the Right Acrylic for Your CO₂ Laser Cutter

Before selecting an acrylic sheet, consider the following factors.

Step 1: Define Your Main Processing Task

Are you primarily cutting shapes, engraving logos, or performing both operations?

If high-contrast engraving is important, cast acrylic is usually the preferred starting point. If your work mainly involves cutting components to size, extruded acrylic may be more economical.

Step 2: Check Material Thickness

The thickness of the acrylic affects the required laser power, cutting speed, focal length, and edge quality.

Thicker sheets generally require more cutting capability and careful parameter adjustment. Check the actual sheet thickness rather than relying only on its nominal specification.

Step 3: Consider Dimensional Accuracy

If your products use slots, tabs, or fitted joints, thickness consistency becomes especially important.

Extruded acrylic is often advantageous for these applications. With cast acrylic, measure the material and adjust your design where necessary.

Step 4: Evaluate the Finished Appearance

Consider whether the final product needs a clear cut edge, frosted engraving, or a combination of both.

For premium visual products, test both materials if the final edge finish is critical. A small sample test can help you compare results before committing to a full production run.

Step 5: Calculate Total Production Cost

Material price is only one part of the total cost.

Also consider cutting speed, scrap rate, finishing requirements, dimensional accuracy, and the number of parts produced per sheet.

The most economical material is the one that consistently meets your quality requirements at an acceptable production cost.

6. Why Choose a CO₂ Laser for Acrylic Cutting and Engraving?

CO₂ laser technology is widely used for processing acrylic because acrylic absorbs the CO₂ laser wavelength effectively.

A suitable CO₂ laser cutting and engraving machine can handle a variety of acrylic applications, including:

• Custom signs and lettering

• Retail displays and product stands

• Decorative panels and ornaments

• Personalized gifts and awards

• Acrylic components and enclosures

The appropriate machine configuration depends on material thickness, working area, production volume, and the required cutting quality.

When selecting a machine, consider laser power, working-table dimensions, motion-system accuracy, exhaust capacity, and the availability of processing support.

Frequently Asked Questions

1. Is cast or extruded acrylic better for laser cutting?

Both can be laser cut. Cast acrylic is generally preferred for high-contrast engraving, while extruded acrylic is often chosen for economical cutting and consistent thickness. The better option depends on the finished product.

2. Can a CO₂ laser cut clear acrylic?

Yes. CO₂ lasers are commonly used to cut clear acrylic, including cast and extruded sheets. Results depend on the material, thickness, laser power, focus, and processing parameters.

3. Which acrylic is better for laser engraving?

Cast acrylic is generally the better choice when a bright, frosted-white engraving is required. Extruded acrylic usually produces lower-contrast engraving.

4. Does extruded acrylic cut faster than cast acrylic?

Extruded acrylic often requires less laser power at the same thickness and may support faster cutting under comparable conditions. Actual cutting speed depends on the machine, material grade, thickness, and required edge quality.

5. How do I get smooth edges when laser cutting acrylic?

Use suitable acrylic, maintain correct focus, select appropriate power and speed settings, and keep the optics clean. Air assist and exhaust settings also influence the result. Test on scrap material before production and never leave a running laser unattended.

Find the Right Laser Solution for Your Acrylic Projects

Choosing the right acrylic is an important step toward achieving consistent cutting quality and efficient production.

Whether you manufacture custom signs, retail displays, decorative products, or precision-cut acrylic components, understanding the differences between cast and extruded acrylic can help you make better material and equipment decisions.
