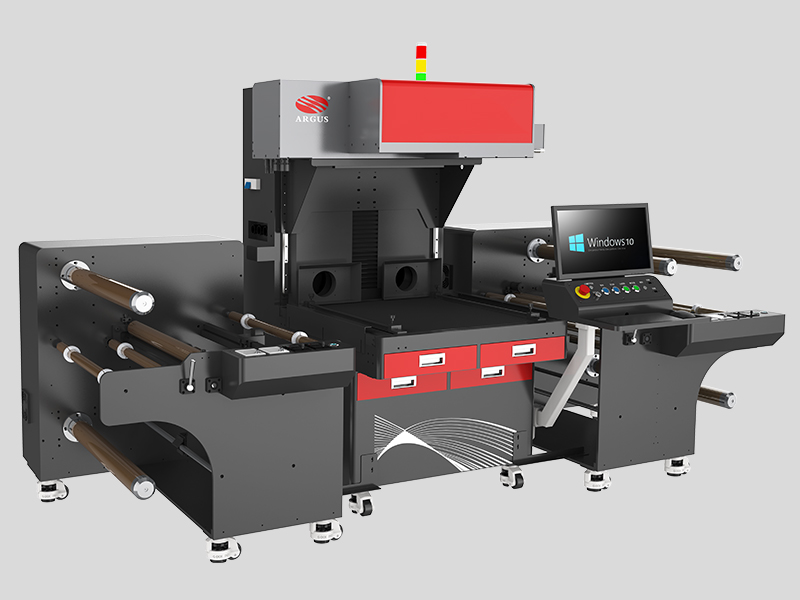

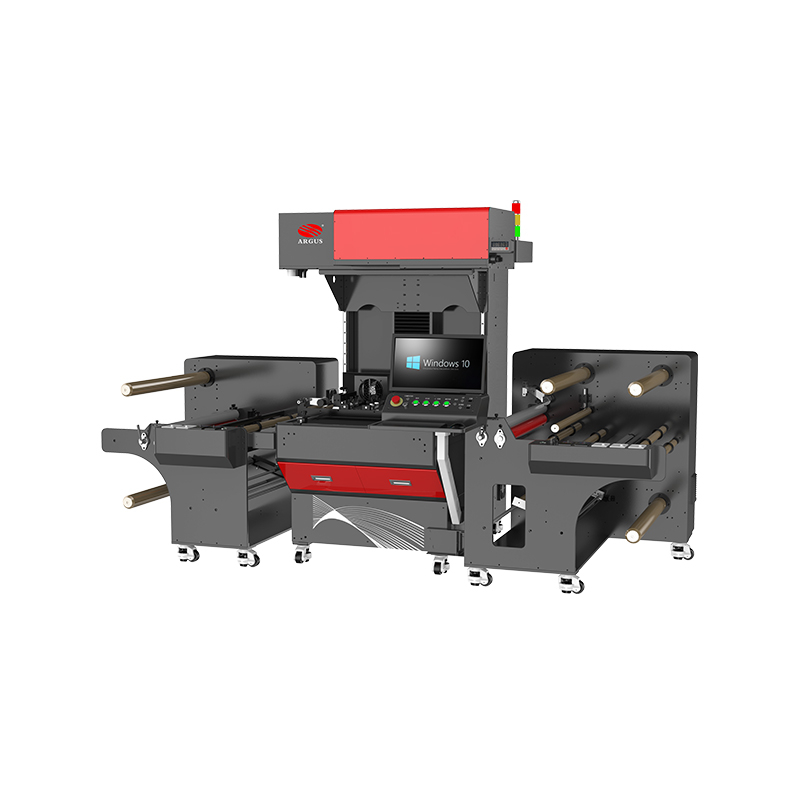

ARGUS Fully Automatic Roll-to-roll Heat Transfer Vinyl Cutting Laser Marking Machine SCM2000 Feeding Loading And Unloading

ARGUS Heat Transfer Vinyl Cutting Co2 laser marking Machine SCM2000 offered by Argus Laser manufacturer . Inquiry Argus laser marking machine application on heat Transfer Film Vinyl Cutter Co2 Laser Cutting Machine SCM2000 directly with low price and high quality. The high productivity Dynamic CO2 Laser Marking Machine SCM2000 model is the ideal solution for marking, engraving and cutting paper, cardboard, genuine and synthetic leather, natural and synthetic textiles, denim, rubber, wood, acrylics, acetates, organic andsensitive materials to the co2 wavelength in general on large areas up to 800×800 mm.
Availability:
Quantity:
Inquire Add to Basket

  • SCM2000

Automatic Heat Transfer Film CO2 Laser Cutting Machine
Adopts 3D dynamic focusing Laser technology, make the laser dot more fine, faster marking speed,better effect, suitable for a wide range of engraving or cutting. Automatic loading, unloading and waste discharge.
Get a Quote
High Quality
350W Coherent Laser Source
High Efficiency
Max 10000mm/s Marking Speed
Full Automatic
Loading, Unloading, Waste Discharge
Edge Tracking
Auto Edge Detection & Alignment​
PRODUCTS DESCRIPTION
Main Features
1.High-speed marking efficiency: 10000mm/s ultra-high-speed 3D dynamic galvanometer scanning technology.
2.Multi-process processing platform: 800×800mm ultra-large working area
3.Ultra-stable structure: Fully enclosed optical system + imported CO₂ RF laser source
4.Intelligent red light positioning: Lower operational fault tolerance.
5.Outstanding Processing Efficiency: Cutting 88 pieces of 48*35 patterns in just 54 seconds.
Applicable Industry and Material
PVC, TPU, PU, luminous, laser soft metal, reflective, flocking, gold onion, reflective screen printing, weak solvent printing film, plastic spraying printing film, and other heat transfer film materials.
Get Solutions
1mm Thick Film
0.36mm Ultra-narrow Lines
0.1mm Ultra-thin Film
PRODUCT DISPLAY
  • <span style="color:#c0392b;"><strong><span style="font-size:22px;">R.F. Laser Metal Tube</span></strong></span>
  • <span style="color:#c0392b;"><strong><span style="font-size:22px;">Galvo Scanning System</span></strong></span>
  • <span style="color:#c0392b;"><strong><span style="font-size:22px;">Worktable</span></strong></span>
  • <span style="color:#c0392b;"><strong><span style="font-size:22px;">CCD Optional</span></strong></span>
PRODUCTION PROCESS
  • ① Design on the computer
  • ② Cutting with laser marker
  • ③ Tear off the excess
  • ④ Perm the pattern 150°~160°
  • ⑤ Tear offthe PET film after cooling
  • ⑥ Product display
Industry and Materials
Machining Result Presentation
  • PU Film
  • PVC Film
  • Reflective Film
  • Metalized Film
  • Color-changing Film
  • Silicone Film
  • Phosphorescent Film
  • Flocked Film
Not sure if this machine fits your material or design needs?
Click below to consult with our engineers for free.
Contact US
FAQs
  • What types of heat transfer vinyl can this machine cut?
    加 Created with Sketch.
    形状 Created with Sketch.
    This machine is suitable for various types of vinyl, including PVC vinyl, PU heat transfer vinyl, reflective vinyl, fluorescent film, and metallic films. It can handle most commonly used heat transfer materials with high precision.
  • Will the edges turn yellow or get burned during cutting?
    加 Created with Sketch.
    形状 Created with Sketch.
    No. This laser cutter uses high-precision optics and optimized parameters to ensure clean, sharp edges without burning or yellowing, keeping the final design crisp and professional.
  • How fast is the cutting speed? Will it affect productivity?
    加 Created with Sketch.
    形状 Created with Sketch.
    Laser cutting speed 88 pieces of 48*35 patterns in just 54 seconds. It supports continuous high-volume processing, significantly increasing efficiency compared to traditional vinyl cutters.
  • What is the cutting accuracy? Can it handle intricate designs?
    加 Created with Sketch.
    形状 Created with Sketch.
    The cutting accuracy is up to 0.1mm. It easily handles complex patterns, fine lines, and small text, making it ideal for applications in apparel, footwear, hats, and more.
  • Are the cut patterns easy to weed?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. The clean and consistent edges make weeding smooth and efficient, helping reduce labor and increase productivity.
  • Does it support automatic contour recognition for printed designs?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. The machine features an intelligent vision system for accurate positioning and cutting of printed patterns, ensuring excellent alignment and precision.
  • Is maintenance complicated? Does it consume a lot of materials?
    加 Created with Sketch.
    形状 Created with Sketch.
    The machine is designed with a simple structure for easy maintenance. Daily upkeep only involves cleaning lenses and routine checks on the laser source. Laser cutting is non-contact, so there’s virtually no material consumption.
  • Is the machine easy to operate? Do you provide training and support?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. The system is user-friendly with an intuitive interface. We provide comprehensive training and remote technical support to help users get started quickly.
  • What is the machine's lifespan and laser tube life?
    加 Created with Sketch.
    形状 Created with Sketch.
    The machine is built to last 5–8 years with proper care. The laser tube typically lasts over 20,000 hours, depending on usage and maintenance.
  • What file formats does the machine support? Can I import graphics directly?
    加 Created with Sketch.
    形状 Created with Sketch.
    The system supports formats like AI, DXF, and PLT, and is compatible with CorelDRAW, Illustrator, and other mainstream design software for easy importing and editing.

Product Parameters


三面2000

Model SCM2000
Max.Marking Area ≤800x800mm(Customizable)
Laser Output Power 230-250W(Coherent J2) 250-350W(Coherent J3)
Marking speed ≤10000mm/s
Power consumption ≤7 kWh ≤9 kWh
Worktable Aluminum Strip +MDF Worktable/Honeycomb Worktable
Laser Source Coherent CO2 Metal RF Laser Tube
Laser Wavelength 10.64μm
Laser Frequency 20kHz~200kHz
Scanner 3D Dynamic Focusing Scanner
Repetition Precision 0.01mm
Min.Letter Size 0.3mm
System Support WIN 10
Output Compatibility Auto CAD,Photoshop,CorelDRAW etc
File Formats PLT,DXP,BMP,JPG,AIetc
Software Character Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting
Power supply 110V~380V/50Hz~60Hz
CoolingWay Circulation of Water Cooling
Equipment size 1.1mx2.0mx2.0m 1.1mx2.15mx2.0m
Equipment weight About 500KG About 530KG
