Gaussian Beam Energy Distribution and Machining Boundaries

Views: 0     Author: Site Editor     Publish Time: 2026-08-16      Origin: Site

Inquire

whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Gaussian Beam Energy Distribution and Machining Boundaries

In laser micromachining and ultrafast laser material processing, the spatial intensity profile of the laser beam dictates processing accuracy, cut quality, and side-wall geometry. Most fundamental industrial laser sources operate with a fundamental transverse mode (TEM00), producing a Gaussian beam profile.

Understanding how energy decays radially outward from the beam center to the periphery is essential for predicting machining boundaries, controlling hole tapers, and minimizing the Heat-Affected Zone (HAZ).

1. Gaussian Beam Energy Profile: Radial Distribution

A standard Gaussian laser beam concentrates maximum intensity at its center, decaying exponentially toward the outer edges.

Mathematical Representation

The radial intensity distribution I(r) is expressed as:

I(r) = I₀·e^(-2(R/W₀)²)

  • I₀: On-axis center intensity (maximum intensity).

  • W₀: Focal spot radius at the 1/e^2 intensity threshold (where intensity drops to ≈13.5%$ of I₀).

  • R: Radial distance from the beam center axis.

2. The Three Machining Zones Across a Gaussian Profile

Because intensity is non-uniform across the focal spot, a single Gaussian laser interaction creates three distinct processing zones on the workpiece surface:

  • High Ablation Zone (Center): Energy density significantly exceeds the ablation threshold (I >> Ith). Material is rapidly vaporized or ionized, achieving maximum ablation depth.

  • Transition Zone (Mid-radius): Fluence is near the threshold (I ≈ Ith). Incomplete ablation occurs alongside partial melting, yielding recast material and micro-roughness.

  • Below-Threshold Zone (Edge): Intensity drops below the ablation threshold (I < Ith). No material is removed, but residual energy heats the surrounding substrate.

3. Physical Causes of Common Machining Defect Types

The spatial energy gradient of a Gaussian beam leads directly to key geometric and thermal phenomena during processing:

  • Hole Taper: Because center intensity is highest, material is removed faster and deeper at the axis, while edge removal remains shallow. This creates inherent wall tapers in micro-drilling.

  • Heat-Affected Zone (HAZ): Sub-threshold peripheral energy (I < Ith) converts into thermal conduction, inducing microstructure alterations, localized oxidation, thermal stress, and micro-cracking.

  • Kerf Wall Transition: In cutting operations, varying intensity across the beam radius produces non-vertical kerf profiles between top and bottom surfaces.

4. Calculating Theoretical Machining Boundaries

The actual hole or cut radius (rth) is determined by the point where local laser intensity matches the material's ablation threshold (Ith).

Boundary Radius ( rth ) = W₀ \sqrt{-\frac{1}{2} \ln\left(\frac{I_{\text{th}}}{I_0}\right)}$$

  • Key Takeaway: Increasing peak center intensity ( I₀ ) or decreasing material threshold (Ith) expands the effective ablation radius (rth).

5. Effect of Spot Size (W₀) on Machining Parameters

When total pulse energy remains constant, adjusting the focal spot radius (W₀) alters power density and ablation depth:

Spot Size

Spot Radius (w0​)

Energy Density (F)

Maximum Depth

Typical Industrial Application

Small Spot

Small

Extremely High

Deep

High-precision micromachining & fine scribing

Medium Spot

Medium

Moderate

Moderate

General micro-cutting & micro-drilling

Large Spot

Large

Low

Shallow

Thick material cutting & large-area surface structuring

6. Gaussian Beam vs. Top-Hat Beam (Flat-Top Beam) Comparison

To overcome taper and edge defects associated with Gaussian profiles, beam shaping optics can convert Gaussian beams into uniform Top-Hat (Flat-Top) beams.

Comparison Dimension

Gaussian Beam (TEM00​)

Top-Hat Beam (Flat-Top)

Energy Distribution

Peaked at center, gradual radial decay

Uniform intensity across entire profile

Hole Cross-Section

Tapered walls (wider at top)

Straight, vertical side walls

Edge Quality & HAZ

Noticeable HAZ, recast layers at edge

Minimal HAZ, crisp edges, less burring

Best Application

Deep drilling, marking, high-aspect scribing

High-precision flat cutting, zero-taper drilling

7. Process Optimization & Risk Guidelines

To balance productivity and edge quality, operating parameters must be controlled within a strict process window:

  • F < Fth: Inefficient operation with no removal; energy creates recast layers and thermal load.

  • F ≈ Fth: Unstable processing with high depth and dimension fluctuations.

  • F > Fth (Ideal Window): Stable material removal with controlled thermal impact.

  • F >> Fth: Over-burning, heavy micro-cracking, spatter, and excessive HAZ.

Conclusion

Mastering Gaussian beam energy distribution and boundary calculations enables engineers to optimize spot sizes, tune laser fluence within safe process windows, and determine when to transition to beam shaping technologies (such as top-hat shapers) for zero-taper, high-precision manufacturing.

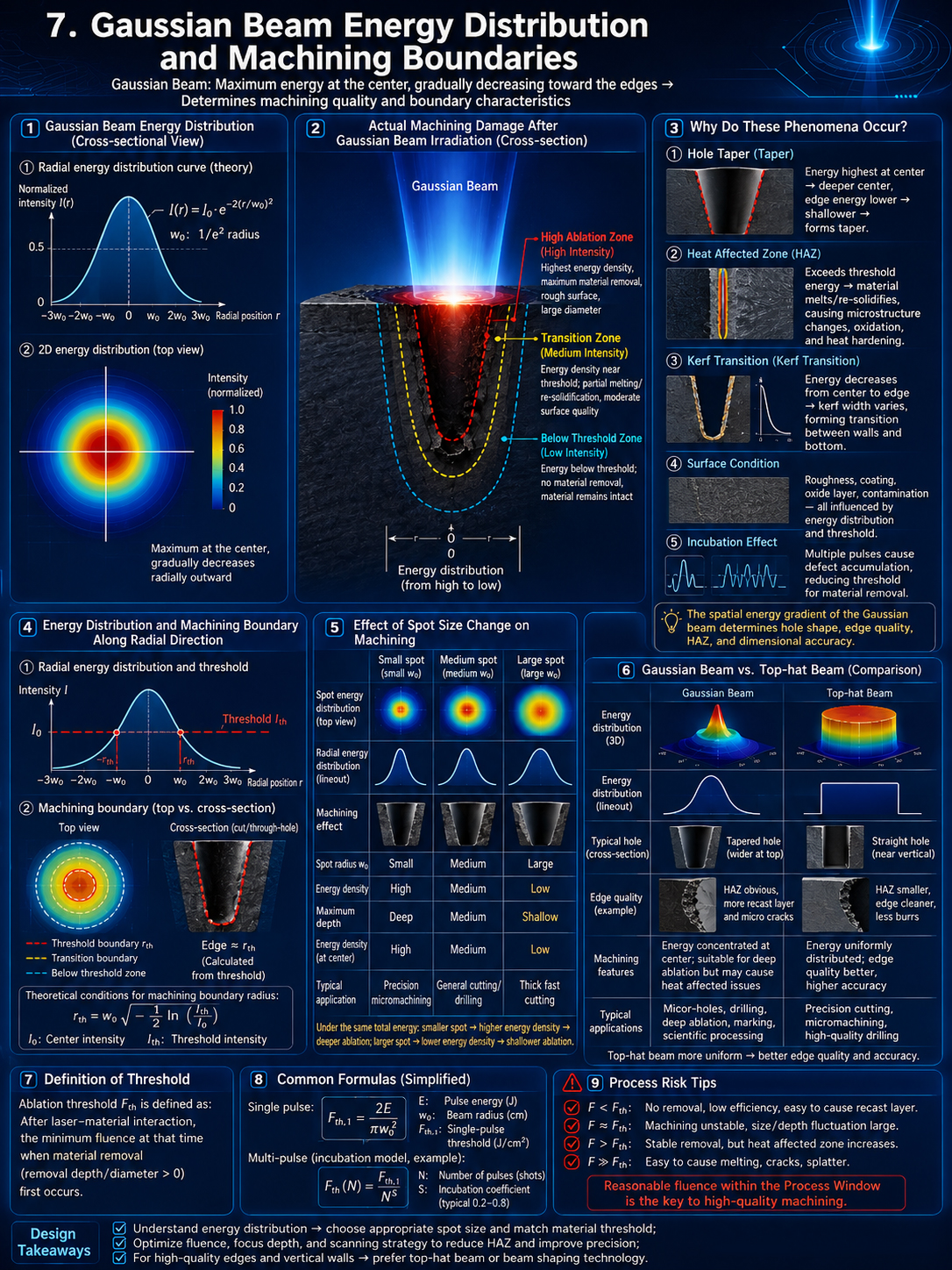

Gaussian Beam Energy Distribution and Machining Boundaries.jpg
