How Glass Is Cut in Modern Industry: Laser Glass Cutting Technologies Explained

Have you ever wondered how smartphone cover glass, automotive windshields, or architectural façade glass are actually cut?

If you visit a modern manufacturing plant, you will be surprised to find that glass cutting is no longer a rough mechanical process. Instead, many factories now rely on laser-based precision cutting systems, capable of micron-level accuracy and extremely low edge chipping.

However, “laser glass cutting” is not a single technology. Different solutions vary significantly in quality, capability, and application range.

This article explains the three mainstream laser glass cutting technologies in a simple and practical way, helping you understand which method fits which application.

1. Why Is Glass So Difficult to Cut?

Glass is a typical brittle material, which means:

· It does not deform before breaking

· It fractures suddenly under stress

· It cannot absorb mechanical stress like metals or plastics

When traditional tools (such as glass cutters or saw blades) are used, they inevitably create micro-cracks along the cutting edge.

The Hidden Risk: Micro-Cracks

These micro-cracks are invisible but critical:

· They weaken the structural integrity of the glass

· They can expand over time under stress

· They may eventually lead to spontaneous breakage

For example:

· Smartphone glass may crack from a small impact due to edge micro-defects

· Automotive glass may fail due to stress concentration at weak edges

Therefore, modern glass processing focuses on two key goals:

· High cutting precision

· Excellent edge quality with minimal damage

Laser processing has become the preferred solution because it offers precise control and reduced thermal/mechanical damage.

2. Three Fundamental Laser Processing Mechanisms

Before discussing specific technologies, it is important to understand the three fundamental ways lasers interact with glass.

2.1 Direct Ablation

Laser energy is used to directly remove material by vaporization.

When the laser energy exceeds the ablation threshold (≈2 J/cm²), the glass transitions directly from solid to gas without melting.

Characteristics:

· Very high precision

· No mechanical contact

· Relatively slow processing speed

2.2 Laser Modification (Internal Weakening)

Ultrashort pulse lasers (picosecond or femtosecond) create internal structural changes inside the glass, such as:

· Nano-porous structures

· Refractive index modification

· Micro-fracture lines

These changes form a weakened separation line, allowing the glass to be separated later with minimal force.

Key idea:

Instead of cutting through the material, the laser “draws a controlled fracture line” inside the glass.

2.3 Thermal Stress Fracturing

A laser heats a localized line on the glass surface, generating thermal expansion stress.

When stress exceeds the fracture strength, the glass separates along the heated line.

Key idea:

The laser does not cut through the glass—it induces controlled cracking via thermal stress.

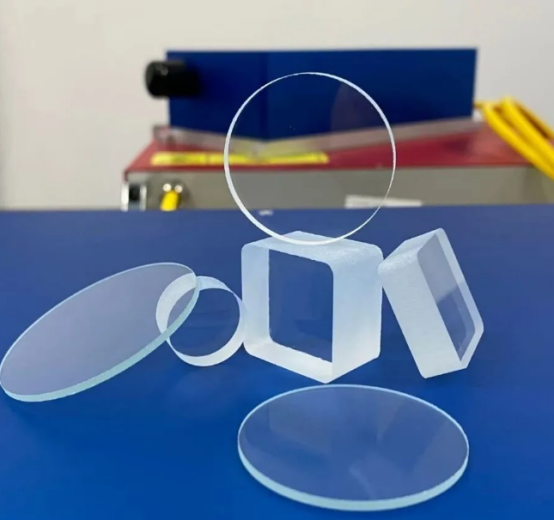

3. Three Main Industrial Laser Glass Cutting Solutions

3.1 Layer-by-Layer Ablation (Bottom-Up Drilling Method)

Principle:

Focused laser beam passes through the glass and starts ablation from the bottom surface upward layer by layer.

Equipment:

· Nanosecond MOPA fiber laser (100–300W)

· 2.5D galvanometer system

Capabilities:

· Micro drilling and through-holes

· Complex hole shapes

· Thickness range: 0.5–20 mm

Edge quality:

· Chipping: 100–400 μm

Application:

· Precision drilling

· Industrial perforation

Summary:

A cost-efficient solution for drilling applications with high versatility.

3.2 Ultrashort Pulse Laser + Bessel Beam Cutting

Principle:

Picosecond or femtosecond lasers modify or directly ablate internal glass structure using a Bessel beam, which maintains a long depth of focus.

The glass is then separated by controlled fracture or direct ablation.

Key technologies:

· Ultrashort pulse laser (picosecond/femtosecond)

· Bessel beam shaping optics

Capabilities:

· Complex contour cutting

· High-precision shapes

· Thickness range: ultra-thin to medium glass

Edge quality:

· Chipping: 3–10 μm

· Edge strength retention: up to 92%

Application:

· Smartphone cover glass

· Foldable display glass

· High-end precision optics

Summary:

The highest precision solution for advanced electronics manufacturing.

3.3 CO₂ Laser Thermal Stress Cutting

Principle:

CO₂ laser (10.6 μm wavelength) is strongly absorbed by glass, rapidly heating a line and generating thermal stress that causes controlled fracture.

Key mechanism:

Localized heating → thermal expansion → controlled crack propagation

Capabilities:

· Straight-line cutting

· Large-area glass processing

· Thick glass cutting

Processing speed:

Very high (up to 100–1000 mm/s)

Edge quality:

· Chipping: ≥20 μm

Application:

· Architectural glass

· Automotive glass

· Solar glass

Summary:

A mature, fast, and cost-effective solution for large-scale industrial cutting.

4. Technology Comparison Summary

5. Selection Guide

A simple rule for choosing the right process:

· Micro drilling → Nanosecond ablation system

· High-end display glass → Picosecond + Bessel cutting

· Ultra-thin glass (UTG) → Femtosecond laser

· Large flat glass (straight cutting) → CO₂ thermal stress cutting

· Optical-grade quartz → Ultrashort pulse laser only

Modern glass cutting is no longer a mechanical process but a laser-driven precision engineering technology.

Each solution has its own strengths, and there is no universal method. Choosing the right technology depends on:

· Material type

· Thickness

· Edge quality requirements

· Production efficiency
