ARGUS LASER BLACK Friday DISCOUNT
ARGUS LASER — One Stop Laser Cutting & Engraving Solution. Black Friday Exclusive Offers — Up to 20% OFF Laser Systems.
ARGUS LASER, Your expert in laser solutions : Metal, Acrylic,  Paper, Textile, Packaging...
CO2 Laser Engraver&Cutter

loading

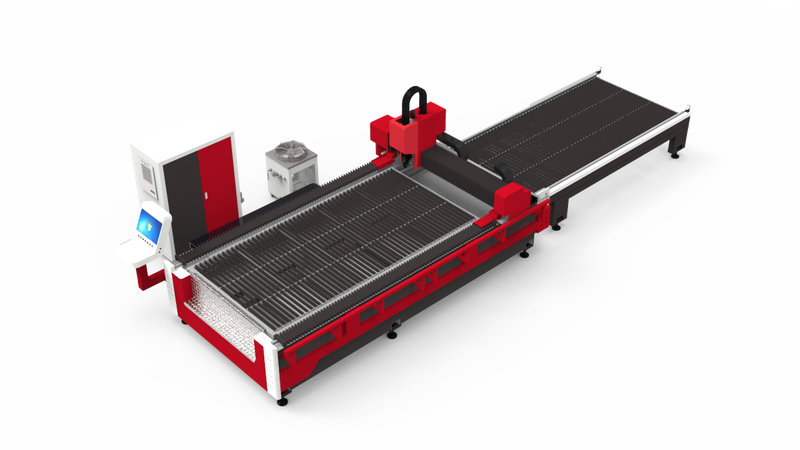

Interchangeable Laser Metal Sheet Cutting Machine | Efficient Metal Sheet Laser Cutter

The ARGUS Interchangeable Fiber Laser Metal Sheet Cutter provides efficient and precise cutting for steel and aluminum sheets. Its modular, interchangeable cutting head allows quick adaptation to different materials and thicknesses, enabling versatile production without sacrificing accuracy. Ideal for automotive panels, furniture components, and industrial sheet processing, it delivers consistent, burr-free cuts while maximizing productivity.
Availability:
Quantity:
Inquire Add to Basket

  • PE Series

  • ARGUS

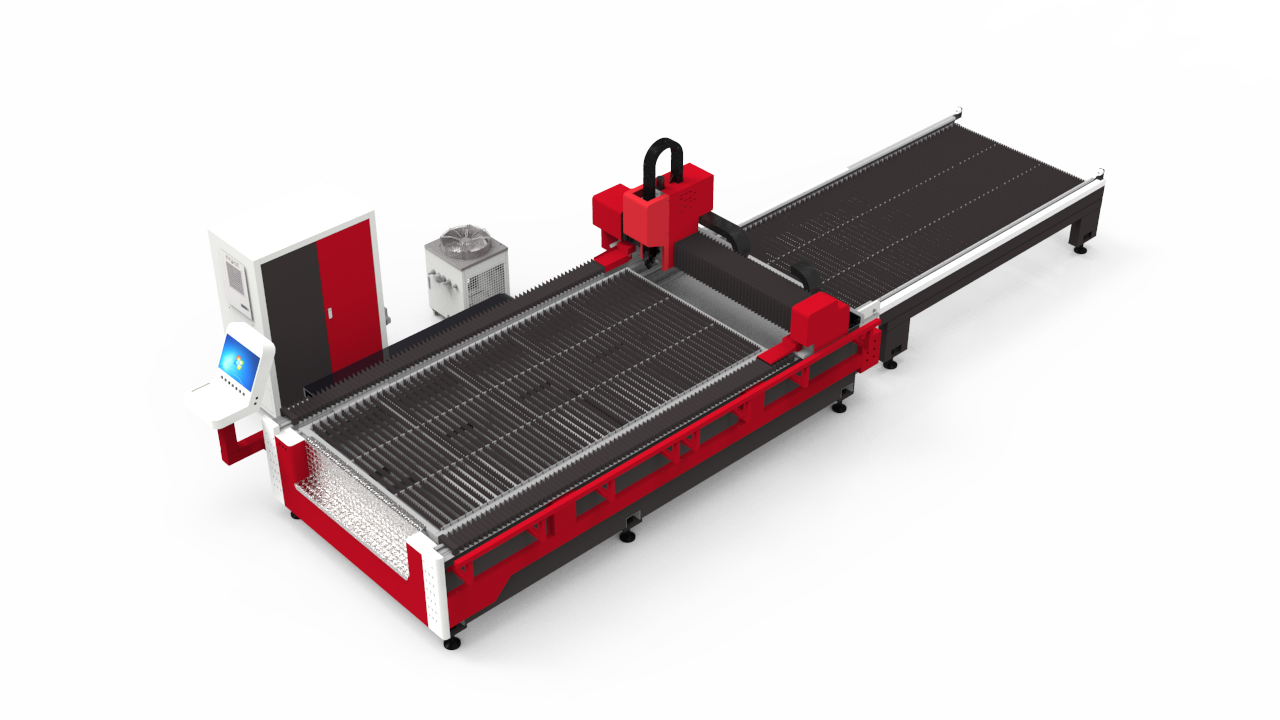

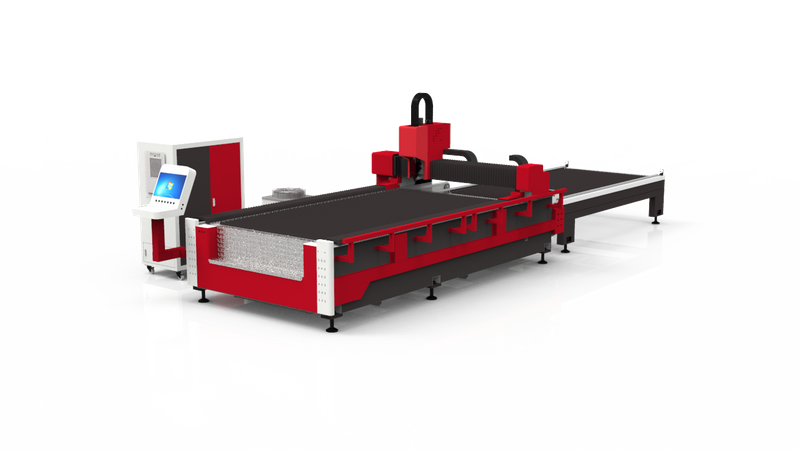

Interchangeable Laser Metal Sheet Cutting Machine -Versatile. Precise. High Efficiency.
ARGUS Interchangeable Fiber Laser Sheet Cutter combines modular flexibility with high-precision cutting for steel and aluminum sheets. Switch cutting heads quickly to handle varying materials and thicknesses, ensuring smooth, burr-free cuts. Perfect for automotive, furniture, and industrial applications, it reduces downtime, improves efficiency, and delivers reliable, professional results every time.
Learn More
fuwuaixin
Equipment power
1.5KW-100KW
fuwuaixin
Repetitive positioning accuracy
0.03mm/m
fuwuaixin
Electricitydemano
380V/50Z
fuwuaixin
Optional working format
3015,4020,6020,6025,8025,10025,12025,14025

ARGUS Laser Metal Cutting Machine Feature

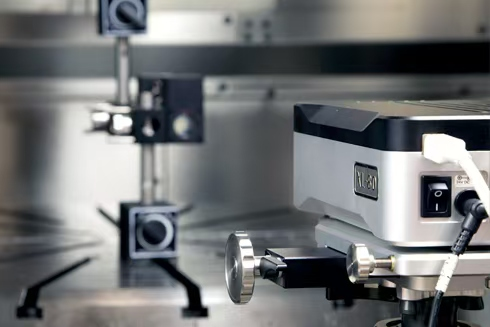

Interferometer Detection
Using a laser instrument to detect the dynamic positioning error of the movement， ensuring that the positioning accuracy of each machine is controlled within ±0.003mm， and the repeat positioning accuracy is ±0.001mm， meeting the precise cutting requirements of the equipment.
621
621

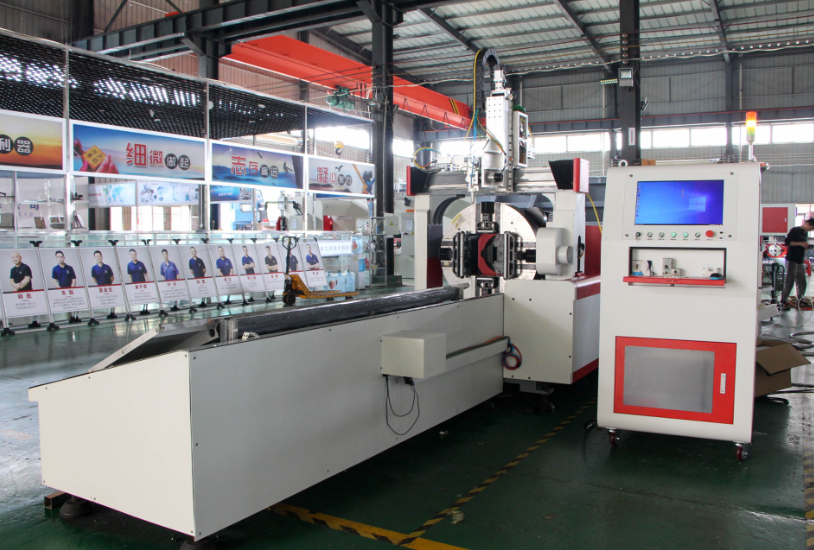

Equipment Trial Operation
All machines must pass 36 dynamic performance indicators tests. Before leaving thefactory, it undergoes a 72-hour high-intensity continuous operation test. It is subjected to high-speed reciprocating motion to simulate the mechanical stability
under extreme working conditions. At the same time, it undergoes extreme thickness material cutting tests, fault simulation tests, etc. This ensures the reliability for customer use and a high-quality customer experience from the very beginning.

Laser Metal Cutting Machine Companent

Machine production processing

Machine Welding
Precision welding with fixtures ensures guideway flatness ≤0.02 mm. All weld seams pass ultrasonic inspection for high rigidity.
High-Temperature Annealing
550°C × 4 h annealing stabilizes hardness (±15 HB) and removes internal stress to prevent deformation.
High-Precision Horizontal Milling
Five-axis milling in a temperature-controlled workshop achieves Ra ≤0.8 µm and contour accuracy ±0.005 mm.
Interferometer Calibration
Positioning accuracy ±0.003 mm; repeatability ±0.001 mm.
Equipment Trial Operation
36 dynamic tests + 72-hour high-load run verify stability and cutting reliability.
Packaging & Shipping
Anti-rust protection (salt-spray ≥1000 h), shock-absorbing packaging, and standard lifting points ensure safe transport.
  • medal
    Pre-Sales Consultation
    We provide professional guidance on model selection, process evaluation, and sample cutting based on your materials, production needs, and budget—ensuring you get the most suitable laser cutting solution.
    CONTACT US
  • medal
    Product Training
    Comprehensive training covers operation procedures, safety guidelines, process parameter setup, and daily maintenance. Even beginners can quickly master high-quality cutting skills.
    CONTACT US
  • medal
    After-Sales Service
    We offer remote technical support, on-site maintenance, spare parts supply, and scheduled equipment inspections to ensure long-term stability and worry-free production.
    CONTACT US


Model

PE Series

Laser type

Fiber laser,1080nm

Laser power

1.5KW-100K

Working area

3015,4020,6020,6025,8025,10025,12025,14025

Min line width

0.1mm

Positioning accuracy

0.01mm

Max cutting speed

60m/min

Max acceleration

1.5G

Transmission type

Precision dual gear rack transsmission

Drving system

Servo motors

Cutting thickness

Depending on laser power and material

Assisting gas

Compressed air, oxygen and ni

Cooling mode

Industrial circulation water chiller

Visual positioning

Red dot

Machine weight

Net 4500kg

Working voltage

3 phase 380V 50HZ/60HZ

1.5KW-100KW Iron Fiber Laser Cutter Price for Sheet Metal Plate

Features for fiber metal laser cutting machine

1.In order to meet the increasingly complex needs of consumers, Argus is targeted at market demand, independently developed SFC3015 metal sheet  laser fiber cutting machine with stable and high precision cutting performance.
2. Low cost and the power consumption ; Customer can cut all kinds of metal sheets by blowing air.
3. High-performance. Use top brand fiber laser source, with stable performance and the lifespan is over 100,000 hours.
4. High speed and efficiency, the speed of cutting metal sheets close to tens of meters.
5. The laser maintenance free.
6. The cutting edge looks perfect and the appearance is smooth and beautiful.
7. Imported the transmission mechanism and servo motor, and high cutting accuracy.
8. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.

Applicable Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED
Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks &Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts,Nameplates, etc


Applicable Materials
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
