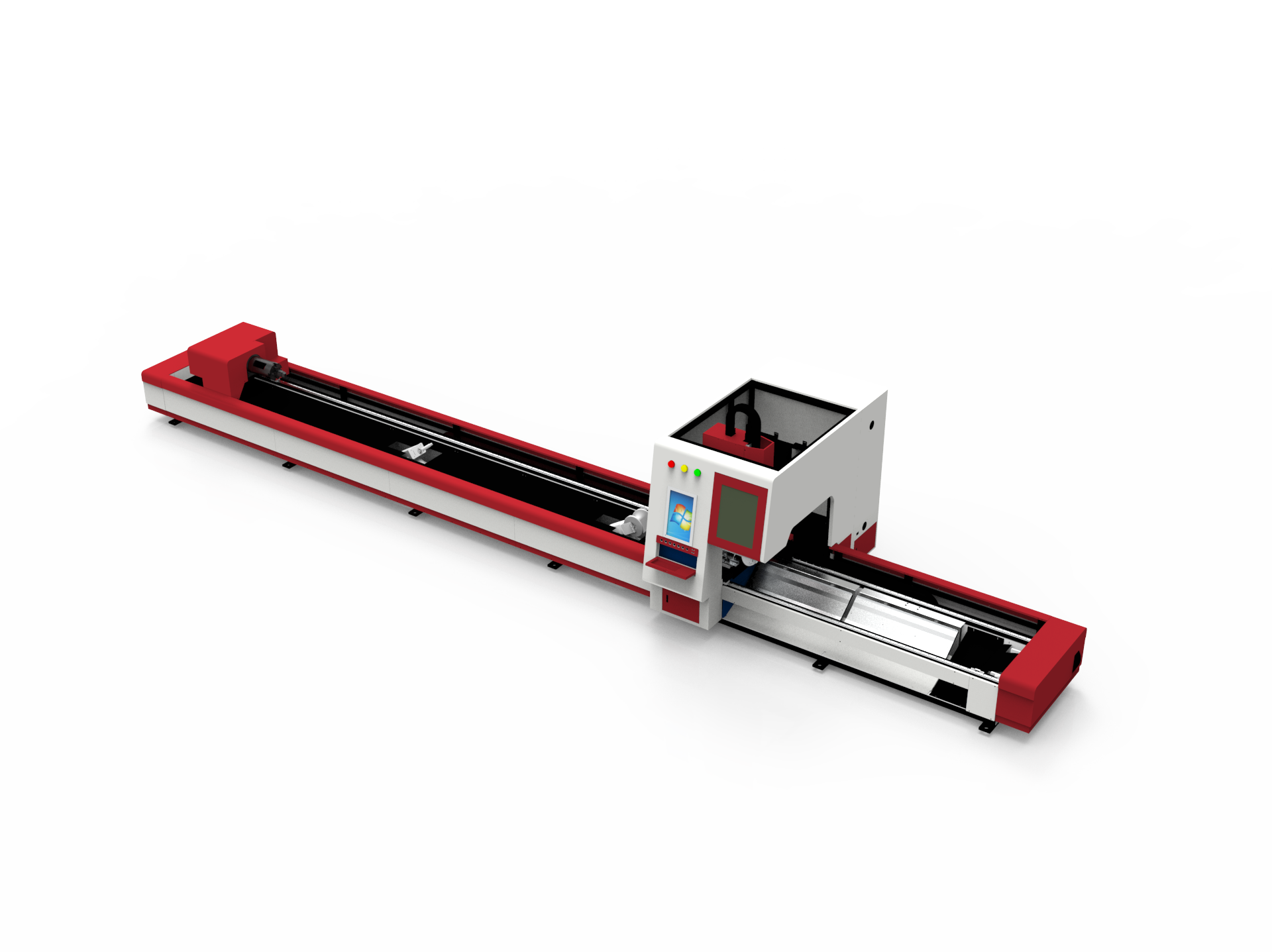

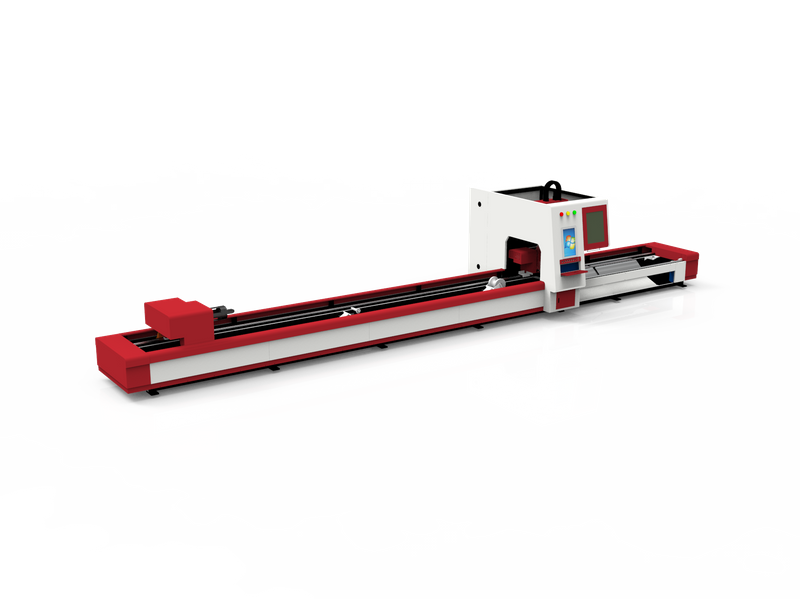

ARGUS Laser Metal Tube Cutting Machine

ARGUS Laser Tube Cutter delivers flawless cuts for steel and aluminum tubes across automotive, furniture, and industrial applications. Maximize efficiency, reduce waste, and achieve consistent quality with high-speed, precise laser cutting. Your trusted partner for advanced tube processing.

Learn More

Equipment power

1.5KW-20KW

Repetitive positioning accuracy

0.03mm/m

Chuck specifications

130,170,240 Square Card

Optional working format

G60, G90

ARGUS Laser Metal Tube Cutting Machine Feature

Interferometer Detection

Using a laser instrument to detect the dynamic positioning error of the movement， ensuring that the positioning accuracy of each machine is controlled within ±0.003mm， and the repeat positioning accuracy is ±0.001mm， meeting the precise cutting requirements of the equipment.

Equipment Trial Operation

All machines must pass 36 dynamic performance indicators tests. Before leaving thefactory, it undergoes a 72-hour high-intensity continuous operation test. It is subjected to high-speed reciprocating motion to simulate the mechanical stability
under extreme working conditions. At the same time, it undergoes extreme thickness material cutting tests, fault simulation tests, etc. This ensures the reliability for customer use and a high-quality customer experience from the very beginning.

Laser Metal Cutting Machine Components

Machine production processing

Machine Welding

Precision welding with fixtures ensures guideway flatness ≤0.02 mm. All weld seams pass ultrasonic inspection for high rigidity.

High-Temperature Annealing

550°C × 4 h annealing stabilizes hardness (±15 HB) and removes internal stress to prevent deformation.

High-Precision Horizontal Milling

Five-axis milling in a temperature-controlled workshop achieves Ra ≤0.8 µm and contour accuracy ±0.005 mm.

Interferometer Calibration

Positioning accuracy ±0.003 mm; repeatability ±0.001 mm.

Equipment Trial Operation

36 dynamic tests + 72-hour high-load run verify stability and cutting reliability.

Packaging & Shipping

Anti-rust protection (salt-spray ≥1000 h), shock-absorbing packaging, and standard lifting points ensure safe transport.

Pre-Sales Consultation

We provide professional guidance on model selection, process evaluation, and sample cutting based on your materials, production needs, and budget—ensuring you get the most suitable laser cutting solution.

CONTACT US
Product Training

Comprehensive training covers operation procedures, safety guidelines, process parameter setup, and daily maintenance. Even beginners can quickly master high-quality cutting skills.

CONTACT US
After-Sales Service

We offer remote technical support, on-site maintenance, spare parts supply, and scheduled equipment inspections to ensure long-term stability and worry-free production.

CONTACT US

Model	Manual feeding
Laser Type	Fiber laser source
Laser Power	1.5KW-20KW
Laser Wavelength	1064-1080nm
Chuck Spec	120、170、240、360mm square type
Supported Tube Length	6meter、9meters、12meters (Optional)
Positioning Accuracy	±0.01mm
Max Cutting Speed	Depends on thickness
Max Acceleration	1.0G
Transmission Type	Gear rack transsmission
Driving System	Servo motors
Max Cutting Thickness	Depending on laser power and material
Assisting Gas	Compressed air, O2, N2 depends on customer requirement
Cooling Mode	Circulation water cooling
Visual Positioning	Red dot
Power Supply	3 phase 380V 50HZ/60HZ(Customized)

Key Features – Fiber Laser Tube Cutting Machine

Designed for Precision Tube Cutting
Purpose-built for metal tube and profile processing, delivering stable performance and high cutting accuracy.
High Efficiency with Low Operating Cost
Optimized cutting process enables high-speed tube cutting, with optional air cutting for reduced operating costs on thin materials.
Reliable Fiber Laser Source
Equipped with a premium fiber laser source, offering stable output and a long service life of up to 100,000 hours.
Excellent Cutting Quality
Smooth cutting edges, minimal burrs, and consistent results for both structural and decorative tube applications.
Professional Tube Cutting Software
Dedicated software supports fast programming of tubes, profiles, and complex geometries with easy operation.

Applicable Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED
Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks &Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts,Nameplates, etc

Applicable Materials
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
