More Than Just a Toy: Unveiling the “Hardcore” Power and Market Positioning of Consumer-Grade Desktop Fiber Laser Cutters

Driven by the wave of "miniaturization" and "personalization" in manufacturing, desktop laser cutters are moving from professional factories into makerspaces, personal studios, and even homes. However, with a dazzling array of products on the shelves, especially when the concepts of "industrial-grade" and "consumer-grade" intersect, consumers often face a dilemma: How thick can these seemingly compact machines cut? Can their precision and stability support entrepreneurial dreams? What are the core differences compared with other popular brands on the market (such as xTool)?

Today, based on the measured data and design philosophy of a consumer-grade desktop fiber laser metal cutter, we will unveil the true face of this category of products.

I. Proof of Capability: More Than Cutting, It’s “Meticulous Carving”

Although positioned as a consumer-grade machine, its technical core is derived from industrial-grade fiber laser technology. From the provided cutting process parameter tables, we can clearly see its solid cutting capabilities:

1. Wide Material Adaptability, Strong Thickness Performance

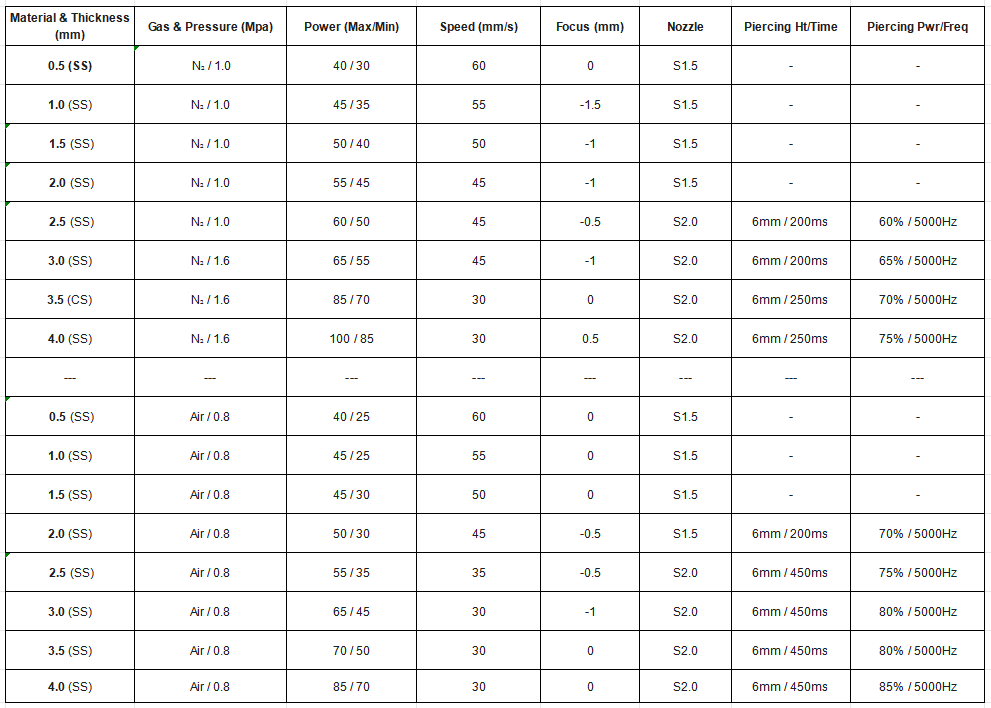

Stainless Steel: At 1500W power, using nitrogen/air, it can stably cut stainless steel plates from 0.5mm to 4.0mm. For example, cutting 3.0mm stainless steel with nitrogen at 1.6Mpa achieves a cutting speed of 45mm/s, resulting in smooth, burr-free edges. This is more than sufficient for DIY jewelry, precision parts, thin-shell enclosures, and other applications.

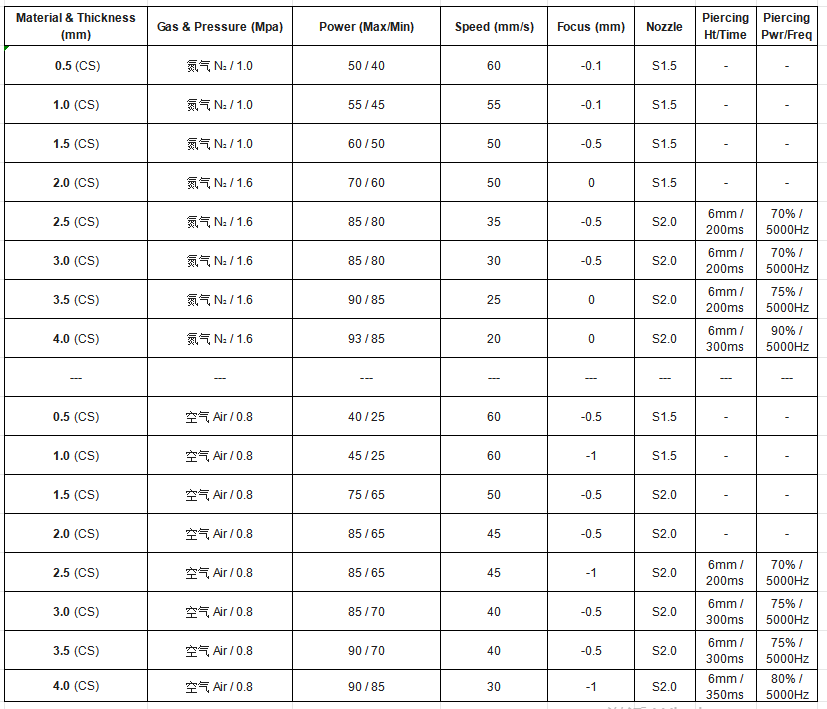

Carbon Steel: Also at 1500W, it can cut carbon steel from 0.5mm to 4.0mm. When cutting 4.0mm carbon steel (with nitrogen assist), the speed can still reach 20mm/s. This is a very impressive performance for users making metal crafts and model structural parts.

Aluminum: Can cut aluminum plates from 0.5mm to 4.0mm. When cutting 4.0mm aluminum (with nitrogen assist), the speed reaches 20mm/s with a smooth cut edge — this is a difficult feat for many consumer-grade machines in the same price range, as aluminum's high reflectivity poses a significant challenge to the laser source.

2. Complete Process Parameters, Ready to Use Out of the Box

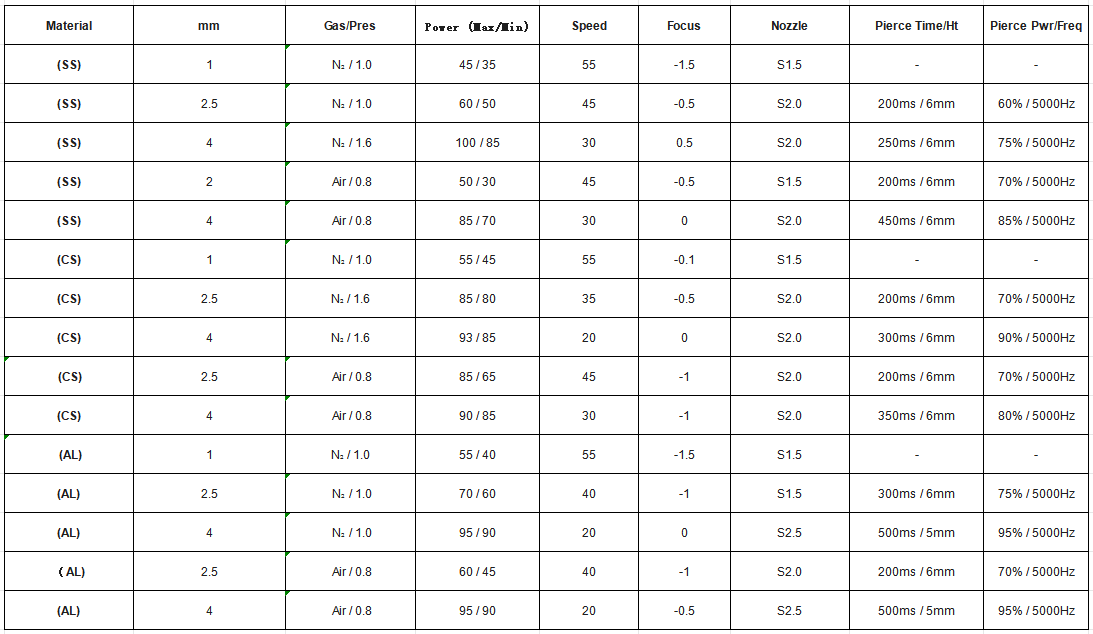

We provide you with measured cutting parameter tables covering three major categories of metal materials: stainless steel, carbon steel, and aluminum, covering multiple thickness specifications from 0.5mm to 4.0mm. Each set of parameters precisely specifies:

• Laser Power (Peak/Max/Min power percentage)

• Cutting Speed (Unit: mm/s)

• Focus Position (Positive/Negative defocus amount)

• Auxiliary Gas Type and Pressure (Nitrogen/Air, 0.8~1.6Mpa)

• Cutting Nozzle Specification (Single 1.5 / Single 2.0 / Single 2.5)

• Piercing Parameters (Progressive piercing time, piercing height, piercing power, piercing current, piercing frequency, and blowing time)

For example, when cutting stainless steel 2.5mm with nitrogen, the parameters are: Peak Power 100%, Max Power 60%, Min Power 50%, Cutting Speed 45mm/s, Focus -0.5mm, Single 2.0 nozzle, Piercing Time 200ms; while for aluminum 4.0mm, it requires nitrogen at 1.0Mpa, Peak Power 100%, Max Power 95%, Min Power 90%, Cutting Speed 20mm/s, Focus at 0 position, Single 2.5 nozzle, Piercing Time 500ms.

This means: Users don't need to explore processes from scratch. Upon receiving the machine, they can quickly dial in the optimal cutting effect based on the parameter table, significantly reducing learning costs and trial-and-error waste.

3. Solid Core Specifications

• Positioning Accuracy ±0.1mm, Repeat Positioning Accuracy ±0.06mm. This level means it is capable of handling processing needs with extremely low tolerance for errors, such as jewelry and precision molds.

• Fiber Laser Source: Wavelength of 1060nm, beam quality <0.373mrad. It offers excellent output beam quality and high power density, which is highly favorable for absorption by metal materials. The laser source uses semiconductor modular and redundant design, with no optical lenses in the resonant cavity, offering the advantages of being adjustment-free, maintenance-free, and highly stable.

• Intelligent Air Cooling System: No external chiller required. The total machine power consumption is <3500W, saving energy and electricity.

• Conclusion: The true capability of this machine is at the ceiling of the consumer-grade level, even approaching entry-level industrial grade. It is not just a toy for cutting paper and thin wood, but a practical tool that can truly process 1.0-4.0mm metal materials. It is the ideal choice for DIY enthusiasts, personal studios, and small businesses.

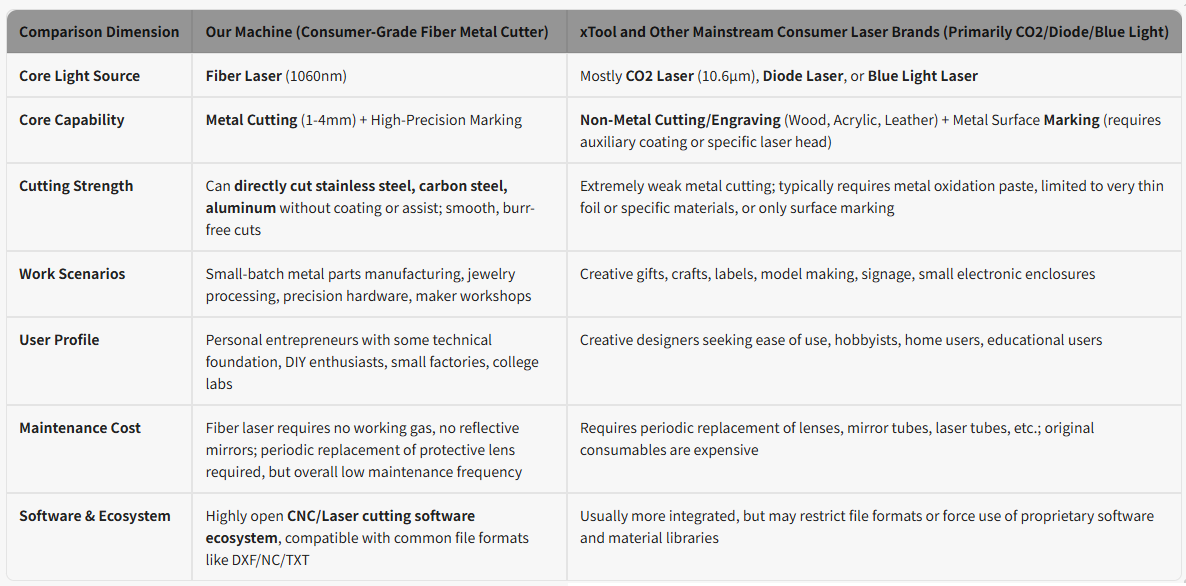

II. Comparison with Popular Brands like xTool: A Fundamental Difference in Path and Positioning

Brands represented by xTool in the desktop laser engraving and cutting market have achieved great success due to their portability, intelligence, rich consumables ecosystem, and user-friendly interaction targeted at geeks/DIY users. These products are mostly enclosed, highly integrated "laser engravers", focusing on non-metal materials like thin wood, leather, and acrylic, as well as metal surface marking.

Our machine, however, has a fundamental difference from them:

Brands like xTool have achieved the leap of laser engraving and cutting equipment from "creative tools" to "home-level productivity" through modular design, dual-laser technology, and integrated injection-molded base processes. For example, xTool's F1 Ultra innovatively incorporates a 20W fiber and diode dual laser, capable of engraving and cutting materials like rock, metal, glass, wood, leather, and plastic. However, its core focus remains on non-metal engraving and cutting, with limited metal processing capabilities.

Core Difference Summary: xTool and similar brands follow the "consumer electronics, entertainment-oriented" path, emphasizing convenience and creativity. Our machine, on the other hand, follows the "industrial technology democratization, practical tool-oriented" path, using industrial-grade cores (fiber laser, high-precision motion control) to create a true desktop metal processing tool that can actually work and create value.

III. Why Is It Most Suitable for DIY, Personal Studios, and Personal Entrepreneurship?

1. Highly Competitive Hardware Costs, Controllable Entrepreneurial Trial-and-Error Costs

- Hardware Investment: Compared to industrial-grade fiber cutters costing hundreds of thousands of dollars, our machine's price is within the consumer-grade range, significantly lowering the barrier to starting a business.

- Operating Cost: Fiber lasers have high electro-optical conversion efficiency, exceeding 30%. The total machine power consumption is low, and the cooling system uses air cooling, which significantly saves electricity during operation and reduces running costs. At the same time, the laser source only requires electrical power to operate, with no additional gas needed to generate the laser, reducing ongoing operational costs

- Space Requirement: The host has a compact size, occupying less than half a square meter, and can be placed on an ordinary office desk or workbench, making it ideal for space-constrained studios.

2. Flexibility and Versatility to Meet "Non-Standard" Needs

- Ready to Use Out of the Box: Multi-platform operating system supports customized requirements; the complete process parameter library allows even beginners to quickly produce qualified products.

- Flexible for DIY: The mobile box-type worktable design makes it suitable for workshops, studios, and outdoor scenarios. This feature is highly attractive for individual entrepreneurs who need to frequently adjust workstations, conduct small-batch trials, or take on scattered orders.

- Material Compatibility: Can cut various metal materials such as stainless steel, carbon steel, aluminum, and copper alloys, and can also perform engraving and marking. A single machine can cover a wide range of business scenarios, including hardware accessories, sheet metal processing, jewelry, electronics, architectural models, and creative signage.

3. Clear Output Value, Directly Creates Business Profit

- For individual entrepreneurs, they can take on orders for: custom jewelry (pendants, bracelets), crafts, metal nameplates, automotive/motorcycle modification parts, model parts, small-batch sheet metal parts, etc. These businesses have stable demand on overseas handmade platforms such as Etsy, Amazon Handmade, and eBay.

- For DIY enthusiasts, they can produce their own designed metal structural parts, robot components, tool accessories, and quickly turn creativity into reality.

- For studios/laboratories, it can complete tasks such as teaching demonstrations, product prototyping, and prototype manufacturing, greatly improving R&D efficiency and teaching effectiveness.

- It is worth noting that the consumer-grade laser market is growing rapidly. According to data from the authoritative market research firm QYR, the global laser engraving market size reached

658millionin2023andisexpectedtogrowto658 million in 2023 and is expected to grow to 658millionin2023andisexpectedtogrowto

1.88 billion by 2030. A multi-billion dollar consumer blue ocean market is accelerating, and early adoption means seizing market opportunities sooner.

4. Reliability Guarantee, Letting You Focus on Creation

- 16 years of heritage in laser equipment design, verified by over 10,000 machines in the market. This is not a trial product from a small factory.

- Reliable Core Component Quality: The laser source, cutting head, and CNC system are all developed and configured by professional manufacturers. Details such as the high-stability controller, USB transmission, and path optimization ensure stable and efficient production.

- Safety Guarantee: Equipped with a comprehensive protection system, air cooling system, and integrated ventilation system, ensuring operational safety and a healthy working environment.

- Easy Installation and Maintenance: Fiber optic transmission requires no optical path adjustment. The optical path is simple, the structure is stable, and the external optical path is maintenance-free, significantly reducing the difficulty of daily maintenance.

Final Thoughts

The market is not short of "machines that emit light," but it is short of a machine that can create value for you. When we talk about consumer-grade laser cutters, we shouldn't stop at the level of "it can engrave a name." This desktop fiber laser metal cutter, with its industrial-grade light source and motion control, combined with a consumer-grade price and size, redefines the possibilities of "desktop manufacturing."

It is the best gift for every DIYer who refuses to be ordinary, every aspiring individual entrepreneur, and every creator pursuing "small but beautiful." It is not a toy; it is a key that opens doors.

If you have any questions about specific models (such as 800W or 1200W), pricing, application cases, or how to select supporting equipment, please feel free to consult us. We offer a 1-year warranty and comprehensive technical support.
