Laser pulse width is a core parameter that determines processing quality, precision and material interaction mechanism. From nanosecond (ns), picosecond (ps), femtosecond (fs) to attosecond (as) lasers, the shortening of pulse duration brings revolutionary changes to laser micromachining and frontier scientific research.

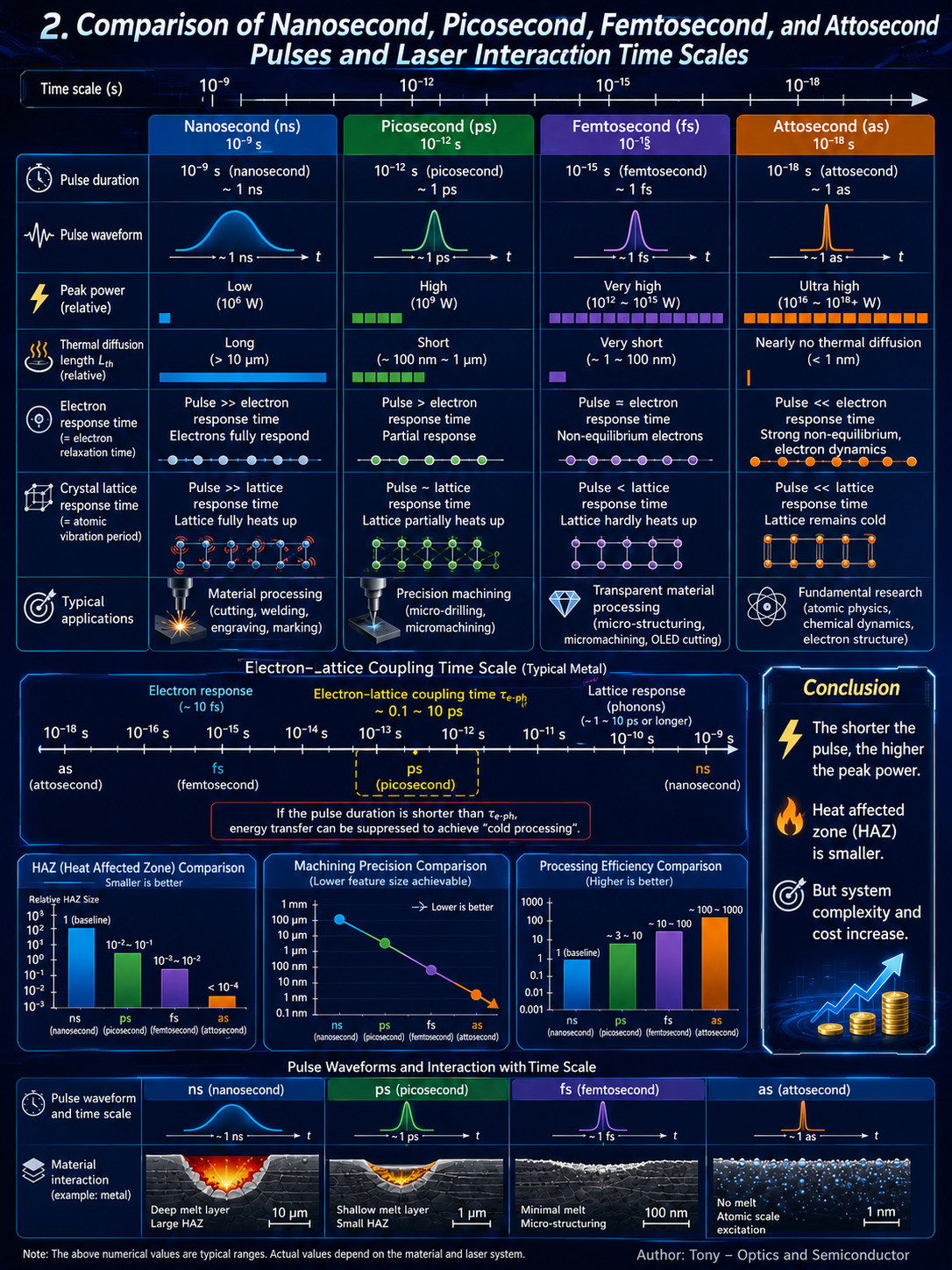

A nanosecond equals 10⁻⁹ seconds, picosecond 10⁻¹² s, femtosecond 10⁻¹⁵ s, and attosecond 10⁻¹⁸ s. As pulse width shrinks, peak power rises sharply: nanosecond lasers feature relatively low peak power, while attosecond lasers deliver ultrahigh peak power.
The most critical difference lies in thermal diffusion and electron-lattice coupling. The electron response time is around 10 femtoseconds, and the electron-lattice coupling time ranges from 0.1–10 picoseconds.
Nanosecond laser: Pulse duration far exceeds electron and lattice response time. Sufficient heat transfers to the material lattice, creating a wide heat-affected zone (HAZ >10 μm). Melting and recasting dominate material removal.
Picosecond laser: Pulse duration is close to electron-lattice coupling time. Heat diffusion is suppressed, with a smaller HAZ (~1 μm). It serves as the transition from thermal ablation to cold processing.
Femtosecond laser: Pulse is shorter than electron-lattice coupling time. Energy is absorbed by electrons before heat transfers to lattices, realizing "cold ablation" with tiny heat influence (~1–100 nm). No obvious melting occurs.
Attosecond laser: Pulse is far shorter than electron response time. Only electron excitation happens, lattices remain static. There is nearly zero thermal diffusion, mainly used for cutting-edge fundamental research.
Heat Affected Zone (HAZ) HAZ reduces significantly with shorter pulses. Nanosecond lasers produce massive thermal damage; picosecond lasers greatly lower thermal impact; femtosecond lasers achieve minimal thermal damage; attosecond lasers realize atom-level modification without melting.
Processing Precision The minimum achievable feature size improves continuously: nanosecond for rough machining, picosecond for precision microstructuring, femtosecond for ultra-precise micromachining, and attosecond for atomic-scale manipulation.
Processing Efficiency Relative material removal efficiency follows: attosecond > femtosecond > picosecond > nanosecond. However, shorter pulse laser systems come with higher complexity and manufacturing costs.
Nanosecond Lasers: Traditional industrial scenarios including rough cutting, welding, general marking.
Picosecond Lasers: High-precision industrial micromachining, microvia fabrication, fine structuring.
Femtosecond Lasers: Cold processing for transparent materials, microfluidics, OLED cutting, ultra-fine structure manufacturing.
Attosecond Lasers: Frontier fundamental research, ultrafast chemical dynamics, electron structure observation.
There is no universal "best laser". The rule is clear: shorter pulse width delivers higher peak power, smaller heat-affected zone and higher machining accuracy, yet raises system complexity and cost. Manufacturers should select laser sources based on processing requirements: choose nanosecond lasers for cost-sensitive rough processing; adopt picosecond lasers for mid-range precision tasks; deploy femtosecond lasers when zero thermal damage is required; attosecond lasers remain focused on advanced scientific research at present.
