The dynamic galvo co2 laser marking machine use dynamic focusing system to have larger working area, compare to 2d focusing, the laser beam of 3d focusing system have thiner laser beam, to higher precision laser processing for non-metal material.
Availability: | |
---|---|
Quantity: | |

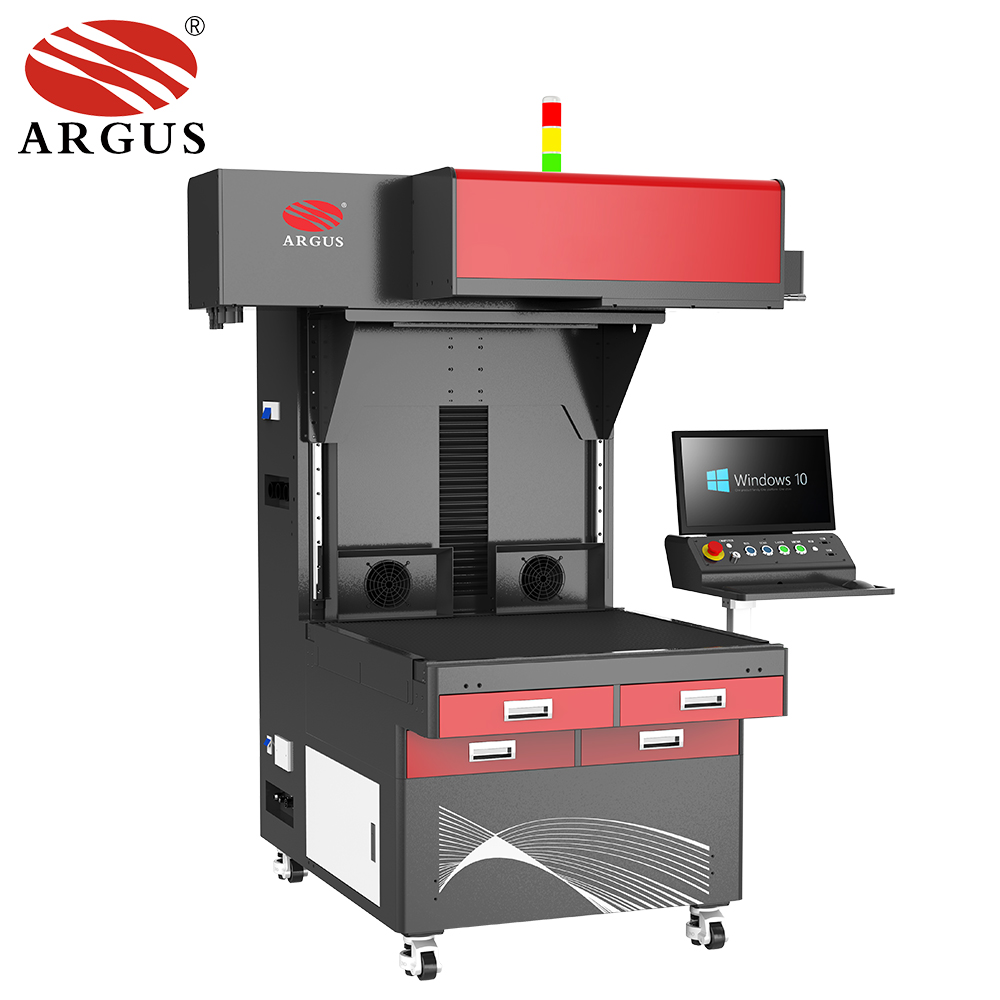

SCM2000
High marking speed: up to 7000 mm/s with high-speed galvanometer scanning, ideal for mass production.
Large marking area: max 600 × 600 mm; supports marking, punching, cutting, and carving.
Stable performance: fully enclosed optical path, imported CO₂ RF laser source, multi-protection design.
Red-light indicator: easily locate the working area.
Model | SCM2000 |
Max Working Area | 800 × 800 mm (Optional) |
Laser Power | 250 W / 350 W |
Power Consumption | ≤ 5–7 kWh |
Life Span | Over 20,000 hours |
Marking Speed | ≤ 7000 mm/s |
Worktable | MDF / Strip / Honeycomb |
Laser Source | US Coherent RF Metal Laser Source |
Laser Wavelength | 10.64 μm |
Laser Frequency | 20 kHz ~ 200 kHz |
Focusing Method | 3D Dynamic Focusing System |
System Support | Windows 10 |
Output Compatibility | AutoCAD, Photoshop, CorelDRAW |
File Formats | PLT, DXP, BMP, JPG, AI |
Software Features | Dotting, Vector Drawing, Marking, Scribing, Cutting |
Power Supply | 110 V ~ 380 V / 50 Hz ~ 60 Hz |
Cooling Method | Water Cooling |
Top 1 ARGUS Folding Paper Crafts Cutting Super Laser Marking Machine CO₂
Dynamic Laser Marking Machine
CO₂ Dynamic Laser Marking Machine adopts dynamic focusing technology, enabling finer laser spots and faster marking speeds, suitable for a wide range of engraving and cutting applications. Advantages include:
Compared with traditional after-focusing machines, no need to change different F-theta lenses to obtain different fields; finer laser spot.
Fully enclosed, maintenance-free optical system; ready to use after installation.
Imported RF laser tube: high power, good beam quality, stable output, ~20,000-hour lifespan.
High precision and speed; ~20% higher efficiency than similar models.
Industrial water chiller with temperature cycling improves stability and lowers power consumption.
Multiple protection designs ensure reliable 24/7 operation in varied environments.
What kind of laser machine and model should I choose?
Tell us your material, working size, and detail requirements (pictures or videos). We will confirm whether our machine meets your needs.
What materials can be processed?
We offer Fiber, CO₂, UV, and Green lasers. Fiber suits metals and many plastics. CO₂ is for non-metals (Acrylic/PMMA, Wood, Glass, Leather, Jeans, Paper, Textiles). UV/Green (cold sources) are ideal for plastics, glass, crystal, and special jobs.
Is it easy to operate?
We provide English manuals and guide videos. Remote support via TeamViewer, phone, email, or other channels is available.
Warranty
One-year warranty (excluding consumables). If quality issues occur, parts are replaced free after diagnosis.
After-sales Service
We troubleshoot via TeamViewer/Email/WhatsApp. If simple, we guide you to fix it or send spare parts.
Lead Time
Fiber laser marking: ~7 working days. CO₂ engraving & cutting: ~2–3 weeks. 3D dynamic CO₂ marking: ~10 working days.
Packaging & Shipping
Export-standard cases. Express, air, and sea shipping are available.
High marking speed: up to 7000 mm/s with high-speed galvanometer scanning, ideal for mass production.
Large marking area: max 600 × 600 mm; supports marking, punching, cutting, and carving.
Stable performance: fully enclosed optical path, imported CO₂ RF laser source, multi-protection design.
Red-light indicator: easily locate the working area.
Model | SCM2000 |
Max Working Area | 800 × 800 mm (Optional) |
Laser Power | 250 W / 350 W |
Power Consumption | ≤ 5–7 kWh |
Life Span | Over 20,000 hours |
Marking Speed | ≤ 7000 mm/s |
Worktable | MDF / Strip / Honeycomb |
Laser Source | US Coherent RF Metal Laser Source |
Laser Wavelength | 10.64 μm |
Laser Frequency | 20 kHz ~ 200 kHz |
Focusing Method | 3D Dynamic Focusing System |
System Support | Windows 10 |
Output Compatibility | AutoCAD, Photoshop, CorelDRAW |
File Formats | PLT, DXP, BMP, JPG, AI |
Software Features | Dotting, Vector Drawing, Marking, Scribing, Cutting |
Power Supply | 110 V ~ 380 V / 50 Hz ~ 60 Hz |
Cooling Method | Water Cooling |
Top 1 ARGUS Folding Paper Crafts Cutting Super Laser Marking Machine CO₂
Dynamic Laser Marking Machine
CO₂ Dynamic Laser Marking Machine adopts dynamic focusing technology, enabling finer laser spots and faster marking speeds, suitable for a wide range of engraving and cutting applications. Advantages include:
Compared with traditional after-focusing machines, no need to change different F-theta lenses to obtain different fields; finer laser spot.
Fully enclosed, maintenance-free optical system; ready to use after installation.
Imported RF laser tube: high power, good beam quality, stable output, ~20,000-hour lifespan.
High precision and speed; ~20% higher efficiency than similar models.
Industrial water chiller with temperature cycling improves stability and lowers power consumption.
Multiple protection designs ensure reliable 24/7 operation in varied environments.
What kind of laser machine and model should I choose?
Tell us your material, working size, and detail requirements (pictures or videos). We will confirm whether our machine meets your needs.
What materials can be processed?
We offer Fiber, CO₂, UV, and Green lasers. Fiber suits metals and many plastics. CO₂ is for non-metals (Acrylic/PMMA, Wood, Glass, Leather, Jeans, Paper, Textiles). UV/Green (cold sources) are ideal for plastics, glass, crystal, and special jobs.
Is it easy to operate?
We provide English manuals and guide videos. Remote support via TeamViewer, phone, email, or other channels is available.
Warranty
One-year warranty (excluding consumables). If quality issues occur, parts are replaced free after diagnosis.
After-sales Service
We troubleshoot via TeamViewer/Email/WhatsApp. If simple, we guide you to fix it or send spare parts.
Lead Time
Fiber laser marking: ~7 working days. CO₂ engraving & cutting: ~2–3 weeks. 3D dynamic CO₂ marking: ~10 working days.
Packaging & Shipping
Export-standard cases. Express, air, and sea shipping are available.

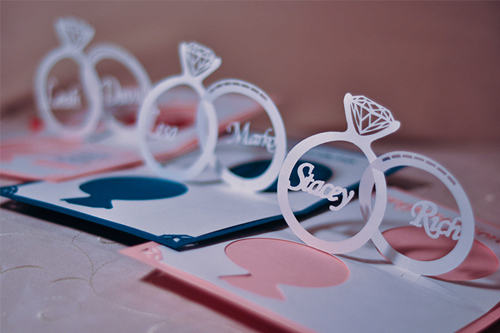

>>Wedding Invitation Cards | ||
![]() | ![]() | ![]() |

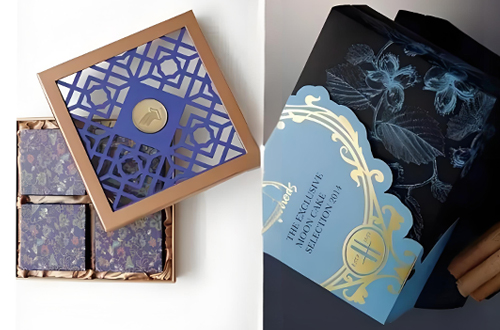

>>Candy Boxes | ||
![]() | ![]() | ![]() |

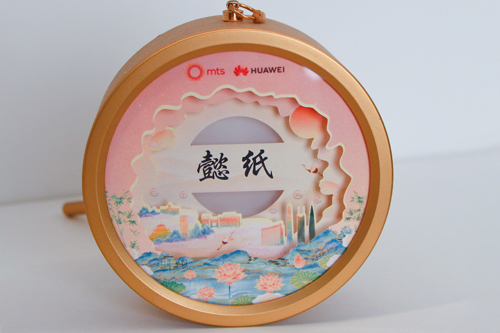

>>3D Paper Caving Lamps | ||
![]() | ![]() | ![]() |

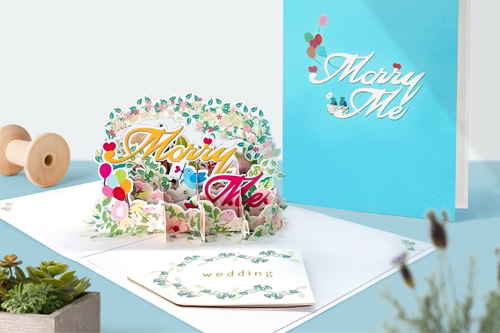

>>Pop up Cards | ||
![]() | ![]() | ![]() |
>>Cupcake Rim | ||
![]() | ![]() | ![]() |
>>Painting Template | ||
![]() | ![]() | ![]() |
with laser engraving machine
![]() | VS | ![]() |
CO2 Dynamic laser marker | CO2 laser engraver/cutter | |
![]() | Production Capacit | ![]() |
![]() | 7000pcs/day | ![]() |
![]() | Cutting Effect | ![]() |
>>Wedding Invitation Cards | ||
![]() | ![]() | ![]() |
>>Candy Boxes | ||
![]() | ![]() | ![]() |
>>3D Paper Caving Lamps | ||
![]() | ![]() | ![]() |
>>Pop up Cards | ||
![]() | ![]() | ![]() |
>>Cupcake Rim | ||
![]() | ![]() | ![]() |
>>Painting Template | ||
![]() | ![]() | ![]() |
with laser engraving machine
![]() | VS | ![]() |
CO2 Dynamic laser marker | CO2 laser engraver/cutter | |
![]() | Production Capacit | ![]() |
![]() | 7000pcs/day | ![]() |
![]() | Cutting Effect | ![]() |
