Ultrafast Laser Ablation Threshold: Mechanisms, Incubation Effect, And Process Window Optimization

In ultra-precision laser micromachining, the Ablation Threshold (Fth) is the defining threshold between material surface modification and precise, controlled removal. For manufacturing engineers, process developers, and B2B buyers seeking sub-micron accuracy, understanding how laser fluence interacts with material thresholds is critical to eliminating thermal damage, micro-cracks, and recast layers.

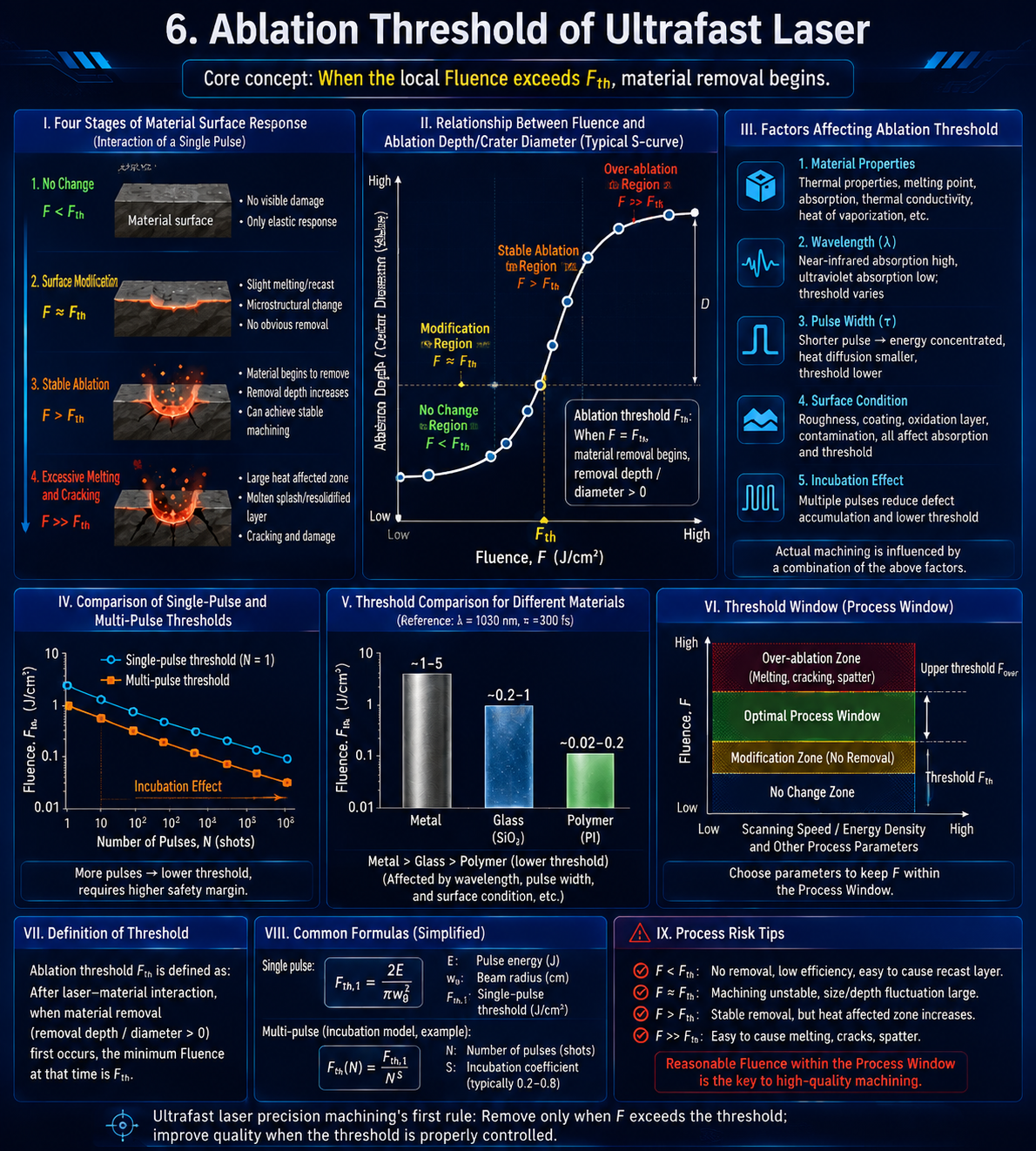

1. Four Stages of Material Surface Response

When a single ultrafast laser pulse interacts with a material surface, the physical outcome is governed entirely by the applied local fluence (F) relative to the ablation threshold (Fth):

• No Change (F < Fth): The energy is below the modification limit. The material exhibits an elastic response with no visible surface damage.

• Surface Modification (F ≈ Fh): The fluence triggers localized phase transformation, light melting, or micro-structuring without significant bulk ablation.

• Stable Ablation (F > Fth): The material reaches true ablation. Removal depth and diameter scale predictably with fluence, delivering clean and repeatable processing.

• Over-burning & Cracks (F >> Fth): Excessive energy leads to thermal diffusion, expanding the Heat-Affected Zone (HAZ), causing melt spatter, micro-cracks, and degraded edge quality.

2. Fluence vs. Removal Relationship: The S-Curve

The relationship between laser fluence (F) and removal depth (D) or ablation diameter follows a characteristic S-curve:

• Threshold Onset (Fth): Removal depth and diameter remain zero until fluence equals $F_{\text{th}}$.

• Modification Zone (F ≈ Fh): Gentle slope representing localized surface phase changes.

• Stable Ablation Zone (F > Fth): A linear/logarithmic growth region where energy is efficiently converted into cold ablation.

• Over-burning Zone (F >> Fth): Removal plateaus or degenerates into thermal melting and violent plasma shielding.

3. Factors Influencing the Ablation Threshold

The effective ablation threshold is not a static constant; it varies based on key system parameters and material dynamics:

• Material Properties: Bandgap, thermal conductivity, melting point, optical absorption, and thermal diffusivity.

• Laser Wavelength (λ): Near-infrared (NIR) light typically yields lower absorption and higher thresholds, whereas Ultraviolet (UV) light features higher absorption and lower thresholds.

• Pulse Duration (τ): Shorter pulse durations (e.g., femtosecond vs. picosecond) deposit energy faster than thermal diffusion time, yielding a lower effective threshold.

• Surface Condition: Initial surface roughness, coatings, oxide layers, and contaminants alter local absorption rates.

• Incubation Effect (Pulse Count N): Accumulated defect states under repetitive multi-pulse exposure progressively lower the threshold.

4. Single-Pulse vs. Multi-Pulse Thresholds: The Incubation Effect

In high-speed production, laser processing relies on overlapping multiple pulses (N > 1). Accumulated lattice deformation, structural defects, and thermal incubation cause the multi-pulse ablation threshold Fth(N) to decrease as pulse count increases:

Fth(N) = Fth,1 / N^S

• Where Fth,1 is the single-pulse threshold, N is the number of laser pulses, and S is the incubation factor (typically 0.2 - 0.8).

Because multi-pulse processing lowers the material's threshold, process parameters must maintain a safety margin to prevent unintended over-burning during pulse overlaps.

5. Threshold Comparison Across Material Types

For standard 1030 nm wavelength and 300 fs ultrafast laser processing, ablation thresholds generally follow this hierarchy:

Metals (~1-5 J / cm^2) > Glass / Quartz (~ 0.2 – 1 J / cm^2) > Polymers / PI (~ 0.02 – 0.2 J / cm^2)

• Metals: High thermal conductivity and high electron density require higher initial fluence (~1-5 J / cm^2).

• Dielectrics (Glass/Quartz): Require non-linear multiphoton absorption ( 0.2 – 1 J / cm^2).

• Polymers (e.g., Polyimide): Lower chemical bond energies allow clean ablation at minimal fluence ( 0.02 – 0.2 J / cm^2).

6. Defining the Ideal Process Window

To ensure high-yield manufacturing, system operators must tune scanning speed, laser power, and repetition rate so that local fluence ($F$) stays strictly within the Optimal Process Window:

Ablation Threshold (Fth) < Optimal Window (F) <  Over-burning Threshold Fover

• If F ＜ Fth: Inefficient processing with risk of thermal modification without removal.

• If F ≈ Fth: Unstable ablation with dimensional and depth fluctuations.

• If F ＞ Fth (Within Process Window): Controlled, precise, and repeatable ablation.

• If F ＞＞ Fth: Thermal damage, recast layers, micro-cracks, and heavy spatter.
