Ultrafast Laser Power Density And Energy Density: Physics, Calculation, And Process Optimization

In high-precision ultrafast laser micromachining, achieving superior processing quality relies heavily on two critical physical parameters: Power Density (Peak Intensity, I) and Energy Density (Fluence, F). These key quantities determine the intensity of light-matter interaction, directly governing whether material is modified, cleanly ablated, or damaged by excess thermal stress.

For optical engineers, process developers, and industrial system operators, mastering the calculation of power and energy densities is essential to optimizing picosecond and femtosecond laser performance.

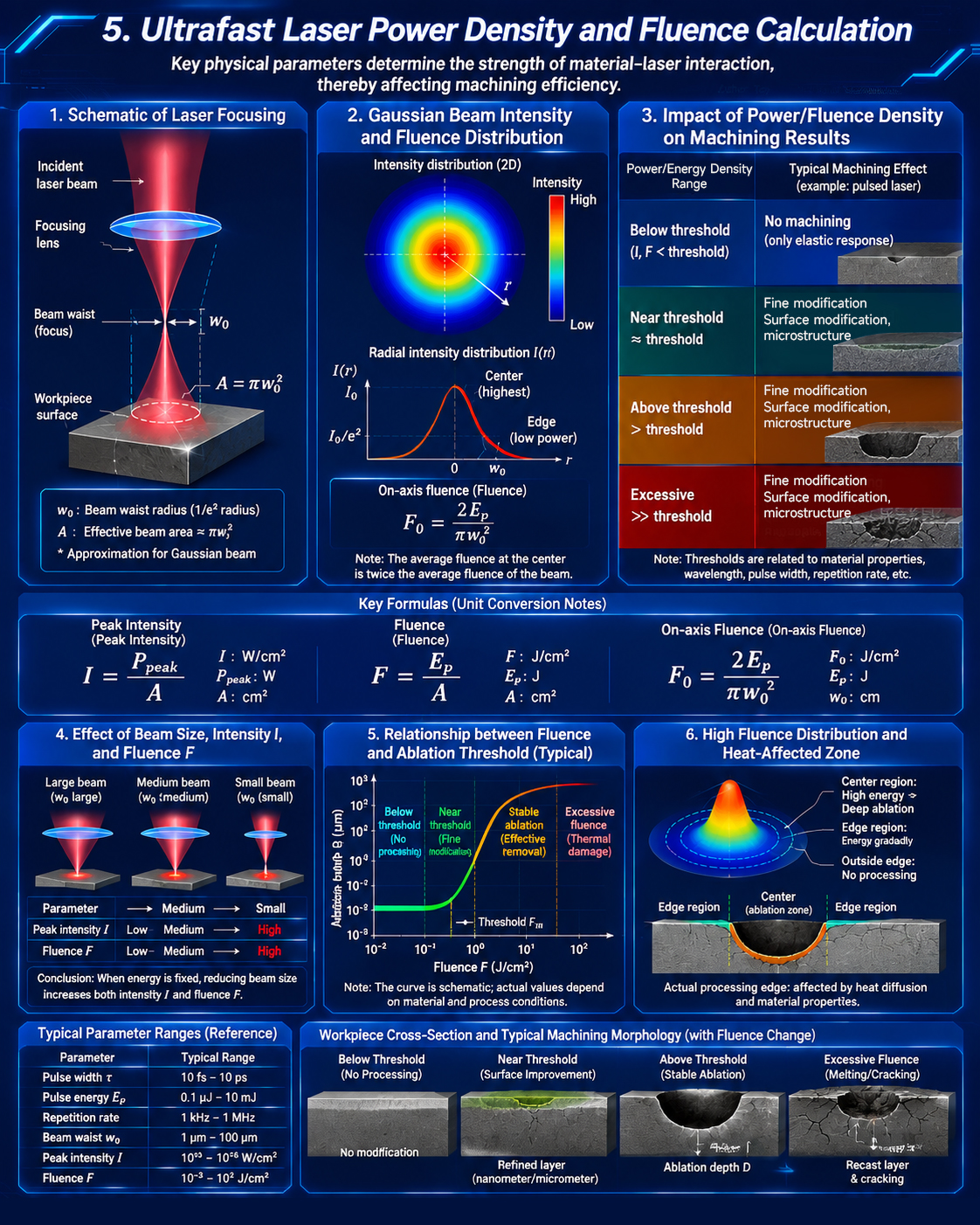

1. Focused Beam Geometry & Gaussian Beam Profile

To understand laser energy interaction on a workpiece surface, one must first examine how a laser beam is focused and how its energy is distributed spatially.

Focused Spot Geometry

When an incident laser beam passes through a focusing lens, it narrows to its waist (focus point).

• w_0: Focal spot waist radius (defined at the 1/e^2 intensity threshold).

• A: Effective focal spot area, calculated as:

A ≈ π wo^2

Gaussian Intensity Distribution

Standard high-quality industrial lasers exhibit a Gaussian intensity profile (TEM00). The radial intensity I(r) peaks at the center (r=0) and decays moving toward the outer radius (wo).

Because of this peaked distribution, the on-axis peak fluence (Fo) at the center of a Gaussian beam is exactly twice the average fluence:

Fo = 2 Ep/ πwo^2

Where Ep is single pulse energy and wo is the waist radius in centimeters.

2. Core Mathematical Formulas & Calculation Guide

To calculate key parameters accurately, engineers must maintain unit consistency (converting waist radius from micrometers to centimeters and pulse energy to Joules).

Power Density / Peak Intensity (I)

Measures the peak optical power delivered per unit area:

I = Ppeak/A [Unit: W/cm^2

Energy Density / Fluence (F)

Measures the single pulse energy delivered per unit area:

F = Ep / A [Unit: J/cm^2

The Impact of Focal Spot Size

When pulse energy (Ep) or peak power (Ppeak) is fixed, reducing the focal spot radius (wo) dramatically decreases the spot area (A), resulting in a sharp increase in both power density (I) and energy density (F).

3. Four Regimes of Laser-Material Interaction

Depending on how the applied fluence (F) compares to the material's ablation threshold (Fth), processing results fall into four distinct regimes:

• Below Threshold (I, F < Fth): No permanent modification occurs. The material experiences purely elastic or linear absorption responses.

• Near Threshold (F ≈ Fth): Induces subtle surface modification, functional structuring, or nano-ripple formation with sub-micron thickness.

• Above Threshold (F > Fth): Enters the ideal ablation regime. Material is efficiently ionized and removed without thermal diffusion, forming clean blind holes or sharp cut edges.

• Excessive Energy (F >>  Fth): Energy significantly exceeds the optimal window. Heat accumulation causes thermal diffusion, resulting in melted recast layers, micro-cracks, larger Heat-Affected Zones (HAZ), and degraded surface quality.

4. Ablation Depth vs. Energy Density Relationship

The relationship between ablation depth per pulse (D) and fluence (F) follows a logarithmic curve:

D ∝ ln（ F / Fth ）

• Initiation: Below Fth, depth is zero.

• Optimal Window: As fluence increases beyond Fth, ablation depth grows rapidly following logarithmic scaling.

• Saturation & Thermal Damage: At very high fluence levels, plasma shielding and saturation effects set in. Additional energy no longer increases ablation depth efficiently; instead, it converts into thermal energy, exacerbating melting and micro-cracking.

5. Gaussian Energy Transition Zones in Practical Machining

Due to the fundamental nature of Gaussian intensity distribution, a single focused spot contains three distinct energy zones:

• Center Zone: High energy (F > Fth)  →  Deep ablation and material removal.

• Transition Zone: Energy decays (F ≈ Fth)  →  Minor modification and thermal transition.

• Edge Zone: Low energy (F ＜ Fth)  →  No processing.

This spatial variation explains why Gaussian beams inherently create tapered side walls and edge transition zones. To mitigate this, beam shaping optics (such as top-hat beam shapers) are frequently utilized in high-end micro-machining.
