Ultrafast Laser Repetition Frequency and Single-Pulse Energy Coupling

In precision ultrafast laser micromachining, selecting the optimal combination of repetition frequency (f) and single-pulse energy (Ep) is a foundational step in process design. When a laser source operates at a fixed average power (Pavg), changing the pulse repetition rate fundamentally alters how laser energy is delivered to the workpiece.

Understanding this coupling mechanism enables process engineers, optical integrators, and industrial buyers to achieve the ideal balance between Material Removal Rate (MRR) and edge processing quality.

1. The Core Physical Coupling Formula

Under a constant laser average power (Pavg), repetition frequency (f) and single-pulse energy (Ep) are inversely coupled:

Ep = Pavg / f

• Ep: Single-pulse energy (Joules)

• Pavg: Average laser power (Watts)

• f: Pulse repetition frequency (Hz)

Physical Essence

At a fixed average power budget, increasing the repetition rate divides the total available energy across a greater number of pulses per second. Consequently, each individual pulse carries less energy, while decreasing the frequency concentrates energy into fewer, significantly stronger pulses.

2. Material Cross-Section and Processing Effects Across Frequency Regimes

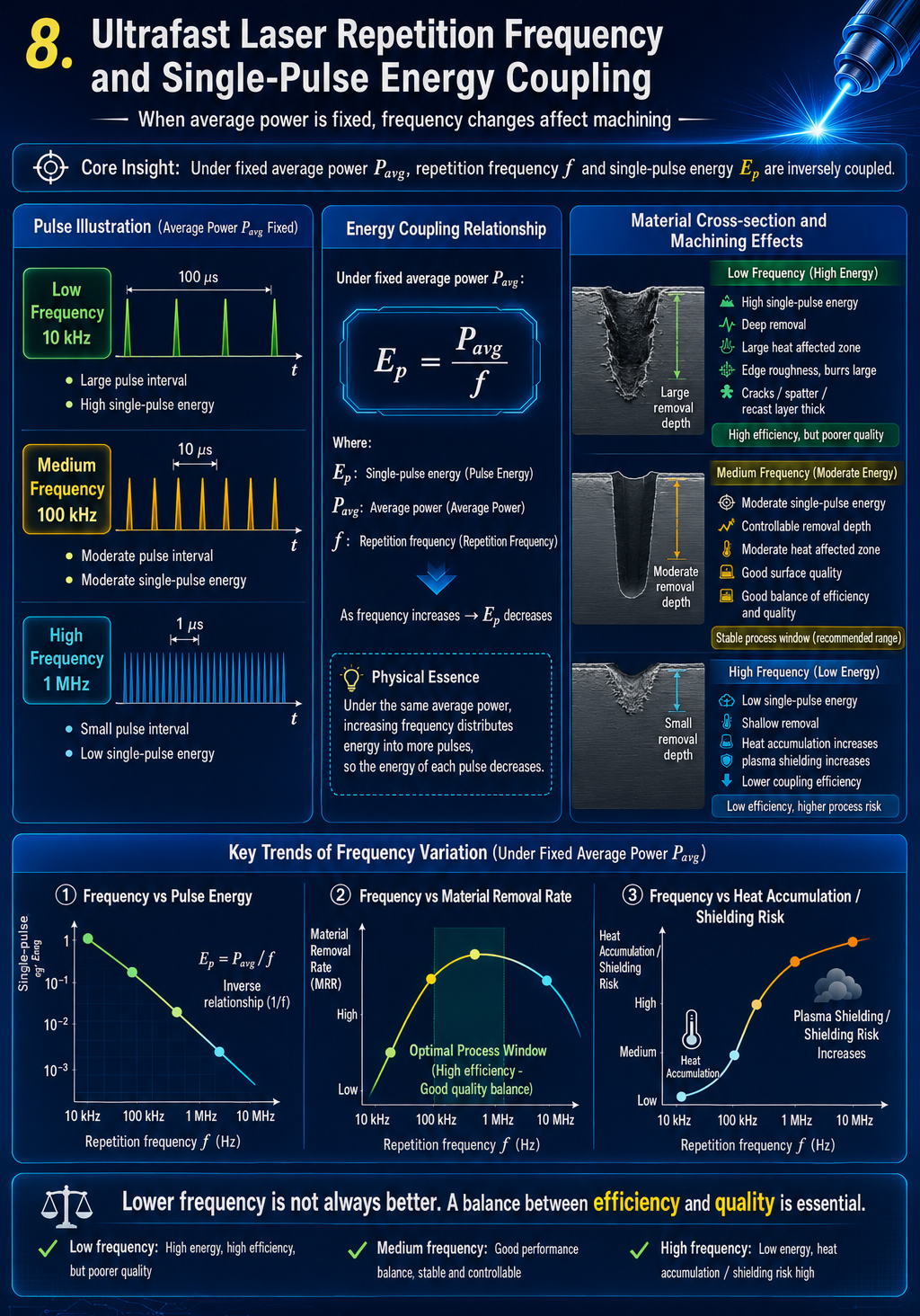

Adjusting the repetition rate while maintaining average power alters the pulse interval and single-pulse energy, producing distinct machining cross-sections:

① Low Frequency (e.g., 10 kHz) — High Single-Pulse Energy

• Pulse Interval: Large (100 μs).

• Machining Characteristics: Deep material removal per pulse, but accompanied by a larger Heat-Affected Zone (HAZ), higher edge roughness, micro-cracks, melt spatter, and a thick recast layer.

• Trade-off: High removal efficiency, but poorer surface quality.

② Medium Frequency (e.g., 100 kHz) — Moderate Single-Pulse Energy

• Pulse Interval: Moderate (10 μs).

• Machining Characteristics: Controllable removal depth, fine surface finish, low burr formation, and a well-contained HAZ.

• Trade-off: Delivers the optimal balance between processing efficiency and fine quality (Recommended Process Window).

③ High Frequency (e.g., 1 MHz) — Low Single-Pulse Energy

• Pulse Interval: Small (1 μs).

• Machining Characteristics: Very shallow removal per pulse. High pulse density induces thermal accumulation, while localized plasma shielding blocks subsequent pulse energy.

• Trade-off: Low effective ablation efficiency with higher thermal risk.

3. Key Physical Trends Under Frequency Variation

1. Inverse Energy Scaling (Ep ∝ 1/f): As frequency increases, single-pulse energy drops log-linearly.

2. Material Removal Rate (MRR) Bell Curve: MRR does not scale infinitely with frequency. It peaks in the medium-frequency band where single-pulse energy remains above the ablation threshold while pulse delivery rate is maximized. At excessively high frequencies, MRR drops due to sub-threshold pulse energy and plasma interference.

3. Heat Accumulation & Plasma Shielding Risks: Extremely short pulse intervals (< 1 μs) do not allow energy to dissipate between pulses, triggering thermal build-up. Additionally, residual plasma clouds generated by prior pulses absorb or reflect incoming laser beam energy (plasma shielding).

4. Practical Process Optimization Guidelines

Neither ultra-low nor ultra-high repetition rates represent a universal solution. Engineers must tune frequency based on structural requirements:

• Choose Low Frequency (10 - 50 kHz): When processing thick targets, deep micro-drilling, or materials with ultra-high ablation thresholds where maximum pulse energy is necessary.

• Choose Medium Frequency (100 kHz - 1 MHz): Recommended for general precision cutting, scribing, and micro-structuring requiring high throughput combined with low HAZ and smooth side-walls.

• Choose High Frequency ( > 1 MHz): Suitable for specialized surface modification, thin-film ablation, or burst-mode setups where minimal pulse impact is required.

Conclusion

Understanding the inverse relationship between laser repetition frequency and single-pulse energy ( Ep = Pavg / f ) is crucial to avoiding thermal overload and plasma shielding. Operating within the medium-frequency process window ensures high material removal rates while maintaining pristine, recast-free processing quality.
