Ultrafast Laser Technology: System Architecture, Mechanism & Industrial Applications
Ultrafast laser machining has emerged as one of the most advanced precision manufacturing technologies worldwide, distinguished by ultra-short pulse durations and ultra-high peak power. Unlike traditional laser processing that relies on thermal melting, ultrafast lasers realize cold ablation by directly coupling energy with material electrons, delivering unparalleled precision with minimal thermal damage. This article systematically breaks down the complete technical architecture of an ultrafast laser processing system, covering light generation to closed-loop intelligent manufacturing.
The Full Technical Chain of Ultrafast Laser Systems

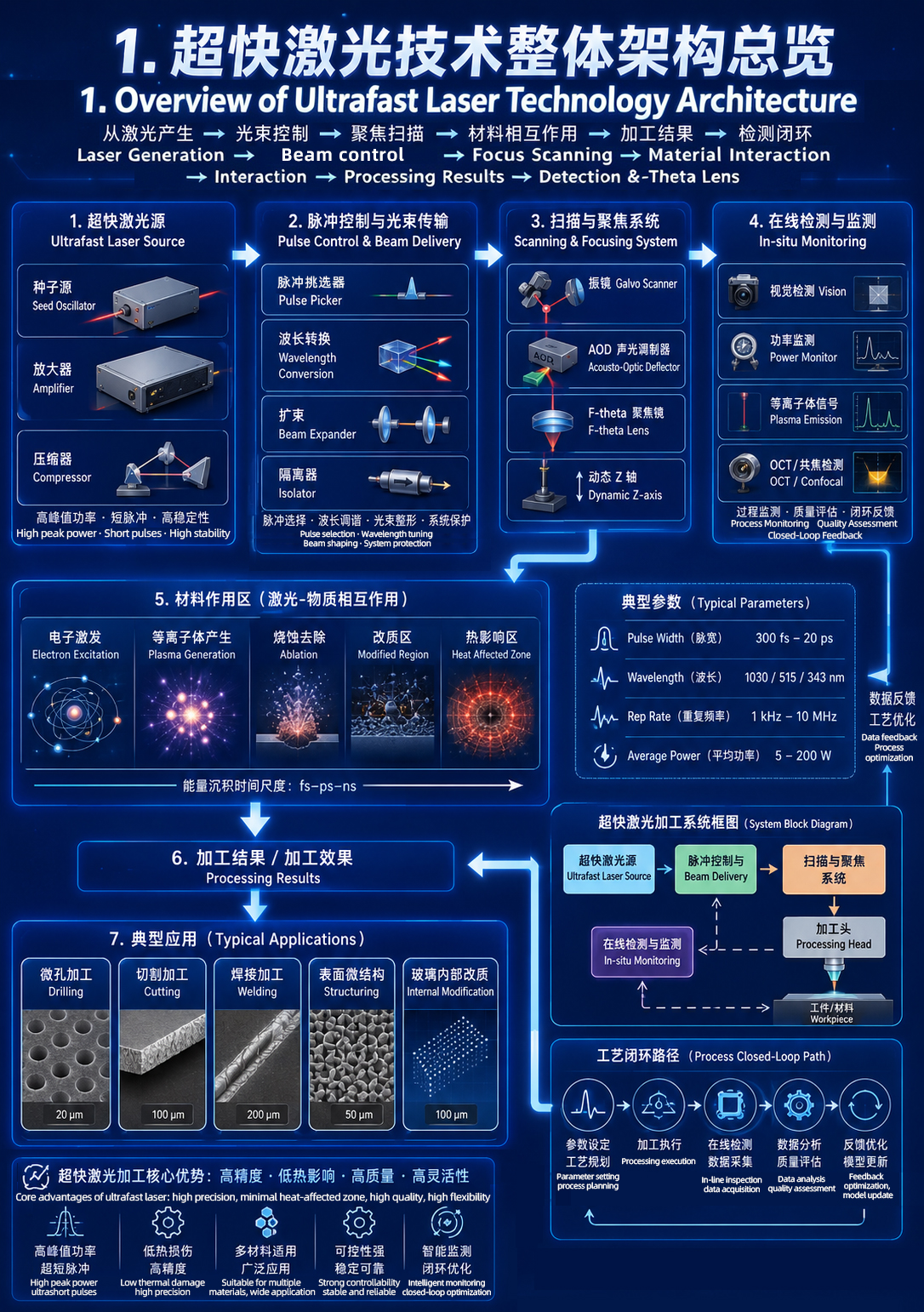

A complete ultrafast laser workflow follows a closed-loop sequence: Laser Generation → Beam Control & Transmission → Scanning & Focusing → Laser-Material Interaction → Machining Output → In-situ Inspection & Closed-Loop Optimization.
1. Ultrafast Laser Source
The laser source acts as the core energy origin of the whole system, mainly composed of a seed oscillator, amplifier and pulse compressor. The seed oscillator generates initial ultra-short pulses; the amplifier boosts pulse energy; the compressor further shortens pulse duration. The final output features high peak power, ultra-short pulses and outstanding long-term stability, laying the foundation for high-precision cold processing.
2. Pulse Control & Beam Delivery
After the laser source, the beam enters the modulation and transmission module. Key units include pulse pickers, wavelength conversion modules, beam expanders and optical isolators. This subsystem realizes pulse selection, wavelength tuning, beam shaping and optical protection. It flexibly adjusts laser parameters to match diverse processing requirements and protects the laser source from reflected light damage.
3. Scanning & Focusing System
The modulated laser beam is guided to the scanning and focusing unit, integrating galvanometer scanners, AOD acousto-optic deflectors, F-theta objective lenses and dynamic Z-axis modules. Galvo scanners enable high-speed planar beam deflection; the dynamic Z-axis supports three-dimensional focus adjustment. The combination achieves high-speed, high-accuracy positioning and focusing of laser spots across flat and curved workpieces.
4. In-situ Monitoring System
Real-time online monitoring forms the basis of intelligent closed-loop manufacturing. It integrates multiple detection technologies:
Visual inspection for morphology observation
Power monitors for real-time laser power tracking
Plasma signal collection for ablation state feedback
OCT confocal detection for micro-scale depth measurement
Collected data feeds back to the control system to optimize processing parameters dynamically.
5. Laser-Material Interaction Zone
The unique advantage of ultrafast lasers lies in ultrafast energy deposition within femtosecond to picosecond timescales. The laser energy first triggers electron excitation, then generates plasma, followed by material ablation. Benefiting from the ultra-fast energy transfer process, the heat-affected zone is drastically suppressed. Local material modification can also be achieved without thorough removal, supporting both surface processing and internal material modification.
6. Machining Output & Typical Industrial Applications
Relying on the above system framework, ultrafast lasers support a wide range of micro-precision manufacturing scenarios:
Micro Drilling: Fabricate micron-scale tiny holes for semiconductor, medical and electronic components
Precision Cutting: Delicate cutting of thin films, ceramics and brittle materials with clean edges
Micro Welding: High-quality welding for dissimilar materials and sensitive components
Surface Structuring: Fabricate functional micro-nano textures for enhanced surface properties
Internal Modification: 3D internal structuring inside transparent materials such as glass
Key Technical Specifications
Typical operational parameters of mainstream ultrafast laser platforms:
Pulse Width: 300 fs – 20 ps
Available Wavelengths: 1030 nm / 515 nm / 343 nm (infrared, green, ultraviolet)
Pulse Repetition Rate: 1 kHz – 10 MHz
Average Output Power: 5 – 200 W
Core Advantages of Ultrafast Laser Machining
✅ Ultra-high precision with negligible thermal damage
✅ Cold ablation mechanism, avoiding thermal deformation of delicate materials
✅ Broad material compatibility: metals, ceramics, glass, polymers, semiconductors
✅ High controllability and stable repeatability for mass production
✅ Support for intelligent monitoring and closed-loop process optimization
Outlook
As demand for micro-precision manufacturing surges in consumer electronics, new energy, aerospace, medical devices and semiconductor industries, ultrafast laser equipment is transforming from standalone processing units toward fully intelligent closed-loop production systems. With continuous upgrades in laser source performance and real-time detection algorithms, ultrafast laser technology will unlock more innovative microfabrication solutions for advanced manufacturing.
