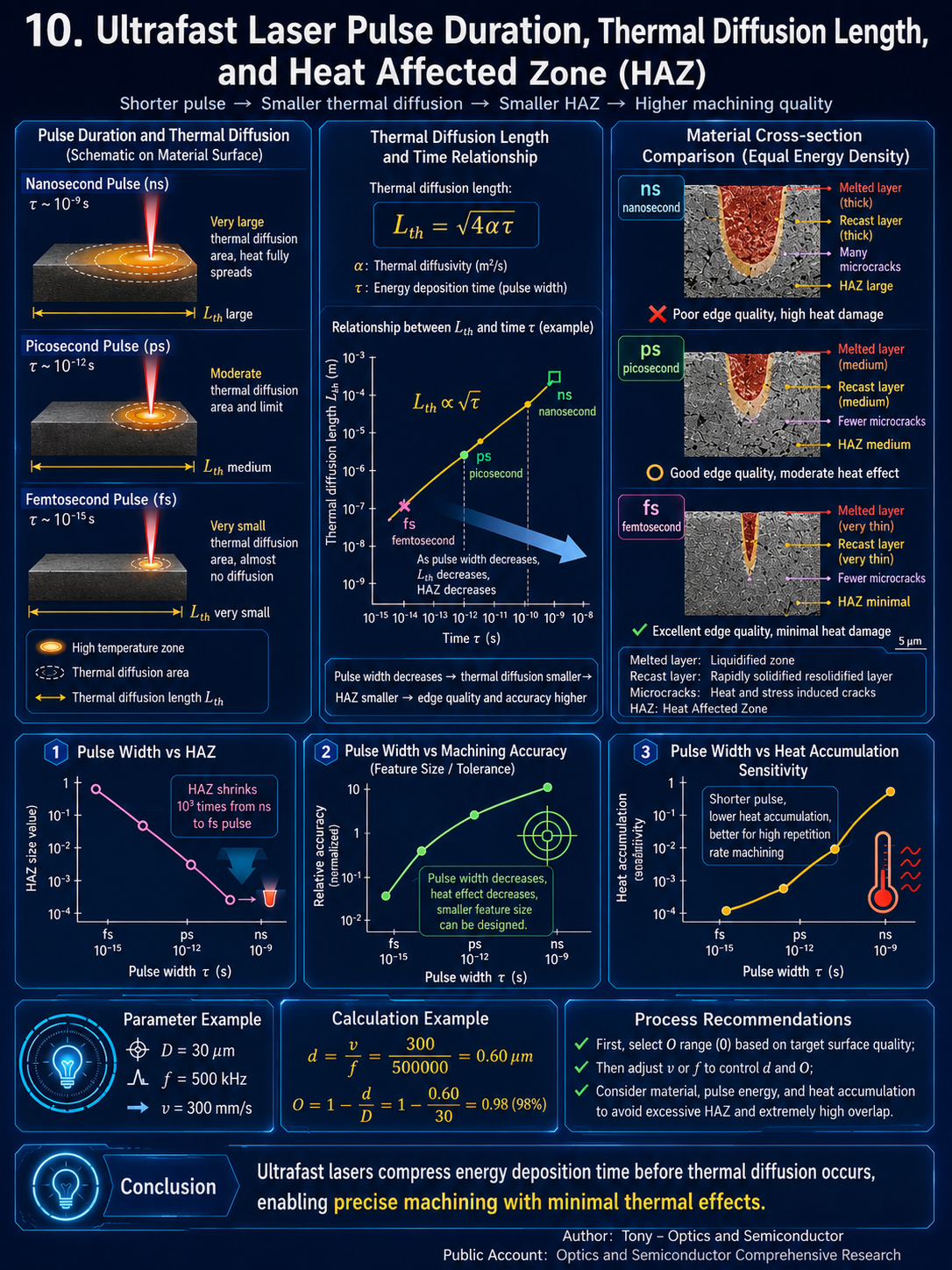

Ultrafast laser timescale and thermal diffusion length.

In modern high-precision manufacturing, minimizing the Heat-Affected Zone (HAZ) is the ultimate goal when processing delicate polymers, semiconductors, ultra-thin metals, and optical glass. The fundamental driver governing thermal damage is the laser pulse duration (t), which determines how far heat diffuses into the substrate before material ablation occurs.

By transitioning from nanosecond (ns) pulses to picosecond (ps) and femtosecond (fs) ultrafast regimes, manufacturers can suppress thermal diffusion, eliminate recast layers, and achieve true "cold processing."

1. Mathematical Physics: Thermal Diffusion Length (Lth)

When laser energy is absorbed on a material surface, heat spreads into the surrounding lattice via thermal conduction. The characteristic depth of this heat propagation is defined as the Thermal Diffusion Length ($L_{\text{th}}$):

Lth = √4αt

• Lth : Thermal diffusion length (m or μm)

• α : Material thermal diffusivity (m^2 / s)

• t : Energy deposition time / laser pulse duration (s)

The Square-Root Scaling Rule

Because Lth ∝ √t , reducing the laser pulse duration directly shrinks the thermal diffusion zone:

• Nanosecond Pulse (t ≈ 10^-9 s): Lth is large (tens of micrometers). Energy diffuses deeply into surrounding material before vaporization, leading to excessive thermal stress.

• Picosecond Pulse (t ≈ 10^-12 s): Lth is reduced by roughly 30 X to 100 X compared to nanosecond pulses, containing heat localized near the focal spot.

• Femtosecond Pulse (t ≈ 10^-15 s): Lth drops to the nanometer scale. Laser energy is deposited faster than the electron-phonon thermal relaxation time, resulting in direct non-linear ablation with almost zero heat diffusion.

2. Material Cross-Section Comparison (Equal Energy Density)

Comparing material cross-sections under identical fluence reveals the profound impact of pulse duration on structural integrity:

1. Nanosecond Lasers (ns): Driven by thermal melting and vaporization. Produces thick liquid melt pools, heavy resolidified recast layers, micro-cracks, and broad HAZ dimensions, leading to poor dimensional tolerance.

2. Picosecond Lasers (ps): Operates on the boundary of thermal and non-thermal ablation. Significantly reduces recast layer thickness and thermal stress, making it an economical choice for industrial micro-cutting.

3. Femtosecond Lasers (fs): Achieves pure cold ablation. The material undergoes direct solid-to-plasma phase transformation without a liquid phase, yielding razor-sharp edges, sub-micron feature resolution, and virtually zero HAZ.

3. Key Physical Trends and Correlations

① Pulse Width vs. HAZ Size

Shrinking the pulse width from nanoseconds (10^-9 s) to femtoseconds (10^-15 s) compresses the HAZ size by up to 1,000 times (10^3 X), preserving the physical properties of the surrounding material.

② Pulse Width vs. Machining Accuracy

As thermal diffusion shrinks, the achievable feature size and tolerance improve dramatically. Designers can specify sub-micron channels, micro-holes, and intricate geometries impossible with nanosecond lasers.

③ Pulse Width vs. Heat Accumulation Sensitivity

Shorter pulse durations deposit energy instantaneously, lowering heat accumulation sensitivity. This allows femtosecond and picosecond lasers to operate at higher repetition rates (f) without thermal breakdown or material warping.

4. Engineering & Process Optimization Recommendations

To maximize yield and quality in ultrafast laser workstations, operators should follow a structured tuning sequence:

1. Pulse Width Selection: Match pulse width to material sensitivity—use femtosecond lasers for heat-sensitive polymers, glass, and micro-electronics; use picosecond lasers for high-throughput metal and silicon micro-machining.

2. Process Window Tuning: Select the pulse overlap rate (O) based on surface finish requirements (typically 30% –70%).

3. Scanning Dynamics: Adjust scanning speed (v) or pulse repetition frequency (f) to control center-to-center pulse distance (d), preventing thermal accumulation and excessive recast layer formation.

Conclusion

Ultrafast lasers compress energy deposition time (t) before thermal diffusion can occur (Lth = √4αt), fundamentally changing laser-material interactions. By eliminating thermal melting and minimizing the Heat-Affected Zone (HAZ), femtosecond and picosecond laser systems unlock unprecedented sub-micron precision for advanced industrial manufacturing.
