In modern high-precision manufacturing, ultrafast lasers—specifically picosecond (ps) and femtosecond (fs) lasers—have revolutionized materials processing. Unlike traditional nanosecond or continuous-wave (CW) lasers that rely on intense thermal energy to melt or vaporize material, ultrafast lasers leverage extremely high peak power to drive non-linear photo-ablation, widely known as "cold processing" (or cold micromachining).
Understanding the formation mechanism of ultrafast laser peak power is essential for engineers, industrial buyers, and system integrators seeking to optimize micro-fabrication quality, eliminate thermal damage, and process delicate or transparent materials.

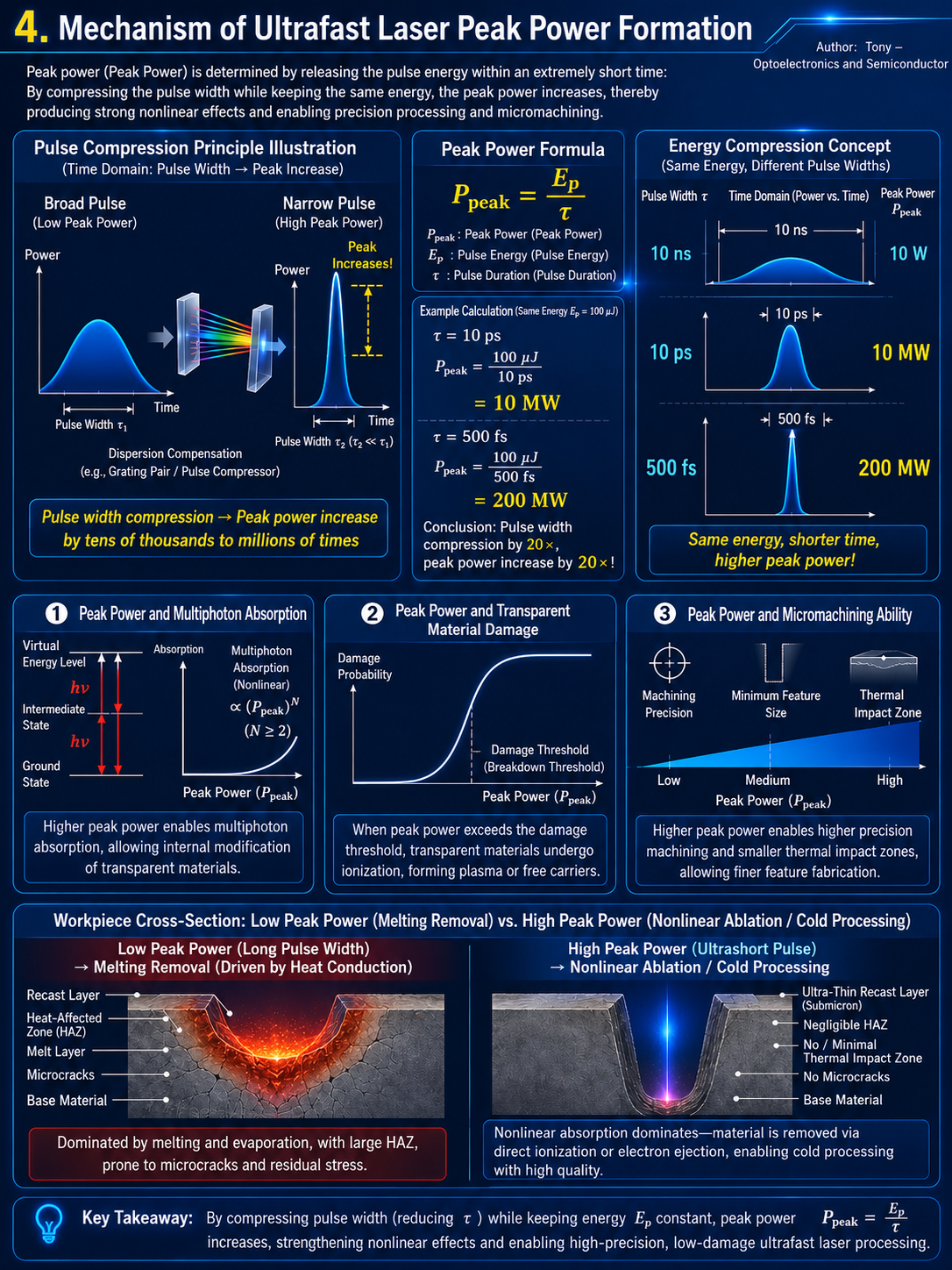

The foundation of ultrafast laser technology lies in the relationship between single pulse energy, pulse duration (pulse width), and peak power. The mathematical formula governing peak power is:
Peak Power (Ppeak) = Pulse Energy (Ep) / Pulse Duration τ
Ppeak = Ep / τ
By keeping the single pulse energy (Ep) constant and compressing the pulse duration ($\tau$) through dispersion compensation and optics compression techniques, the peak power increases exponentially:
10 Nanoseconds (10 ns): Yields moderate peak power in the kilowatt scale. Energy is delivered over a relatively long timeframe, causing thermal diffusion into surrounding material.
10 Picoseconds (10 ps): Compressing the same 100μJ pulse energy into 10 ps boosts the peak power to 10 Megawatts (10 MW)—a 1,000x jump.
500 Femtoseconds (500 fs): Compressing the pulse further to 500 fs elevates the peak power to 200 Megawatts (200 MW)—a 20,000x increase compared to nanosecond pulses.
Key Insight: Compressing the pulse duration by a factor of N increases the peak power by N times, allowing the laser to deliver gigawatt-level peak intensities instantaneously without increasing average power or heat output.
When the peak power exceeds crucial physical thresholds, three non-linear light-matter interactions occur:
In conventional optics, materials only absorb photons matching their electronic bandgap. However, ultra-high peak power creates an extremely high photon density, triggering multiphoton absorption (where absorption rate α ∝ (Ppeak^N, N ≥2). This enables transparent dielectric materials (such as quartz, sapphire, and optical glass) to absorb laser energy efficiently, facilitating internal structural modification and 3D micro-structuring.
When the focused peak power density surpasses the material's breakdown threshold (Ith), localized multiphoton and avalanche ionization occur, forming high-density plasma. This enables precise internal scribing, glass cutting, and filamentation without causing surface cracks.
Higher peak power allows the energy to be deposited faster than the material's electron-phonon thermal relaxation time (typically a few picoseconds). As a result:
Higher Processing Accuracy: Feature sizes can reach the sub-micron scale.
Minimal Feature Distortion: Features are clean with sharp edge quality.
Zero or Minimal Heat-Affected Zone (HAZ): Material transitions directly from solid to plasma phase (ablation) without a liquid phase.
The cross-sectional quality of laser-processed materials dramatically highlights the fundamental difference between low peak power (long pulse) and high peak power (ultrafast) lasers:
Processing Parameter | Low Peak Power (Long Pulse / Thermal) | High Peak Power (Ultrafast Pulse / Cold Processing) |
Dominant Mechanism | Thermal conduction & melting removal | Non-linear optical absorption & direct ablation / ionization |
Heat-Affected Zone (HAZ) | Large HAZ with high thermal diffusion | Virtually zero HAZ |
Material Edge Quality | Heavy recast layer, micro-cracks, burrs | Sub-micron modification layer, no recast layer, micro-crack free |
Residual Stress | High residual stress, high fracture risk | Minimal stress, preserves structural integrity |
Material Applicability | Mostly metals and opaque absorbers | Broad compatibility: glass, sapphire, polymers, metals, ceramics |
Utilizing ultrafast lasers with extreme peak power delivers tangible benefits across high-tech manufacturing sectors:
Semiconductor & Wafer Dicing: Micro-crack-free stealth dicing of silicon and silicon carbide (SiC) wafers.
Display & Touch Panel Processing: High-speed, high-precision cutting of flexible OLED displays and ultra-thin glass (UTG).
Medical Device Manufacturing: Burr-free micromachining of nitinol stents and polymer catheters.
Precision Metal & Ceramics Drilling: High-aspect-ratio micro-hole drilling for aerospace and automotive fuel injectors without thermal recast layers.
