Understanding Ultrafast Laser Processing: The Relationship Between Single Pulse Energy And Average Power

Introduction

In high-precision laser micromachining—especially with picosecond and femtosecond ultrafast lasers—achieving flawless material processing with zero heat-affected zone (HAZ) is the ultimate goal. However, engineers often face the challenge of balancing high throughput with superior edge quality. The secret to mastering this balance lies in controlling the relationship between Single Pulse Energy (Ep), Average Power (Pavg), and Repetition Frequency (f).

1. The Core Mathematical Relationship

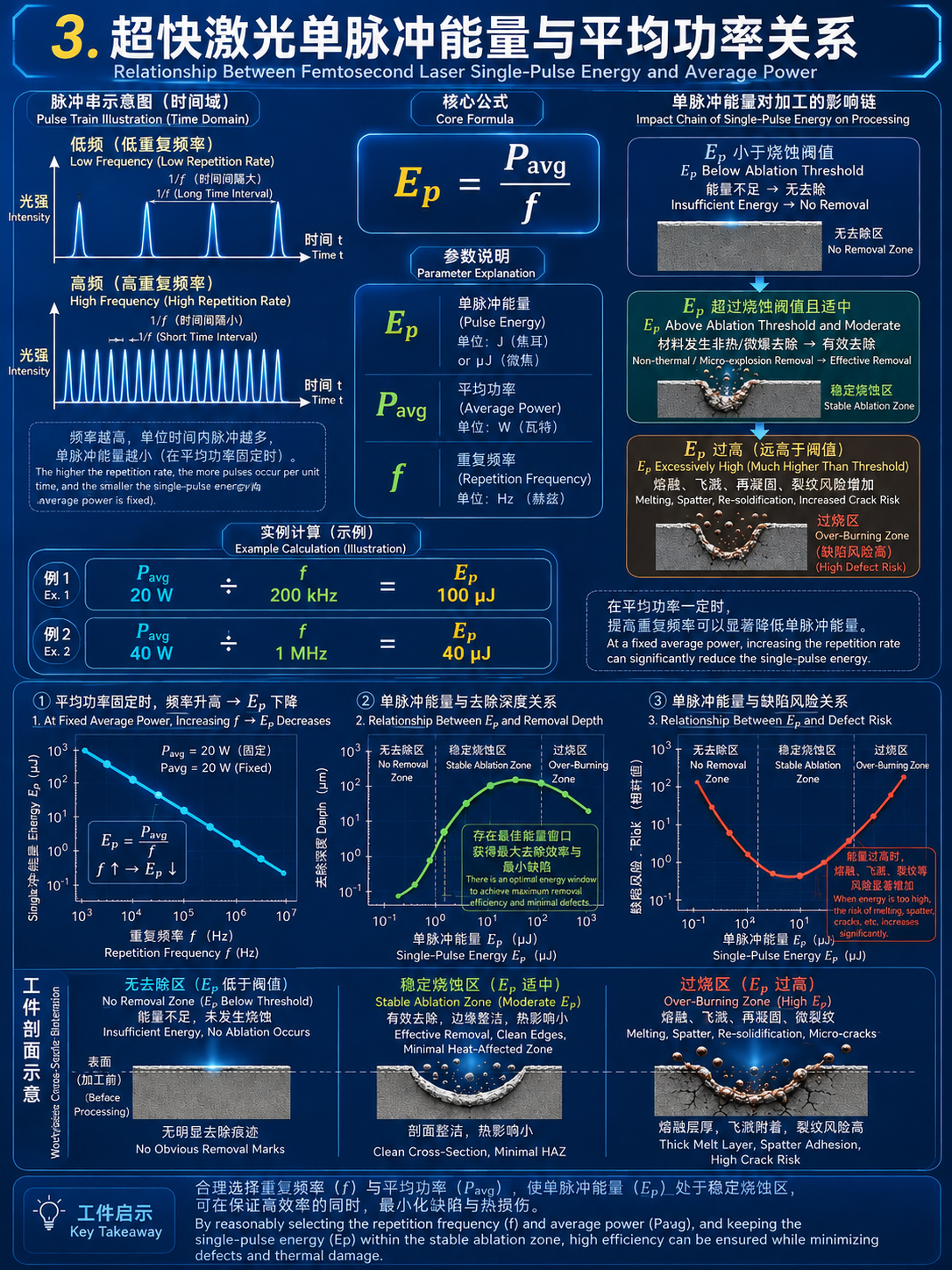

Single pulse energy represents the precise light energy delivered in a single ultrafast laser burst. It is calculated using a straightforward formula:

• Ep (Single Pulse Energy): Measured in Joules (J) or microjoules (μJ).

• Pavg (Average Power): Measured in Watts (W).

• f (Repetition Frequency): Measured in Hertz (Hz), kilohertz (kHz), or megahertz (MHz).

Practical Calculation Examples:

• Case 1: At an average power Pavg = 20 W and repetition rate f = 200 kHz:

  Ep = 20W / 200,000 Hz = 100μJ

• Case 2: Increasing power to Pavg = 40 W while raising repetition rate to f = 1 MHz:

  Ep = 40W / 1,000,000 Hz = 40μJ

Key Insight: At a constant average power, increasing the repetition frequency directly reduces the single pulse energy, distributing power across more frequent, lower-energy pulses per second.

2. The Three Processing Regimes & Material Dynamics

Material removal (ablation) depends on whether single pulse energy exceeds the material's structural threshold. Understanding these three distinct regimes is critical:

1. No Ablation Zone (Ep < Threshold):

• Mechanism: Energy density is insufficient to cause optical breakdown or vaporization.

• Result: No material removal occurs; the workpiece surface remains undamaged.

2. Stable Ablation Zone (Ep Above Threshold & Moderate):

• Mechanism: Ideal cold-ablation / non-thermal micro-explosion occurs.

• Result: Smooth cross-sections, clean cut edges, high processing efficiency, and minimal heat accumulation.

3. Over-burning Zone (Ep ≥ Threshold):

• Mechanism: Excessive energy density generates thermal accumulation and rapid melting.

• Result: Severe defect risks, including heavy remelting, material splashing, debris redeposition, and surface micro-cracks.

3. Balancing Removal Rate and Defect Risk

To determine the optimal process window, engineers must evaluate removal depth against defect probabilities:

• Removal Depth vs. Energy Density: As pulse energy increases beyond the threshold, removal depth reaches an peak window. Operating past this optimal point yields minimal gain in depth while drastically increasing heat.

• Defect Risk Curve: Operating within the stable ablation window keeps defects negligible. Once energy spikes into the over-burning region, defect risk increases exponentially.

Engineering Takeaway & Practical Summary

To achieve high-speed, high-precision laser micromachining without thermal damage, operators should strategically adjust repetition rate (f) and average power (Pavg) to maintain single pulse energy (Ep) strictly inside the Stable Ablation Window.
