What Are High-Reflective Materials?

High-reflective (HR) materials refer to metals that exhibit extremely low absorption rates and extremely high reflectivity to specific laser wavelengths during laser processing. These materials typically feature low electrical resistivity, high electrical conductivity, and smooth surfaces, with absorption rates for near-infrared lasers (e.g., 1060-1070nm fiber lasers) often below 10%.

Typical high-reflective materials include:

• Copper (pure copper, brass): Absorption rate for infrared laser at room temperature is only about 5%, reaching only about 20% near melting point

• Aluminum and aluminum alloys: Reflectivity exceeds 90%, widely used in power battery manufacturing

• Gold and silver: Extremely high reflectivity, commonly used in precision electronics and optics

• Mirror-finished stainless steel: While regular stainless steel has higher absorption, mirror-polished surfaces exhibit significantly increased reflectivity

Physical Principles of High Reflection

The essence of high reflection lies in the Drude model of free electrons: When 1064nm infrared laser (electromagnetic wave) irradiates a metal surface, the optical field drives high-density free electrons within the material to oscillate at high speed. These oscillating electrons radiate electromagnetic waves of the same frequency and phase, forming specular reflection, with energy barely entering the material interior to convert into lattice thermal vibration.

Key factors affecting material reflectivity:

1. Electrical resistivity: Lower resistivity materials have lower laser absorption. Silver and copper have extremely low resistivity, making them highly reflective

2. Surface roughness: Smoother surfaces produce stronger reflection. Rough or oxidized surfaces create diffuse reflection, scattering reflected light in all directions and significantly reducing back-reflection hazards

3. Material state: Solid metals have lower absorption rates; absorption increases significantly after melting. For example, pure copper's absorption rate rises from 5% at room temperature to 20% near melting point

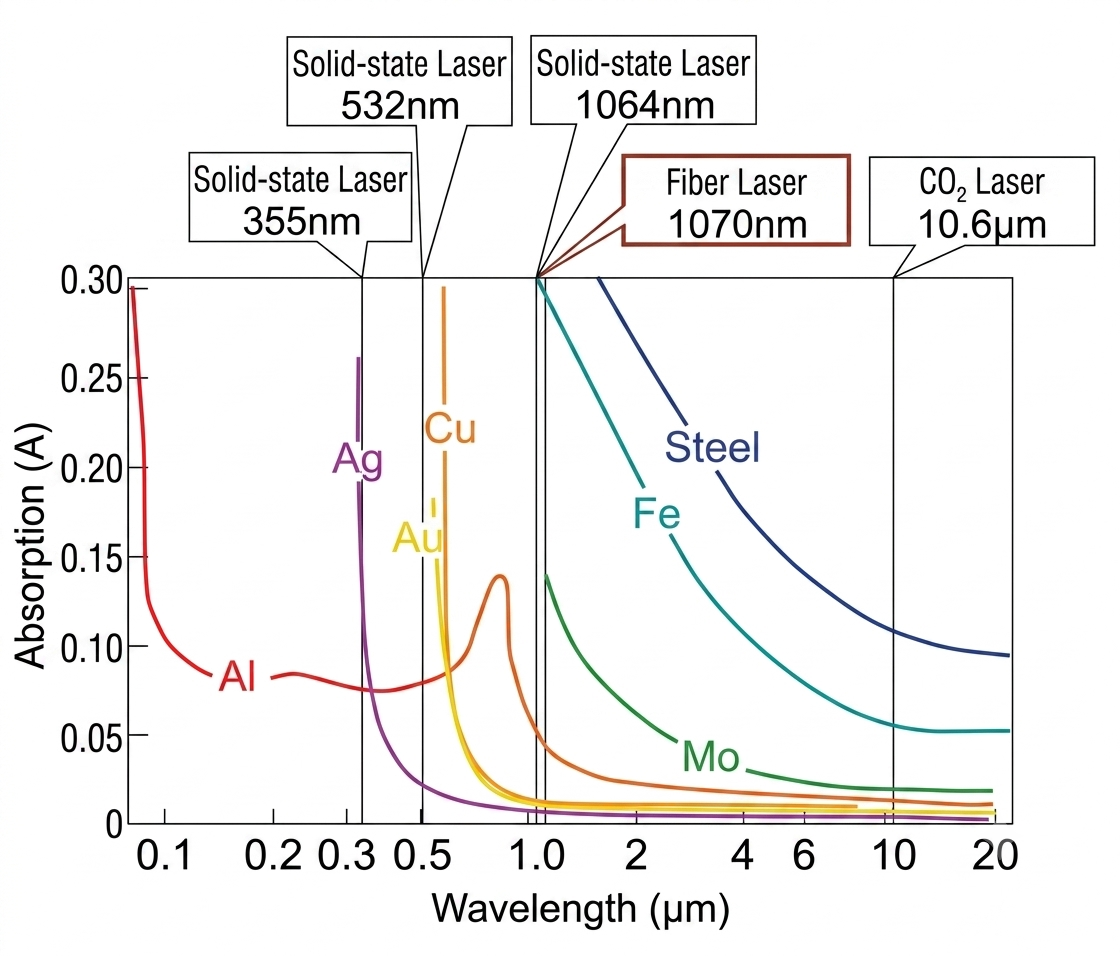

4. Laser wavelength: High reflection is wavelength-relative. Copper has extremely high reflectivity for 1064nm near-infrared laser but 3-8 times higher absorption for 532nm green laser, and is essentially unaffected by high reflection for 355nm ultraviolet laser

Core Challenges in HR Material Processing

3.1 Low Processing Efficiency

Low material absorption leads to slow processing speed, excessive spatter, and unstable weld seams. In power battery copper/aluminum electrode welding, this directly affects battery safety and lifespan.

3.2 Back-Reflection Damage to Equipment

When HR materials are not fully penetrated, reflected laser travels back along the original optical path, first heating and potentially damaging the output cable head, then entering the laser cavity to damage core optical components. For high-power fiber lasers, back-reflected power is higher, increasing damage risk.

Typical problems:

• Laser module burnout, cutting head lens cracking, sensor failure

• Sudden processing interruption, frequent alarm shutdowns

• Drastically reduced protective lens lifespan, requiring hourly replacement

Anti-High-Reflection Technology Solutions

4.1 Multi-Layer Protection Design

Mainstream anti-HR technologies install multi-stage back-reflection stripping devices along the laser output path. For example, GW LaserTech's ABR (Anti-Back-Reflection) technology features five-stage back-reflection detection and stripping devices in single-mode lasers, with additional protection in each module for multi-mode lasers.

4.2 Optical Path Isolation Technology

STR Laser uses specially structured optical path design to isolate and dissipate over 99% of back-reflected light, physically blocking damage paths to core components.

4.3 Intelligent Monitoring Protection System

Built-in sensor networks collect optical parameters at key nodes in real-time. When abnormal reflected light is detected, the system automatically triggers protection mechanisms within microseconds, dynamically adjusting the optical path.

4.4 Blue Laser Technology

Copper has significantly higher absorption for blue light (400-500nm wavelength) than infrared laser. Processing copper with blue lasers requires much lower power: approximately 4000W for conventional infrared lasers versus only 400-800W for blue lasers.

4.5 Cutting Process Optimization

• Power mode: Use high-peak, low-duty-cycle pulse cutting to reduce continuous reflection

• Focus position: Negative defocus cutting (focus 0.5-1mm into material) to enhance energy absorption

• Assist gas: High-pressure oxygen for copper, air for aluminum alloys, nitrogen or air for brass

• Material pretreatment: Sandblasting or coating for ultra-high-reflective materials like mirror aluminum or polished copper

Precautions and Risk Warnings

Despite modern lasers being equipped with multiple monitoring and protection mechanisms, incorrect cutting process parameters can still cause back-reflection to damage cutting heads or laser cavities. When material cannot be fully penetrated and no kerf is formed, most laser energy reflects upward from the material surface, with instantaneous reflected power reaching hundreds or thousands of watts.

Key precautions:

• HR material cutting must use full-power continuous mode

• Batch processing speed should be reduced to approximately 80% of prototype speed

• All optical path systems in the cutting head require good water cooling circulation

• High-quality protective lenses are mandatory

Application Fields and Value

HR material laser processing technology has significant applications in:

• New energy vehicles: Battery copper/aluminum electrode and motor winding welding

• Aerospace: Thin-walled aluminum alloy components and composite material processing

• Power engineering: Large copper component welding (transformer busbars, cable connectors)

• 3C electronics: Precision electronic component processing
