Why Desktop Metal Cutting Machines Can't (Safely) Cut Precious Metals (800W–1200W Deep Dive)

Intro: Are Precious Metals a "Forbidden Zone" for Laser Cutting?

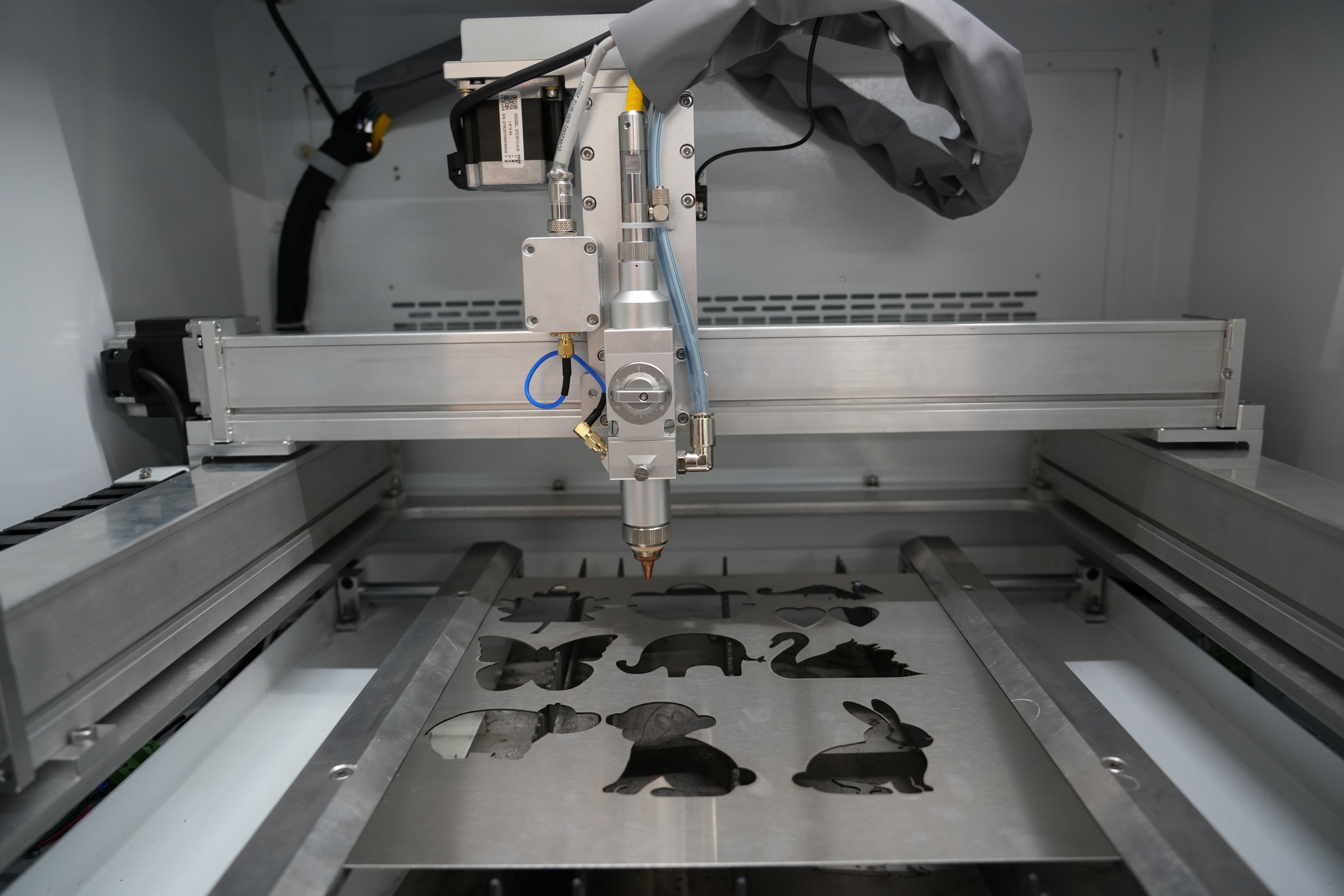

Many small workshops, jewelry stores, and makers who own an 800W or 1200W desktop metal cutting machine wonder: can I use it to cut gold and silver? The answer is surprising — in most cases, you can't, and worse, you might damage the machine. This isn't about lacking power; it's about laser physics and materials science.

1. The Core Truth: Precious Metals Barely "Absorb" the Laser

Most desktop cutters use fiber lasers (~1064–1070nm). Here's the problem:

表格

In other words: with 800W or 1200W cranked up, most energy is "bounced back" — only a tiny fraction actually cuts.

2. Why It Can't Cut: Insufficient Power Density

Cutting metal requires a critical condition — forming a "keyhole" within microseconds. A keyhole is a narrow vaporized channel; once formed, laser absorption jumps from a few percent to nearly 100%.

Desktop units (800W–1200W) have two fatal limitations:

1. Insufficient power density: High-reflectivity materials need a threshold of roughly 1000W–1500W+. 800W–1200W machines barely reach it — always in a "critical zone."

2. Energy wasted: Before keyhole formation, much of the beam is reflected back into the optics or conducted across the thin sheet, causing wide heating, melting, and distortion — wide kerfs, black edges, high scrap rates.

Worse comparison: A jeweler using a multimode fiber laser on gold pendants got ragged edges and discoloration, with a >40% scrap rate across 500 pieces. Catastrophic material loss for precious metals.

3. Why It "Damages the Machine": Back-Reflection

This is the most overlooked and dangerous issue. Reflected laser light travels back into the laser source:

• Can burn fiber connectors, optical isolators, pump diodes

• Can crack or burst cutting head optics

• Triggers forced shutdowns and process interruptions

Real case: A jewelry manufacturer processing gold, silver, and platinum with a non-protected multimode laser had two diode failures in 12 months — $18,000 in repairs, $32,000 in lost production. For a desktop machine costing a few thousand dollars, one such failure could effectively "kill" the unit.

4. Thermal Conductivity: Heat Just "Escapes"

Beyond reflection, precious metals are excellent heat conductors:

表格

High conductivity means heat spreads rapidly instead of concentrating at the cut point — wide kerfs, heavy dross, black edges, unstable process. It's like focusing sunlight, but the surrounding metal "steals" the heat before you can burn through.

5. Can It Cut at All? — Not Absolute

Let's clear a misconception. 800W–1200W desktop machines are not "absolutely incapable" — they just need strict conditions:

✅ Must have back-reflection protection: fast-interlock back-reflection photodiode, beam dump in cutting head, optical isolator in source — none optional

✅ Use pulsed mode: high-peak, low-duty nanosecond pulses (20–50ns, spot <40µm) couple into the material before the reflection window, pushing absorption near 100% with <1% scrap

✅ Extremely thin precious sheet: typically only 0.3–1.5mm gold, silver, brass

✅ Surface pretreatment: sandblasting or coating (e.g., black marker) to reduce reflectivity

In short: Yes, it can — but only for precision thin-sheet jewelry prototyping, with demanding machine configuration that ordinary desktop units lack.

6. Practical Advice for Users

1. Default: don't cut precious metals on ordinary 800W–1200W desktops, especially pure gold, silver, copper, or mirror-finish reflective materials.

2. If you must: confirm back-reflection protection + single-mode pulsed laser, and accept very thin sheet limits.

3. High-value workpieces: use a specialized precious-metal laser processing service to avoid costly scrap and damage.

4. Alternatives: wire EDM and mechanical precision cutting are safer and more material-efficient for precious metals.

Conclusion

Bottom line: Desktop cutters "can't" cut precious metals not because of insufficient power, but because precious metals' physical nature (high reflectivity + high conductivity) clashes with desktop units' limited power density and missing back-reflection protection. To work in jewelry processing, the answer isn't cranking up power — it's specialized single-mode pulsed lasers, robust back-reflection guards, and extremely thin workpiece conditions.
