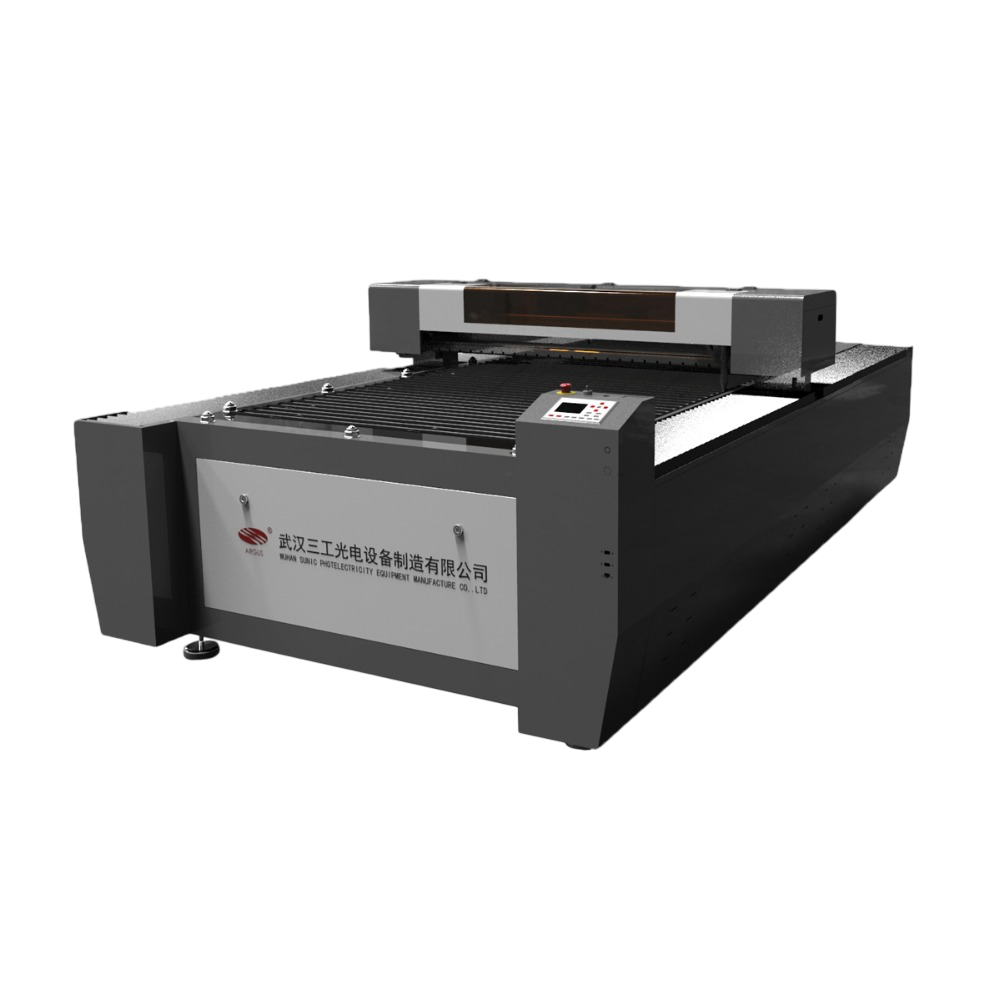

Wood Cutting with CO2 Laser Cutting Machine ARGUS 1325 300W -Argus Laser manufacturer

ARGUS 1325 300W CO2 Laser Cutting Machine for Wood offered by Argus Laser manufacturer . Inquiry ARGUS 1325 Wood CO2 Laser Cutting Machine solution directly with low price and high quality. Designed for cutting large size metal and non-metal materials : Wood, Acrylic, Metal. Configured with 150W-300W Co2 Laser Tube. Sufficient stiffness machine body with 1300*2500mm worktable.


Aluminum alloy crossbeam&laser head, import focus lens. Stepper motor&belt transmission, laser head height adjustable, RDCAM control system. Module steel frame structure to reduce the mechanical trouble effectively.

Availability:
Quantity:
Inquire Add to Basket

  • SCU1325

1325 Laser Cutting Machine — Large Format, High Precision, Endless Possibilities
With a spacious 1300×2500mm working area and advanced CO₂ laser technology, the 1325 delivers smooth, accurate cuts for acrylic, wood, MDF, leather, and more.
Learn More
  • High Precision Cutting
    Smooth edges and fine details with advanced CO₂ laser technology.
    Learn More
  • Large 1300×2500mm Work Area
    Handle bigger projects and diverse materials with ease.
    Explore Now
  • Durable Industrial Build
    Heavy-duty frame ensures stability and long service life.
    See Details
  • Easy to Operate
    User-friendly software compatible with popular design formats.
    Get Started
  • 1
  • 4
  • 3
Co2 Laser Cutting Machine
1.Large Cutting Capacity
-Designed for cutting large non-metal materials with a 300W CO2 laser tube and 1300*2500mm worktable.
2.Premium Components
-Aluminum alloy crossbeam, imported focus lens, and servo motor & ball screw transmission for precise cutting.
3.Durable Structure
-Modular steel frame reduces mechanical issues for long-term reliability.
4.Reliable Guiding System
-Taiwan HIWIN linear guide rails ensure smooth feeding and accurate cutting.
5.User-Friendly Control
-LCD screen control panel with easy operation and patented design for enhanced user experience.
6.Smooth, Accurate Cuts
- Large worktable ensures consistent and precise cutting performance
7.Advanced Laser Optics
– Imported USA laser optics lens offers low energy loss, high reflectivity, and strong focusing forefficient cutting.
Read More


Get Your Free Quote Today
Tell us about your material, size, and application needs — our experts will recommend the perfect 1325 laser cutting machine for you within 24 hours.
Request a Quote
Machine Structure
Adopting Integral Casting Molding technology, this machine enhances body stiffness and ensures crossbeam stability during high-speed operation. The steel plate undergoes tempering and vibration aging to eliminate stress, ensuring a long lifespan.

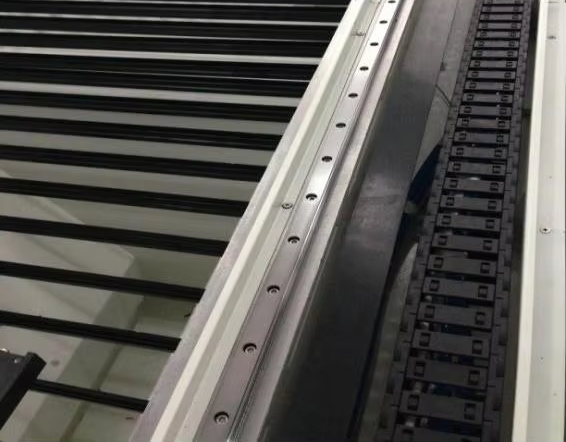

Adjustment of Guide Rail
We choose Taiwan HIWIN liner guide rail, in order to ensure the precision of crossbeam motion.

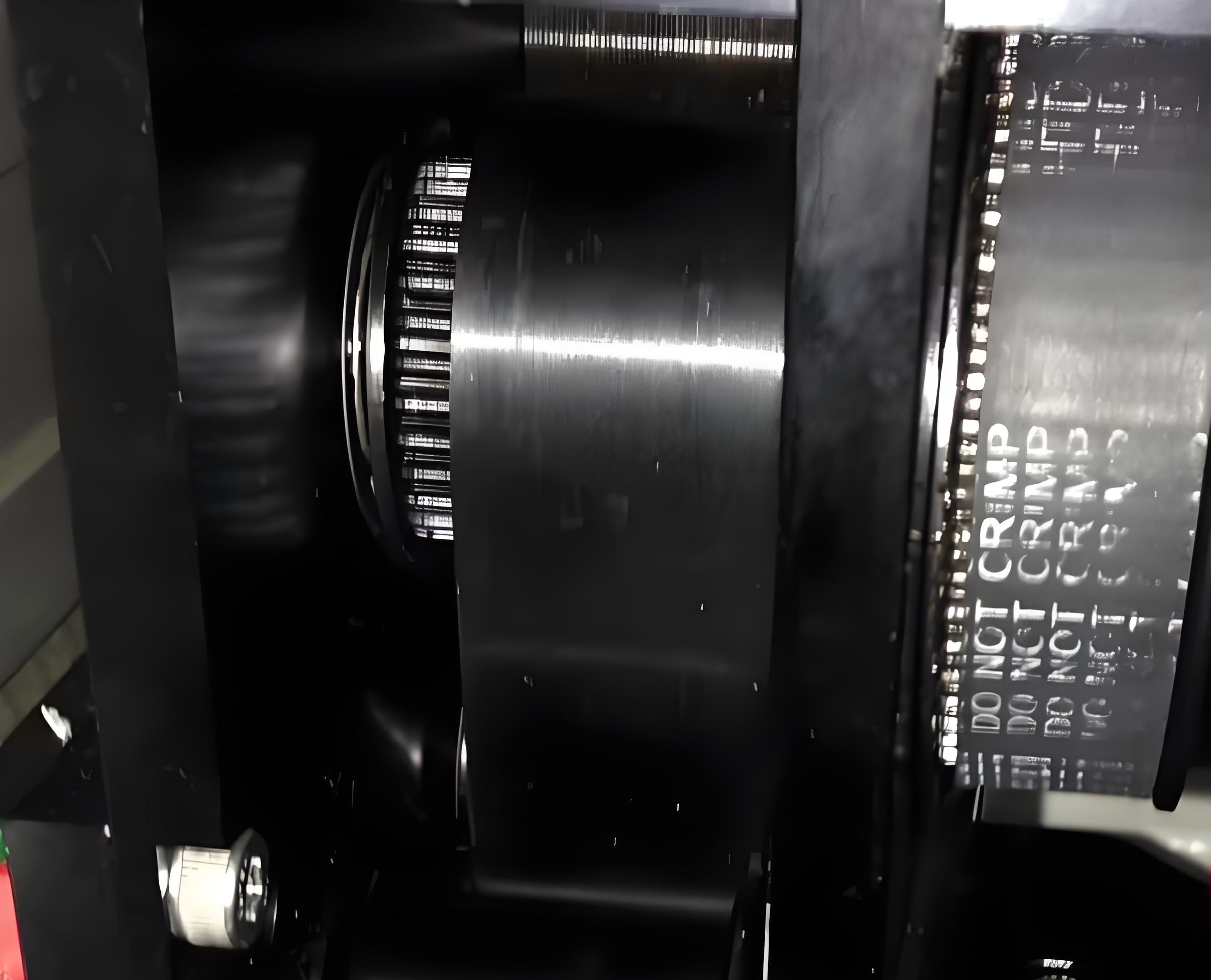

Steel Wire Belt
The X,Y axis motion system uses a stepper motor with belt transmission. The new SCU1325 features a steel wire belt with internal steel reinforcement, offering higher stiffness and no deformation compared to standard belts.

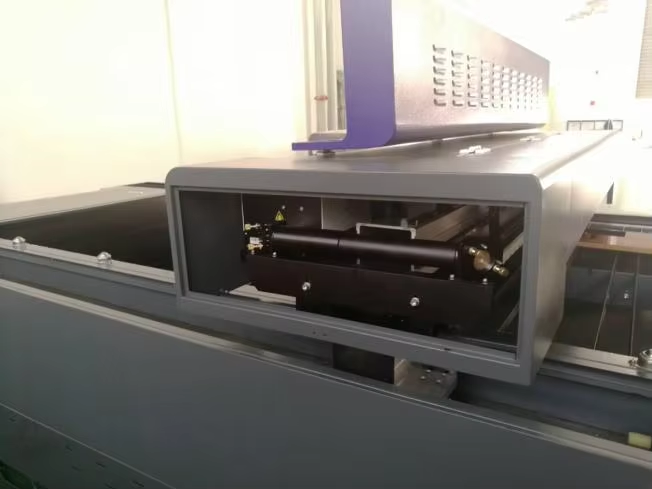

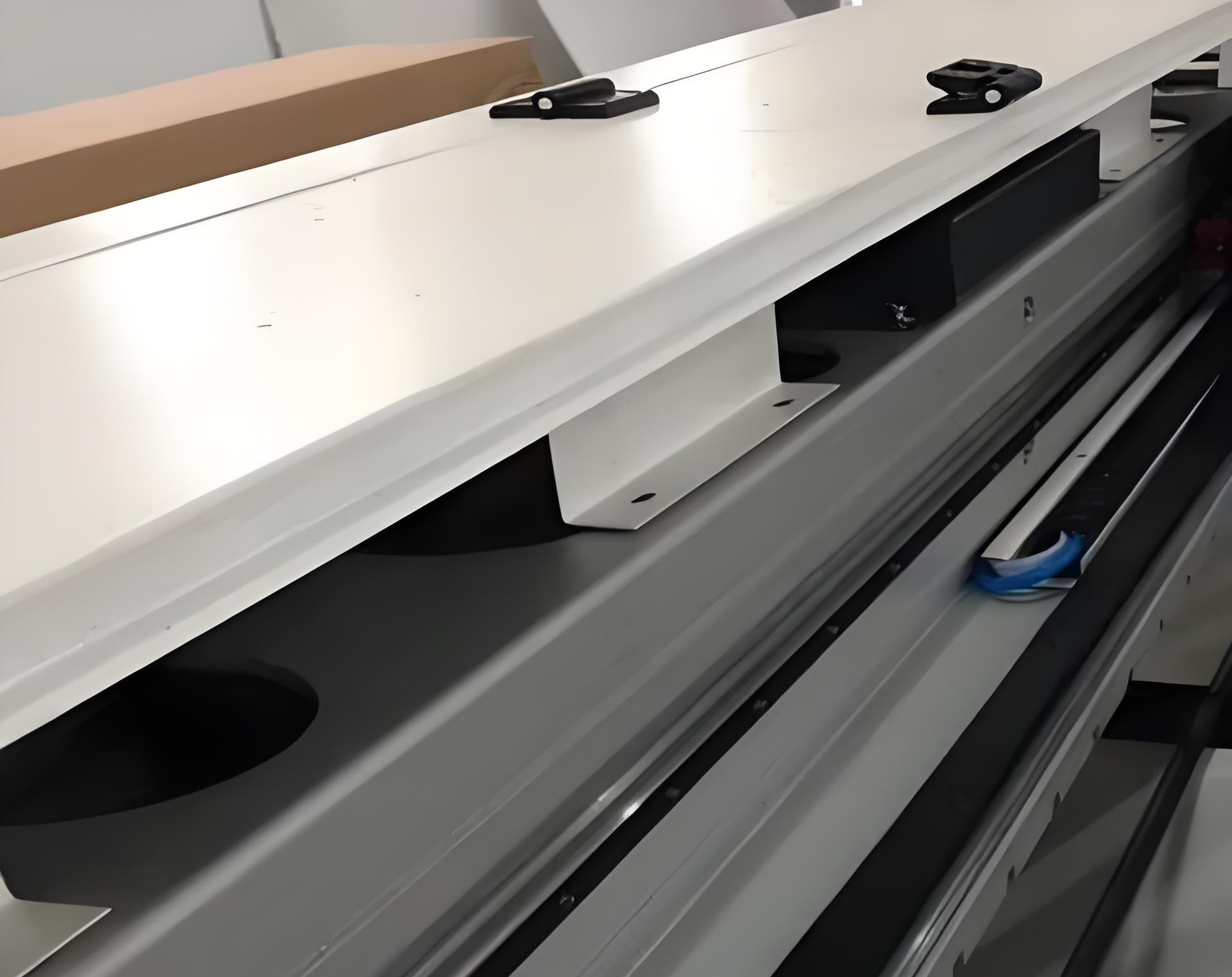

Integrated Aluminum Crossbeam
The new crossbeam design is heavier than the previous version, with the main structure made using integral casting molding instead of welded aluminum plates. This improves the stability and motion inertia of the crossbeam, ensuring enhanced cutting accuracy.
New Design Ratio System
The X-axis motor's ratio system uses an “Ω” shaped transmission design with three additional driving wheels, ensuring a high ratio to prevent belt slipping and improve motion accuracy.
Why Choose Us as Your Laser Machine Partner
1 -
  • 27+ Years Manufacturing Experience
    Over 27 years of expertise in laser cutting and engraving technology, delivering proven quality and reliability.
  • Global Customer Base
    Trusted by clients in 80+ countries, with thousands of successful installations worldwide.
  • Complete After-Sales Support
    From installation to lifetime technical assistance, we ensure your machine runs at peak performance.
  • Customized Solutions
    Tailor-made laser systems to match your specific materials, applications, and production needs.
FAQ
  • What types of laser machines do you offer?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: We provide CO₂ laser cutting/engraving machines, fiber laser cutting machines, and fiber laser marking machines, suitable for various materials and industries.
  • How do I choose the right laser power?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Power depends on your main materials and thickness. For example, 100–150W CO₂ lasers are ideal for thick acrylic and wood, while 1–6kW fiber lasers handle stainless steel, carbon steel, and aluminum efficiently.
  • Can the machine engrave and cut?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Yes. CO₂ lasers can cut and engrave non-metal materials, while fiber lasers are mainly for metal cutting or high-speed marking.
  • How is installation and training provided?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: We offer detailed user manuals, online video training, and remote technical guidance. On-site installation is available for large-scale projects.

CO2 LASER CUTTING 1325 TECHNICAL PARAMETERS

SCU1325 laser cutting machinepng


Specifications Parameters
Cooling System Water Cooling System
Model SCU1325
Work Area 1300x2500mm
Weight 1400KGS
Laser Power 130W/150W/280W300W
Drive Delta Servo Motor Drive System
Idle Speed 300mm/s
Accuracy of Repeated Orientation ±0.08
Transmission Way Servo motor& Ball screw Transmission
Resolution(DPI) Available 300
Computer Interface Standard Printer Port and USD Port
Memory Buffer 128 M

Display Panel

 LCD Panel showing current file name, total working time, laser power, cutting time, file(s) loaded in the memory buffer,setup and menus
Safety

Huff Protection,Hydraulic Pressure Protection
Worktable Aluminum Bar strip worktable
Formats Support PLT.BMP.DXF.DST,T100.etc
Electrical 220V/60kHz/4KVA
Air Exhaust System

Pipes, Connections and Exhaust Fan

(Included)

Equipment performance

1. Designed for cutting large size METAL and nonmetal materials. Configured with 300W Co2 Laser Tube. Sufficient stiffness machine body with 1300*2500mm worktable.

2.Aluminum alloy crossbeam & laser head, Import focus lens. Servomotor&Ball screws transmission, Laser cutting head height adjustable, RDCAM control system.

3. Module steel frame structure to reduce the mechanical trouble effectively.

4.Taiwan HIWIN liner guide rail, Routeway feeding.

5. Patent Design is applied in the machine, easy operation with the control panel of LCD screen worknormally.

6. The machine can cut the work piece smoothly and accurately by the big worktable.

7.Adopt imported USA laser optic lens. The lens of less energy loss, high reflectivity, strong focusing and durable. Optical less losses in the transmission process to avoid the problems of large attenuation of laser cutting power

COMMON MATERIALS TO PROCESS WITH CO2 LASER

MATERIAL

CUT

 ENGRAVE
Paper ✔ ✔
Cloth ✔ ✔
Wood ✔ ✔
MDF ✔ ✔
Wood Veneer ✔ ✔
Acrylic ✔ ✔
Leather ✔ ✔
Matte Board ✔ ✔
Cork ✔ ✔
Rubber ✔ ✔
Bamboo ✔ ✔
Melamine ✔ ✔
Plastic ✔ ✔
Glass X ✔
Ceramic X ✔
Tile X ✔
Marble X ✔
Press Board ✔ ✔
Home Textile ✔ ✔
Anodized Aluminum X
 ✔
Tumbler X ✔
Stone X ✔
Appliques ✔ ✔
