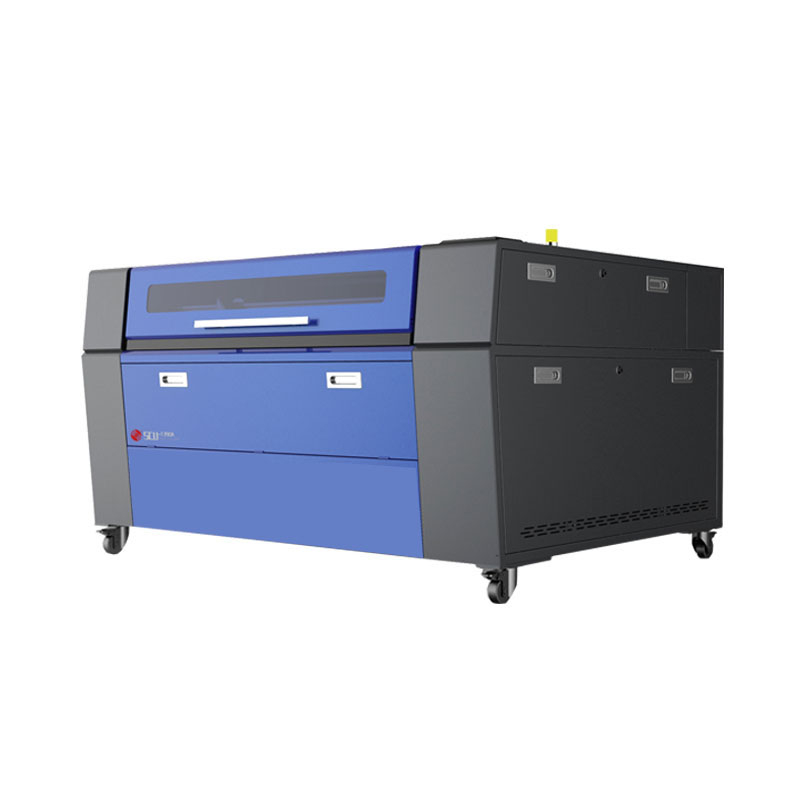

ARGUS 100W CO2 Engraver Cutting Machine with working area 51"X35" Laser Cutting Machine

1. High speed with max engraving speed 3000mm/s
2. High resolution can reach 1,000~1,200DPI
3. Long life span 20,000hrs, gas refill available;
4. Solid X/Y linear guide motion module and high precision Hiwin square guide rail ensure high stability and high precision of machine operation;

Availability:
Quantity:
Inquire Add to Basket

  • SCU1390A

  • ARGUS

Precision Meets Creativity
Engineered for precision and built for creators, our laser engraving and cutting machine delivers exceptional results on wood, acrylic, leather, and more. Whether you’re crafting prototypes, signage, or artistic pieces, achieve perfect cuts and stunning engravings—every time. Discover fast, reliable, and versatile performance tailored for professionals and makers alike.
Learn More
  • High Precision
    Achieve ultra-fine details with smooth edges—perfect for intricate engraving and clean cuts on various materials.
    CONTACT US
  • Long Lifespan
    Built with industrial-grade components for extended durability, ensuring stable performance over years of continuous use.
    CONTACT US
  • Multiple Size Options
    Available in a range of working area sizes to suit everything from compact workshops to full-scale production needs.
    CONTACT US
Unleash Limitless Cutting & Engraving Potential
✦With high-speed servo motors, max engraving speed 2000mm/s
✦Up to 3x faster than standard stepper motors
✦Higher wattage for cutting thick materials
✦Glass tube life can reach 8000~10000 Hours , RF.metal laser tube available
✦Electric lift worktable easy for processing diverse thickness sheets
✦Auto-focus, Red Dot Pointer, and Status Indicator Light
✦Strong machine frame, make sure stable performance while high speed cutting or engraving
CONTACT US
Value-added Applications Created by the ARGUS LASER
  • Tumbler
  • Marble
  • Leather
  • Wood
  • Acrylic
Laser Tube Options
RF Metal Tube
Durable and low-maintenance, RF metal tubes offer superior beam quality and high-speed engraving—ideal for precision-focused industrial tasks.

Glass CO2 Tube
Cost-effective and powerful, glass CO2 tubes are perfect for deep cutting and general engraving, making them a great fit for most production needs.
Hiwin Guide Rail
Equipped with Taiwan Hiwin guide rail, with features of high positioning accuracy, strong load bearing and good dynamic performance.
Auto Focus
Argus Laser features an upgraded cone-head touch auto-focus system, ensuring easy operation and improved focus accuracy.
Honeycome/Knife Blade Platform
Honeycomb or Strip work table for you to choose, use imported stable aluminum material, can meet the needs of diversified laser procession.
RDC6445G Control System
Easy-to-use control system with a clear interface and real-time job preview. Supports USB, Ethernet, and Wi-Fi for fast, flexible file transfer—ideal for both beginners and pros.
CO₂ Laser Engraving in 6 Simple Steps
  • Prepare Your Design
  • Import & Set Parameters
  • Position the Material
  • Frame the Area
  • Start the Process
  • Finish & Collect
  • Precision Engraving
    Delivers ultra-fine detailing on wood, acrylic, leather, and more—ideal for logos, patterns, and intricate artwork.
  • Powerful Cutting Performance
    Easily slices through thick materials with clean, smooth edges. Supports multi-layer cutting and complex designs.
  • User-Friendly Control Panel
    Equipped with RDC6445G or similar controller for intuitive operation, real-time job preview, and efficient workflow.
  • Large Working Area Options
    Available in multiple sizes to suit hobbyists and industrial users alike—handle anything from small tags to full panels.
  • Smart Air & Exhaust System
    Keeps the working area clean while reducing heat impact, ensuring better engraving quality and a safer environment.
  • Stable & Reliable Performance
    Built with industrial-grade components for long service life, consistent output, and low maintenance needs.
Request for Quotation
Need pricing, customization, or shipping info? We’re here to help—just leave us a message!
Let’s Talk Details

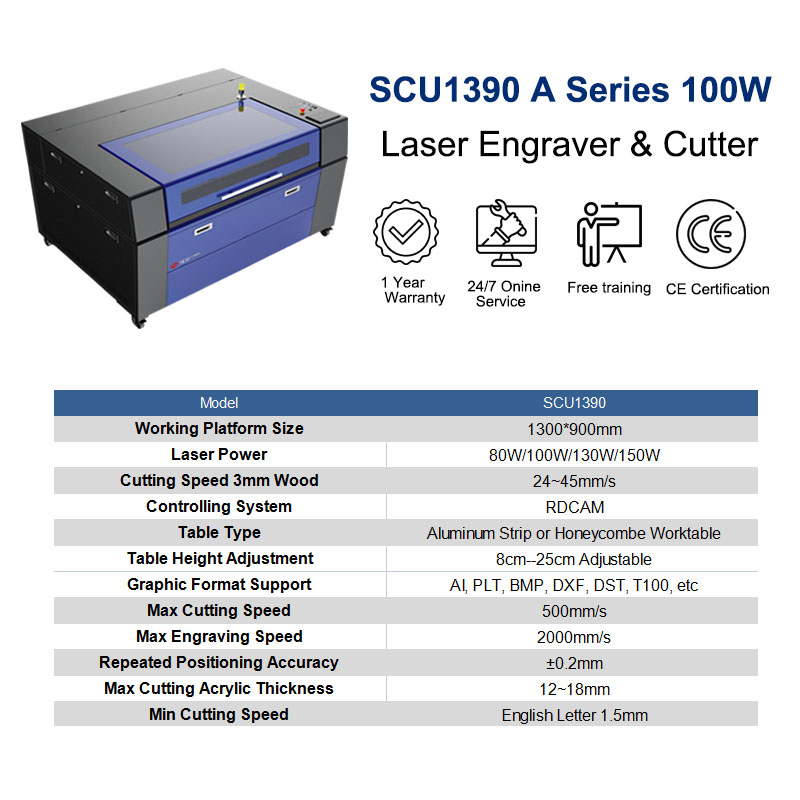

TECHNICAL PARAMETERS


1390A1

                               Model
                           SCU1390A
Working Platform Size 1300*900mm
Laser Power CO2 80/100/130/150watts
Origin Setting(Red Pointer) Red Pointer：650nm
Controlling system Ruida
Table Type Aluminum Strip/Honey comb
Worktable Up & Down 10cm Adjustable

Air Pump

Power：138W

Flow Rate：100L/Min

Voltage：220V
Exhaust Fan

Power：550W

Blowing Rate：18m³/min

Calibre Of Outlet：80mm

Wind Pressure：1.70Kpa

Rotating Speed：2800RPM
Focus Lens 2.5 inch
3-Phase Stepper Motor Phase Current：3.5A

Whole Stepping Angle：1.2°
Torque：0.9N.m
Mo Mirror Reflectivity 95%
Software Format Support CorelDraw, Photoshop, AutoCAD,etc
Graphic Format Support AI,PLT,BMP,DXF,DST,T100,etc
Process Material Non-metal Materials
Max Cutting speed 300mm/s
Max Engraving speed 2000mm/s
Repeated Positioning Accuracy ±0.2mm
Min. Cutting Character English Letter：3mm
Max.Cutting Depth 0-15mm(it's up to the material)
Cooling ways Circulation Water Cooling
Working Temperature 0-35℃
Working Humidity 5-95%
Working Power 220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA
Packing Dimension 2185*1465*1260mm
Net weight 450KG
Gross Weight 500KG
Cubage
 4.03CBM




Industry Applications
  • Signage and Advertising
  • Packaging industry
  • Furniture Industry
  • Art and Design
  • Clothing industry
  • Decorative Elements
More Possibilities...
