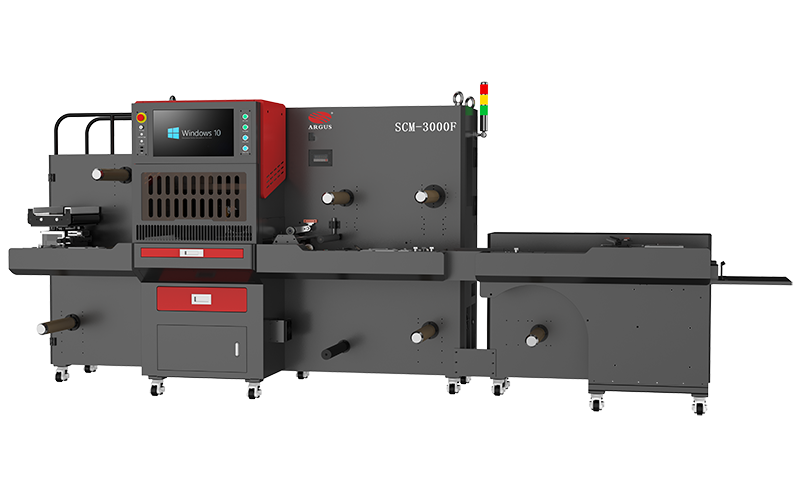

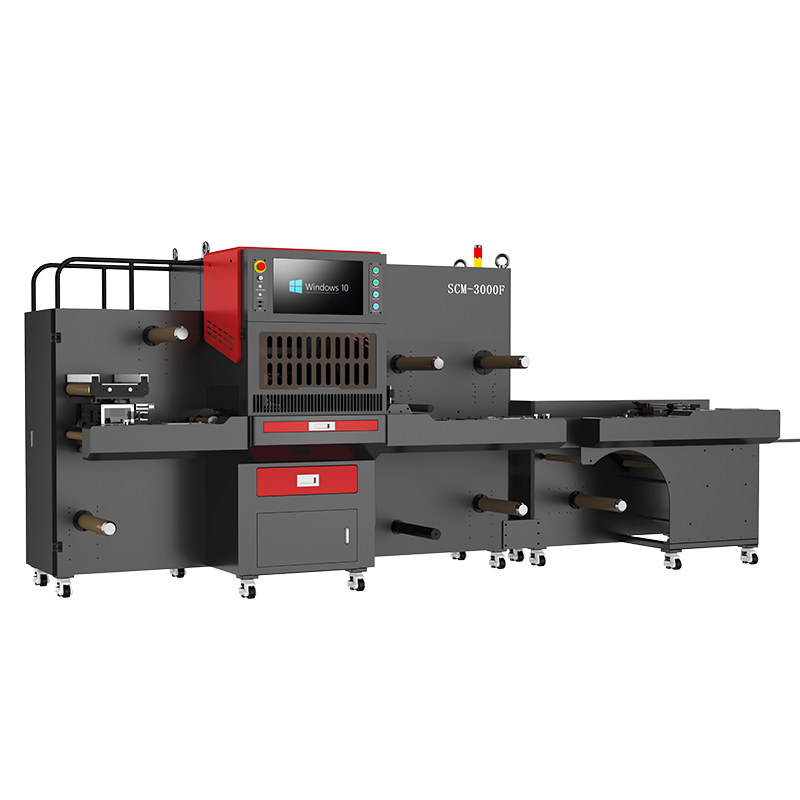

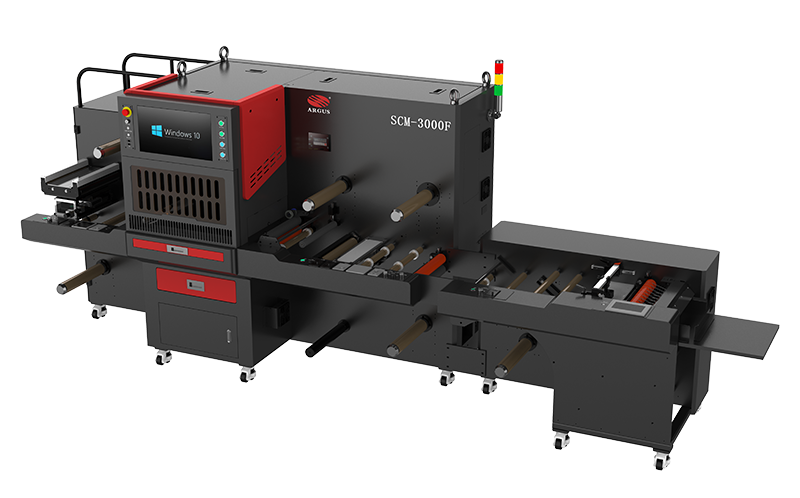

ARGUS 250W Automatic Roll-to-Roll Laser Die Cutter for HTV & Vinyl with Slitting Function

ARGUS Automatic Laser Die-Cutting Machine 250W for Sticker Equipped with Feeding And Reeling Functions SCM2000

ARGUS Label Sticker Laser Die-cutting Machine Vinyl Cutter Galvo Co2 Laser Cutting Machine SCM2000

ARGUS 250W Automatic Roll-to-Roll Laser Die Cutter for HTV & Vinyl with Slitting Function

The ARGUS 250W Automatic Roll-to-Roll Laser Die Cutter is an industrial-grade, highly efficient solution engineered specifically for high-volume processing of Heat Transfer Vinyl (HTV), garment transfer films, stickers, and flexible materials. Equipped with a powerful 250W CO2 laser system and an inline slitting module, this machine seamlessly combines continuous precision die-cutting and slitting into a single, automated workflow—eliminating the need for traditional mechanical dies and reducing

Quantity:
Availability:





Inquire Add to Basket

Model:
SCM2000

ARGUS Automatic Roll-to-Roll Laser Die Cutting Machine for HTV

This high-precision laser die-cutter is designed for heat transfer vinyl (HTV) rolls. Featuring advanced laser technology and automated roll handling, it delivers efficient, precise, and reliable processing solutions.

Get a Quote

High Quality

250w Coherent Laser Source

High Efficiency
Max 7000mm/s Marking Speed

Full Automatic
Loading, Unloading, Waste Discharge

Edge Tracking
Auto Edge Detection & Alignment

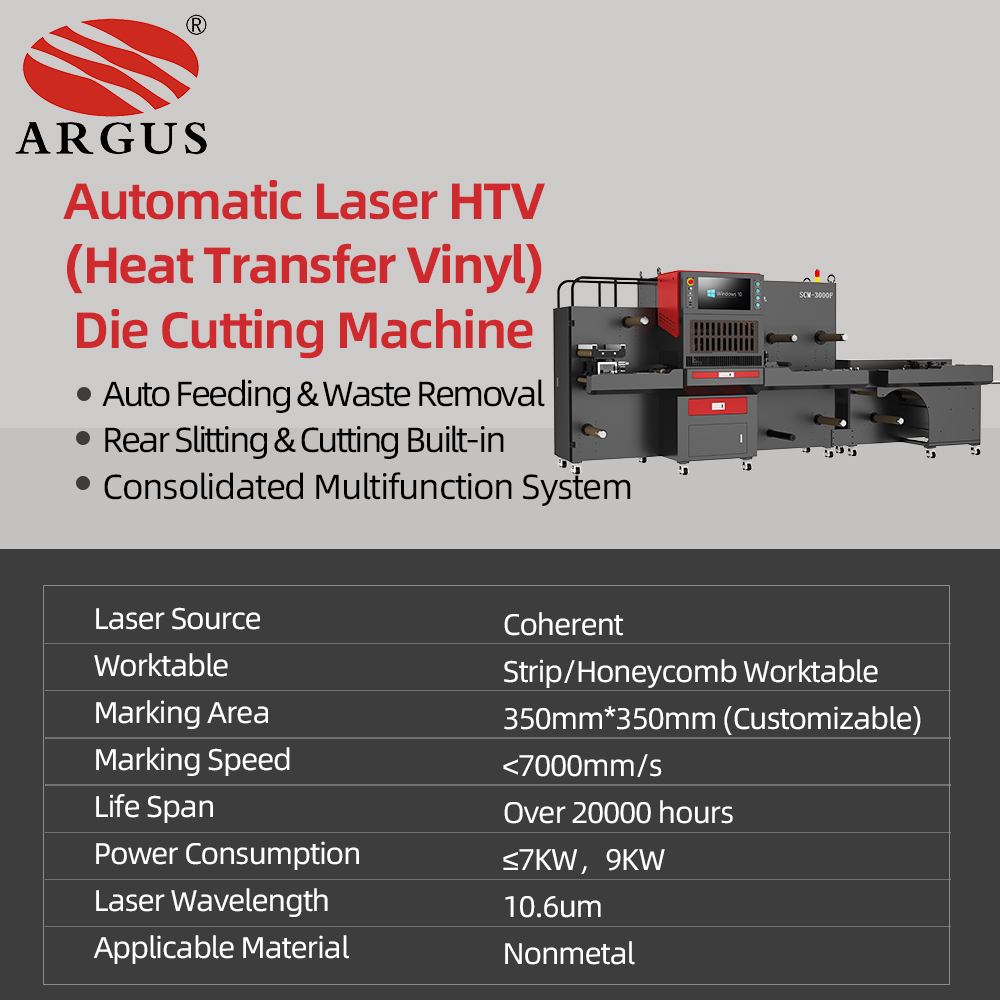

ARGUS Automatic Laser Die Cutter for Heat Transfer Vinyl

1. Premium Coherent Laser Source: Stable output and extended lifespan for consistent, high-quality cutting.
2. High-Speed & Precise: Imported galvo scanner and 3D dynamic focus achieve a fine 0.22mm spot and speeds up to 1,200 m/h with distortion-free edges.
3. Versatile Processing: Handles diverse materials with a maximum width of 350mm (customizable).
4. All-in-One Automation: Integrated unwinding/rewinding, tension control, web guiding, liner peeling, waste stripping, and laminating for continuous production.
5. Intelligent Vision: Optional mark sensors, on-the-fly vision positioning, and inline defect detection for ultimate precision and yield.
6. Flexible Output: Optional slitting and cross-cutting units for roll-to-roll or roll-to-sheet finishing.

Applicable Industry and Material
PVC, TPU, PU, luminous,laser soft metal, reflective, flocking, gold onion, reflective screen printing, weak solvent printing film,plasticspraying printing film,and other heat transfer film materials.

Get Solutions

1mm Thick Film

0.36mm Ultra-narrow Lines

0.1mm Ultra-thin Film

Galvo Scanning System

Galvo head scan area could reach to 350*350mm once. 3D dynamic galvanometer control system ensure the best processing results .

Original Imported Metal RF Laser Metal Tube

High laser power,excellent laser spot, stable laser generation and life time of more than 20000hrs.

Material Alignment System

Ensures continuous, precise registration by automatically correcting material orientation and position in real time, eliminating manual adjustments and reducing waste.

Mark Recognition Sensor System

Accurately detects printed registration marks to guarantee consistent positioning across every production cycle, enabling seamless pattern continuation.

Unwind & Rewind Shafts

Engineered with high-strength alloy cores and dynamic balancing technology, ensuring smooth, vibration-free operation even at high speeds.

Worktable:Large marking Area

Max marking area:350*350mm, can die-cutting, full cutting, and kiss-cutting

Visual Enclosed Cover

Provides full operator safety through interlocked protective shielding while allowing clear process monitoring without interrupting production.

Slitting System

Precisely cuts materials into multiple specified widths using adjustable blades, allowing flexible customization without tooling changes.

Sheet Cutting System

Automatically cuts continuous rolls into individual sheets with consistent dimensions and clean edges, ready for packing or further processing.

Waste Removal & Collection System

Automatically strips and winds matrix waste without manual intervention, maintaining workspace cleanliness and supporting uninterrupted production.

Industry and Materials

Machining Result Presentation

Not sure if this machine fits
your material or design
needs?

Click below to consult with our engineers for free.

Roll to Roll Laser Die Cutter Roll-to-Roll Laser Cutter with Slitter 250W Laser Cutter for Stickers HTV Laser Cutting Machine Vinyl Roll Laser Die Cutting Equipment Automatic Laser Slitting and Die Cutting Machine 250W CO2 Laser Die Cutter Heat Transfer Film Laser Processing Digital Label & Sticker Laser Cutter Industrial HTV Laser Cutting Solution

Contact ARGUS to Reques Laser Pricing

Feel free to reach out to us anytime, day or night, via fax, email, or phone. Alternatively, you can use our quick contact form to inquire about our services. We're here to answer any questions you may have.

阿斯达是===uyUfgNJDRHsj

npKfAVIwRavO iWAjKEwCrmVZ

GET SOCIAL

PHONE / WhatsApp / Wechat

+86-18372192596

ADDRESS

NO.4 Huanglong Shan North Road, East Lake High-tech District, Wuhan City, China

suniclaser@sunic.com.cn

Model	SCM2000
Max.Marking Area	350x350mm(Customizable)
Laser Output Power	250W(Coherent J2)
Marking speed	≤7000mm/s
Power consumption	≤7 kWh
Worktable	Aluminum Strip/Honeycomb Worktable
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Min.Letter Size	0.3mm
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT, DXP, BMP, JPG, AIetc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting
Power supply	110V~380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling
Equipment size	2.7m * 1.3m * 1.9m
Equipment weight	About 1600KG

ARGUS 250W Automatic Roll-to-Roll Laser Die Cutter for HTV & Vinyl with Slitting Function

ARGUS Automatic Laser Die Cutter for HTV Parameters
