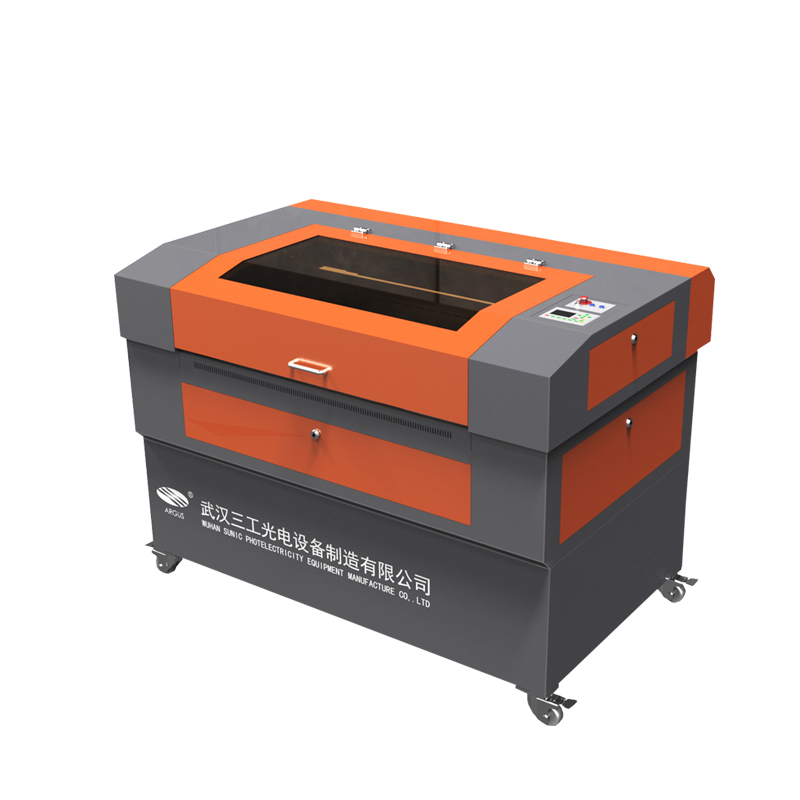

ARGUS 30W 60W Co2 Laser EngravingMachine for Cutting Wood Plastic Acrylic Leather Laser Engraver 500*700mm

Features 5070H

1. Electric lift worktable easy for processing diverse thickness sheets

2 All electrical parts strictly conform to CE Standard

3. Glass Tube life can reach 1000Hours , R F. metal laser tube available

4.Imported II-VI INFRARED focus lens, high steadily laser output

5. Strong machine frame, make sure stable performance while high speed cutting or engraving

6.Humanized design worktable, handy material recycling drawer

7.Red dot pointer with beam combiner
Availability:
Quantity:
Inquire Add to Basket

  • SCU5070

  • ARGUS

Engineered for Creators — Cut & Engrave with Confidence
Ideal for workshops, studios, and small businesses — the 7050 laser machine delivers high-precision engraving and fast, clean cutting across a wide range of materials.
Explore more
Advantages of the Engraving & Cutting Machine
1). Multifunctional CO₂ Laser Cutting & Engraving Machine
This is our most cost-effective and versatile model, ideal for cutting and engraving non-metallic materials such as acrylic, wood, MDF, fabric, leather, and more.
2). Laser Power Options: 60W–180W
60–130W: Suitable for both engraving and cutting
150W–180W: Primarily for deep and high-speed cutting
Compatible with materials like acrylic, plexiglass, wood, rubber, PVC, stone, glass, paper, etc.
3). High-Speed Stepper Motor System
Delivers engraving speeds up to 800 mm/sec with smooth motion and stability.
4). Complete System Included
Machine comes fully equipped with laser tube, water chiller, air pump, exhaust fan, and all essential components — ready to run out of the box.
5). Optional Features for Enhanced Functionality
Available upgrades include red dot pointer, motorized up-down table, rotary attachment, autofocus, and Wi-Fi connectivity to expand application range and convenience.
Read More
Laser Tube
Famous brand co2 glass laser tube with high quality,long life length and precision cutting and engraving effect.
Taiwan Hiwin Linear Guide
Special liner guide rail good stability and long service life, low noise and high precision.
Auto Focus
Argus Laser features an upgraded cone-head touch auto-focus system, ensuring easy operation and improved focus accuracy.
Control System
The RDC6445G system by Ruida is a next-generation laser control system featuring enhanced stability, strong resistance to voltage/static, and a user-friendly 5-inch color touchscreen with powerful functions.
Get a Quote for Your Laser Cutting Needs
Tell us your material, size, and application — we’ll recommend the right configuration and offer our best price
Talk to a Specialist

TECHNICAL PARAMETERS

5070H

Model SCU5070H
Working Platform Size 500*700mm
Laser Power 30W/60W
Max Engraving Speed 800mm/s
Max. Cutting Speed 400mm/s(depends on material)
Repeated Positioning Accuracy ±0.025mm
Min Cutting Character English Letter：1.5mm
Max. Cutting Depth 6 ~ 8mm(up to the material)
Table Height Adjustment 25cm Adjustable
Red Pointer 650nm

Controlling system

 RDCAM
Table Type Honeycomb or blade

Mo Mirror Reflectivity

 95%
Focus Lens 2.0 inch
Mix Cutting Character English Letter：3mm
DC brushless servo motor Brand: Leadshine, rated speed：3,000rpm
Cooling Ways Circulation Water Cooling
Air Pump
 Power：138W
Flow Rate：100L/Min
Voltage：220V
Exhaust Fan Power:550W
Blowing Rate：18m³/min
outlet diameter：80mm
Wind Pressure：1.70Kpa
Rotaing Speed：2800RPM
Software Format Support CorelDraw, Photoshop,AutoCAD,etc
Graphic Format Support AI, PLT,BMP, DXF,DST,T100,etc
Working Temperature 0-35°C
Working Humidity 5-95%
Working Power

220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA

(can customize）

Packing Dimension

 1750*1100*1250mm
MATERIAL

CUT

 ENGRAVE
Paper ✔ ✔
Cloth ✔ ✔
Wood ✔ ✔
MDF ✔ ✔
Wood Veneer ✔ ✔
Acrylic ✔ ✔
Leather ✔ ✔
Press Board ✔ ✔
Cork ✔ ✔
Rubber ✔ ✔
Bamboo ✔ ✔
Double color ✔ ✔
Plastic ✔ ✔
Glass X ✔
Ceramic X ✔
Tile X ✔
Marble X ✔
Plyeood ✔ ✔
