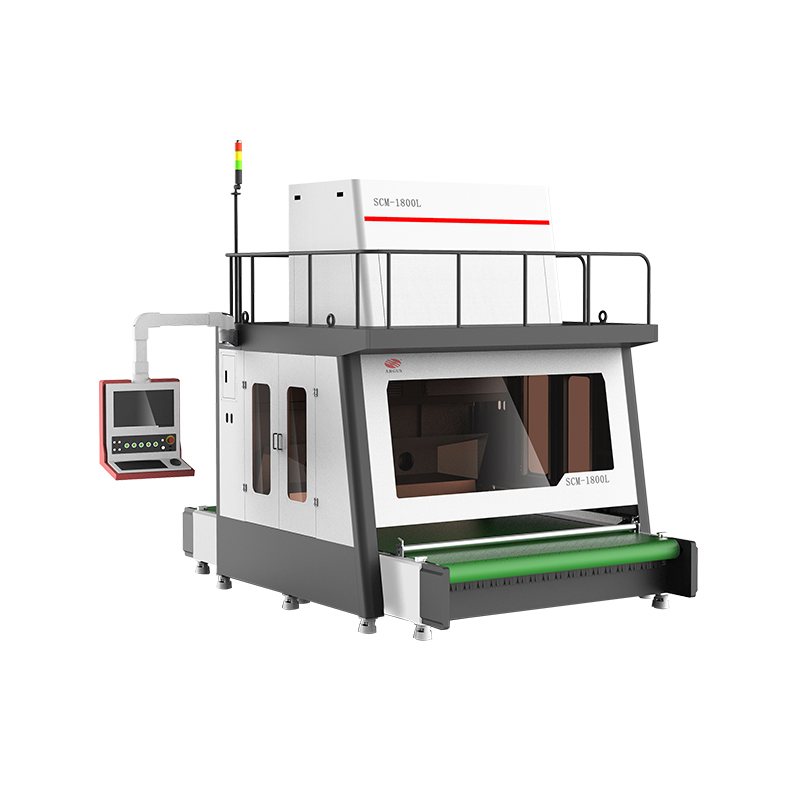

Name: ARGUS Denim Laser Engraving Machine Large Format Unlimited-Length SCM1800L
Brand: ARGUS
Rating: 5.0 (80 reviews)

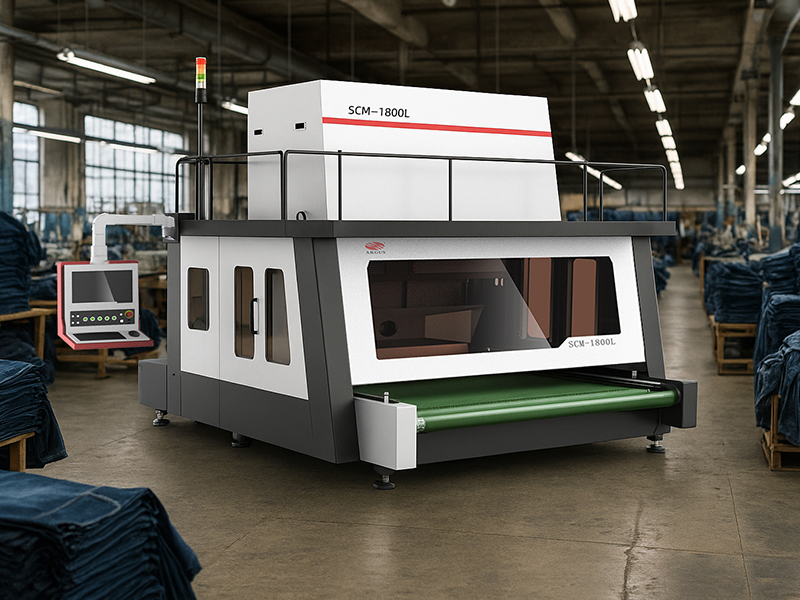

Large format Unlimited-Length Denim Laser Engraving Machine

This equipment uses laser thermal effects to non-contact ablate and etch fabrics, creating embossed patterns. With a traditional conveyor system, it supports roll-to-roll processing of large-format denim.

Get a Quote

High Quality

350W Coherent US R.F. Meta Laser Tube

High Efficiency

Max 10000mm/s Engraving Speed

High Safety

Class 1 laser safety Fully Enclosed Processing Area

Large Area

Width1800mm Unlimited Length

PRODUCTS DESCRIPTION

Main Features

1.Imported 250W/350W RF metal laser tube: adjustable power and speed for energy savings.
2.3D dynamic galvanometer head: maximum single-scan width up to 1800 mm.
3.Engraving speed of 10,000 mm/s: 20% more efficient than comparable models.
4.Micron-level precision: 50% higher yield compared to traditional methods.
5.Industrial-grade water cooling: low power consumption, stable 24/7 operation.
6.Φ20 cm large-diameter dual exhaust ports: superior smoke and dust removal performance.

7.Large-format conveyor belt: ideal for oversized materials and mass production, ensuring efficient workflow and stable precision.
8.Optional feeding and collecting system: boosts efficiency by 30% and reduces labor costs.

Solution

Denim Burning

Jacket Burning

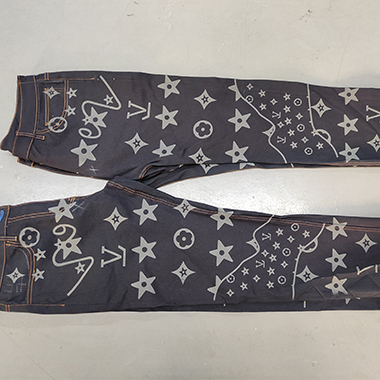

Jeans Burning

PRODUCT DISPLAY

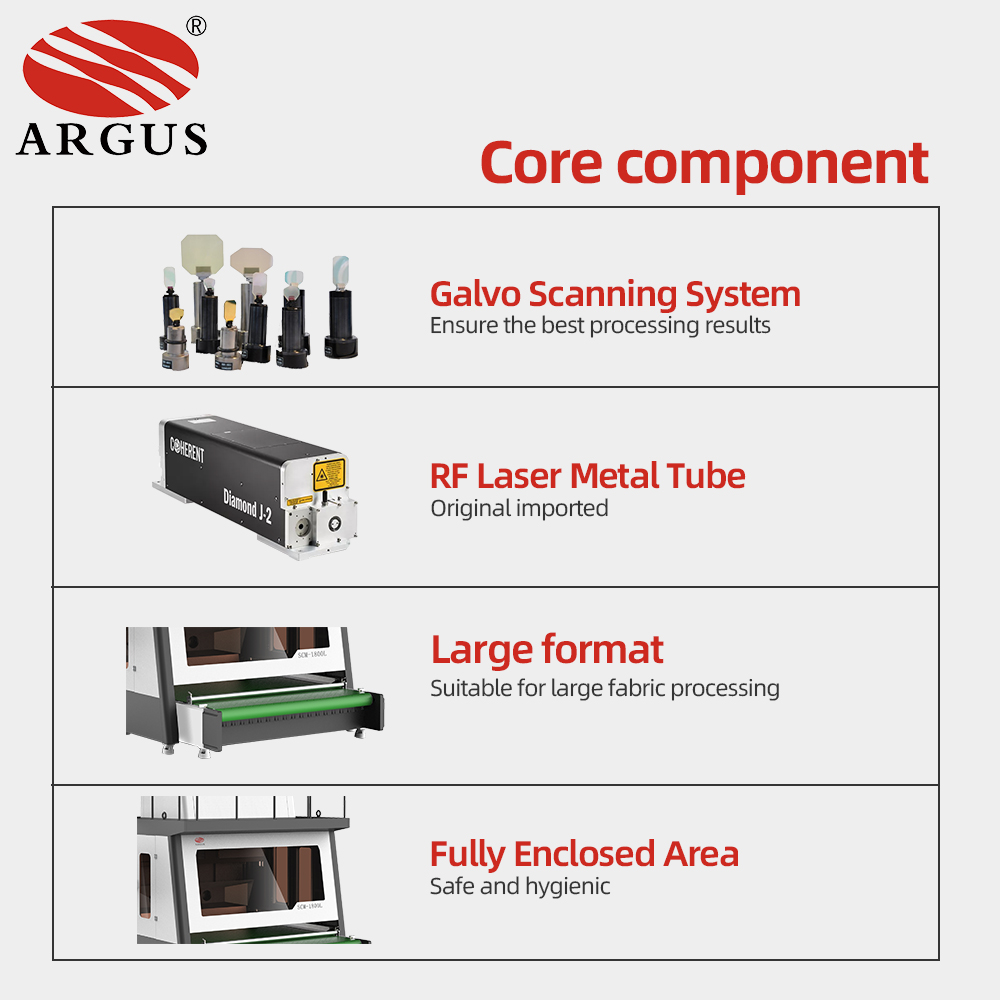

R.F. Laser Metal Tube

Original imported metal R.F. laser tube with high laser power ,excellent laser spot. Stable laser generation and life time of more than 20000hrs.

Galvo Scanning System

Use 3D dynamic focusing scanning system , focus distance can be adjusted automatically through software control, make sure every corner in the working area.

CCD Optional

CCD positioning function ensures accurate and reliable position measurement greatly improves the production efficiency of the
factory and saves labor.

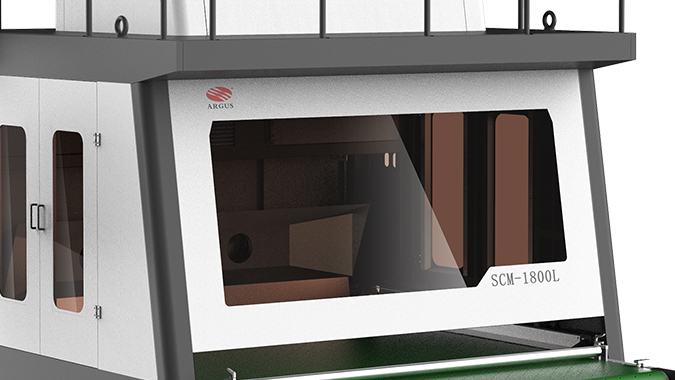

Fully Enclosed Area

The marking process can be easily observed by glass window. Safe and hygienic, prevent the spread of smoke and dust by adopt exhaust system.

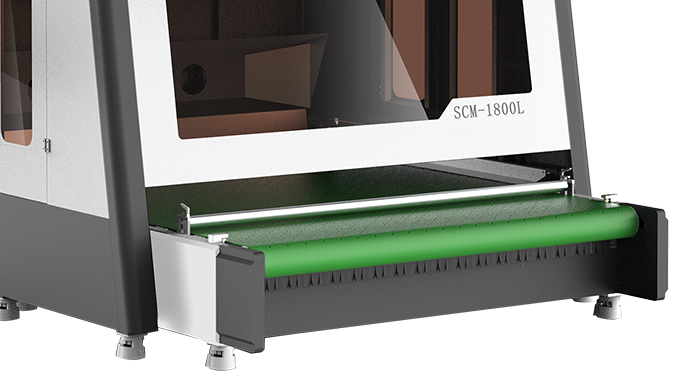

Automatic Worktable

Large marking area :Width 1800mm * Unlimited Length. Can realize marking, cutting, punching, engraving process.

Application Industry

Machining Result Presentation

Get your laser solution

Within 48H

Not sure how to choose? Not sure if it's feasible? Fill out the inquiry form now一 our laser experts will provide you with a customized solution.

Contact US

FAQs

What type of laser tube does the machine use?

It is equipped with imported 250W/350W RF metal laser tubes, with adjustable power and speed for higher energy efficiency.
How wide can the laser process in a single scan?

The 3D dynamic galvanometer head supports a maximum single-scan width of up to 1800 mm.
How fast is the engraving speed?

The machine reaches 10,000 mm/s, making it 20% more efficient than comparable models.
What level of precision can be achieved?

It delivers micron-level accuracy, resulting in a 50% higher yield compared to traditional methods.
How is the machine cooled during operation?

It adopts industrial-grade water cooling, ensuring low power consumption and stable 24/7 performance.
How does the machine handle smoke and dust?

It features Φ20 cm large-diameter dual exhaust ports for superior smoke and dust removal.
Can the machine process large materials?

Yes, it comes with a large-format conveyor belt, suitable for oversized materials and mass production, ensuring efficient workflow and stable precision.
Is there an option for automated feeding and collecting?

Yes, optional feeding and collecting systems are available, boosting efficiency by 30% and reducing labor costs.

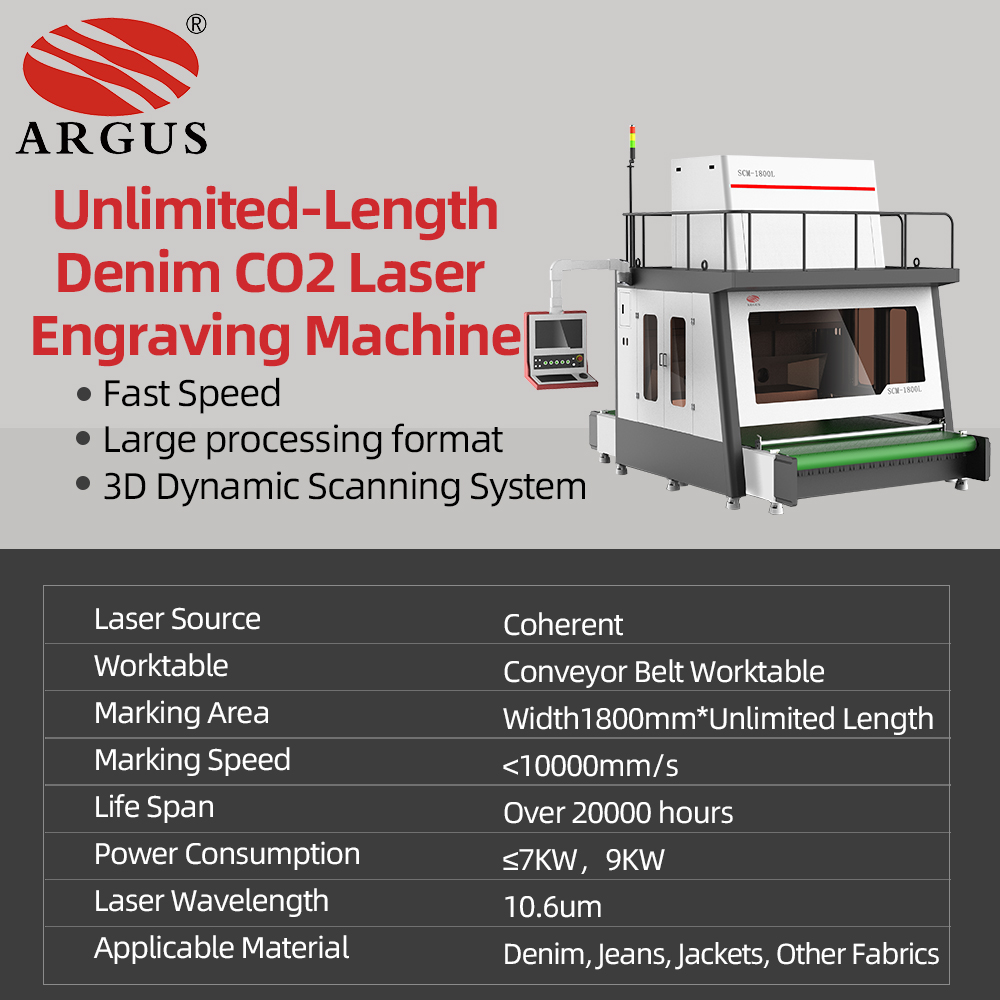

Product Parameters

1800L

Model	SCM1600L/SCM1800L/SCM2200L
Max.Marking Area	Width1600mm/1800mm/2200mm*Unlimited Length
Laser Output Power	250W(Coherent J2)
Marking speed	≤10000mm/s
Power consumption	≤7 kWh
Worktable	1.6m/1.8m/2.2m width Automatic Conveyor Belt
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Spot Quality	<1.2㎡
System Support	WIN 10
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AI etc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cuttin
Power supply	380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling

Application Scenarios

Advertising Industry	Home Industry	Hotel Industry	Bathroom Industry

Exhibition Decoration	Car Decoration	Garment Industry	Luggage Industry

SAMPLE DISPLAY

>>Fabric Cutting

>>Wallpaper Marking

>>Yoga Mat

>>Door Carpet

>>Hallway / Car Carpet
