DESKTOP CO2 LASER ENGRAVER CUTTER

1_03

30W Mini Laser Engraving Machine 4030 Co2 Laser Engraver for Monmetal

*Designed for engraving nonmetals and painted metals.

*Unique designed engraving motion system with providing efficiency work.

*Max.Practical Engraving Speed 1200mm/s.

*Multifunctional Red Light Indication, can be use to adjust optical path.

*High quality&frequency laser beam, spot diameter<0.2mm, more accurate.

Product Application

This machine is widely applied in the fine engraving, cutting and hollowing out on non-metallic materials in filed of advertising,decoration,furniture ,model manufacturing, clothing and handicraft industries.

Applicable material

Acrylic, Plastic, Wood, Plywood, Bamboo, Paper Board, Plexiglass, Ceramic, Rubber sheet, stamp, MDF, PVC, Glass, Marble, Density board, Garment, Jeans, Leather, etc.

PROUDCT DISPLAY

Product Details

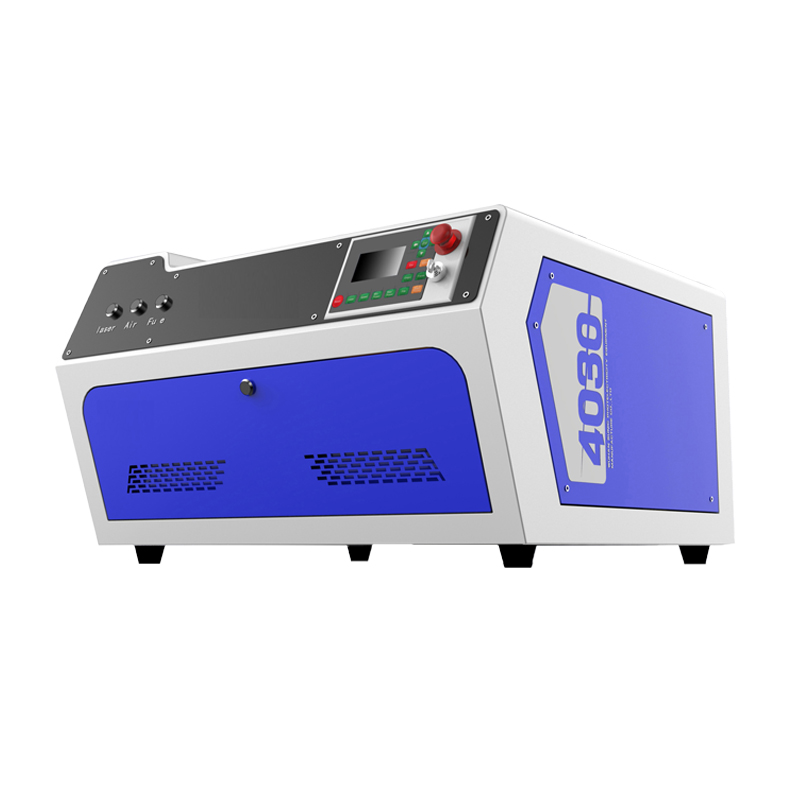

	Mini Desktop Size Integrated Mini Desktop format & Small footprint , suitable for small stores homemade DIY business.

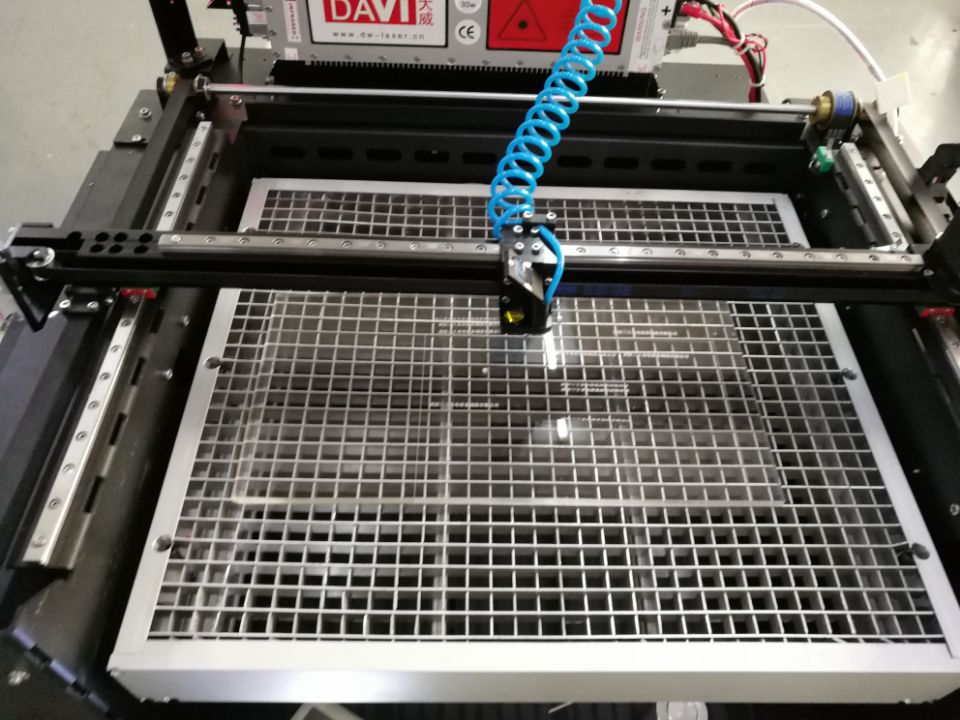

Unique Engraving Motion System 1.Can be Up to 1500mm/s engraving speed 2.Unique gantry design & RF metal laser source make 900 DPI engraving performance.

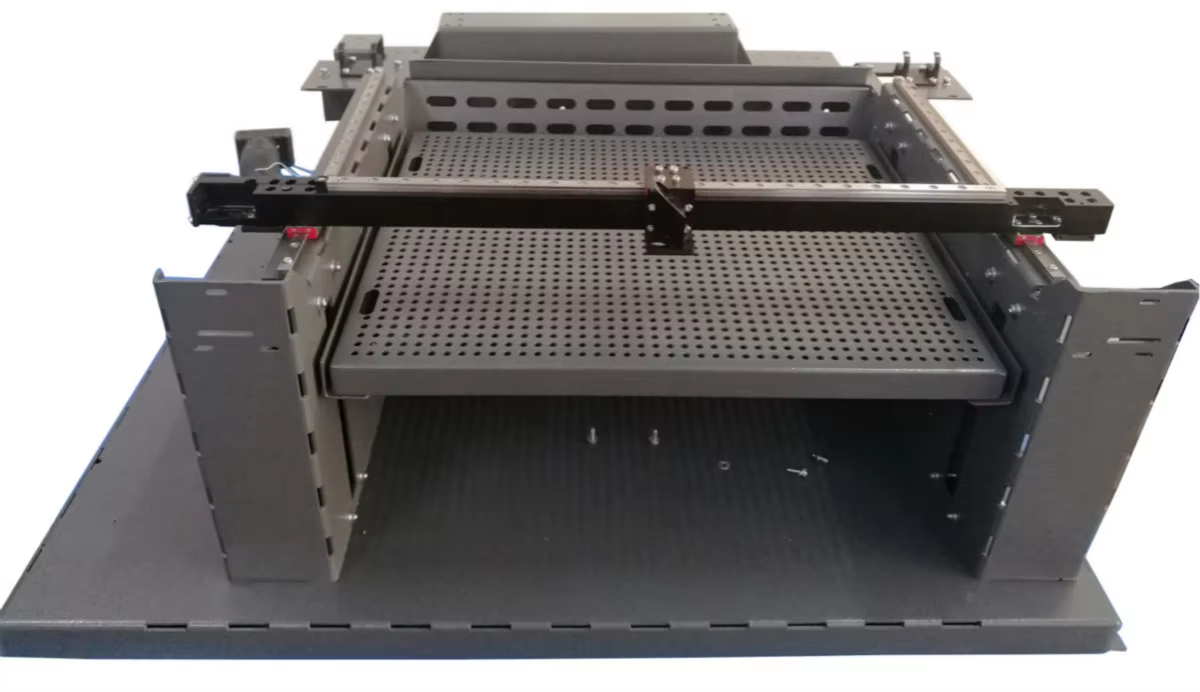

	Integrated Vacuum Table 1.Stronger square structure keep stability when high speed working. 2. The motorized table can easily be moved up and down to fit a wide variety of engraving materials and products. Engraving table provides the most flat, even engraving across the work surface.
RF Metal Laser Tube 1.30W RF metal laser tube,long lifespan 2.High Quality RF tube to meet high DPI Engraving job

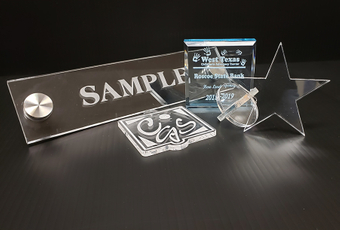

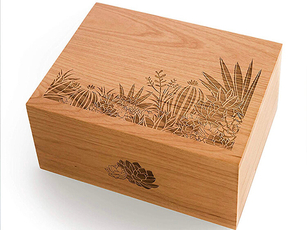

SAMPLES SHOW

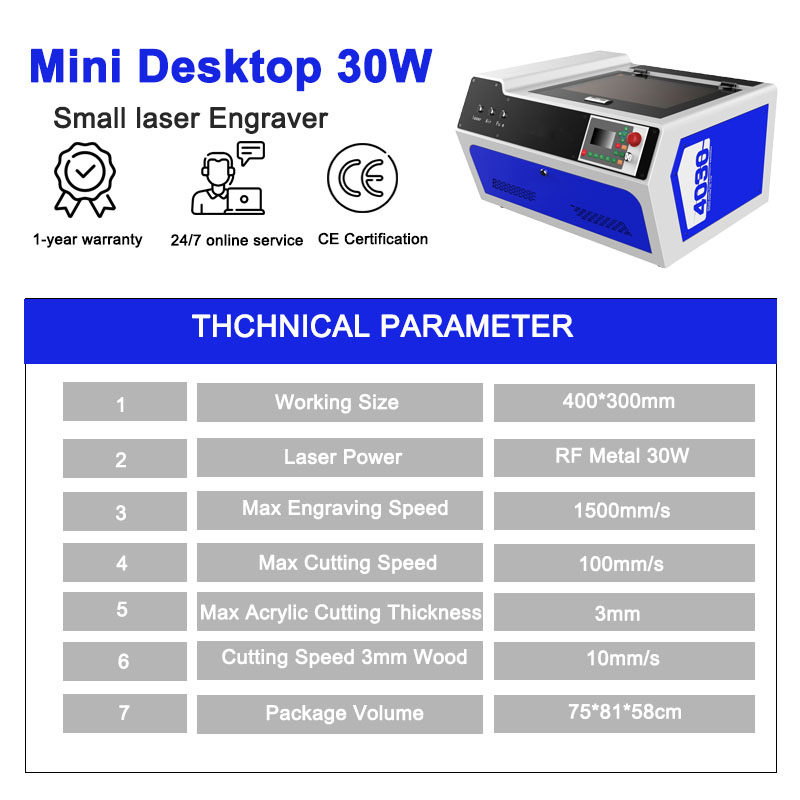

TECHNICAL PARAMETERS

SCU4030 mini laser engraving machine

SPECIFICATIONS FOR SCU4030High Speed Laser Engraving Machine
Working platform size	400 x300mm
Laser Power	RF30W
Controlling system	RUIDA
Software	RDCAM
Support format	PLT, BMP, DXF, DST,T100, etc
Process Material	Non-metal Materials
Cutting speed	≤300mm/s
Engraving speed	≤2000mm/s
Repeated accuracy	≤±0.025mm
Min. cutting character	2mm
Max. cutting depth	0-20mm(it's up to the material)
Cooling ways	Circulation water cooling
Working temperature	0-35℃
Working humidity	5-95%
Working Power	220V/50Hz/2.5kVA(Customize)
Accessories	Air pump
	Exhausting Fan
	Air Cooling
Dimension	1200X870X675mm
Net weight	120kg

Application Industry

More Possibilities

About Sunic Laser

Who are we?

Wuhan Sunic Photoelectricity Equipment Manufacture CO., LTD, located at Eastern Lake high-tech district(Optics Valley), is a high technology innovation enterprise recognized by the Chinese government. It is authorized by the government to be in charge of the "863 Project" with privilege in importing and exporting. The company is dedicated to the R&D, production, selling and service in Laser processing equipment and solar energy equipment sets.It provides the customers with complete practical solutions in this field. Today, Sunic is China's leading professional photoelectricity equipment manufacturer in Laser processing equipment with the most complete product line, widest application.
