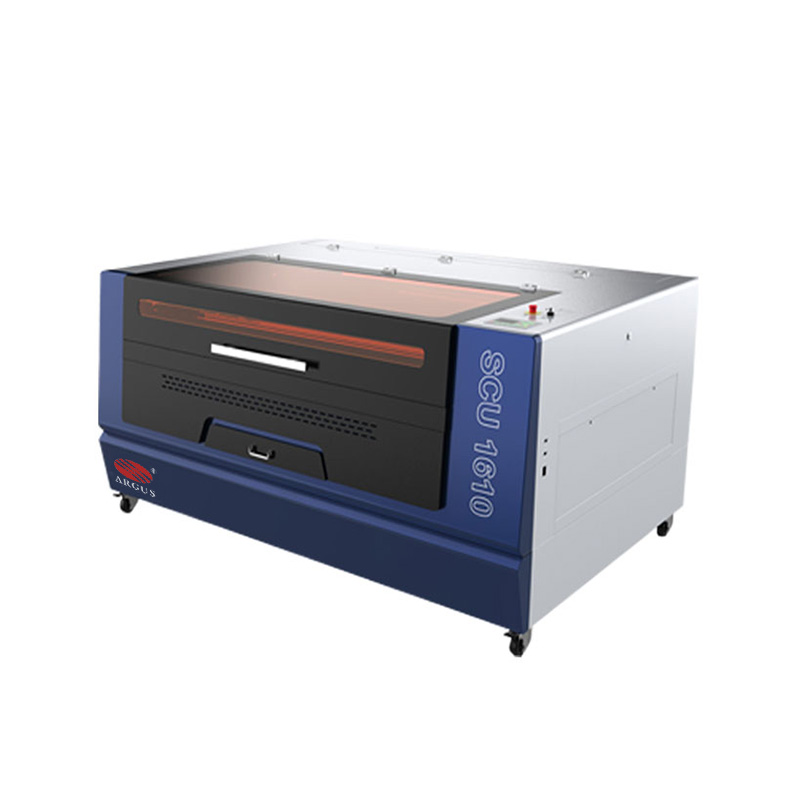

ARGUS Large Format Acrylic Wood Glass CO2 Laser Engraving Cutting Machine 100W 1610 CNC Nonmetal Cutting machine Label Printing For Sale 1600*1000mm

Features of Nonmetal Laser Engraving Cutting Machine:
1.Higher performance in terms of power and speed
2.Easy and intuitive management
3.Powerful and Steady up/down system
4.2 types of working tables(honeycomb &blades)
5.Adobe illustrator compatible
6.Industrial silent exhaust fan
7.Autofocus system
8.Applied with lens and reflector mirror, ensure high laser power efficiency
Availability:
Quantity:
  • SCU1610

  • ARGUS

LARGE FORMAT LASERENGRAVER CUTTER

8430D618-370C-4a88-90AE-74406CA9FE1F_09             8430D618-370C-4a88-90AE-74406CA9FE1F_11             8430D618-370C-4a88-90AE-74406CA9FE1F_13
High Speed 1 Year Warranty High Productivity

  • Possible processing of very large surfaces

  • Easy and intuitive management interface


CO2 LASER ENGRAVER & CUTTER7 ADVANTAGE

7 ADVANTAGE

Product Features Display

✔Long lifespan Free Maintenance and Low Cost

High performance:up to 800mm/s speed

High Repeat Precision:±0.02mm

Dustproof guide rails

Servo Motor

Unique Module Structure

Adobe illustrator compatible

微信图片_20240603202429_10
微信图片_20240603202429_18
微信图片_20240603202429_21


SPECIAL GANTRY DESIGN MODULE

1 Low Noise 微信图片_20240603202443_09
2 Long Life
3 High Precision
4 Low Maintenance


TECHNICAL PARAMETER1


Model SCU1610
Working Platform Size 1600*1000mm
Laser Power 80W/100W/130W/150W
Max Cutting Speed 500mm/s
Origin Setting(Red Pointer) Red Pointer:650nm
Max Engraving Speed 800mm/s
Table Type Aluminum Strip/Honey Comb
Table Height Adjustment 8cm--20cm Adjustable
Graphic Format Support AI, PLT, BMP, DXF, DST,T100,etc
Min Cutting Character English Letter:3mm
Max Cutting Depth 0~15mm(It's up to material)
Repeated Positioning Accuracy ±0.2mm
Process Material Non-Metal Materials
Cooling Ways Water Cooling
Air Pump Power:138W
Flow Rate:100L/Min
Vlotage:220V
Exhaust Fan Power:550W
Blowing Rate:18/min
Calibre OfOutlet:80mm
Wind Pressure:1.70Kpa
Rotaing Speed:2800RPM
Focus Lens 2.5inch
Gross Weight 500KG


PRODUCT COMPOSITION

Our CO2 laser engraving cutting machines offer a solution for highquality engraving and cutting of acrylics, cardboard, wood,textiles,two-color sign laminate, stone, and much more. Our laser machines are the most robust,accurate, and reliable on the market.


微信图片_20240601085539_06

Choice of Support Tables



We provide both a blade & Honeycomb table for laser engraving and cutting

Control Software



Friendly software, enabling the import of files: plt, ai, bmp, dxf, dst, having many useful functions, defining work values assigned to a given line color (cutting, engraving, laser speed and power)

微信图片_20240601085539_11
微信图片_20240601085539_18

Pass-through Door


Pass-through front to rear doors

Visible Red Dot Pointer



Since the CO2 laser beam is invisible the red dot pointer on the machine allows you to have a visual reference for locating where the laser will fire.

微信图片_20240601085539_23
微信图片_20240601085539_26             High Performance Motors


Stepper motor is in high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.

Unique Module Structure


The unique module structure is formed in one time assembly to avoid to manually assemble,more accuracy;Keep A axis and Y axis both 90°for 7-10 years.

微信图片_20240601085539_31
微信图片_20240601085539_34             Linear Guide Rail


Adopted Taiwan Hiwin linear guide rail,high positioning accuracy, reduce wear to maintain accuracy for a longer time.

Yongli Glass Tube


High quality laser beam,Easy to change and Long life span 12,000hrs.

微信图片_20240601085539_39


VALUE-ADDED FUNCTION(Optional)

微信图片_20240603202526_07

1.AUTO FOCUS


Control the up and down movement of the Workbench to ensure the optimal focal length between the processed material and the lens.

2.MIX CUT HEAD



Mix laser cutting machine for metal and non-metal materials

微信图片_20240603202526_19
微信图片_20240603202526_27

3.ROTARY



It assists processing of cylindrical items

4.RF METAL TUBE



R.F metal tube output the ultra high resolution and high speed in engraving cutting

微信图片_20240603202526_34


PROFIT ANALYSIS

Before Processing
After Processing
微信图片_20240603202538_03

Original cost

10USD

VS             微信图片_20240603202538_06             List price:

26USD

Net income

16USD

微信图片_20240603202538_11

Original cost

1USD

VS             微信图片_20240603202538_13

List price:

5USD

Net income

4USD

微信图片_20240603202538_17             Original cost

5USD

VS             微信图片_20240603202538_16

List price:

10USD

Net income

5USD

微信图片_20240603202538_20             Original cost

10USD

VS             微信图片_20240603202538_23

List price:

40USD

Net income

30USD


Products Made with ARGUS Laser

RUBBER
微信图片_20240603202549_11             微信图片_20240603202549_13             微信图片_20240603202549_15             微信图片_20240603202549_17
ACRYLIC
微信图片_20240603202549_29             微信图片_20240603202549_31             微信图片_20240603202549_33             微信图片_20240603202549_35
GLASS
微信图片_20240601085552_65             微信图片_20240601085552_67             微信图片_20240601085552_69             微信图片_20240601085552_71

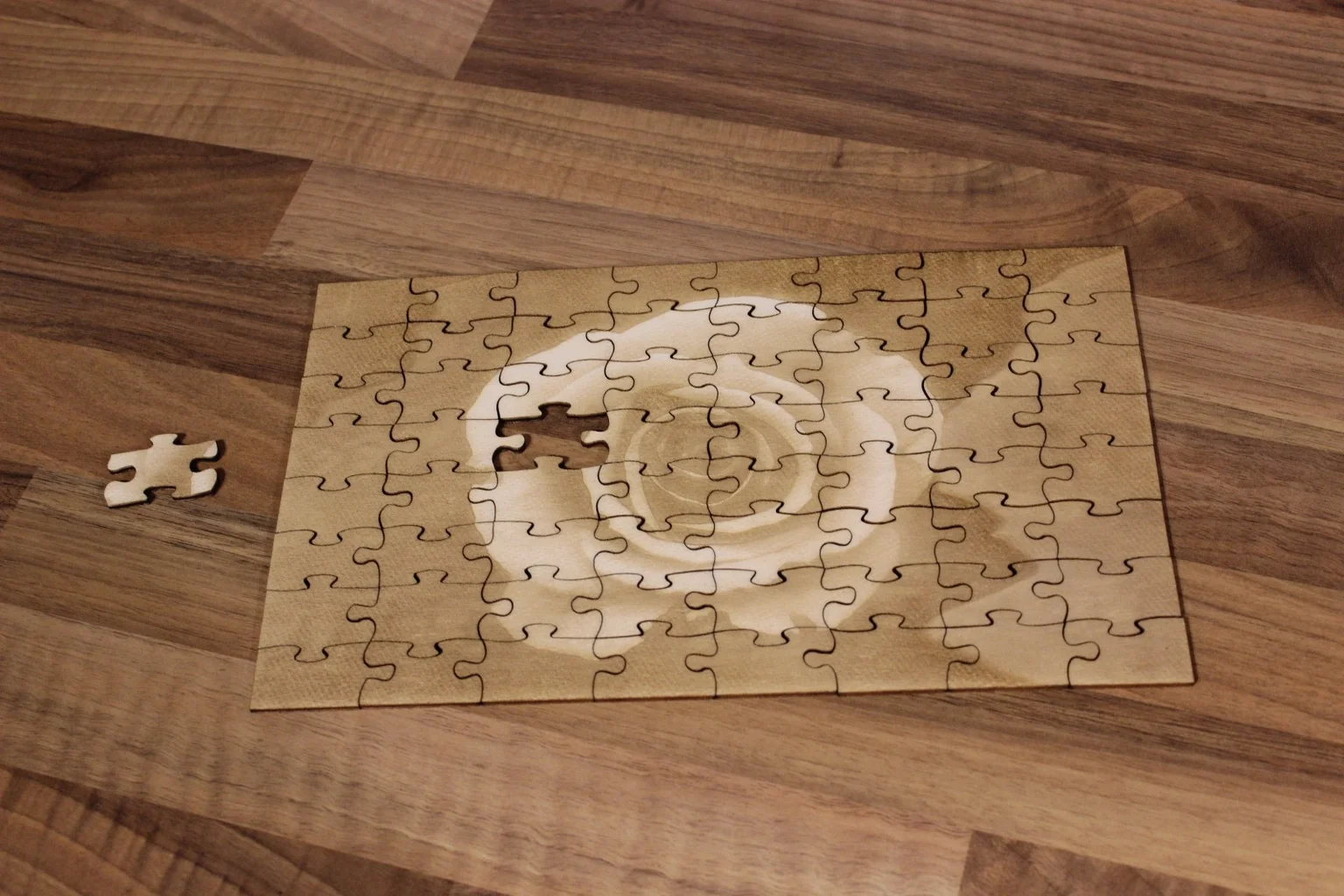

WOOD
微信图片_20240601085552_11             微信图片_20240601085552_13             微信图片_20240601085552_15             微信图片_20240601085552_17
PAPER
微信图片_20240601085552_29             微信图片_20240601085552_31             微信图片_20240601085552_33             微信图片_20240601085552_35
MARBLE

微信图片_20240601085552_101             微信图片_20240601085552_103             微信图片_20240601085552_105             微信图片_20240601085552_107


APPLICATION INDUSTRY

Applicable industry:billboards, artistic gifts, glass Products, crystal ornaments,paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc.

Applicable materials:Non-metal materials such as double color board, acrylic,glass, bamboo and wood, rubber, marble, granite and tiles, leather etc.

微信图片_20240603202602_09             微信图片_20240603202602_11             微信图片_20240603202602_13
微信图片_20240603202602_23             微信图片_20240603202602_25             微信图片_20240603202602_27


TECHNICAL PARAMETER1

Model SCU1610
Working Platform Size 1600*1000mm
Laser Power 80W/100W/130W/150W
Max Cutting Speed 500mm/s
Origin Setting(Red Pointer) Red Pointer:650nm
Max Engraving Speed 800mm/s
Table Type Aluminum Strip/Honey Comb
Table Height Adjustment 8cm--20cm Adjustable
Graphic Format Support AI, PLT, BMP, DXF, DST,T100,etc
Min Cutting Character English Letter:3mm
Max Cutting Depth 0~15mm(It's up to material)
Repeated Positioning Accuracy ±0.2mm
Process Material Non-Metal Materials
Cooling Ways Water Cooling
Air Pump Power:138W
Flow Rate:100L/Min
Vlotage:220V
Exhaust Fan Power:550W
Blowing Rate:18m/min
Calibre OfOutlet:80mm
Wind Pressure:1.70Kpa
Rotaing Speed:2800RPM
Focus Lens 2.5inch
Gross Weight 500KG


PRODUCT COMPOSITION

Our CO2 laser engraving cutting machines offer a solution for highquality engraving and cutting of acrylics, cardboard, wood,textiles,two-color sign laminate, stone, and much more. Our laser machines are the most robust,accurate, and reliable on the market.


微信图片_20240601085539_06 Choice of Support Tables


We provide both a blade & Honeycomb table for laser engraving and cutting

Control Software


Friendly software, enabling the import of files: plt, ai, bmp, dxf, dst, having many useful functions, defining work values assigned to a given line color (cutting, engraving, laser speed and power)

微信图片_20240601085539_11
微信图片_20240601085539_18

Pass-through Door


Pass-through front to rear doors

Visible Red Dot Pointer


Since the CO2 laser beam is invisible the red dot pointer on the machine allows you to have a visual reference for locating where the laser will fire.

微信图片_20240601085539_23
微信图片_20240601085539_26

High Performance Motors


Stepper motor is in high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.

Unique Module Structure


The unique module structure is formed in one time assembly to avoid to manually assemble,more accuracy;Keep A axis and Y axis both 90°for 7-10 years.

微信图片_20240601085539_31
微信图片_20240601085539_34

Linear Guide Rail


Adopted Taiwan Hiwin linear guide rail,high positioning accuracy, reduce wear to maintain accuracy for a longer time.

Yongli Glass Tube


High quality laser beam,Easy to change and Long life span 12,000hrs.

微信图片_20240601085539_39


VALUE-ADDED FUNCTION(Optional)

微信图片_20240603202526_07

1.AUTO FOCUS


Control the up and down movement of the Workbench to ensure the optimal focal length between the processed material and the lens.

2.MIX CUT HEAD


Mix laser cutting machine for metal and non-metal materials

微信图片_20240603202526_19
微信图片_20240603202526_27

3.ROTARY


It assists processing of cylindrical items

4.RF METAL TUBE


R.F metal tube output the ultra high resolution and high speed in engraving cutting

微信图片_20240603202526_34
