ARGUS Laser Cutting Engraving Machine 30W 60W Laser Cutter 500*700mm Wood Glass Engraving Laser Machine

* High level of accuracy and high cutting speed of thin materials
* High quality laser tube provides the strong beam and long service life.
* Super Strong Fully Enclosed Machine Body
* Integrated Autofocus
Availability:
Quantity:
Inquire Add to Basket

  • SCU5070

Precision Meets Versatility – Argus 5070 Laser Engraving & Cutting Machine
Compact yet powerful, the Argus 5070 CO₂ laser machine is built for high-precision engraving and cutting on wood, acrylic, leather, and more.Perfect for workshops, small businesses, and creative studios looking for industrial-grade results in a space-saving design.
Learn More
Efficient size with a spacious 500×700mm working area.
High-speed, high-accuracy engraving for fine detail work.
Stable, industrial-grade quality trusted by thousands.
Smart control system with user-friendly interface.
Smart, Compact & Powerful — Everything You Need in One Laser Machine
✦Up to 2000mm/s with high-speed servo motors — 3× faster than stepper motors
✦Cuts thick materials with higher wattage options
✦Glass tube life up to 10,000 hrs; RF metal tube available, 1,200 DPI
✦Electric lift table for easy height adjustment
✦Auto-focus, Red Dot Pointer, Status Light included
✦Reinforced frame ensures smooth, stable performance
✦Optional add-ons available for multiple functions
Get a Quote Now
One Machine
Every Material
High Precision
The Argus 5070 delivers smooth engraving and clean cutting across wood, acrylic, leather, and more — all while maintaining consistent, high-speed performance.
Request a Free Demo
Endless Applications Infinite Possibilities
  • Tumbler
  • Marble
  • Wood
  • Acrylic
  • Paper
Honeycome/Knife Blade Platform
Honeycomb or Strip work table for you to choose, use imported stable aluminum material, can meet the needs of diversified laser procession
Hiwin Guide Rail
Equipped with Taiwan Hiwin guide rail, with features of high positioning accuracy, strong load bearing and good dynamic performance
Auto Focus
Argus Laser features an upgraded cone-head touch auto-focus system, ensuring easy operation and improved focus accuracy.
RF Metal Tube
 Over 20000 hours lifespan, can refill Co2 gas 5-7 times
Smaller laser beam spot reach DPI 1200
Fast response for high effciency processing
FAQ
  • What materials can the laser engraving and cutting machine work on?
    加 Created with Sketch.
    形状 Created with Sketch.
    Our CO₂ laser machines are compatible with wood, acrylic, leather, MDF, paper, rubber, and more. They are not suitable for metal engraving unless specially configured.

  • Can the machine both engrave and cut?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. One machine can perform both high-resolution engraving and clean cutting — depending on the laser power and material thickness.

  • What software does the machine use?
    加 Created with Sketch.
    形状 Created with Sketch.
    Our machines are compatible with RDWorks and LightBurn. Both support common file formats like AI, DXF, BMP, and SVG.

  • How do I adjust the focus for different material thicknesses?
    加 Created with Sketch.
    形状 Created with Sketch.
    Many models come with auto-focus or adjustable Z-axis. Simply set the correct focus distance for each material to ensure precision.

Ready to Start Your Laser Project?
Tell us what you need — we’ll recommend the right laser machine for your business.
Fast reply, expert advice, and competitive pricing guaranteed.

TECHNICAL PARAMETERS

5070 co2 laser engraving machine

Model SCU5070
Working Platform Size 700*500mm
Laser Power CO₂ 30W/60W
Origin Setting(Red Pointer) Red Light Pointer：650nm
Controlling system RDCAM
Table Type Aluminum Strip/Honey Comb
3-Phase Stepper Motor Phase Current：3.5A
Whole Stepping Angle：1.2°
Torque：0.9N.m
Table Height Adjustment 20cm Adjustable
Software Format Support CorelDraw,Photoshop,AutoCAD,ect
Graphic Format Support AI, PLT, BMP, DXF, DST,T100,etc
Max Engraving Speed 2000mm/s
Max Cutting Speed 150mm/s
Repeated Positioning Accuracy ±0.2mm
Min Cutting Character English Letter：1.5mm
Max Cutting Depth 10mm(It's up to material)
Cooling Ways Circulation Water Cooling
Working Temperature 0~35℃
Working Humidty 5~95%
Working Power 220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA
Packing Dimension 1480*1160*1250mm
Net Weight

250KG

Gross Weight

380KG
Cubage 2CMB


Industry Applications
  • Signage and Advertising
  • Packaging industry
  • Furniture Industry
  • Art and Design
  • Decorative Elements
  • Clothing industry
More possibilities...

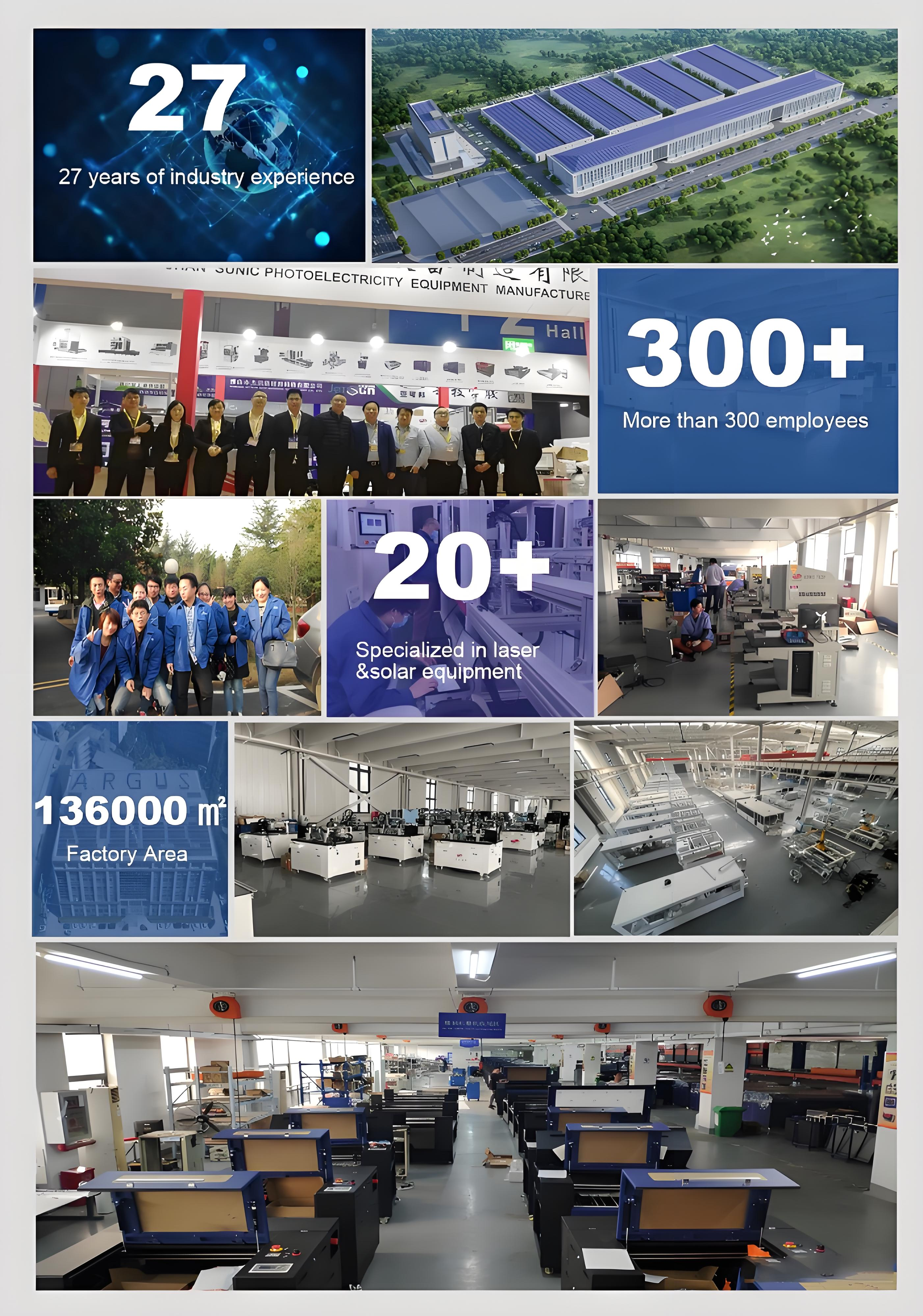

About Sunic Laser

三工光电鸟瞰2


Who are we?


Wuhan Sunic Photoelectricity Equipment Manufacture CO., LTD, located at Eastern Lake high-tech district(Optics Valley), is a high technology innovation enterprise recognized by the Chinese government. It is authorized by the government to be in charge of the "863 Project" with privilege in importing and exporting. The company is dedicated to the R&D, production, selling and service in Laser processing equipment and solar energy equipment sets.It provides the customers with complete practical solutions in this field. Today, Sunic is China's leading professional photoelectricity equipment manufacturer in Laser processing equipment with the most complete product line, widest application.
